NSN 5305-01-254-6359 SW21525, 01-254-6359, 012546359
Product Details | SETSCREW
5305-01-254-6359 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: SW21525, 5305-01-254-6359, 01-254-6359, 5305012546359, 012546359
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 MAY 1987 | 01-254-6359 | 06672 ( SETSCREW ) |
Drawings & Photos | NSN 5305-01-254-6359
Cross Reference | NSN 5305-01-254-6359
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SW21525 | 98255 | DRS SUSTAINMENT SYSTEMS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-254-6359
Related Products | NSN 5305-01-254-6359
Technical Data | NSN 5305-01-254-6359
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| FASTENER LENGTH | 1.000 INCHES NOMINAL |
| HEAD STYLE | C13 SQUARE |
| HEAD HEIGHT | 0.380 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.380 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | D21 WITHOUT INTERNAL DRIVE |

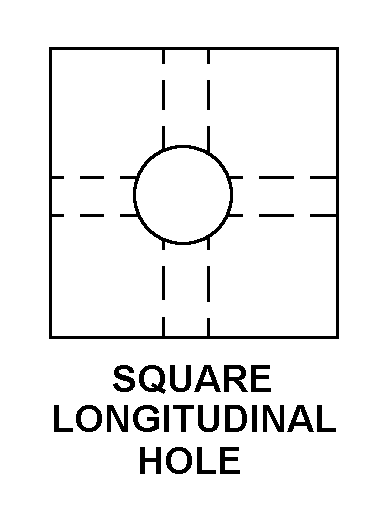

| HOLE CONFIGURATION STYLE | E15 SQUARE LONGITUDINAL HOLE |
| HOLE TYPE | DRILLED |
| HOLE QUANTITY | 1 |
| HOLE DIAMETER | 0.093 INCHES NOMINAL |
| POINT STYLE | F19 FLAT |
| MANUFACTURERS CODE | 98255 |
| DESIGN CONTROL REFERENCE | SW21525 |
