NSN 5305-01-247-6829 P1512138, P-15121-38, 6108144140C14280542B
Product Details | ASSEMBLED WASHER SCREW

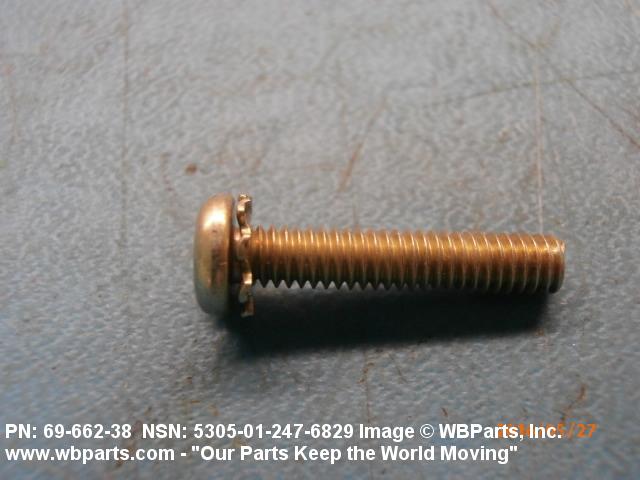

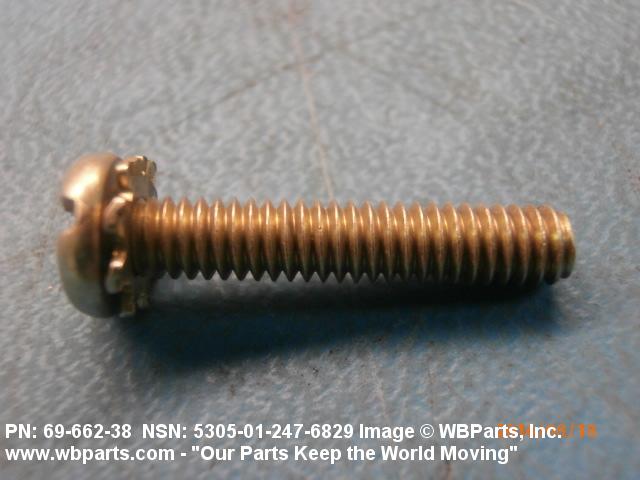

5305-01-247-6829 A SCREW, (as modified) to which has been assembled one or more nonremovable washer(s).
Part Alternates: P1512138, P-15121-38, 6108144140C14280542B, 61-081441-40-C1428-0542B, 6966238, 69-662-38, 5305-01-247-6829, 01-247-6829, 5305012476829, 012476829
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 JAN 1987 | 01-247-6829 | 06660 ( SCREW, ASSEMBLED WASHER ) |

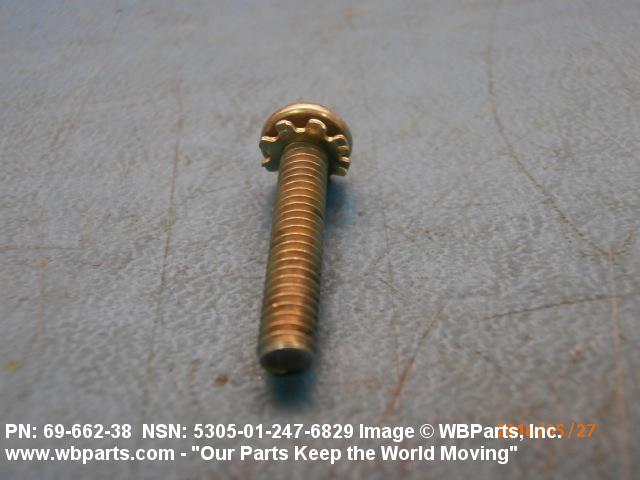

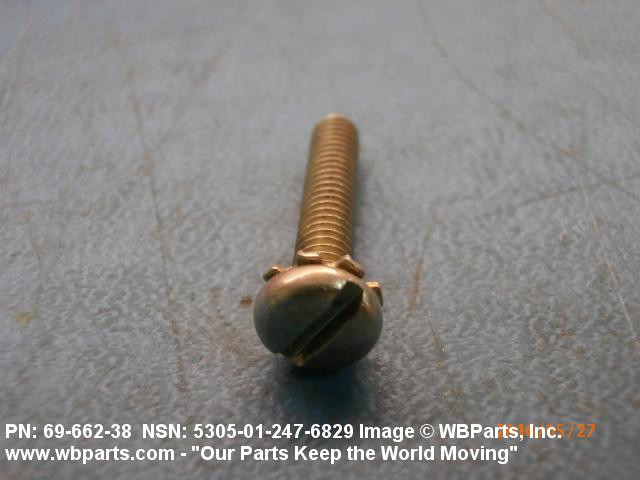

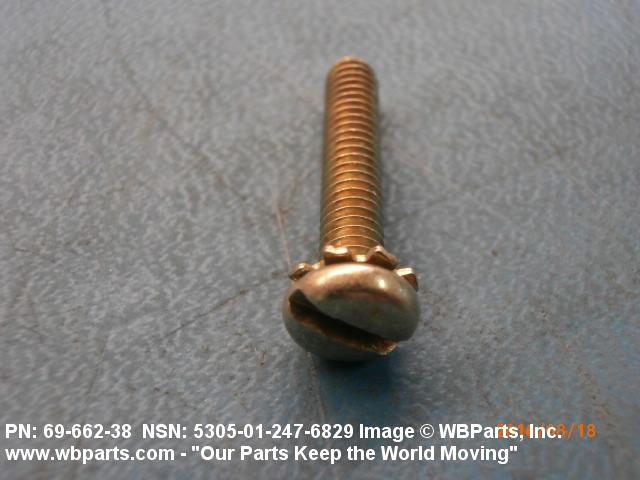

Drawings & Photos | NSN 5305-01-247-6829
Demand History | NSN 5305-01-247-6829
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-247-6829 | 2023-12-351 | 6991 | DIBBS |
| 5305-01-247-6829 | 2022-12-342 | 6414 | DIBBS |
| 5305-01-247-6829 | 2022-12-341 | 2108 | DIBBS |
| 5305-01-247-6829 | 2022-11-326 | 2108 | DIBBS |
| 5305-01-247-6829 | 2022-06-180 | 6414 | DIBBS |
| 5305-01-247-6829 | 2019-03-64 | 5 | US |
| P1512138 | 2019-02-45 | 5 | United States |
| P1512138 | 2018-11-334 | 150 | United States |
| P1512138 | 2016-09-247 | 100 | US |
| 5305-01-247-6829 | 2016-08-214 | 50 | United States |
| 5305-01-247-6829 | 2016-05-123 | 50 | United States |
| 5305-01-247-6829 | 2016-04-117 | 50 | United States |
| 5305-01-247-6829 | 2012-03-61 | 29741 | DIBBS |
| 5305-01-247-6829 | 2011-08-238 | 3750 | DIBBS |
| 5305-01-247-6829 | 2010-11-309 | 2480 | DIBBS |
| 5305-01-247-6829 | 2010-08-217 | 3292 | DIBBS |
| 5305-01-247-6829 | 2010-06-153 | 1162 | DIBBS |
| 5305-01-247-6829 | 2009-11-314 | 1114 | DIBBS |
| 5305-01-247-6829 | 2009-03-76 | 715 | DIBBS |
| 5305-01-247-6829 | 2008-11-317 | 458 | DIBBS |
| 5305-01-247-6829 | 2008-10-281 | 541 | DIBBS |
| 5305-01-247-6829 | 2008-08-220 | 448 | DIBBS |
| P1512138 | 2008-05-137 | 3500 | United States |
| 5305-01-247-6829 | 2008-03-71 | 565 | DIBBS |
Cross Reference | NSN 5305-01-247-6829
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-247-6829
Related Products | NSN 5305-01-247-6829
Technical Data | NSN 5305-01-247-6829

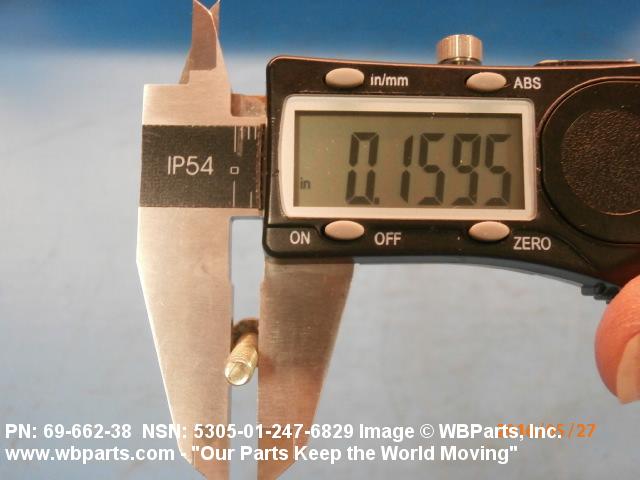

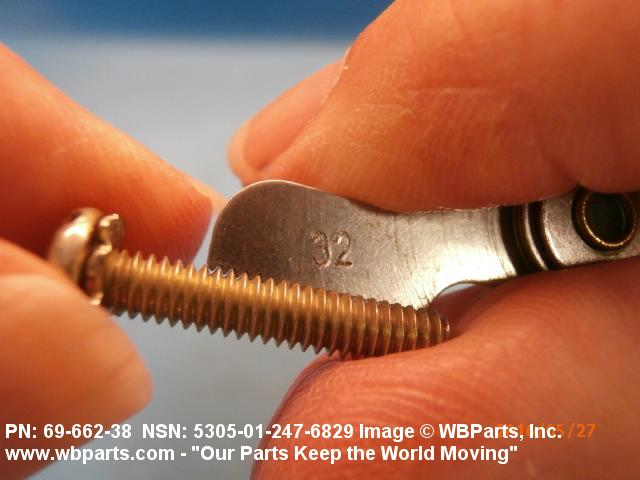

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |

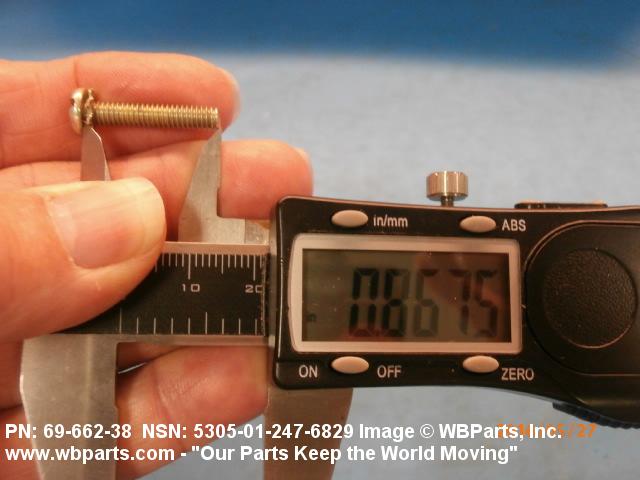

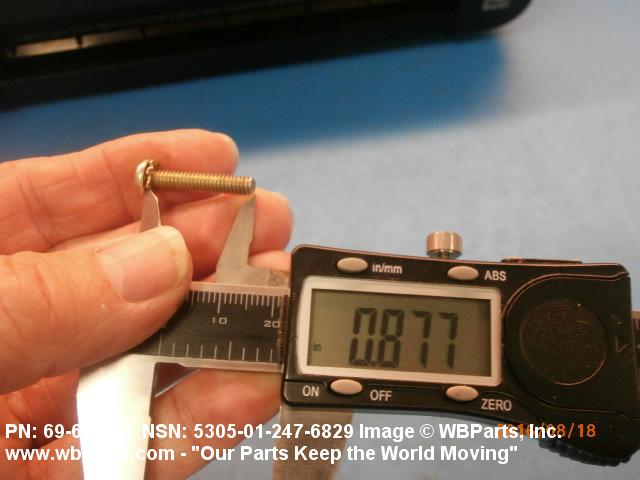

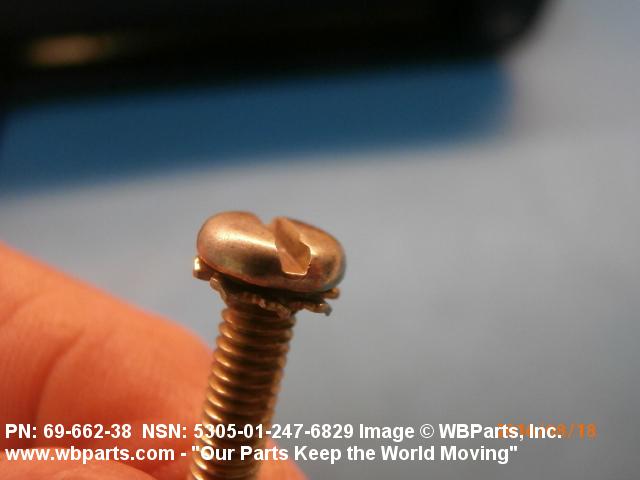

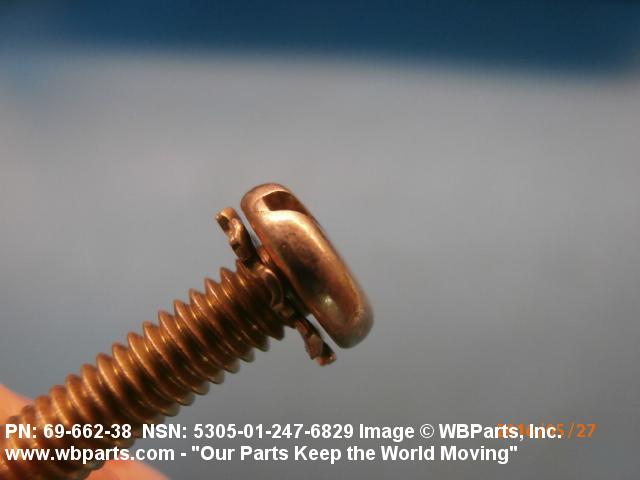

| FASTENER LENGTH | 0.880 INCHES NOMINAL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE PRIMARY WASHER CADMIUM AND CHROMATE FASTENER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE PRIMARY WASHER QQ-P-416,TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE FASTENER |
| HEAD STYLE | C33 PAN NO. 2 |

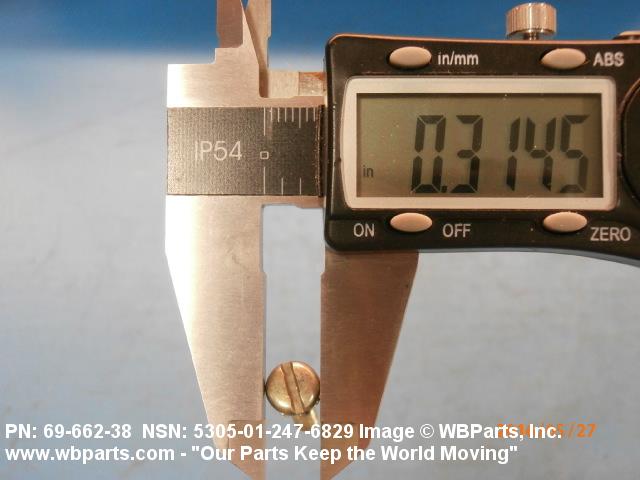

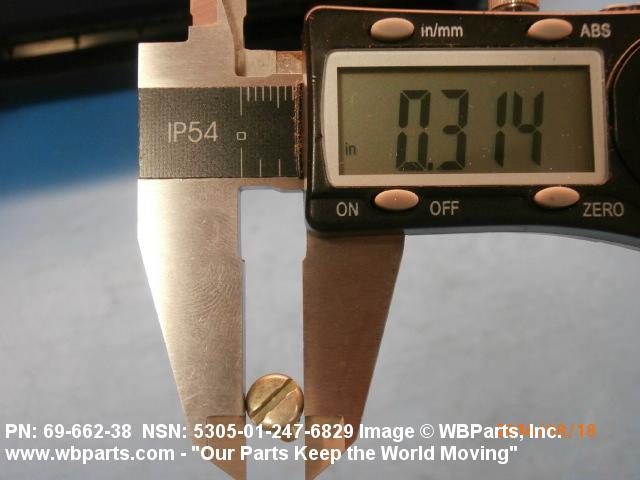

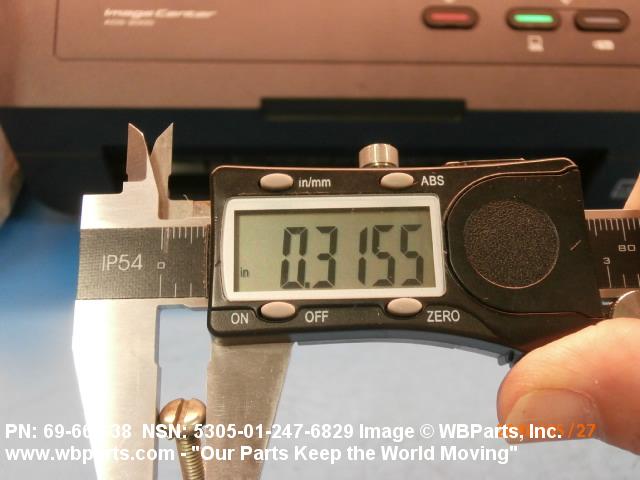

| HEAD DIAMETER | 0.306 INCHES MINIMUM AND 0.322 INCHES MAXIMUM |

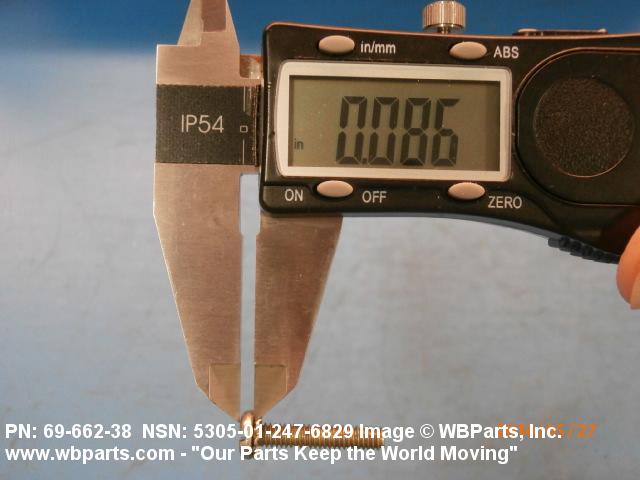

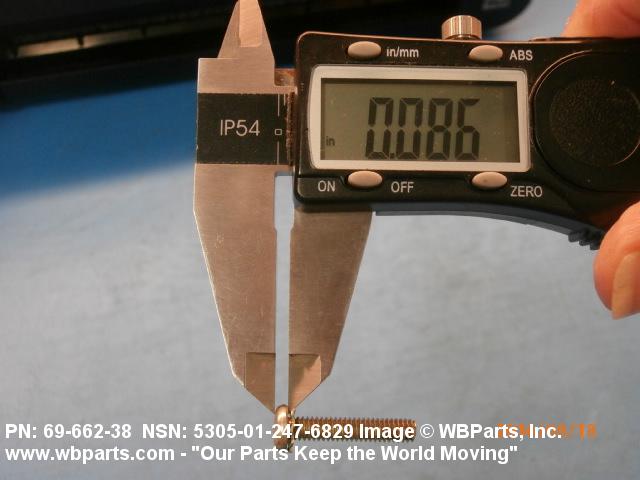

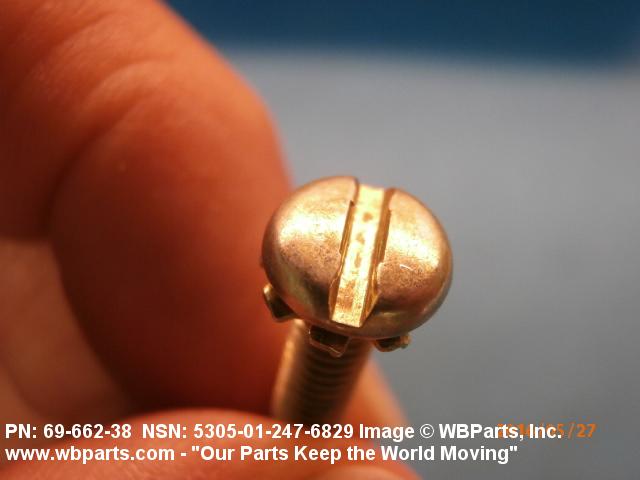

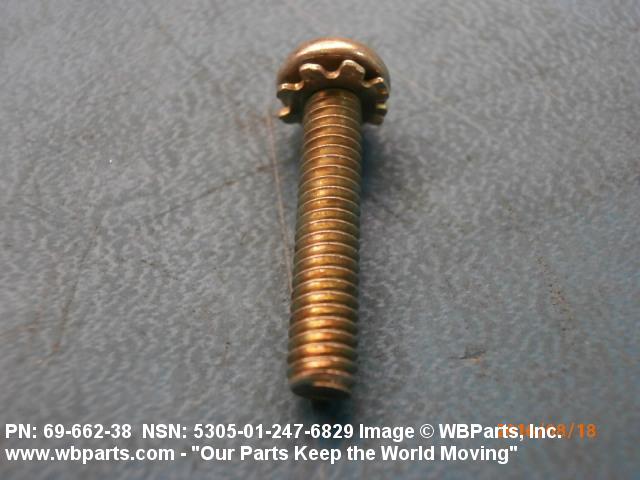

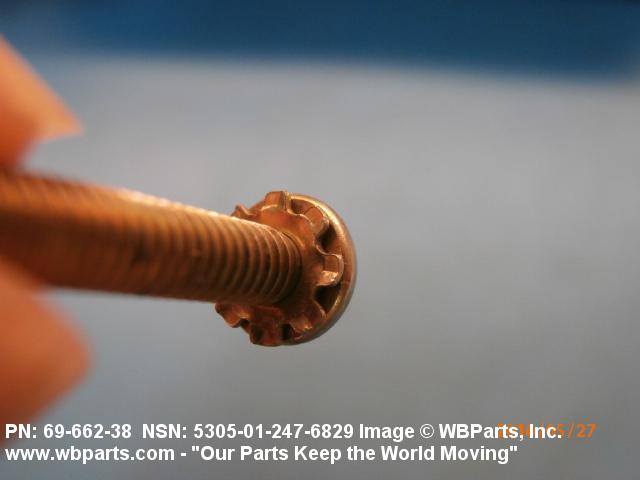

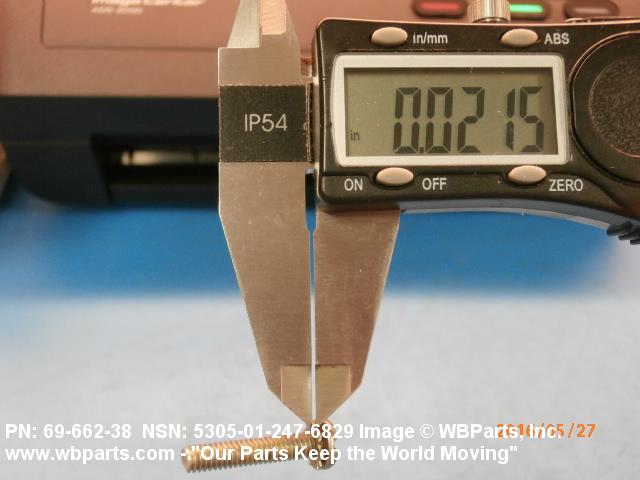

| HEAD HEIGHT | 0.085 INCHES MINIMUM AND 0.096 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D14 SLOT |
| WASHER QUANTITY | 1 |
| PRIMARY WASHER STYLE | G1 FLAT EXTERNAL TEETH |
| PRIMARY WASHER OUTSIDE DIAMETER | 0.327 INCHES MINIMUM AND 0.338 INCHES MAXIMUM |
| PRIMARY WASHER MATERIAL THICKNESS | 0.018 INCHES MINIMUM AND 0.023 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5305-01-247-6829
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
