NSN 5305-01-242-5953 455176, 01-242-5953, 012425953
Product Details | ASSEMBLED WASHER SCREW
5305-01-242-5953 A SCREW, (as modified) to which has been assembled one or more nonremovable washer(s).
Part Alternates: 455176, 5305-01-242-5953, 01-242-5953, 5305012425953, 012425953
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 OCT 1986 | 01-242-5953 | 06660 ( SCREW, ASSEMBLED WASHER ) |
Drawings & Photos | NSN 5305-01-242-5953
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-242-5953
Related Products | NSN 5305-01-242-5953
Technical Data | NSN 5305-01-242-5953
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.216 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.636 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| FASTENER LENGTH | 0.719 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE ASSN STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM OR ZINC OVERALL |
| HEAD STYLE | C32 PAN |
| HEAD DIAMETER | 0.407 INCHES MINIMUM AND 0.425 INCHES MAXIMUM |
| HEAD HEIGHT | 0.139 INCHES MINIMUM AND 0.151 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D1 CROSS RECESS TYPE 1 |
| WASHER QUANTITY | 1 |

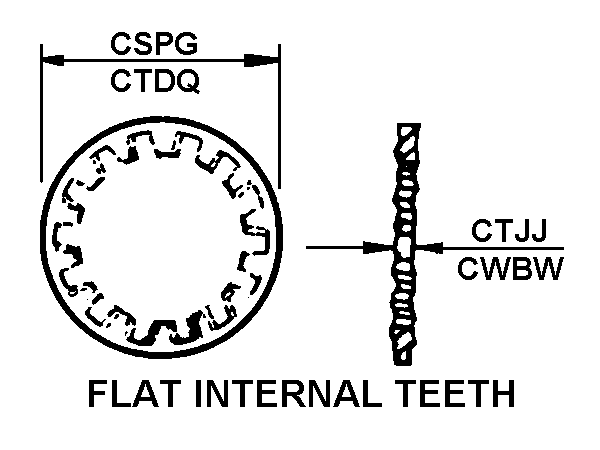

| PRIMARY WASHER STYLE | G2 FLAT INTERNAL TEETH |
| PRIMARY WASHER OUTSIDE DIAMETER | 0.396 INCHES MINIMUM AND 0.408 INCHES MAXIMUM |
| PRIMARY WASHER MATERIAL THICKNESS | 0.020 INCHES MINIMUM AND 0.025 INCHES MAXIMUM |
