NSN 5305-01-160-3938 11503675, 11515358, 3975550
Product Details | TAPPING SCREW
5305-01-160-3938 A hardened externally threaded fastener whose thread extends to the bearing surface of the head. The thread may be fluted or otherwise designed to cut or form its own mating thread. Excludes SCREW, ASSEMBLED WASHER.
Part Alternates: 11503675, 11515358, 3975550, 9416187, 9419402, 5305-01-160-3938, 01-160-3938, 5305011603938, 011603938
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 AUG 1983 | 01-160-3938 | 41756 ( SCREW, TAPPING ) |
Drawings & Photos | NSN 5305-01-160-3938
Demand History | NSN 5305-01-160-3938
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 11503675 | 2013-08-229 | 46 | Canada |
Cross Reference | NSN 5305-01-160-3938
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11503675 | 11862 | GENERAL MOTORS CORP CHEVROLET MOTOR DIV |
| 11503675 | 17769 | L AND S INDUSTRIES INC |
| 11515358 | 11862 | GENERAL MOTORS CORP CHEVROLET MOTOR DIV |
| 11515358 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 3975550 | 11862 | GENERAL MOTORS CORP CHEVROLET MOTOR DIV |
| 9416187 | 24617 | GENERAL MOTORS CORP |
| 9419402 | 11862 | GENERAL MOTORS CORP CHEVROLET MOTOR DIV |
| 9419402 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-160-3938
Related Products | NSN 5305-01-160-3938
Technical Data | NSN 5305-01-160-3938
| Characteristic | Specifications |
|---|---|

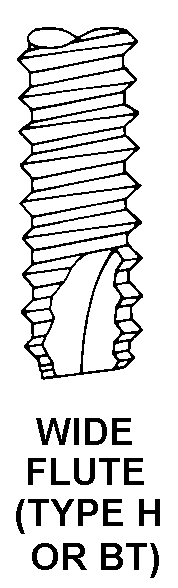

| NONMACHINE THREAD STYLE | A5 WIDE FLUTE |
