NSN 5305-01-132-3366 01-132-3366, 011323366
Product Details | TAPPING SCREW
5305-01-132-3366 A hardened externally threaded fastener whose thread extends to the bearing surface of the head. The thread may be fluted or otherwise designed to cut or form its own mating thread. Excludes SCREW, ASSEMBLED WASHER.
Part Alternates: 5305-01-132-3366, 01-132-3366, 5305011323366, 011323366
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01-132-3366 | 41756 ( SCREW, TAPPING ) |
Drawings & Photos | NSN 5305-01-132-3366
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-132-3366
Technical Data | NSN 5305-01-132-3366
| Characteristic | Specifications |
|---|---|

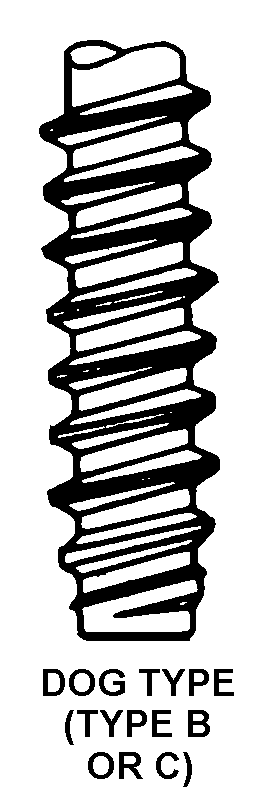

| NONMACHINE THREAD STYLE | A12 DOG TYPE |
| NONMACHINE NOMINAL THREAD DIAMETER | 0.190 INCHES |
| FASTENER LENGTH | 0.500 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| HEAD STYLE | C7 HEXAGON EXTENDED WASHER |
| HEAD HEIGHT | 0.124 INCHES MINIMUM AND 0.151 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.305 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| EXTENDED WASHER DIAMETER | 0.384 INCHES MINIMUM AND 0.414 INCHES MAXIMUM |
| EXTENDED WASHER THICKNESS | 0.019 INCHES MINIMUM AND 0.031 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D14 SLOT |
| FEATURES PROVIDED | CASEHARDENED |
| MANUFACTURERS CODE | 0F882 |
| DESIGN CONTROL REFERENCE | 15752248-001 |
Restrictions/Controls & Freight Information | NSN 5305-01-132-3366
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
