NSN 5305-01-117-5039 NAS1352N04H4, STD8931, STD893-1

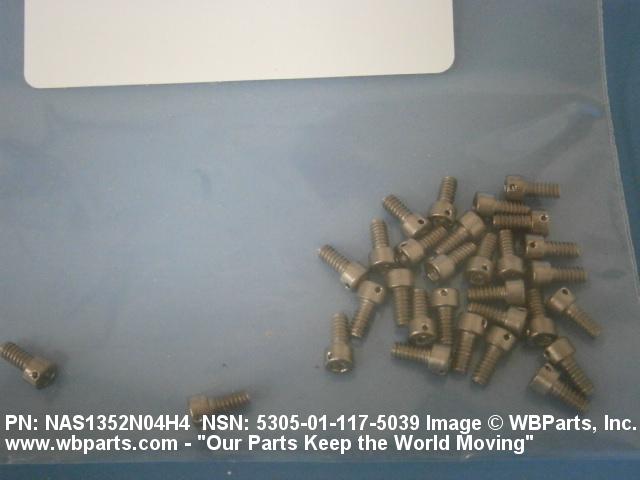

Product Details | SOCKET HEAD CAP SCREW
5305-01-117-5039 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: NAS1352N04H4, STD8931, STD893-1, 5305-01-117-5039, 01-117-5039, 5305011175039, 011175039
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 AUG 1981 | 01-117-5039 | 16282 ( SCREW, CAP, SOCKET HEAD ) |
Drawings & Photos | NSN 5305-01-117-5039
Demand History | NSN 5305-01-117-5039
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-117-5039 | 2024-11-309 | 88 | DIBBS |
| NAS1352N04H4 | 2021-06-161 | 100 | US |
| 5305-01-117-5039 | 2016-03-91 | 56 | DIBBS |
| NAS1352N04H4 | 2011-11-332 | 30 | United States |
| NAS1352N04H4 | 2011-07-207 | 1 | LK |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-117-5039
Related Products | NSN 5305-01-117-5039
Technical Data | NSN 5305-01-117-5039
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNRC |
| NOMINAL THREAD DIAMETER | 0.112 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.170 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| FASTENER LENGTH | 0.220 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5731 ASSN STD SINGLE MATERIAL RESPONSE OR AMS5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C49 FLAT CHAMFER |
| HEAD DIAMETER | 0.176 INCHES MINIMUM AND 0.183 INCHES MAXIMUM |
| HEAD HEIGHT | 0.108 INCHES MINIMUM AND 0.112 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 0.094 INCHES MINIMUM AND 0.095 INCHES MAXIMUM |
| HOLE CONFIGURATION STYLE | E11 ROUND INTERNAL HEXAGON |
| HOLE TYPE | DRILLED |
| HOLE QUANTITY | 2 |
| HOLE DIAMETER | 0.033 INCHES MINIMUM AND 0.039 INCHES MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS1352 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5305-01-117-5039
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
