NSN 5305-01-116-5423 10115042 , 196B85793, 196B8579-3
Product Details | MACHINE SCREW
5305-01-116-5423 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: 10115042 , 196B85793, 196B8579-3, 62131125152131, 621311-251521-3-1, 5305-01-116-5423, 01-116-5423, 5305011165423, 011165423
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 JUL 1981 | 01-116-5423 | 06657 ( SCREW, MACHINE ) |

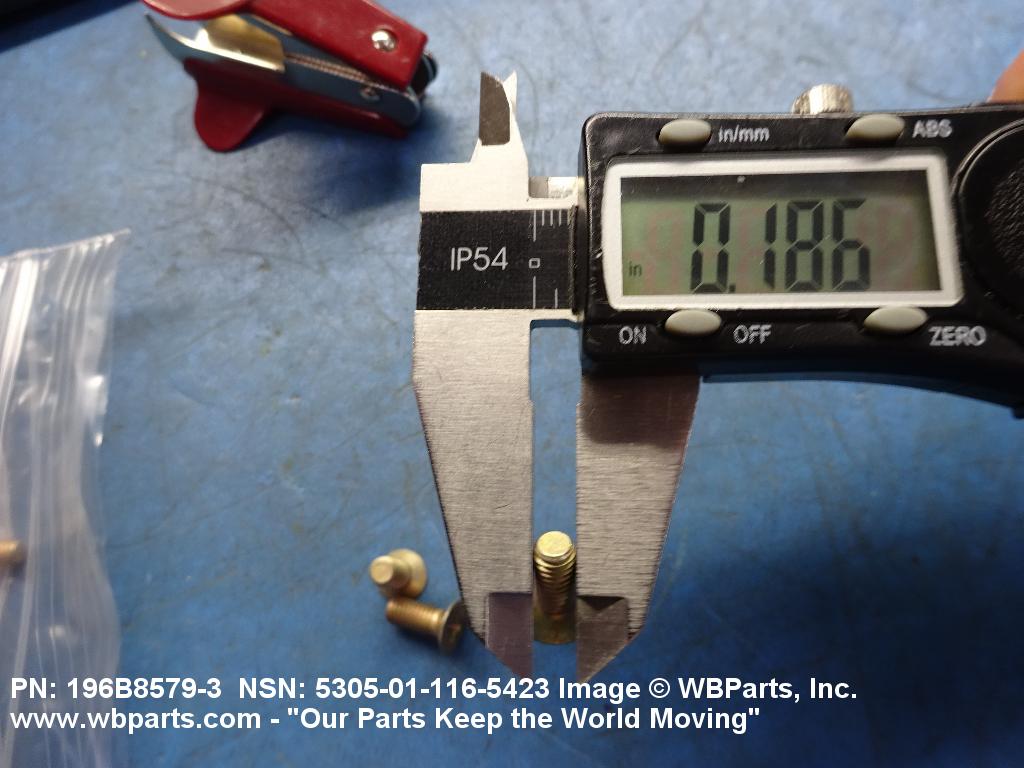

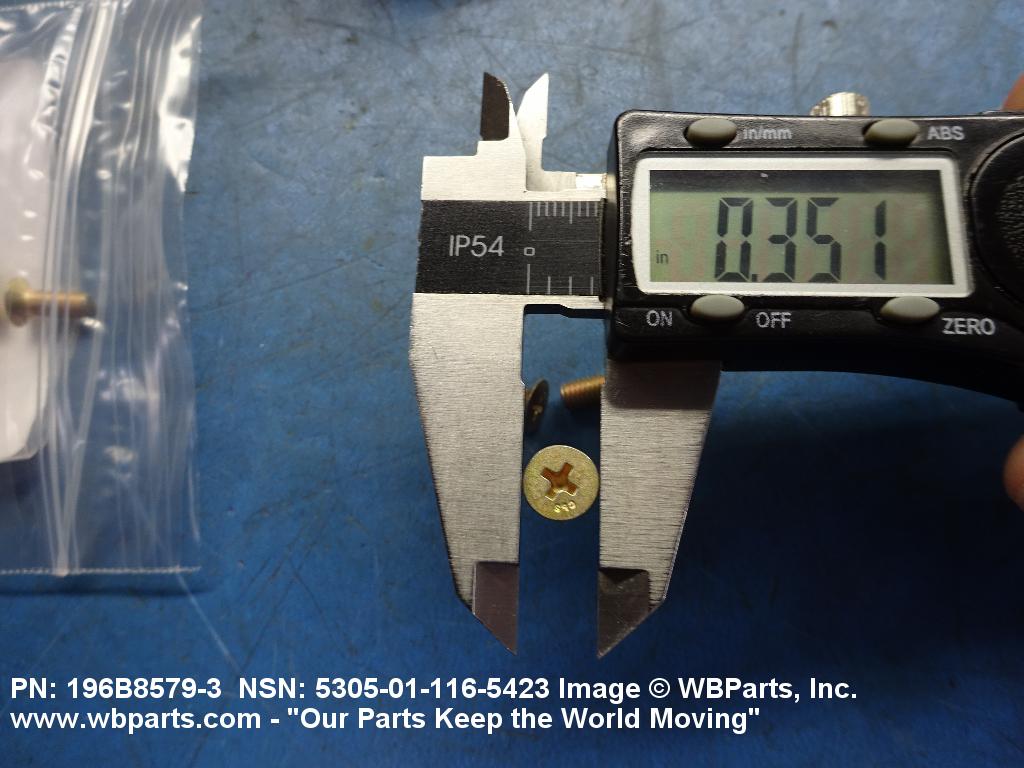

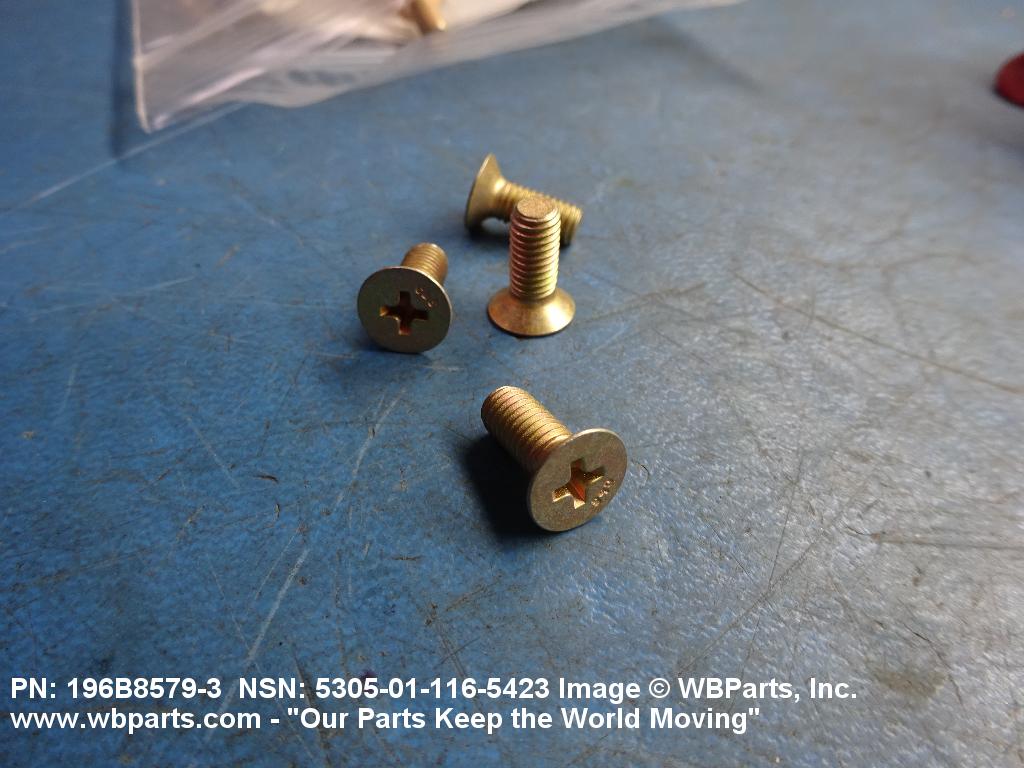

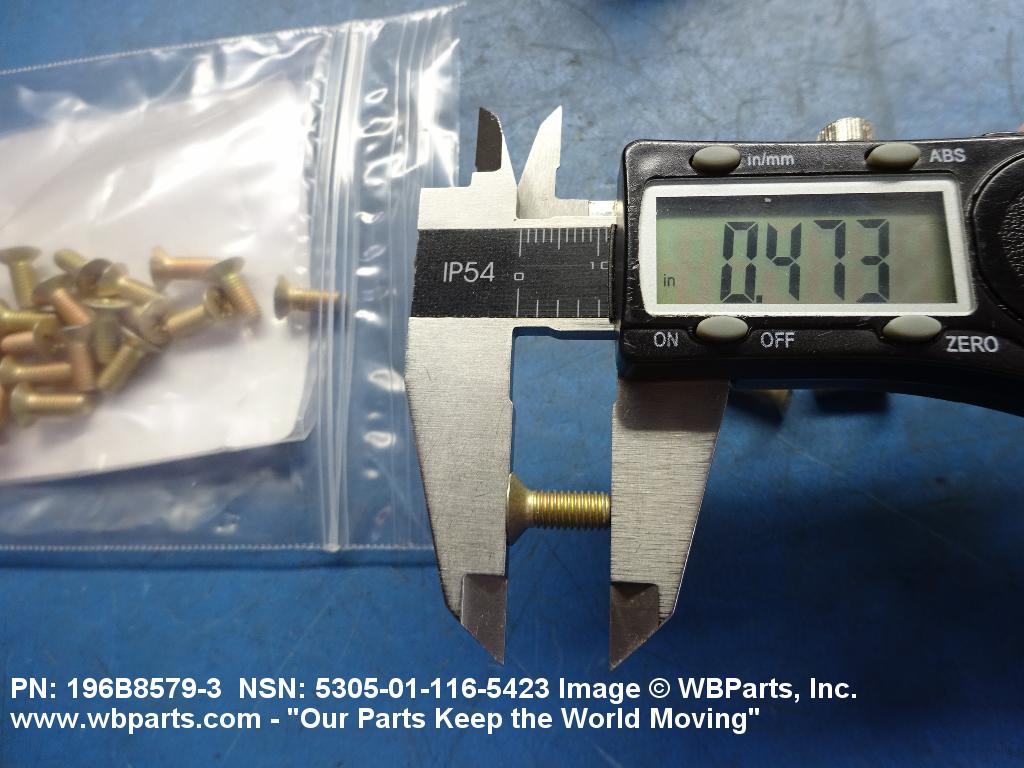

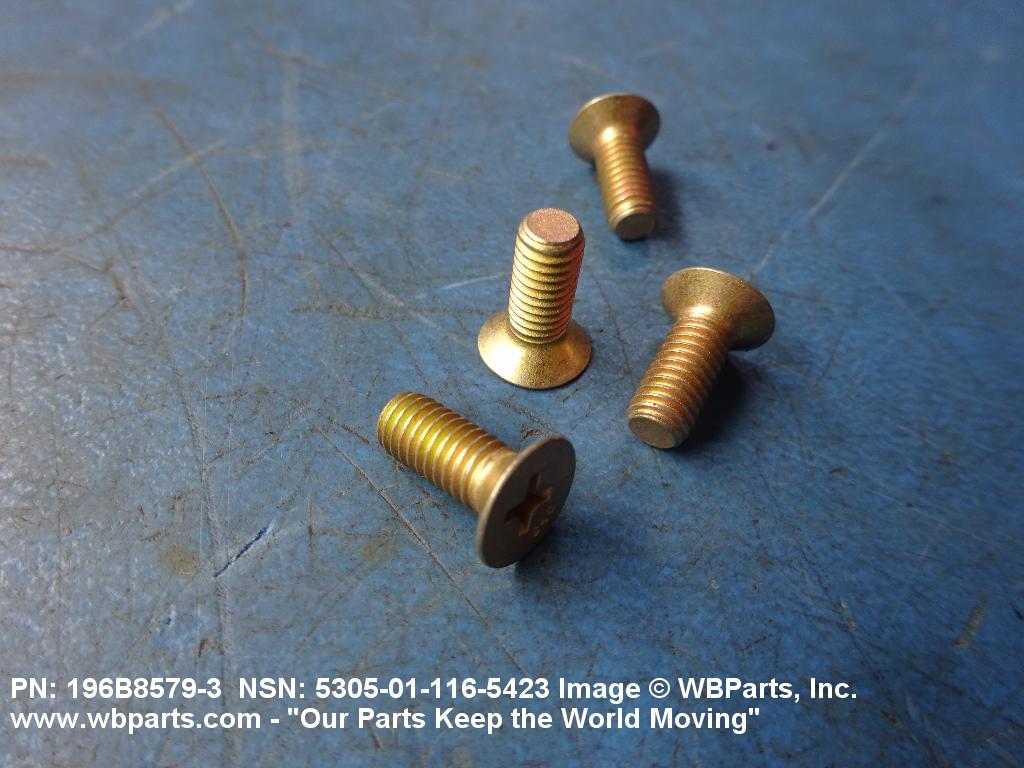

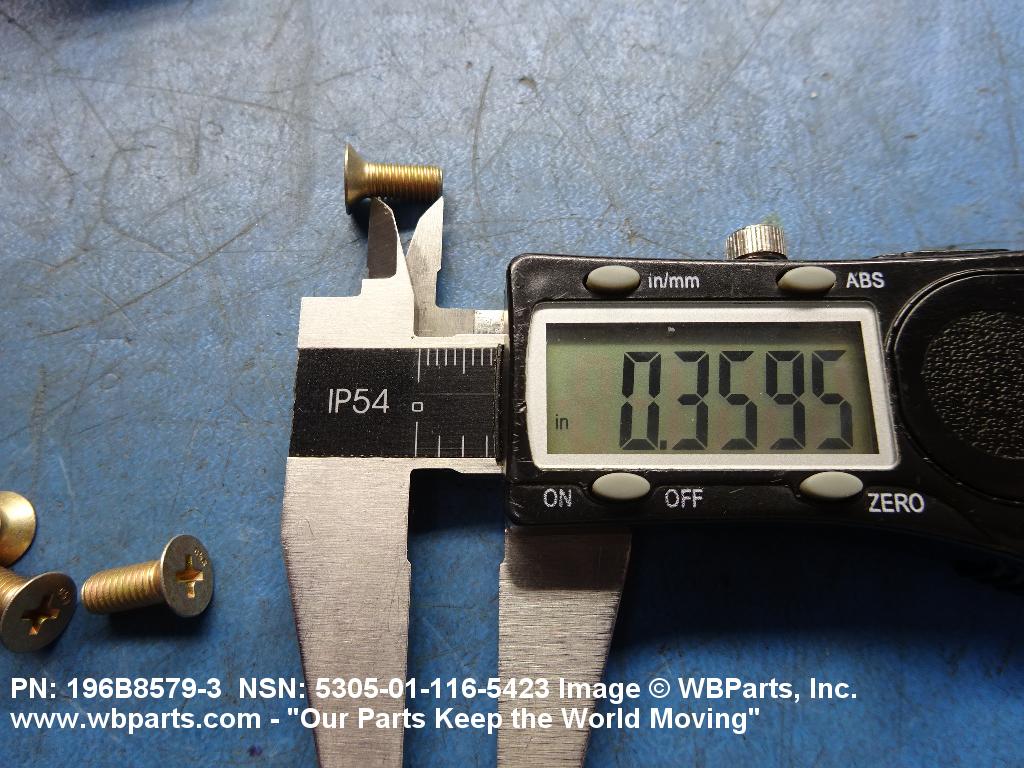

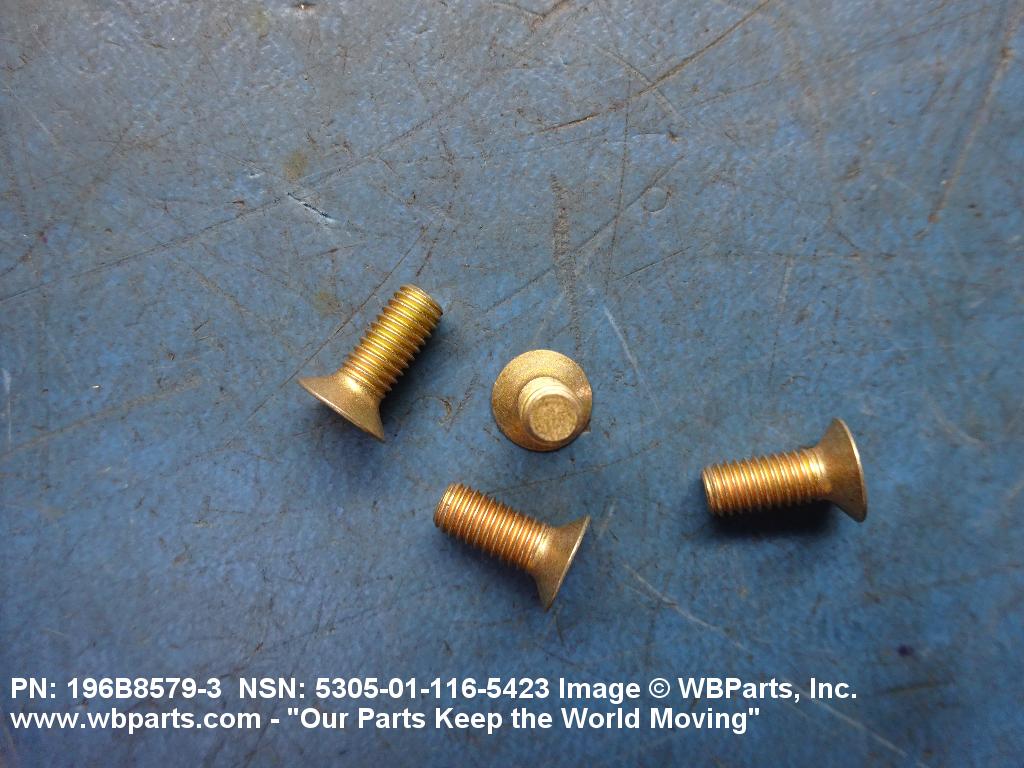

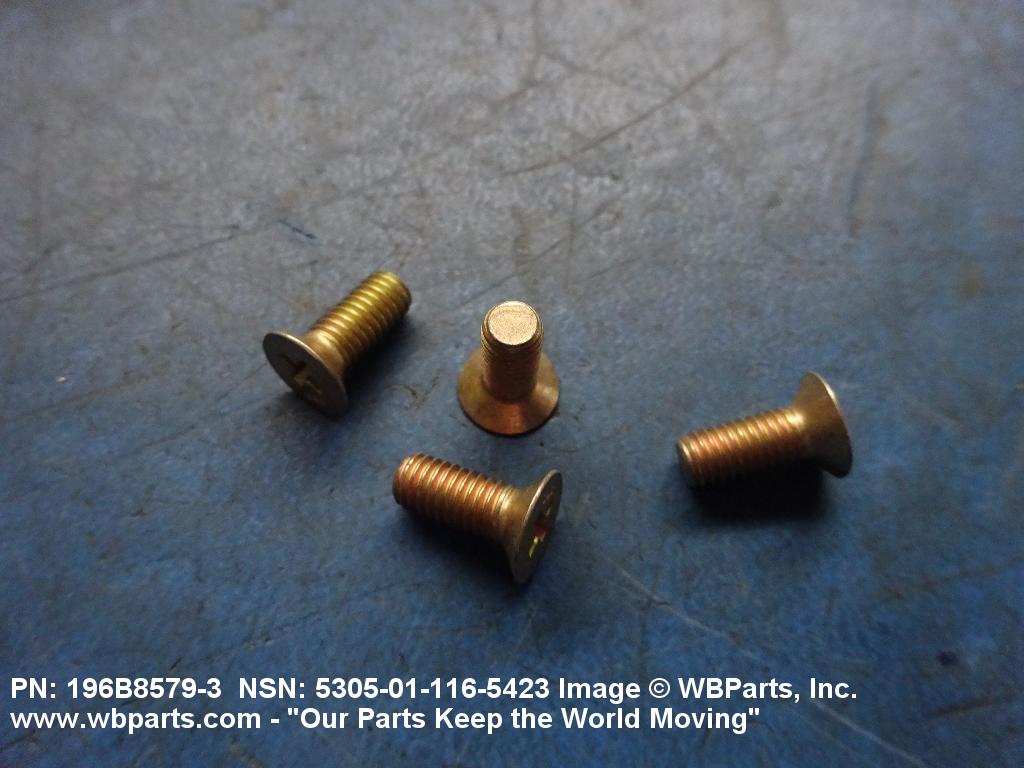

Drawings & Photos | NSN 5305-01-116-5423
Demand History | NSN 5305-01-116-5423
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 621311-251521-3-1 | 2024-11-318 | 2044 | DIBBS |
| 621311-251521-3-1 | 2024-08-231 | 956 | DIBBS |
| 621311-251521-3-1 | 2024-07-199 | 2361 | DIBBS |
| 621311-251521-3-1 | 2024-07-184 | 2361 | DIBBS |
| 621311-251521-3-1 | 2024-03-74 | 131 | DIBBS |
| 621311-251521-3-1 | 2023-12-338 | 2910 | DIBBS |
| 621311-251521-3-1 | 2023-06-170 | 428 | DIBBS |
| 621311-251521-3-1 | 2023-03-83 | 1066 | DIBBS |
| 621311-251521-3-1 | 2023-03-75 | 1066 | DIBBS |
| 621311-251521-3-1 | 2022-12-361 | 1041 | DIBBS |
| 621311-251521-3-1 | 2022-12-353 | 1041 | DIBBS |
| 621311-251521-3-1 | 2022-10-284 | 1151 | DIBBS |
| 621311-251521-3-1 | 2022-09-271 | 1151 | DIBBS |
| 5305-01-116-5423 | 2022-07-184 | 60 | Taiwan |
| 5305-01-116-5423 | 2022-06-179 | 60 | Taiwan |
| 621311-251521-3-1 | 2022-04-96 | 777 | DIBBS |
| 621311-251521-3-1 | 2022-03-81 | 777 | DIBBS |
| 621311-251521-3-1 | 2019-11-321 | 13820 | DIBBS |
| 5305-01-116-5423 | 2018-12-351 | 13820 | DIBBS |
| 5305-01-116-5423 | 2018-11-308 | 4954 | DIBBS |
| 5305-01-116-5423 | 2017-09-257 | 7120 | DIBBS |
| 5305-01-116-5423 | 2017-02-53 | 54 | MANUAL |
| 5305-01-116-5423 | 2016-10-301 | 3701 | DIBBS |
| 5305-01-116-5423 | 2016-07-213 | 3701 | DIBBS |
| 5305-01-116-5423 | 2016-01-21 | 234 | US |
| 5305-01-116-5423 | 2014-04-93 | 4927 | DIBBS |
| 5305-01-116-5423 | 2013-11-322 | 3939 | DIBBS |
| 5305-01-116-5423 | 2013-11-307 | 3939 | DIBBS |
| 5305-01-116-5423 | 2011-09-251 | 5441 | DIBBS |
| 5305-01-116-5423 | 2011-07-192 | 2773 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-116-5423
Related Products | NSN 5305-01-116-5423
Technical Data | NSN 5305-01-116-5423
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.359 INCHES MINIMUM AND 0.404 INCHES MAXIMUM |
| FASTENER LENGTH | 0.454 INCHES MINIMUM AND 0.499 INCHES MAXIMUM |
| SCREW MATERIAL | STEEL COMP 4037 OR STEEL COMP 8630 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | AMS6300 ASSN STD SINGLE MATERIAL RESPONSE OR MIL-S-6050 MIL SPEC SINGLE MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A39 FLAT COUNTERSUNK |
| HEAD DIAMETER | 0.337 INCHES MINIMUM AND 0.387 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
