NSN 5305-01-089-1520 NAS180138, NAS1801-3-8, BACS12C838
Product Details | MACHINE SCREW
5305-01-089-1520 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: NAS180138, NAS1801-3-8, BACS12C838, BACS12C83-8, 5305-01-089-1520, 01-089-1520, 5305010891520, 010891520
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 JAN 1980 | 01-089-1520 | 06657 ( SCREW, MACHINE ) |

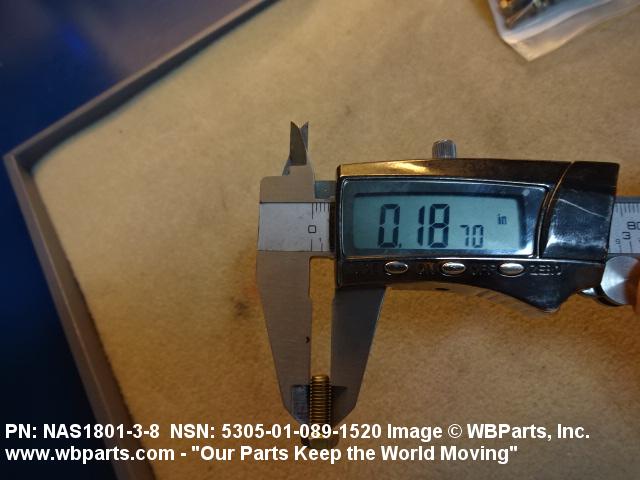

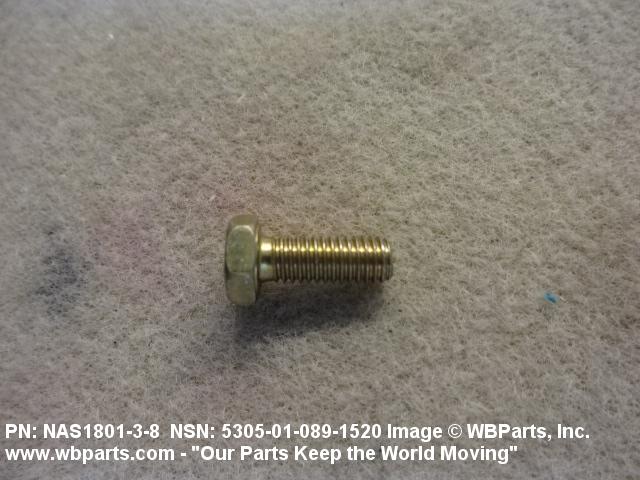

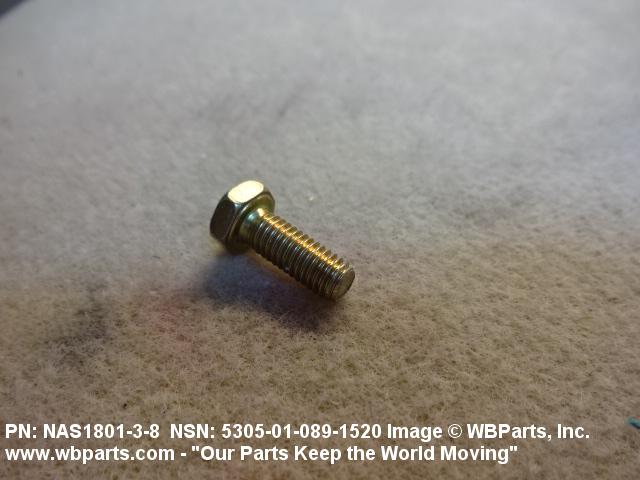

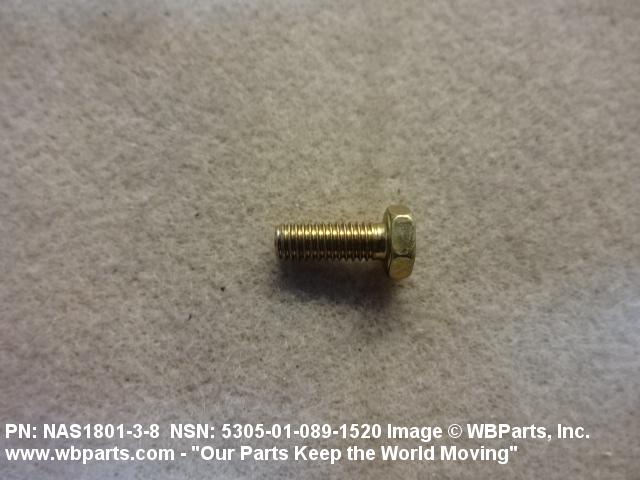

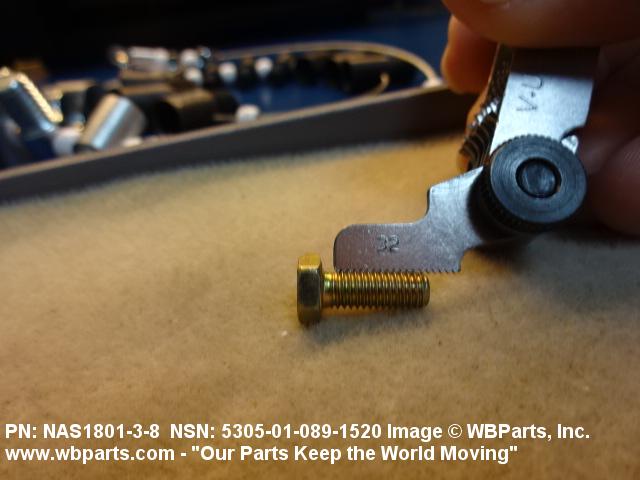

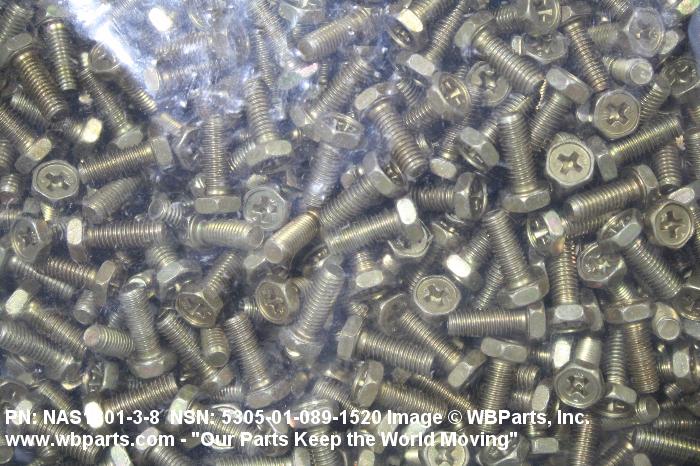

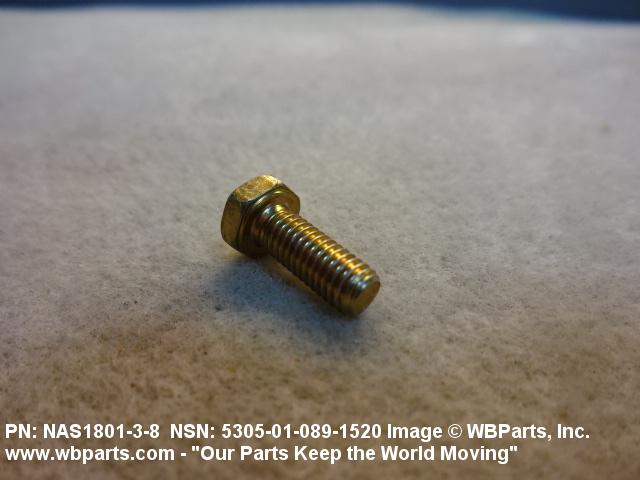

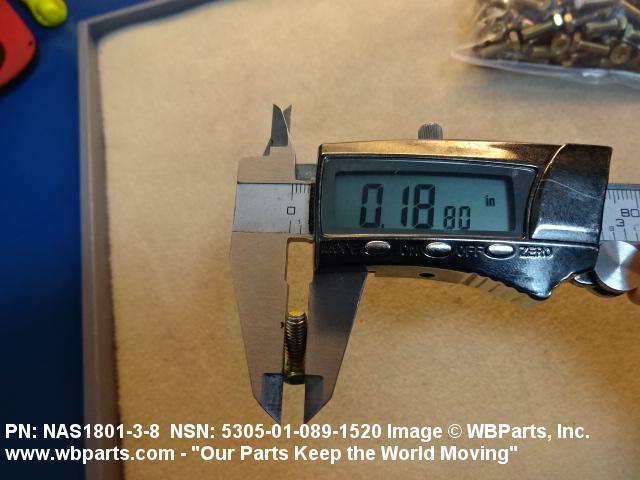

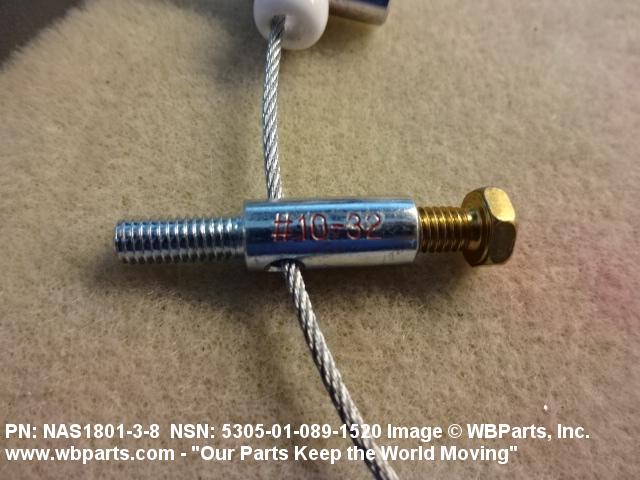

Drawings & Photos | NSN 5305-01-089-1520
Demand History | NSN 5305-01-089-1520
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-089-1520 | 2025-02-51 | 1788 | DIBBS |
| NAS180138 | 2024-11-319 | 100 | United States |
| NAS180138 | 2024-10-277 | 112 | United States |
| NAS180138 | 2024-05-142 | 49 | United States |
| 5305-01-089-1520 | 2024-02-54 | 36 | United States |
| 5305-01-089-1520 | 2023-12-346 | 1208 | DIBBS |
| 5305-01-089-1520 | 2023-08-219 | 2 | DIBBS |
| 5305-01-089-1520 | 2023-07-192 | 10 | US |
| 5305-01-089-1520 | 2023-06-173 | 1 | DIBBS |
| NAS180138 | 2023-05-137 | 100 | Malta |
| NAS180138 | 2023-03-72 | 100 | US |
| 5305-01-089-1520 | 2023-03-71 | 1 | DIBBS |
| 5305-01-089-1520 | 2023-03-66 | 1 | DIBBS |
| 5305-01-089-1520 | 2023-03-66 | 2 | DIBBS |
| 5305-01-089-1520 | 2023-03-66 | 6 | DIBBS |
| NAS180138 | 2022-11-333 | 2166 | US |
| NAS180138 | 2021-08-230 | 960 | IN |
| NAS180138 | 2021-07-188 | 290 | United States |
| 5305-01-089-1520 | 2021-04-110 | 1693 | DIBBS |
| NAS180138 | 2020-02-44 | 62 | United States |
| NAS180138 | 2019-02-44 | 4 | United States |
| NAS1801-3-8 | 2018-10-284 | 20 | RO |
| 5305-01-089-1520 | 2018-04-94 | 3702 | DIBBS |
| 5305-01-089-1520 | 2018-03-70 | 1358 | DIBBS |
| 5305-01-089-1520 | 2018-02-44 | 3702 | United States |
| NAS180138 | 2018-01-03 | 5 | United States |
| 5305-01-089-1520 | 2017-12-353 | 3702 | DIBBS |
| 5305-01-089-1520 | 2017-11-319 | 3229 | DIBBS |
| 5305-01-089-1520 | 2017-10-284 | 1892 | DIBBS |
| 5305-01-089-1520 | 2017-01-09 | 932 | DIBBS |
| NAS180138 | 2016-12-337 | 1680 | US |
| 5305-01-089-1520 | 2016-10-300 | 1883 | DIBBS |
| NAS180138 | 2016-10-291 | 4 | United States |
| 5305-01-089-1520 | 2016-09-269 | 671 | DIBBS |
| 5305-01-089-1520 | 2016-08-227 | 1410 | DIBBS |
| NAS180138 | 2016-08-221 | 4 | United States |
| NAS180138 | 2016-06-182 | 6 | US |
| 5305-01-089-1520 | 2016-06-157 | 441 | DIBBS |
| NAS180138 | 2016-05-137 | 50 | Egypt |
| 5305-01-089-1520 | 2016-05-125 | 1000 | DIBBS |
| 5305-01-089-1520 | 2016-03-87 | 628 | DIBBS |
| 5305-01-089-1520 | 2016-01-19 | 439 | DIBBS |
| NAS180138 | 2015-09-272 | 2 | United States |
| NAS180138 | 2015-07-201 | 4 | United States |
| 5305-01-089-1520 | 2015-07-193 | 501 | DIBBS |
| NAS180138 | 2014-10-280 | 1 | US |
| 5305-01-089-1520 | 2014-10-279 | 175 | DIBBS |
| NAS180138 | 2013-12-364 | 4 | Singapore |
| NAS180138 | 2013-09-269 | 2325 | United States |
| 5305-01-089-1520 | 2013-08-225 | 182 | DIBBS |
| NAS180138 | 2013-08-213 | 60 | US |
| NAS1801-3-8 | 2013-05-134 | 50 | CZ |
| NAS180138 | 2013-01-22 | 1 | Italy |
| NAS180138 | 2012-06-177 | 150 | India |
| NAS1801-3-8 | 2012-03-82 | 100 | US |
| NAS180138 | 2011-05-138 | 10 | United States |
| 5305-01-089-1520 | 2011-05-131 | 110 | IN |
| NAS180138 | 2011-03-62 | 4 | IE |
| 5305-01-089-1520 | 2010-10-278 | 6 | us |
| 5305-01-089-1520 | 2010-07-190 | 10 | US |
| NAS180138 | 2010-02-40 | 160 | United States |
| 5305-01-089-1520 | 2009-10-285 | 580 | Australia |
| 5305-01-089-1520 | 2008-05-137 | 10 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-089-1520
Technical Data | NSN 5305-01-089-1520
| Characteristic | Specifications |
|---|---|

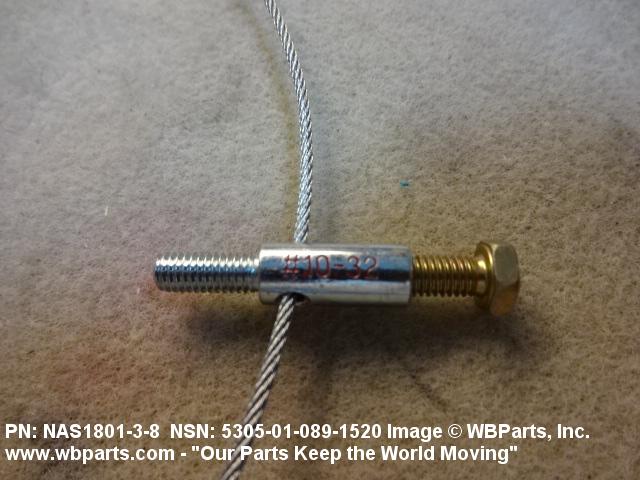

| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |

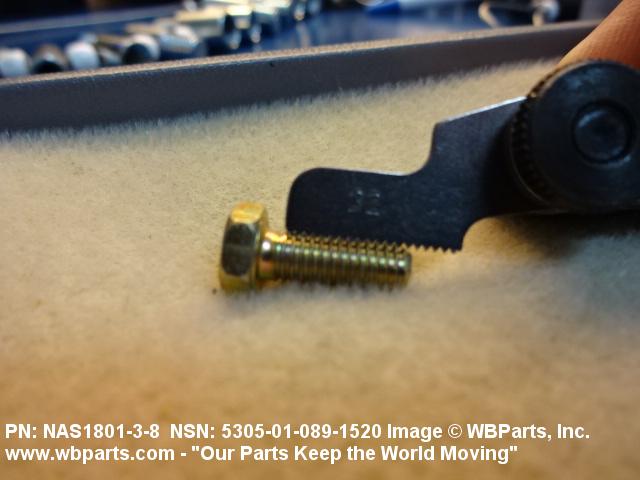

| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

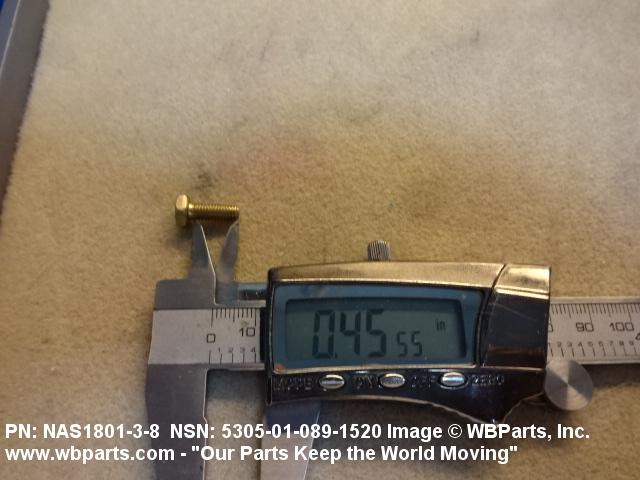

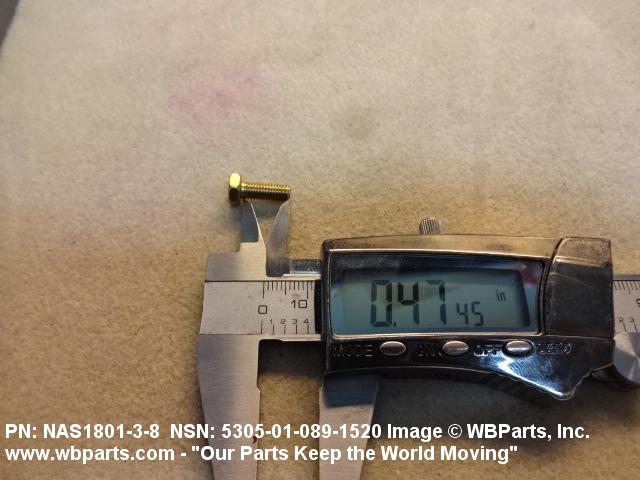

| THREAD LENGTH | 0.420 INCHES MINIMUM AND 0.499 INCHES MAXIMUM |

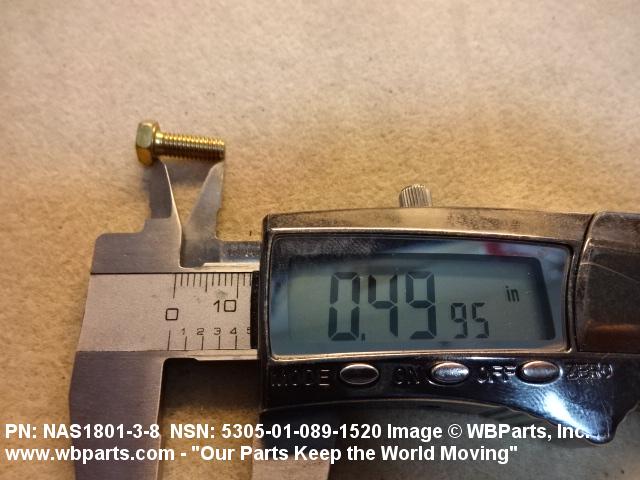

| FASTENER LENGTH | 0.484 INCHES MINIMUM AND 0.531 INCHES MAXIMUM |
| SCREW MATERIAL | STEEL COMP E4340 OR STEEL COMP 8740 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5000 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR AMS 6322 ASSN STD 2ND MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TYPE 2 CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |

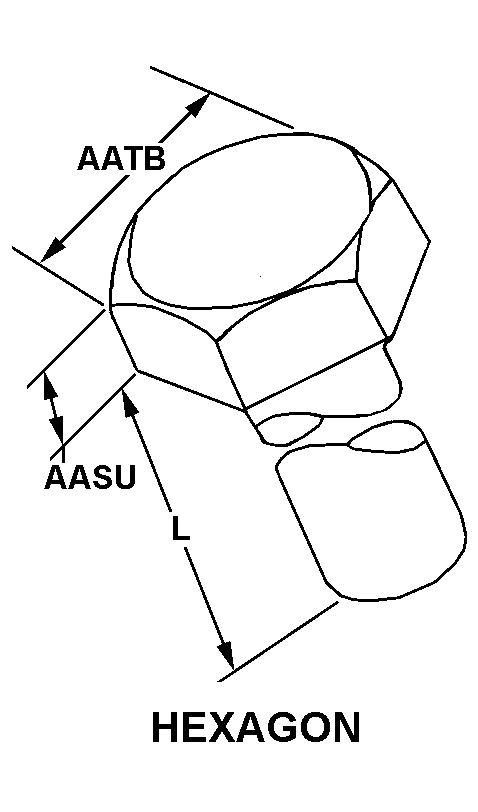

| HEAD STYLE | A1 HEXAGON |

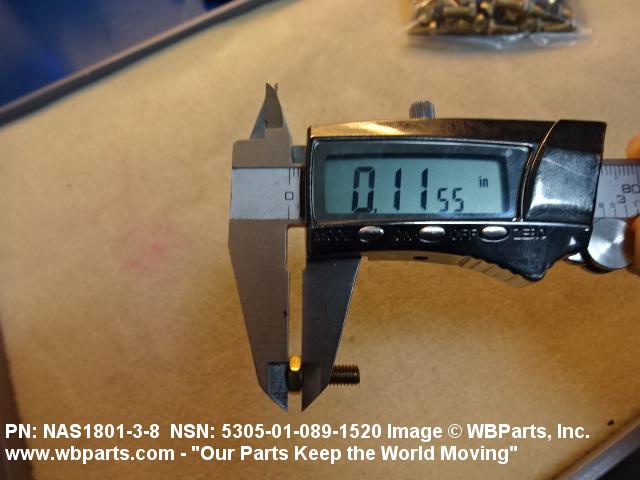

| HEAD HEIGHT | 0.105 INCHES MINIMUM AND 0.120 INCHES MAXIMUM |

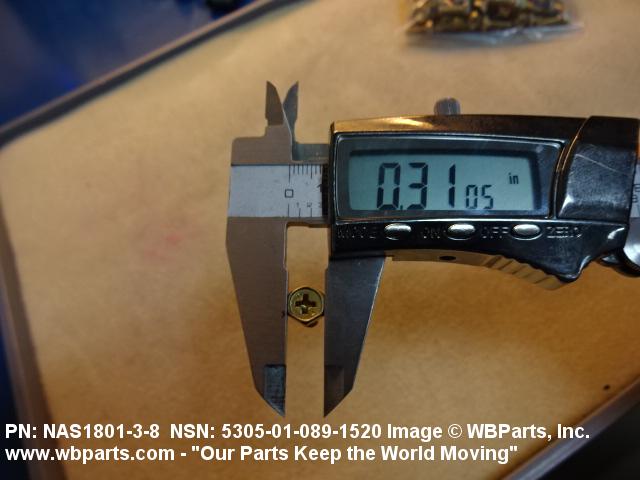

| WIDTH BETWEEN FLATS | 0.305 INCHES MINIMUM AND 0.314 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
| SPECIFICATION/STANDARD DATA | 80205-NAS1801 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5305-01-089-1520
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
