NSN 5305-01-022-9888 MS2458427, MS24584-27, 01-022-9888
Product Details | MACHINE SCREW
5305-01-022-9888 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: MS2458427, MS24584-27, 5305-01-022-9888, 01-022-9888, 5305010229888, 010229888
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 JUN 1976 | 01-022-9888 | 06657 ( SCREW, MACHINE ) |
Drawings & Photos | NSN 5305-01-022-9888
Demand History | NSN 5305-01-022-9888
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-022-9888 | 2020-03-04 | 8 | United States |
| 5305-01-022-9888 | 2019-11-20 | 8 | United States |
Cross Reference | NSN 5305-01-022-9888
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS24584-27 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-022-9888
Technical Data | NSN 5305-01-022-9888
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |

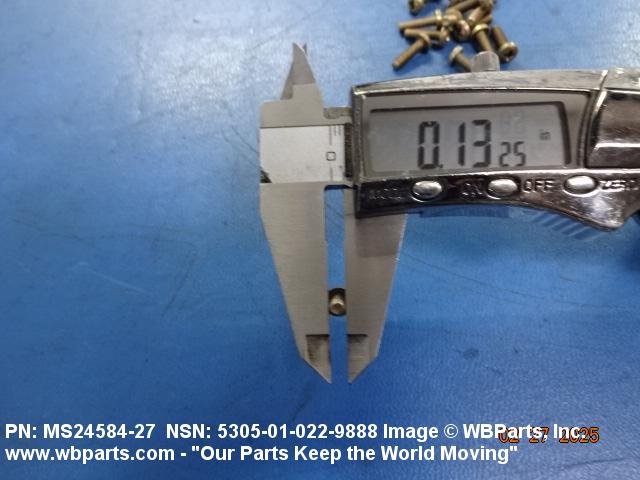

| NOMINAL THREAD DIAMETER | 0.138 INCHES |

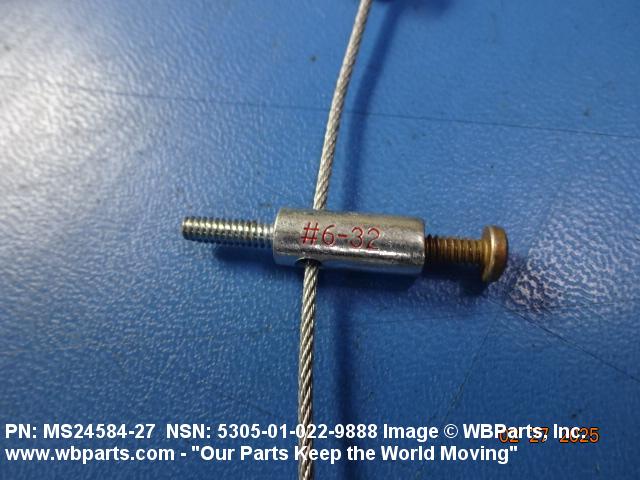

| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.407 INCHES MINIMUM AND 0.538 INCHES MAXIMUM |

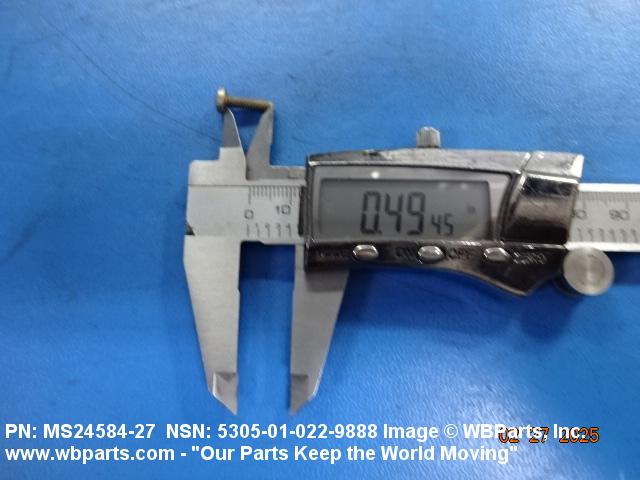

| FASTENER LENGTH | 0.469 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| SCREW MATERIAL | STEEL |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE |
| MINIMUM TENSILE STRENGTH | 55000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A23 PAN |

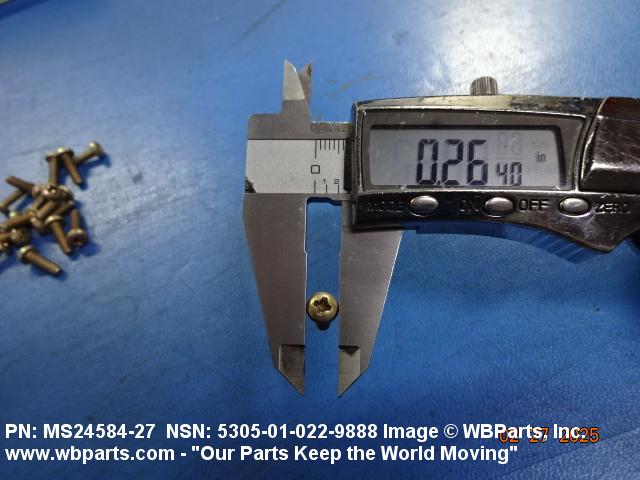

| HEAD DIAMETER | 0.256 INCHES MINIMUM AND 0.270 INCHES MAXIMUM |

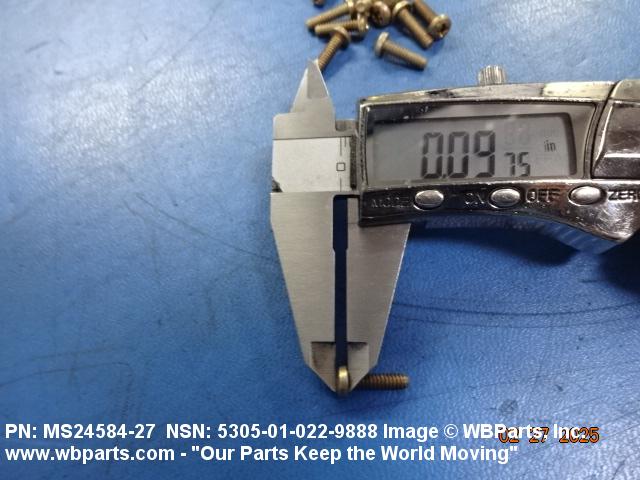

| HEAD HEIGHT | 0.087 INCHES MINIMUM AND 0.097 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS24584-27 |
Restrictions/Controls & Freight Information | NSN 5305-01-022-9888
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
