NSN 5305-01-010-2316 NAS1102E310, NAS1102E3-10, 01-010-2316

Product Details | MACHINE SCREW

5305-01-010-2316 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: NAS1102E310, NAS1102E3-10, 5305-01-010-2316, 01-010-2316, 5305010102316, 010102316

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	25 SEP 1975	01-010-2316	06657 ( SCREW, MACHINE )

Drawings & Photos | NSN 5305-01-010-2316

Part Number	Request Date	QTY	Origin
NAS1102E310	2022-07-182	850	United States
5305-01-010-2316	2021-05-124	5	US
NAS1102E310	2018-09-267	500	us
NAS1102E3-10	2018-05-135	16	FX
5305-01-010-2316	2016-11-327	1	DIBBS-RFPs
5305-01-010-2316	2016-09-255	9738	DIBBS
5305-01-010-2316	2016-06-172	600	US
5305-01-010-2316	2016-06-172	1797	DIBBS
NAS1102E310	2015-10-285	200	US
NAS1102E310	2015-08-237	300	Thailand
NAS1102E310	2015-06-167	100	Thailand
NAS1102E310	2014-06-162	5	UK
5305-01-010-2316	2014-04-117	7385	DIBBS
NAS1102E310	2014-03-77	8	US
5305-01-010-2316	2013-12-346	2166	DIBBS
NAS1102E310	2013-11-326	50	United States
5305-01-010-2316	2013-06-162	50	Malaysia
NAS1102E3-10	2013-05-134	50	CZ
NAS1102E310	2012-04-101	300	United States
5305-01-010-2316	2012-02-54	100	Poland
5305-01-010-2316	2011-06-175	1	US
NAS1102E310	2011-05-132	184	United States
NAS1102E310	2010-09-244	1200	United States
NAS1102E310	2010-07-202	20	United States
5305-01-010-2316	2008-06-175	1060	US

Cross Reference | NSN 5305-01-010-2316

Part Number	Cage Code	Manufacturer
NAS1102E3-10	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-01-010-2316

Compare

Related Products | NSN 5305-01-010-2316

5305-01-010-2317, 5305-01-010-2318, 5305-01-010-2319, 5305-01-010-2320, 5305-01-010-2321

Technical Data | NSN 5305-01-010-2316

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNJF
NOMINAL THREAD DIAMETER	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.452 INCHES MINIMUM AND 0.545 INCHES MAXIMUM

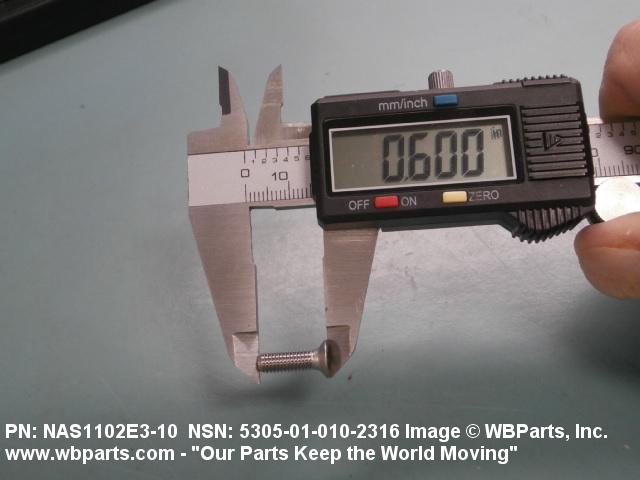

FASTENER LENGTH	0.594 INCHES MINIMUM AND 0.625 INCHES MAXIMUM
SCREW MATERIAL	IRON ALLOY 660
SCREW MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE
SCREW SURFACE TREATMENT	CADMIUM AND CHROMATE
SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL FED SPEC ALL TREATMENT RESPONSES
MINIMUM TENSILE STRENGTH	160000 POUNDS PER SQUARE INCH

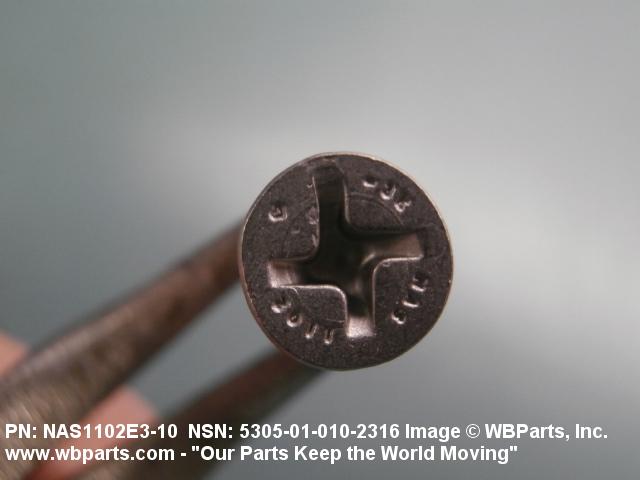

HEAD STYLE	A39 FLAT COUNTERSUNK

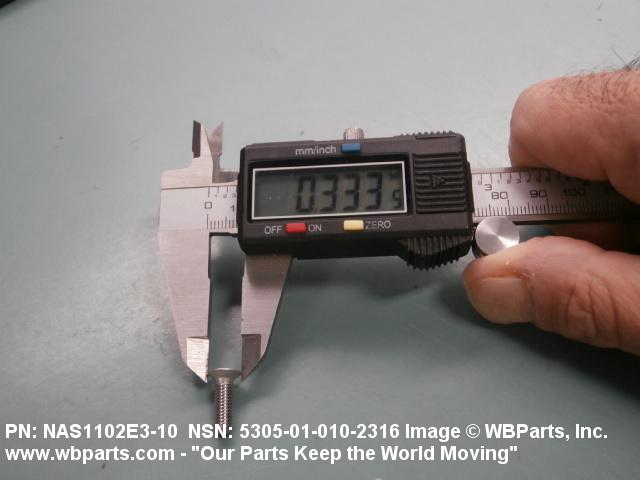

HEAD DIAMETER	0.322 INCHES MINIMUM AND 0.385 INCHES MAXIMUM
COUNTERSINK ANGLE	100.0 DEGREES NOMINAL
INTERNAL DRIVE STYLE	B5 TORQUE SET
SPECIFICATION/STANDARD DATA	80205-NAS1102 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
