NSN 5305-01-010-2305 J642P03B, 10114830 , 01-010-2305
Product Details | MACHINE SCREW
5305-01-010-2305 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: J642P03B, 10114830 , 5305-01-010-2305, 01-010-2305, 5305010102305, 010102305
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 SEP 1975 | 01-010-2305 | 06657 ( SCREW, MACHINE ) |
Drawings & Photos | NSN 5305-01-010-2305
Demand History | NSN 5305-01-010-2305
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| J642P03B | 2022-06-178 | 4688 | DIBBS |
| J642P03B | 2022-06-166 | 4688 | DIBBS |
| J642P03B | 2020-11-309 | 19068 | DIBBS |
| J642P03B | 2020-06-181 | 6106 | DIBBS |
| J642P03B | 2020-06-173 | 6106 | DIBBS |
| J642P03B | 2020-03-83 | 9860 | DIBBS |
| J642P03B | 2020-03-75 | 9860 | DIBBS |
| J642P03B | 2019-12-336 | 6610 | DIBBS |
| J642P03B | 2019-04-111 | 4786 | DIBBS |
| J642P03B | 2019-02-45 | 4487 | DIBBS |
| 5305-01-010-2305 | 2017-11-319 | 6748 | DIBBS |
| 5305-01-010-2305 | 2017-11-311 | 6748 | DIBBS |
| 5305-01-010-2305 | 2017-06-174 | 9562 | DIBBS |
| 5305-01-010-2305 | 2017-06-165 | 9562 | DIBBS |
| 5305-01-010-2305 | 2017-02-46 | 9367 | DIBBS |
| 5305-01-010-2305 | 2016-12-340 | 5106 | DIBBS |
| 5305-01-010-2305 | 2016-06-168 | 5547 | DIBBS |
| 5305-01-010-2305 | 2015-09-271 | 10671 | DIBBS |
| 5305-01-010-2305 | 2015-03-75 | 7654 | DIBBS |
| 5305-01-010-2305 | 2015-03-64 | 7654 | DIBBS |
| 5305-01-010-2305 | 2014-12-337 | 10102 | DIBBS |
| 5305-01-010-2305 | 2013-11-325 | 1 | DIBBS-RFPs |
| 5305-01-010-2305 | 2013-10-291 | 1 | DIBBS-RFPs |
| 5305-01-010-2305 | 2013-09-246 | 1 | DIBBS-RFPs |
| J642P03B | 2012-11-310 | 105 | |
| 5305-01-010-2305 | 2011-05-143 | 33912 | DIBBS |
| 5305-01-010-2305 | 2010-08-223 | 18699 | DIBBS |
Cross Reference | NSN 5305-01-010-2305
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-01-010-2305
Related Products | NSN 5305-01-010-2305
Technical Data | NSN 5305-01-010-2305
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 36 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.309 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |
| FASTENER LENGTH | 0.365 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |
| SCREW MATERIAL | STEEL |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | C50TF13,CL B FSCM 74900 MFR REF SINGLE MATERIAL RESPONSE |

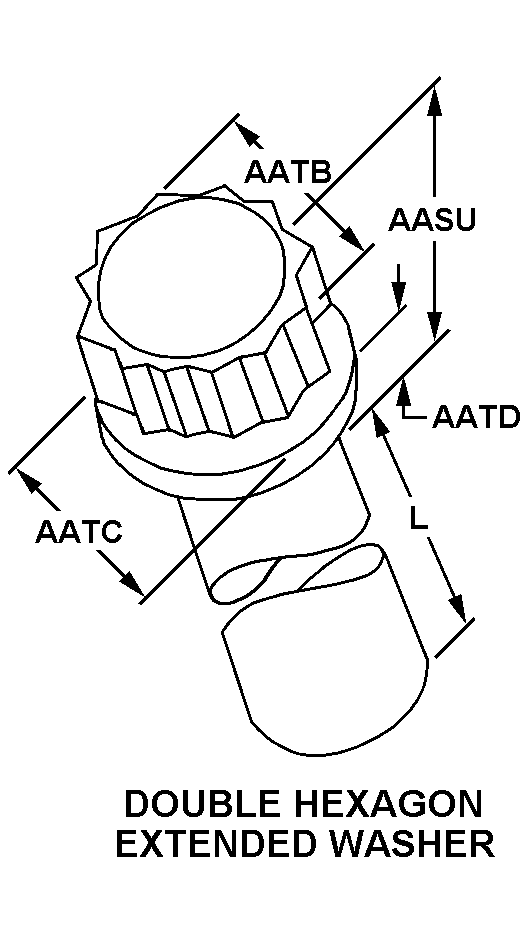

| HEAD STYLE | A8 DOUBLE HEXAGON EXTENDED WASHER |
