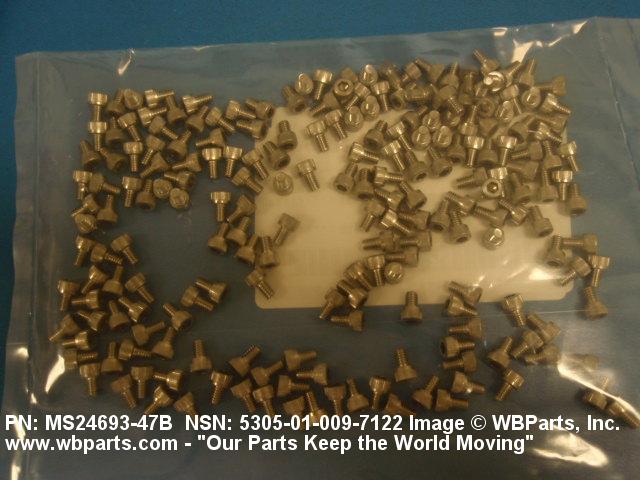

NSN 5305-01-009-7122 MS2469347B, MS24693-47B, FFS92
Product Details | MACHINE SCREW
5305-01-009-7122 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: MS2469347B, MS24693-47B, FFS92, FF-S-92, 256X14FILHSST, 2-56X1-4FILHSST , 5305-01-009-7122, 01-009-7122, 5305010097122, 010097122
Hardware and Abrasives | Screws
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 14 SEP 1975 | 01-009-7122 | 06657 ( SCREW, MACHINE ) |
Demand History | NSN 5305-01-009-7122
Part Number | Request Date | QTY | Origin |
---|---|---|---|
FFS92 | 2023-08-236 | 14 | US |
MS24693-47B | 2018-10-284 | 30 | RO |
FF-S-92 | 2014-02-59 | 75 | United States |
FFS92 | 2011-02-49 | 5 | US |
FFS92 | 2011-02-49 | 50 | US |
FFS92 | 2010-11-323 | 165 | US |
FFS92 | 2009-12-338 | 100 | US |
FFS92 | 2009-10-292 | 50 | United States |
MS2469347B | 2009-10-288 | 100 | Turkey |
FFS92 | 2008-03-80 | 50 | United States |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5305-01-009-7122
Technical Data | NSN 5305-01-009-7122
Characteristic | Specifications |
---|---|
THREAD SERIES DESIGNATOR | UNC |
NOMINAL THREAD DIAMETER | 0.164 INCHES |
THREAD QUANTITY PER INCH | 32 |
THREAD CLASS | 2A |
THREAD DIRECTION | RIGHT-HAND |
THREAD LENGTH | 0.147 INCHES MINIMUM AND 0.240 INCHES MAXIMUM |
FASTENER LENGTH | 0.281 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
SCREW MATERIAL | STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 |
SCREW MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES |
SCREW SURFACE TREATMENT | OXIDE |
COLOR | BLACK |
MINIMUM TENSILE STRENGTH | 60000 POUNDS PER SQUARE INCH |
HEAD STYLE | A39 FLAT COUNTERSUNK |
HEAD DIAMETER | 0.285 INCHES MINIMUM AND 0.332 INCHES MAXIMUM |
COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
NONDEFINITIVE SPEC/STD DATA | 3 TYPE AND 3C STYLE |
MANUFACTURERS CODE | 81348 |
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FF-S-92 |
MANUFACTURERS CODE | 96906 |
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS24693-47B |
Restrictions/Controls & Freight Information | NSN 5305-01-009-7122
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
Less than car load rating | ||
Less than truck load rating | W | Rating Variable |
Water commodity Code | 713 | unknown |
Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
