NSN 5305-01-004-4975 NAS163435, NAS1634-35, 01-004-4975
Product Details | MACHINE SCREW
5305-01-004-4975 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: NAS163435, NAS1634-35, 5305-01-004-4975, 01-004-4975, 5305010044975, 010044975
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 JUN 1975 | 01-004-4975 | 06657 ( SCREW, MACHINE ) |
Drawings & Photos | NSN 5305-01-004-4975
Cross Reference | NSN 5305-01-004-4975
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1634-35 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-004-4975
Technical Data | NSN 5305-01-004-4975
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.291 INCHES MINIMUM AND 0.341 INCHES MAXIMUM |
| FASTENER LENGTH | 2.488 INCHES MINIMUM AND 2.518 INCHES MAXIMUM |
| SCREW MATERIAL | STEEL COMP E4340 OR STEEL COMP 4140 OR STEEL COMP 8740 OR STEEL COMP 8735 OR STEEL COMP 6150 |
| SCREW SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A23 PAN |
| HEAD DIAMETER | 0.473 INCHES MINIMUM AND 0.492 INCHES MAXIMUM |
| HEAD HEIGHT | 0.162 INCHES MINIMUM AND 0.175 INCHES MAXIMUM |

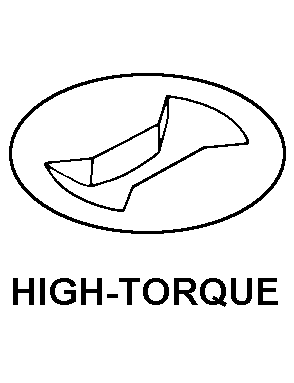

| INTERNAL DRIVE STYLE | B6 HIGH-TORQUE |
| SPECIFICATION/STANDARD DATA | 80205-NAS1634 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
