NSN 5305-00-995-3444 MS35207266, MS35207-266, MS3523666
Product Details | MACHINE SCREW
5305-00-995-3444 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: MS35207266, MS35207-266, MS3523666, MS35236-66, AN5261032R14, AN526-1032R14, 835948, 85288600, 852886-00, 935.63.12.068, 9356312068, 19089, 19089ADX, 19FCS105PC10 , 19FCS105PC22, 19HCS105PC101522, 411 535, 411535, 453979, 5305-00-995-3444, 00-995-3444, 5305009953444, 009953444
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-995-3444 | 06657 ( SCREW, MACHINE ) |

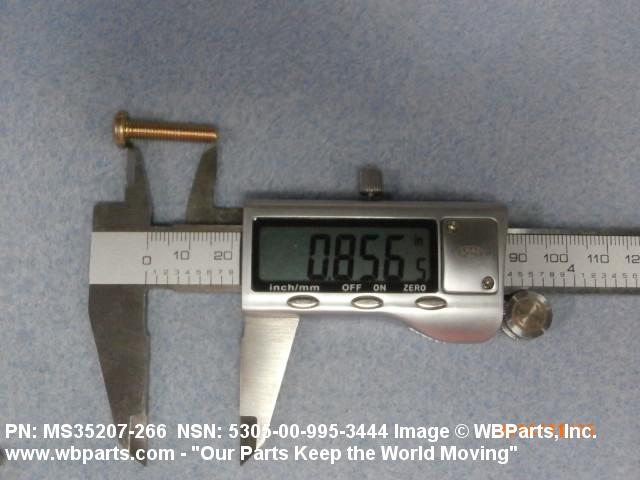

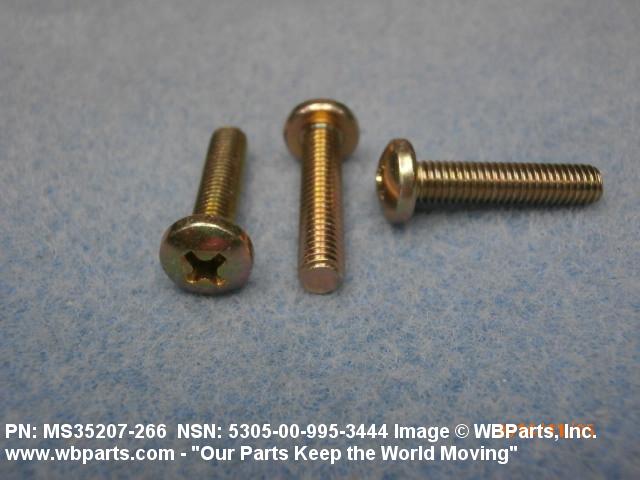

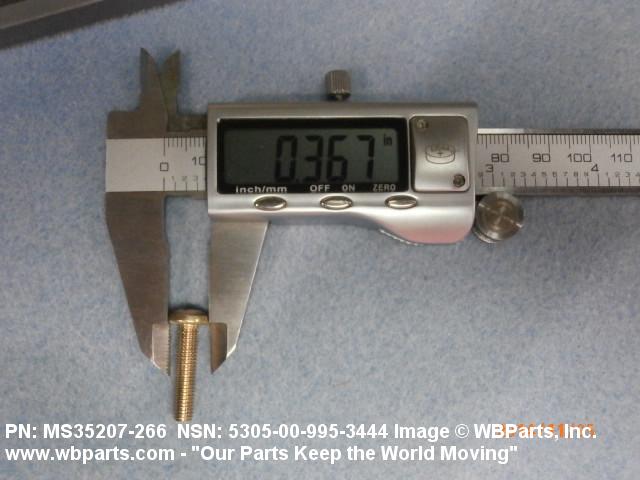

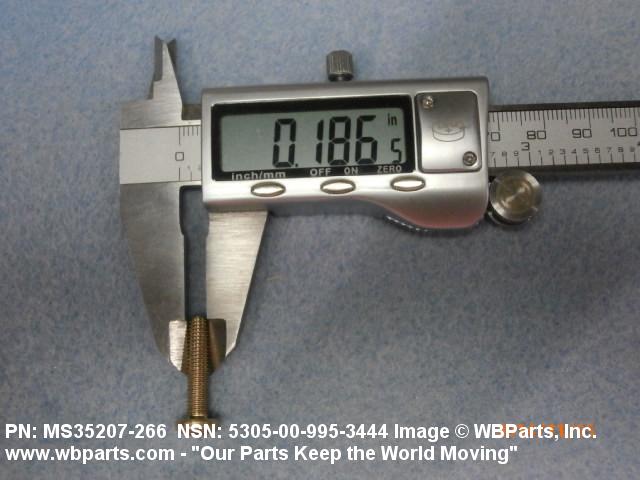

Drawings & Photos | NSN 5305-00-995-3444
Demand History | NSN 5305-00-995-3444
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-995-3444 | 2024-10-276 | 10 | Spain |
| MS35207266 | 2024-04-113 | 100 | Lithuania |
| MS35207266 | 2021-10-278 | 50 | PK |
| MS35207266 | 2021-06-167 | 5 | MY |
| MS35207266 | 2021-06-167 | 5 | TR |
| MS35207266 | 2021-06-165 | 5 | US |
| 5305-00-995-3444 | 2021-03-62 | 5 | Malaysia |
| 5305-00-995-3444 | 2021-02-33 | 4 | Malaysia |
| MS35207266 | 2020-09-274 | 1 | United States |
| 5305-00-995-3444 | 2019-07-199 | 4290 | DIBBS |
| 5305-00-995-3444 | 2019-06-168 | 8000 | DIBBS |
| 22 | 2019-02-41 | 1 | US |
| 22 | 2019-02-38 | 1 | US |
| 22 | 2016-07-209 | 12 | us |
| 5305-00-995-3444 | 2015-11-307 | 1324 | Pakistan |
| MS35207266 | 2015-02-33 | 50 | United States |
| MS35207-266 | 2014-09-271 | 100 | United States |
| MS35207-266 | 2014-07-199 | 100 | United States |
| MS35207266 | 2013-09-259 | 1 | United States |
| MS35207-266 | 2012-11-310 | 50 | |
| MS35207-266 | 2011-11-313 | 50 | US |
| MS35207-266 | 2011-11-313 | 50 | US |
| MS35207-266 | 2011-10-284 | 50 | United States |
| 5305-00-995-3444 | 2011-09-257 | 3 | CO |
| MS35207266 | 2011-06-157 | 36 | US |
| 5305-00-995-3444 | 2011-02-53 | 1501 | DIBBS |
| MS35207266 | 2011-01-13 | 50 | US |
| MS35207266 | 2010-12-356 | 1 | Italy |
| 5305-00-995-3444 | 2010-08-224 | 100 | MX |
| MS35207266 | 2010-04-117 | 120 | Italy |
| 5305-00-995-3444 | 2009-07-201 | 2838 | DIBBS |
| 5305-00-995-3444 | 2009-05-138 | 1931 | DIBBS |
| 5305-00-995-3444 | 2008-01-23 | 4190 | DIBBS |
| MS35207266 | 2006-07-198 | 50 | Thailand |
| MS35207266 | 2006-07-198 | 50 | Thailand |
Cross Reference | NSN 5305-00-995-3444
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 19089 | 73734 | FEDERAL SCREW PRODUCTS INC. |
| 19089ADX | 1VN02 | AIRDALE EXPRESS LLC |
| 411 535 | 77294 | PIPER AIRCRAFT INC. |
| 453979 | 16764 | GENERAL MOTORS CORP DELCO REMY DIV |
| 453979 | 1LW55 | REMY, INC. |
| 5305009953444 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 5305PL0759516 | 9009H | INSPEKTORAT WSPARCIA SIL ZBROJNYCH |
| 835948 | 19203 | PICATINNY ARSENAL |
| 852886-00 | 32345 | DEFENSE REDUCTION AGENCY |
| 935.63.12.068 | S4080 | PILATUS AIRCRAFT LTD |
| AN526-1032R14 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MS35207-266 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| MS35207-266 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS35207-266 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS35236-66 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-995-3444
Technical Data | NSN 5305-00-995-3444
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.813 INCHES MINIMUM AND 0.875 INCHES MAXIMUM |
| FASTENER LENGTH | 0.875 INCHES NOMINAL |
| SCREW MATERIAL | STEEL COMP 1010 OR STEEL COMP 1011 OR STEEL COMP 1013 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A575 ASSN STD SINGLE MATERIAL RESPONSE OR ASTM A576 ASSN STD SINGLE MATERIAL RESPONSE OR ASTM A108 ASSN STD SINGLE MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE |
| MINIMUM TENSILE STRENGTH | 55000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A23 PAN |
| HEAD DIAMETER | 0.357 INCHES MINIMUM AND 0.373 INCHES MAXIMUM |
| HEAD HEIGHT | 0.122 INCHES MINIMUM AND 0.133 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
Restrictions/Controls & Freight Information | NSN 5305-00-995-3444
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5305-00-995-3444
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | X3 | Nuclear Reactor Plant (NRP) material under the technical cognizance of the NAVSEA 08 special designed, manufactured and/or treated for use in a NRP or controls thereof. This category includes all other NRP items which are not coded X2 or X4. |
| Issue Repair, or Requisition | BL | Submit/refer requisitions to NAVICP MECH. Centralized control for issue of repair parts for specific programs/equipments. |
| Source of Supply | N35 | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
