NSN 5305-00-993-9189 MS246932, MS24693-2, MS246932C
Product Details | MACHINE SCREW

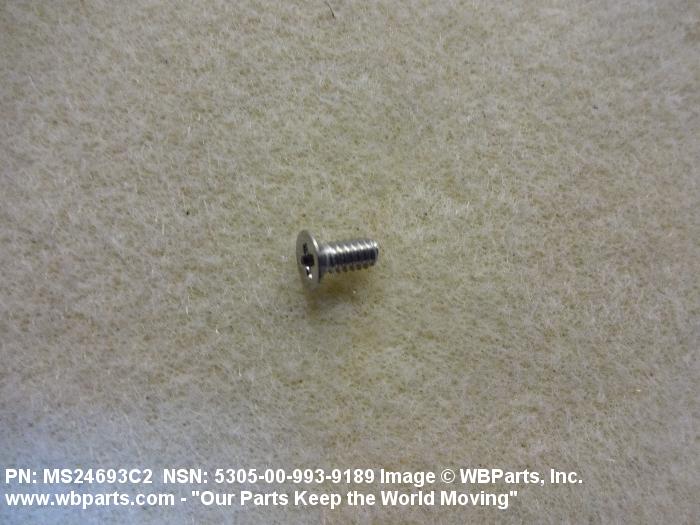

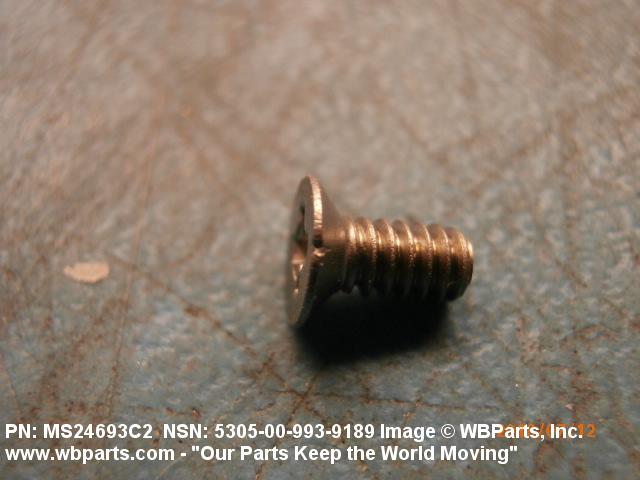

5305-00-993-9189 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: MS246932, MS24693-2, MS246932C, MS24693-2C, MS24693C, MS24693C2, MS24693-C2, MS24693PC2, M24693/C2, M24693C2, MBEU64041 ITEM 27, MBEU64041ITEM27, AN507C440R4, B68155, FFS92, GA3138002, GA3138-002, P30504, WC1053002, WC1053-002, 945613-404, 9465313002, 946531-3002, 984027, 7903133-01, 93085A106, 10114803 , 10125901M, 1120788002, 112-0788-002, 112-1055-02, 15650058, 15650058-4 , 1889900405, 2012497, 2301443002, 23-01443-002, 401635723560, 401-6357235-60, 418359-221, 45170002, 4517-0002, 45170003, 4517-0003, 51490508004, 514-90508-004, 418300-221, 722-016-006, 722-159-005, 77812, 5305-00-993-9189, 00-993-9189, 5305009939189 , 722016006, 418359221, 790313301, 722159005, 009939189, 156500584, 112105502, 418300221, 945613404
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-993-9189 | 06657 ( SCREW, MACHINE ) |
Drawings & Photos | NSN 5305-00-993-9189
Demand History | NSN 5305-00-993-9189
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS24693C2 | 2024-10-277 | 80 | Italy |
| MS24693C2 | 2024-09-263 | 12 | Japan |
| 5305-00-993-9189 | 2023-12-338 | 1367 | DIBBS |
| FFS92 | 2023-08-236 | 14 | US |
| MS24693C2 | 2023-05-137 | 2500 | Malta |
| MS24693C2 | 2022-08-242 | 160 | Taiwan |
| MS24693C2 | 2022-08-231 | 600 | Malta |
| MS24693C2 | 2022-04-96 | 500 | IN |
| MS24693C2 | 2022-04-96 | 11000 | IN |
| MS24693-C2 | 2021-05-137 | 400 | US |
| MS24693C2 | 2020-06-177 | 15980 | IN |
| MS24693C2 | 2019-08-233 | 4 | United States |
| MS24693C2 | 2018-10-281 | 100 | Korea |
| MS24693C2 | 2018-06-176 | 1000 | Korea |
| MS24693C2 | 2018-06-176 | 2000 | Korea |
| 5305-00-993-9189 | 2018-04-112 | 300 | US |
| MS24693-C2 | 2015-08-217 | 16 | United States |
| MS24693C2 | 2015-01-20 | 12756 | US |
| MS24693C2 | 2014-10-296 | 1600 | Israel |
| MS24693C2 | 2014-10-296 | 1600 | Israel |
| MS24693C2 | 2014-07-212 | 3000 | US |
| MS24693C2 | 2014-06-176 | 25 | US |
| MS24693C2 | 2013-08-239 | 300 | United States |
| MS24693-C2 | 2012-10-297 | 6 | US |
| 5305-00-993-9189 | 2012-07-210 | 7000 | AE |
| MS24693C2 | 2012-05-149 | 100 | Canada |
| MS24693C2 | 2011-06-159 | 3800 | United States |
| MS24693C | 2011-06-152 | 200 | United States |
| FFS92 | 2011-02-49 | 5 | US |
| FFS92 | 2011-02-49 | 50 | US |
| MS24693C2 | 2011-02-33 | 150 | TW |
| FFS92 | 2010-11-323 | 165 | US |
| 5305-00-993-9189 | 2010-09-260 | 10 | US |
| 5305-00-993-9189 | 2010-06-158 | 100 | IL |
| 5305-00-993-9189 | 2010-05-133 | 100 | US |
| 5305-00-993-9189 | 2010-05-133 | 500 | US |
| 5305-00-993-9189 | 2010-05-133 | 2500 | US |
| FFS92 | 2009-12-338 | 100 | US |
| FFS92 | 2009-10-292 | 50 | United States |
| 5305-00-993-9189 | 2009-07-211 | 18 | US |
| 5305-00-993-9189 | 2009-07-195 | 1000 | Singapore |
| MS24693C2 | 2008-07-211 | 1000 | IL |
| 5305-00-993-9189 | 2008-07-210 | 2640 | Taiwan |
| MS24693C2 | 2008-06-162 | 500 | United States |
| FFS92 | 2008-03-80 | 50 | United States |
| 5305-00-993-9189 | 2007-05-122 | 30000 | China |
| 5305-00-993-9189 | 2006-12-348 | 25 | US |
| MS24693C2 | 2006-10-277 | 1400 | Turkey |
| 5305-00-993-9189 | 2006-09-252 | 100 | South Korea |
| 5305-00-993-9189 | 2006-09-252 | 100 | South Korea |
Cross Reference | NSN 5305-00-993-9189
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10125901M | S0123 | ELBIT SYSTEMS LTD. |
| 112-0788-002 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 112-1055-02 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 15650058 | F6151 | SAFRAN |
| 15650058 | FAQ15 | SAGEM DEFENSE SECURITE - GROUPESAFRAN |
| 15650058-4 | F6151 | SAFRAN |
| 15650058-4 | FAQ15 | SAGEM DEFENSE SECURITE - GROUPESAFRAN |
| 1889900405 | 57057 | NAVCOM DEFENSE ELECTRONICS, INC. |
| 2012497 | 001JK | EMBRAER S/A |
| 2012497 | FB459 | EMBRAER AVIATION INTERNATIONAL |
| 2012497 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| 23-01443-002 | K0268 | RAYTHEON SYSTEMS LTD |
| 401-6357235-60 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 418300-221 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 418359-221 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 4517-0002 | 19397 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| 4517-0003 | 19397 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| 514-90508-004 | 96182 | EATON CORPORATION DBA AEROSPACE & COMMERCIAL DIVISION |
| 5305009939189 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 722-016-006 | 26055 | PARKER-HANNIFIN CORPORATION DBA ELECTRONICS SYSTEMS DIVISION |
| 722-159-005 | 26055 | PARKER-HANNIFIN CORPORATION DBA ELECTRONICS SYSTEMS DIVISION |
| 77812 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 7903133-01 | 03956 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
| 7903133-01 | 90536 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 93085A106 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 945613-404 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 946531-3002 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 946531-3002 | 13973 | LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION |
| 984027 | F0754 | SOC EXPLOITATION MATERIELS MARTINBAKER |
| AN507C440R4 | 81352 | AIR FORCE-NAVY AERONAUTICAL SPECIFICATIONS |
| AN507C440R4 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| B68155 | K0967 | MBDA UK LTD |
| FFS92 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| GA3138-002 | 50276 | PREECE INC DECCA VALVES DIV |
| M24693/C2 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MBEU64041 ITEM 27 | D1131 | AUTOFLUG GMBH DBA AUTOFLUG SICHERHEITSGERATE |
| MBEU64041 ITEM 27 | U1604 | MARTIN-BAKER AIRCRAFT CO LTD DBA MARTIN-BAKER |
| MS24693-2 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS24693-2C | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS24693-C2 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS24693-C2 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS24693-C2 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS24693C | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS24693PC2 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| P30504 | D1131 | AUTOFLUG GMBH DBA AUTOFLUG SICHERHEITSGERATE |
| P30504 | U1604 | MARTIN-BAKER AIRCRAFT CO LTD DBA MARTIN-BAKER |
| WC1053-002 | 70318 | ALLMETAL SCREW PRODUCTS CORP DBA ALL METAL SCREW PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-993-9189
Related Products | NSN 5305-00-993-9189
Technical Data | NSN 5305-00-993-9189
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.112 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.200 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |

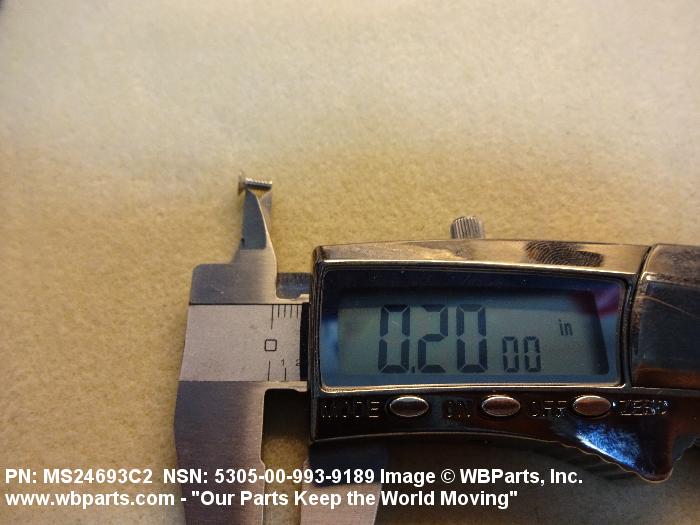

| FASTENER LENGTH | 0.219 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| SCREW MATERIAL | STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES |
| SCREW SURFACE TREATMENT | PASSIVATE |
| HEAD STYLE | A39 FLAT COUNTERSUNK |

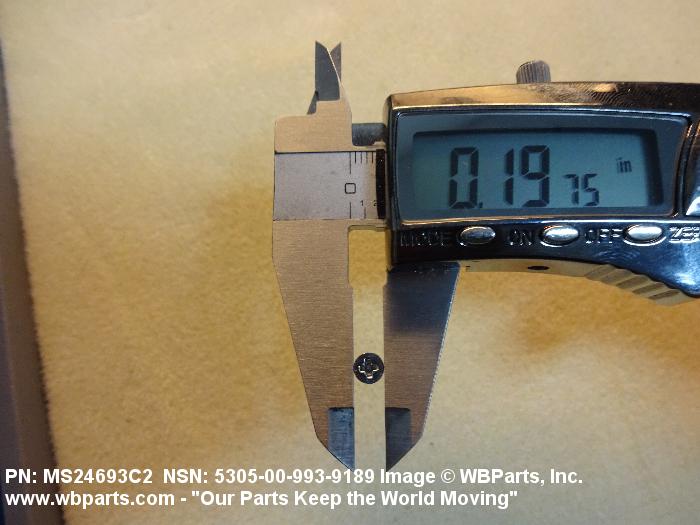

| HEAD DIAMETER | 0.191 INCHES MINIMUM AND 0.225 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FFS92 |
Restrictions/Controls & Freight Information | NSN 5305-00-993-9189
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
