NSN 5305-00-993-1848 MS2458457, MS24584-57, MS35207265

Product Details | MACHINE SCREW

5305-00-993-1848 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: MS2458457, MS24584-57, MS35207265, MS35207-265, MS3520757, MS35207-57, MS3522467, MS35224-67 , MS3523667, MS35236-67 , A1BMW6024G, A207D24 , AN5261032R12, AN526-1032R12, AN526C1032R12, AN526C-1032R12, B45253034, B4525-303-4, BM1229705, BM12297-05, CIPRDMS35207265, CIPRD-MS35207-265 , DSR15238, DSR1523-8 , 06657010, 06657-010 , 10082685 , 1055845, 1055-845 , 19088, 19088ADX, 19090 , 19090ADX, 2301191059, 23-01191-059 , 2537, 2538, 31145, 402343, 436752, 5305PL0631723, 5338306, 5338-306, 535782, 53578-2 , 5593390 , 6543, 7099000154, 7-099-000154, 71137265, 71137-265, 80417400, 804174-00 , 826456 , 85900100, 859001-00, 935.63.12.069 , 9356312069, 5305-00-993-1848, 00-993-1848, 5305009931851 , 5305009931848, 009931848

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-993-1848	06657 ( SCREW, MACHINE )

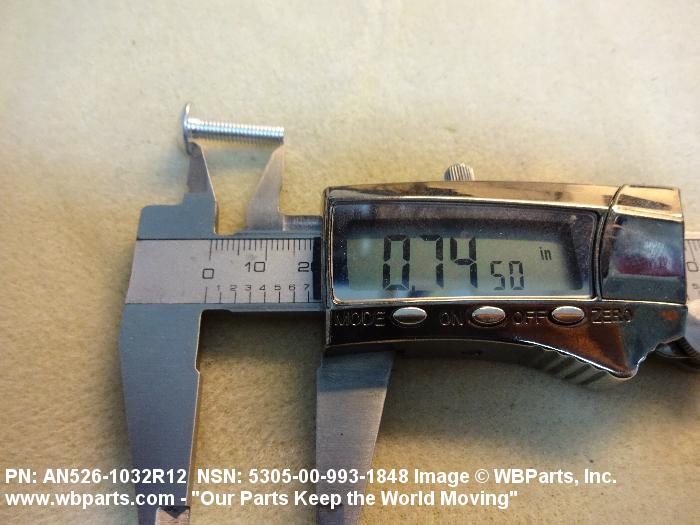

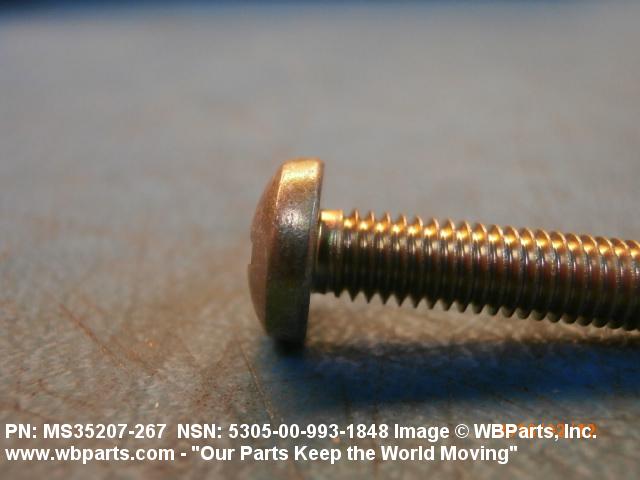

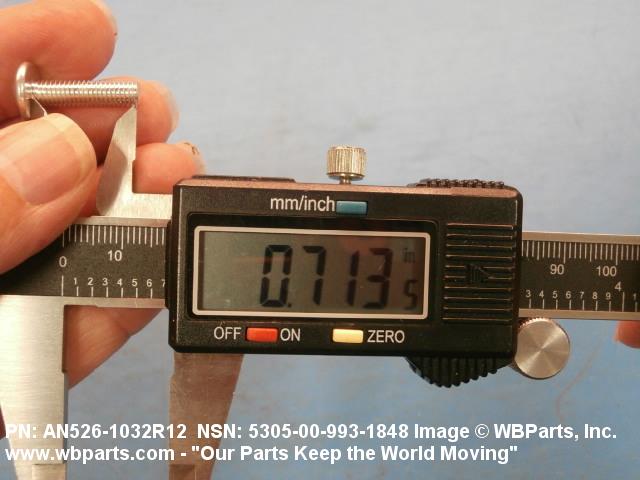

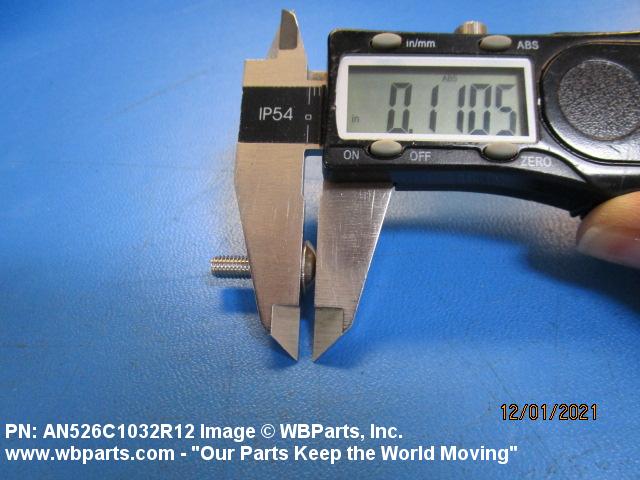

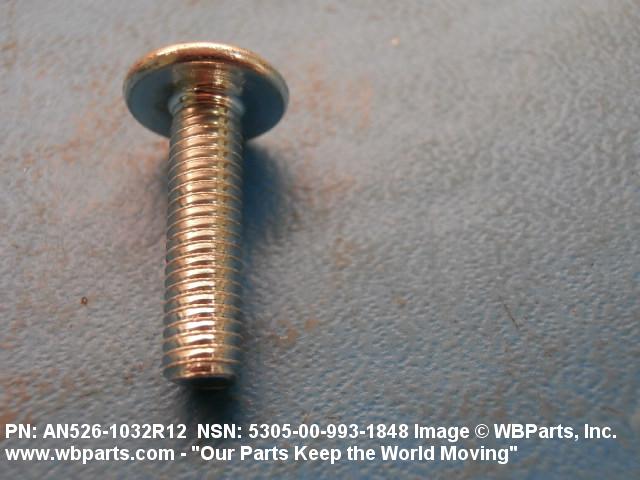

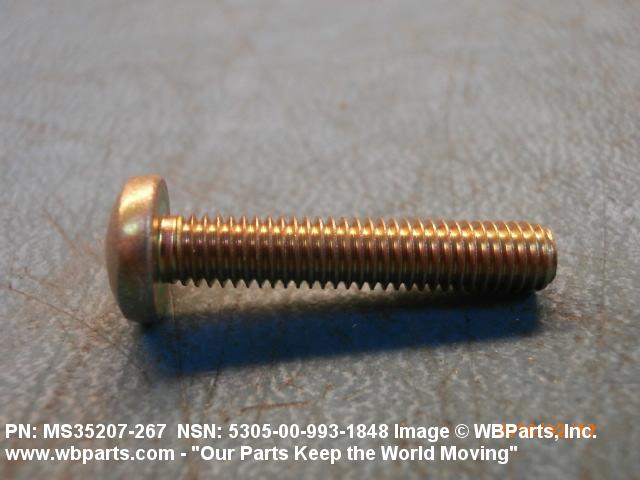

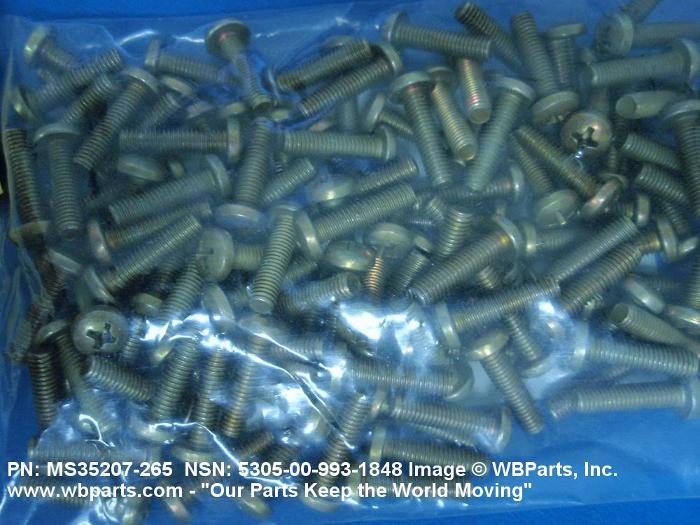

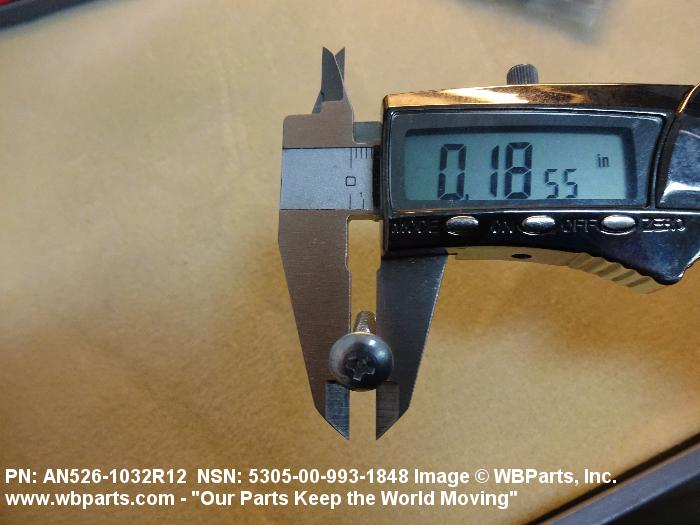

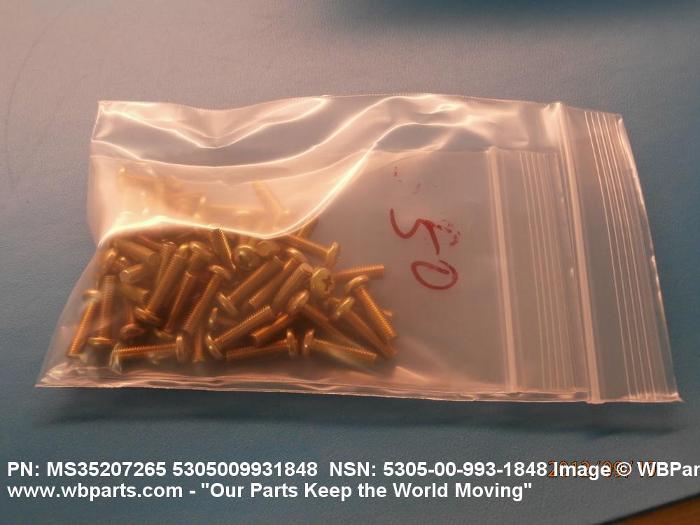

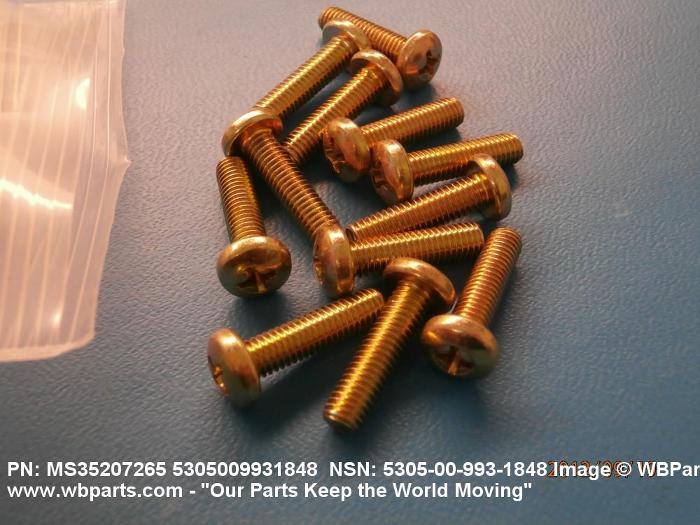

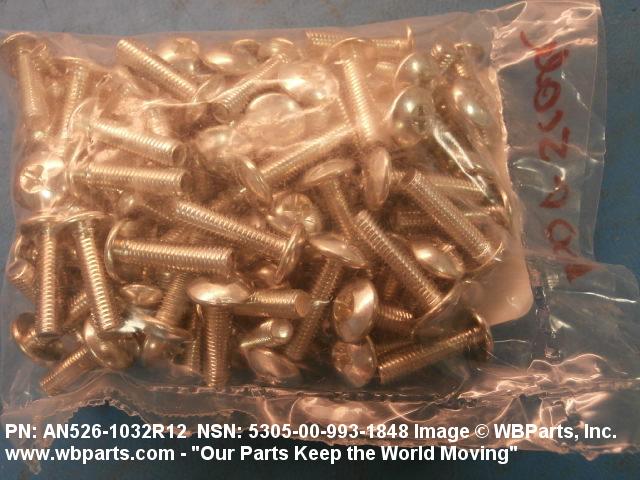

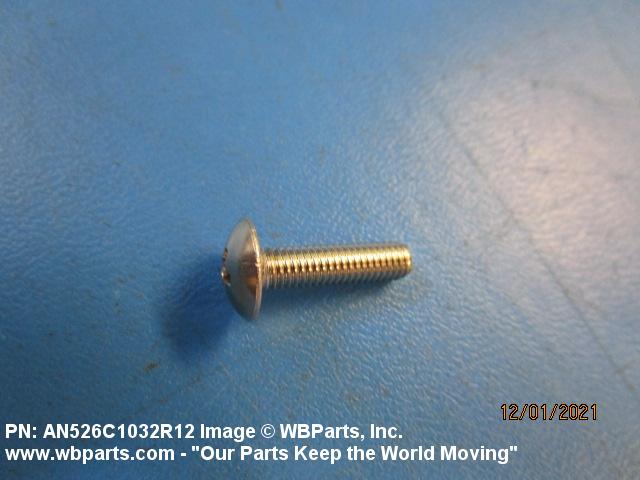

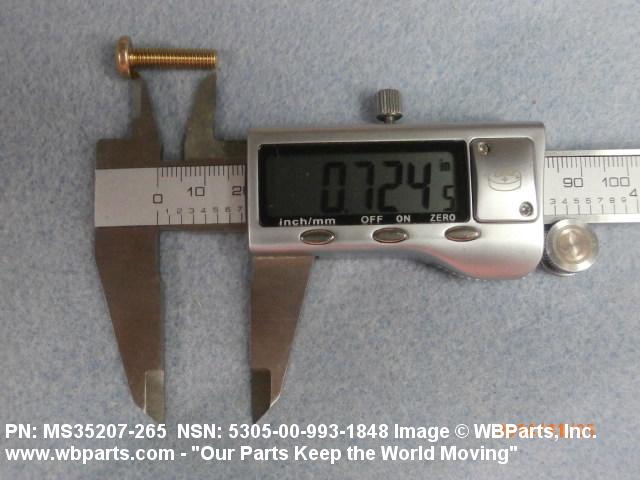

Drawings & Photos | NSN 5305-00-993-1848

Part Number	Request Date	QTY	Origin
5305-00-993-1848	2025-05-140	85	KR
AN526C1032R12	2024-11-311	500	United States
MS35207265	2024-09-268	74	Spain
AN526C1032R12	2024-07-195	300	United States
AN526C1032R12	2024-07-194	300	United States
AN526C1032R12	2024-05-150	300	United States
5305-00-993-1848	2024-05-149	10000	us
MS35207265	2023-12-352	24198	United States
AN526C1032R12	2023-12-352	400	United States
MS35207265	2023-11-314	24198	us
MS35207265	2023-04-118	18	United States
MS35207-265	2023-04-101	10	United States
5305-00-993-1848	2023-04-95	100	United States
MS35207265	2023-02-48	10	US
AN526C1032R12	2022-09-269	100	United States
MS35207265	2022-06-167	100	US
MS35207265	2022-06-167	44561	US
MS35207265	2021-11-314	33	United States
MS35207265	2020-09-274	11	United States
5305-00-993-1848	2020-06-182	120	MANUAL
MS35207265	2020-03-63	100	United States
5305-00-993-1848	2020-01-22	80	UM
MS35207265	2019-02-51	6	US
5305-00-993-1848	2019-01-13	133	DIBBS
MS35207265	2018-11-313	8	United States
5305-00-993-1848	2018-02-46	3	us
5305-00-993-1851	2018-02-46	5	us
5305-00-993-1848	2018-02-44	40	United States
5305-00-993-1848	2018-02-32	40	United States
5305-00-993-1851	2017-12-345	4859	US
5305-00-993-1848	2017-11-334	2320	DIBBS
5305-00-993-1848	2017-03-72	1082	DIBBS
5305-00-993-1848	2017-02-40	1082	DIBBS
MS35207265	2016-11-312	8	United States
MS35207265	2016-10-302	180	United States
5305-00-993-1848	2016-09-256	604	DIBBS
5305-00-993-1848	2016-06-174	785	DIBBS
5305-00-993-1848	2015-10-278	949	US
5305-00-993-1848	2015-09-251	949	DIBBS
MS35207-265	2015-06-174	6	Greece
MS35207265	2015-06-159	12	US
5305-00-993-1848	2014-12-355	763	DIBBS
MS35207265	2014-12-338	6	Malaysia
MS35207-265	2014-11-330	6	MY
MS35207-265	2014-09-271	100	United States
MS35207-265	2014-07-199	100	United States
AN526-1032R12	2014-06-171	8	United States
MS35207-265	2014-03-71	391	United States
MS35207265	2013-09-261	100	US
MS35207265	2013-09-259	1	United States
5305-00-993-1848	2013-08-235	1	United States
5305-00-993-1848	2013-06-160	300	Philippines
MS35207265	2013-06-158	300	PH
5305-00-993-1848	2013-06-155	2647	DIBBS
MS35207-265	2012-12-345	10	US
MS35207-265	2012-11-310	50
MS35207265	2012-09-248	50	United States
MS35207265	2012-04-93	553	US
MS35207265	2011-06-167	1	US
MS35207265	2011-04-117	120	United States
MS35207265	2011-03-77	120	BR
MS35207265	2011-02-47	500	US
5305-00-993-1848	2011-01-01	10	FR
MS35207265	2010-12-356	1	Italy
5305-00-993-1848	2010-02-56	4022	DIBBS
5305-00-993-1848	2009-11-317	1044	Italy
5305-00-993-1848	2009-09-265	200	Canada
5305-00-993-1848	2009-08-231	200	US
MS35207265	2009-07-210	36	US
5305-00-993-1848	2009-06-176	10	US
AN5261032R12	2009-05-138	29	China
5305-00-993-1848	2009-03-76	3571	DIBBS
5305-00-993-1848	2008-07-202	4	US
AN5261032R12	2007-05-123	200	India
5305-00-993-1851	2007-04-100	2000	Turkey
MS35207265	2006-07-198	50	Thailand

Cross Reference | NSN 5305-00-993-1848

Part Number	Cage Code	Manufacturer
1055-845	31361	WOODWARD, INC. DBA INDUSTRIAL PRODUCTS GROUP
19088	73734	FEDERAL SCREW PRODUCTS INC.
19088ADX	1VN02	AIRDALE EXPRESS LLC
2537	70655	AUTO VEHICLE PARTS CO DBA AU-VE-CO
31145	05573	BARNES GROUP INC. DBA BARNES DISTRIBUTION
402343	5X050	CRYSTEEL MANUFACTURING, INC. DBA TBEI-CRYSTEEL
436752	24617	GENERAL MOTORS CORP
5305009931848	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5305PL0631723	9009H	INSPEKTORAT WSPARCIA SIL ZBROJNYCH
5338-306	61796	CEMEN TECH, INC.
6543	72653	GC/WALDOM INC
7-099-000154	0MKW7	MINNPAR, LLC DBA MINNPAR
7-099-000154	12361	GROVE U.S. L.L.C DBA MANITOWOC CRANE GROUP
71137-265	95097	LITTLE GIANT CRANE AND SHOVEL INC
859001-00	32345	DEFENSE REDUCTION AGENCY
A1BMW6024G	70318	ALLMETAL SCREW PRODUCTS CORP DBA ALL METAL SCREW PRODUCTS
A207D24	K7766	BRITISH STANDARDS INSTITUTION
AN526-1032R12	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN526C-1032R12	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
B4525-303-4	60532	TRANE U.S. INC. DBA TRANE
BM12297-05	19422	DEMARKUS CORP REFRIGERATION ENGINEERING CORP
CIPRD-MS35207-265	14153	DEFENSE LOGISTICS AGENCY DBA DEFENSE SUPPLY CENTER
DSR1523-8	K1037	MEGGITT AEROSPACE LTD DBA MEGGITT AIRCRAFT BRAKING SYSTEMS
MS24584-57	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35207-265	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
MS35207-265	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS35207-265	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35207-57	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-993-1848

Compare

Related Products | NSN 5305-00-993-1848

5305-00-993-1849, 5305-00-993-1851, 5305-00-993-2457, 5305-00-993-2458, 5305-00-993-2459

Technical Data | NSN 5305-00-993-1848

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF
NOMINAL THREAD DIAMETER	0.190 INCHES

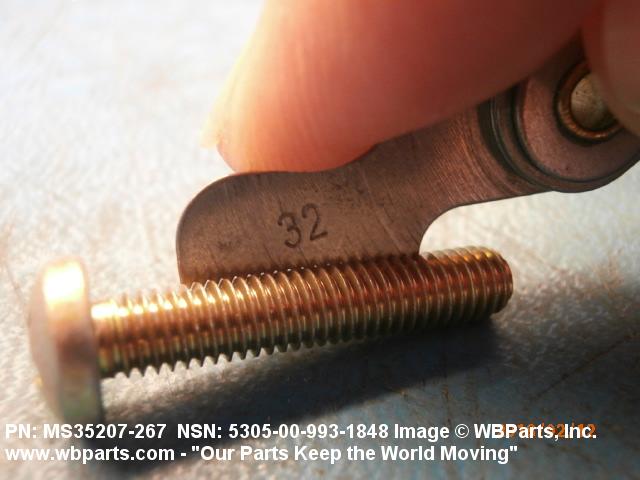

THREAD QUANTITY PER INCH	32
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.657 INCHES MINIMUM AND 0.750 INCHES MAXIMUM
FASTENER LENGTH	0.719 INCHES MINIMUM AND 0.750 INCHES MAXIMUM
SCREW MATERIAL	STEEL COMP 1010 OR STEEL COMP 1011 OR STEEL COMP 1013
SCREW MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES
SCREW SURFACE TREATMENT	CADMIUM AND CHROMATE
SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE
MINIMUM TENSILE STRENGTH	55000 POUNDS PER SQUARE INCH
HEAD STYLE	A23 PAN

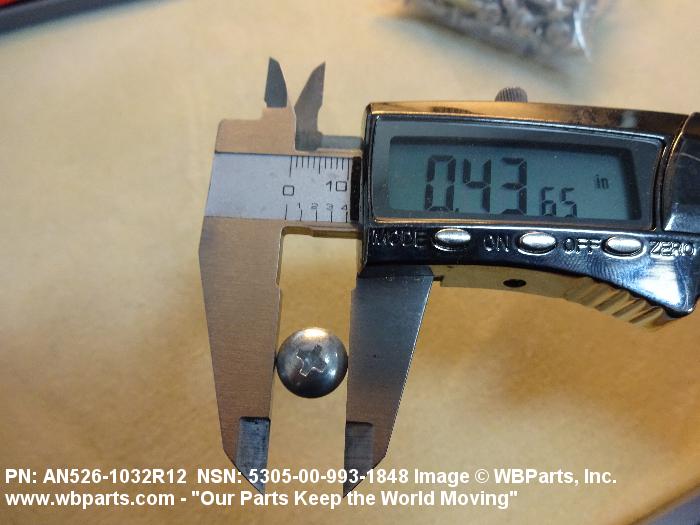

HEAD DIAMETER	0.357 INCHES MINIMUM AND 0.373 INCHES MAXIMUM
HEAD HEIGHT	0.122 INCHES MINIMUM AND 0.133 INCHES MAXIMUM

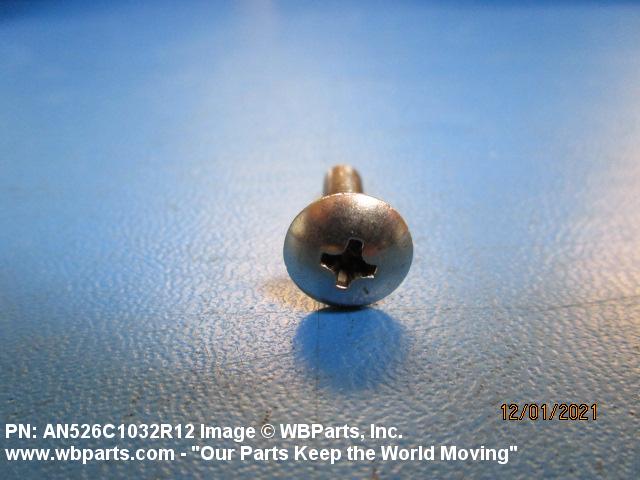

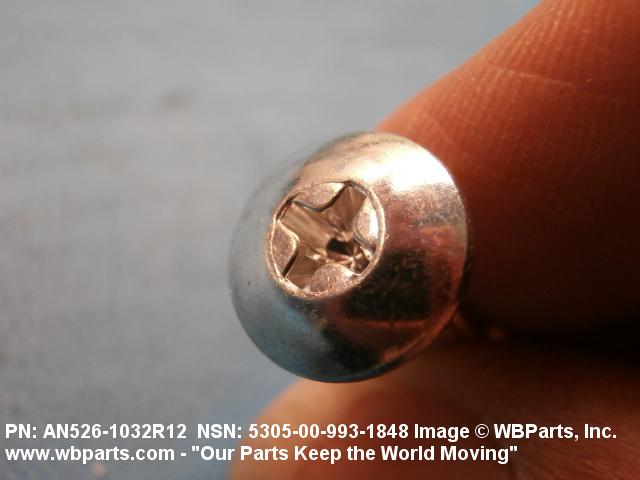

INTERNAL DRIVE STYLE	B1 CROSS RECESS TYPE 1
III END ITEM IDENTIFICATION	ACF; A4N; ABM; AUF; AGA; ATF; 95A; BYN; AUN; AHN

Restrictions/Controls & Freight Information | NSN 5305-00-993-1848

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-993-1848

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BX	OH-58D Army Helicopter Improvement Program (AHIP)
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	BO	SX:BREATHING OXYGEN SYSTEMS AND COMPONENT
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
