NSN 5305-00-983-6730 MS35206218, MS35206-218, MS3522518

Product Details | MACHINE SCREW

5305-00-983-6730 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: MS35206218, MS35206-218, MS3522518, MS35225-18, N80P9010Q90, AN5154R10, AN515-4R10, FFS92TYPE3STYLE9C, 713-003-110, 852511, 03010016019, 03010016-019, 10114770 , 1018982P218, 19027, 19027ADX, 2000480, 220 0112, 2200112, 4177200-89, 4177200-90, 5305-00-983-6730, 00-983-6730, 5305009836730 , 713003110, 009836730, 417720090, 417720089

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-983-6730	06657 ( SCREW, MACHINE )

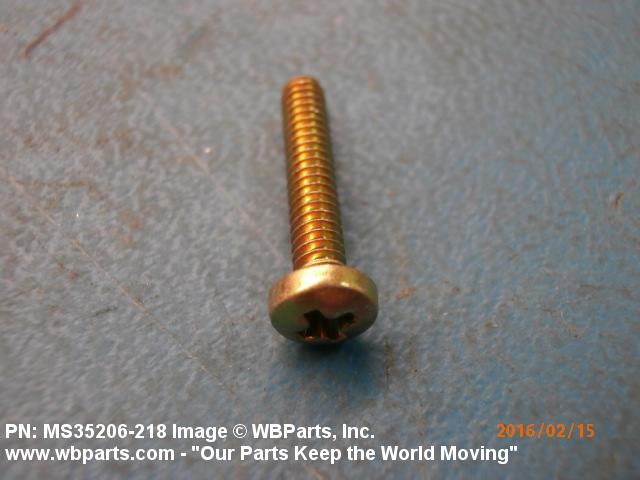

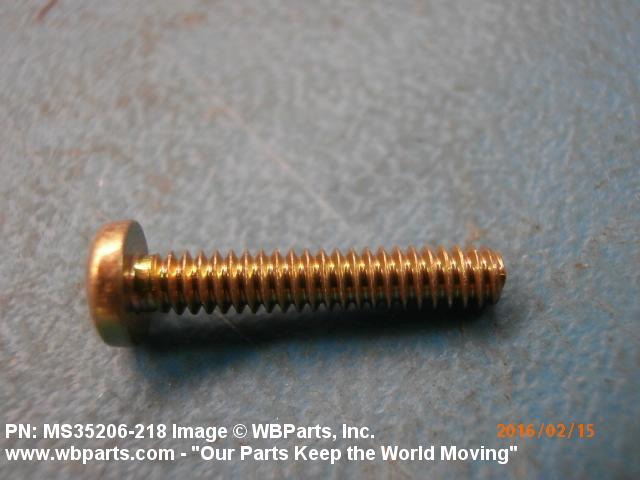

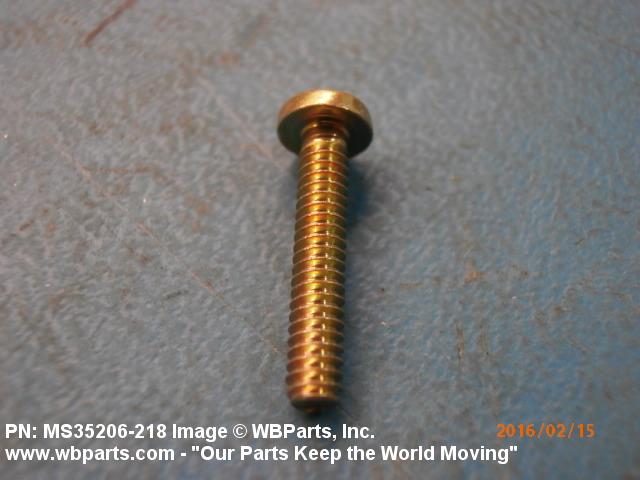

Drawings & Photos | NSN 5305-00-983-6730

Part Number	Request Date	QTY	Origin
MS35206218	2022-06-152	4	Sri Lanka
MS35206218	2021-09-264	6	United States
5305-00-983-6730	2020-06-182	6	MANUAL
5305-00-983-6730	2020-02-55	510	DIBBS
MS35206218	2019-12-340	48	United States
5305-00-983-6730	2019-08-239	478	DIBBS
5305-00-983-6730	2019-01-16	490	DIBBS
MS35206218	2018-08-222	216	United States
MS35206218	2017-06-172	8	United States
MS35206218	2017-02-37	4	Egypt
MS35206218	2016-04-99	100	us
MS35206218	2016-03-81	25	United States
MS35206218	2016-03-75	25	United States
MS35206218	2016-02-43	100	United States
MS35206218	2016-02-43	1	United States
MS35206-218	2015-04-91	20	Greece
5305-00-983-6730	2014-05-127	1507	DIBBS
5305-00-983-6730	2014-03-75	447	DIBBS
MS35206-218	2014-03-71	199	United States
5305-00-983-6730	2014-01-26	321	DIBBS
5305-00-983-6730	2013-01-16	2	MANUAL
AN515-4R10	2012-04-115	6	IN
AN515-4R10	2012-04-115	50	IN
5305-00-983-6730	2011-08-241	4	CO
5305-00-983-6730	2011-01-12	4	US
5305-00-983-6730	2010-10-285	488	DIBBS
5305-00-983-6730	2009-09-264	8	US

Cross Reference | NSN 5305-00-983-6730

Part Number	Cage Code	Manufacturer
03010016-019	33322	GETRONICS GOVERNMENT SOLUTIONS LLC
1018982P218	55939	HONEYWELL INTL DBA HONEYWELL DIV BUSINESS AND
19027	73734	FEDERAL SCREW PRODUCTS INC.
19027ADX	1VN02	AIRDALE EXPRESS LLC
2000480	001JK	EMBRAER S/A
2000480	FB459	EMBRAER AVIATION INTERNATIONAL
2000480	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
220 0112	54193	DATA I/O CORPORATION
4177200-89	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
4177200-90	05869	RAYTHEON COMPANY DBA RAYTHEON
5305009836730	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
713-003-110	15090	RAYTHEON COMPANY DBA RAYTHEON
852511	19203	PICATINNY ARSENAL
AN515-4R10	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
FFS92TYPE3STYLE9C	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
MS35206-218	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS35206-218	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35225-18	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
N80P9010Q90	09817	CANADIAN GENERAL ELECTRIC CO LTD COMPOSITE MATERIALS
N80P9010Q90	24446	GENERAL ELECTRIC CO

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-983-6730

Compare

Related Products | NSN 5305-00-983-6730

5305-00-983-6827, 5305-00-983-7122, 5305-00-983-7126, 5305-00-983-7132, 5305-00-983-7137

Technical Data | NSN 5305-00-983-6730

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.112 INCHES

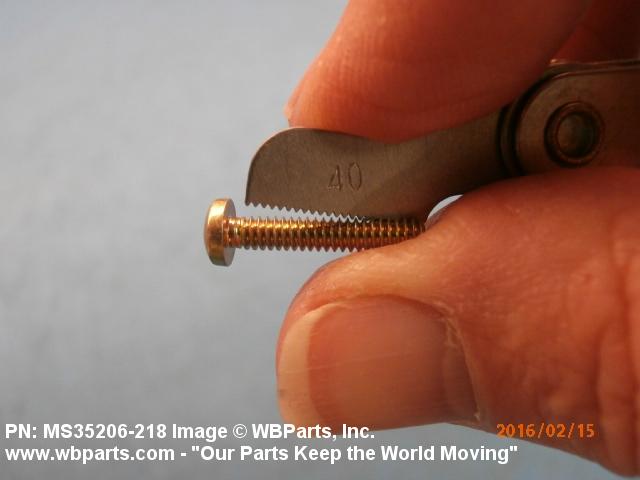

THREAD QUANTITY PER INCH	40
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND

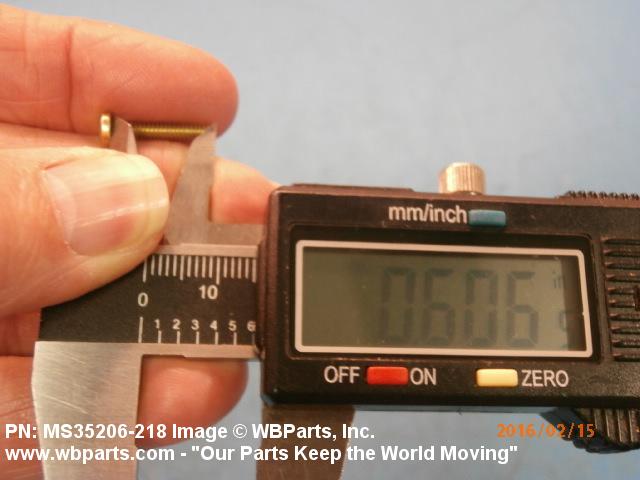

THREAD LENGTH	0.575 INCHES MINIMUM AND 0.625 INCHES MAXIMUM

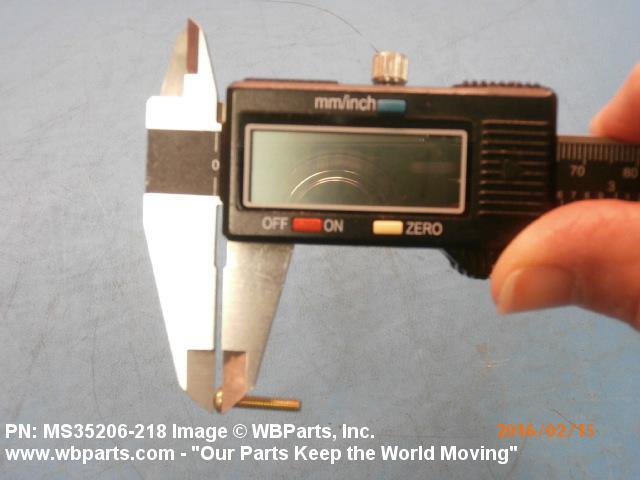

FASTENER LENGTH	0.625 INCHES NOMINAL
SCREW MATERIAL	COPPER ALLOY 268 AND COPPER ALLOY 360
SCREW MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES
SCREW SURFACE TREATMENT	CADMIUM AND CHROMATE
SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TYPE 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE
MINIMUM TENSILE STRENGTH	55000 POUNDS PER SQUARE INCH
HEAD STYLE	A23 PAN

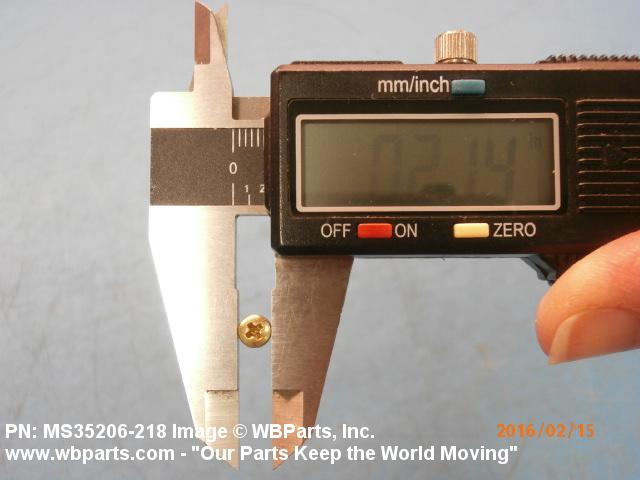

HEAD DIAMETER	0.205 INCHES MINIMUM AND 0.219 INCHES MAXIMUM
HEAD HEIGHT	0.070 INCHES MINIMUM AND 0.080 INCHES MAXIMUM
INTERNAL DRIVE STYLE	B1 CROSS RECESS TYPE 1
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FFS92TYPE3STYLE9C

Restrictions/Controls & Freight Information | NSN 5305-00-983-6730

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	096630	SCREWS NOI BRASS/BRONZE/COPPER
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-983-6730

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	M	Armored Carriers
Weapons Systems/End Item or Homogeneous Group	MM	Infantry Fighting Vehicle (M2, M2A1, M2A2), Cavelry Fighting Vehicle (M3, M3A1, M3A2)
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	BO	SX:BREATHING OXYGEN SYSTEMS AND COMPONENT
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
