NSN 5305-00-966-6583 CA310510329, CA3105-1032-9, H63100915531842C0542C
Product Details | ASSEMBLED WASHER SCREW

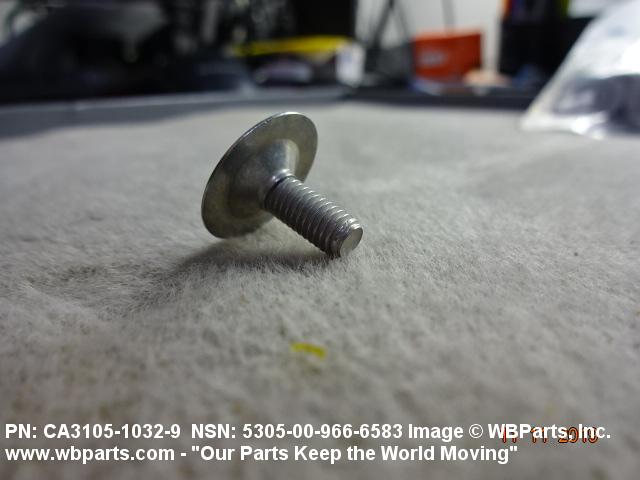

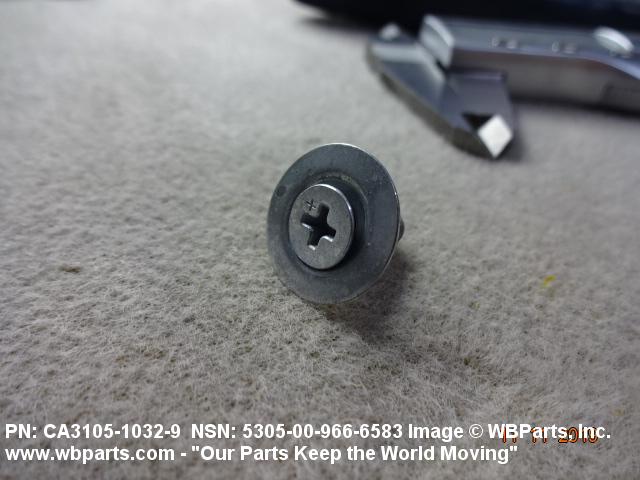

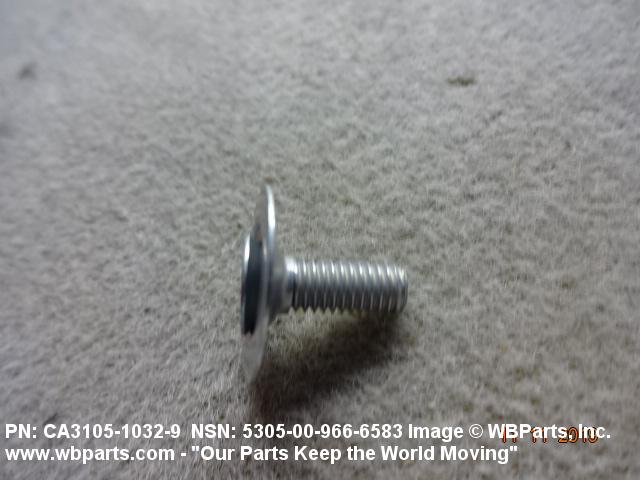

5305-00-966-6583 A SCREW, (as modified) to which has been assembled one or more nonremovable washer(s).
Part Alternates: CA310510329, CA3105-1032-9, H63100915531842C0542C, H63-100915-53-1842C0542C, 5305-00-966-6583, 00-966-6583, 5305009666583, 009666583
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-966-6583 | 06660 ( SCREW, ASSEMBLED WASHER ) |
Drawings & Photos | NSN 5305-00-966-6583
Demand History | NSN 5305-00-966-6583
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-966-6583 | 2013-11-325 | 1 | DIBBS-RFPs |
| 5305-00-966-6583 | 2013-10-291 | 1 | DIBBS-RFPs |
| 5305-00-966-6583 | 2013-09-246 | 1 | DIBBS-RFPs |
| 5305-00-966-6583 | 2012-03-75 | 37205 | DIBBS |
| 5305-00-966-6583 | 2011-06-155 | 46631 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-966-6583
Related Products | NSN 5305-00-966-6583
Technical Data | NSN 5305-00-966-6583
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

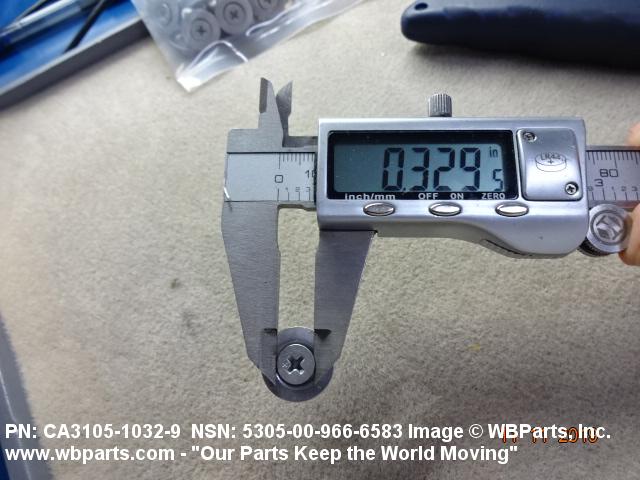

| THREAD LENGTH | 0.344 INCHES MINIMUM AND 0.437 INCHES MAXIMUM |

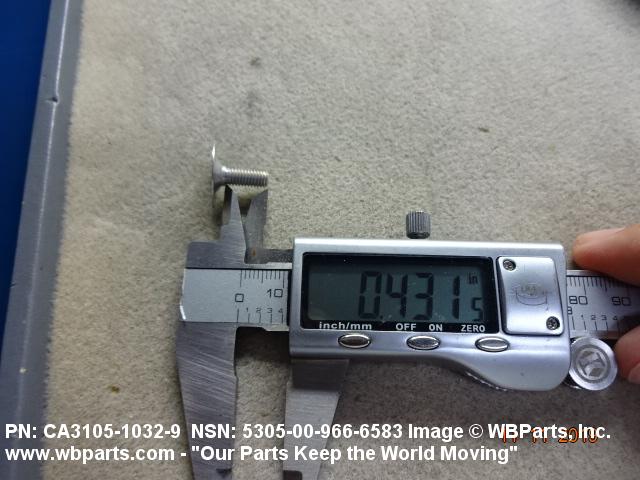

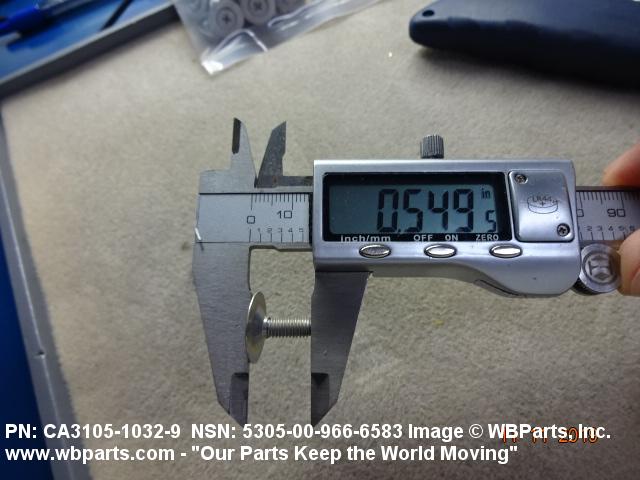

| FASTENER LENGTH | 0.531 INCHES MINIMUM AND 0.562 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 1022 OVERALL |
| HARDNESS RATING | 28.0 ROCKWELL C MINIMUM AND 34.0 ROCKWELL C MAXIMUM OVERALL |
| HEAD STYLE | C50 FLAT COUNTERSUNK |
| HEAD DIAMETER | 0.340 INCHES MINIMUM AND 0.380 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| INTERNAL DRIVE STYLE | D1 CROSS RECESS TYPE 1 |
| WASHER QUANTITY | 1 |
| PRIMARY WASHER STYLE | G18 SLIT |

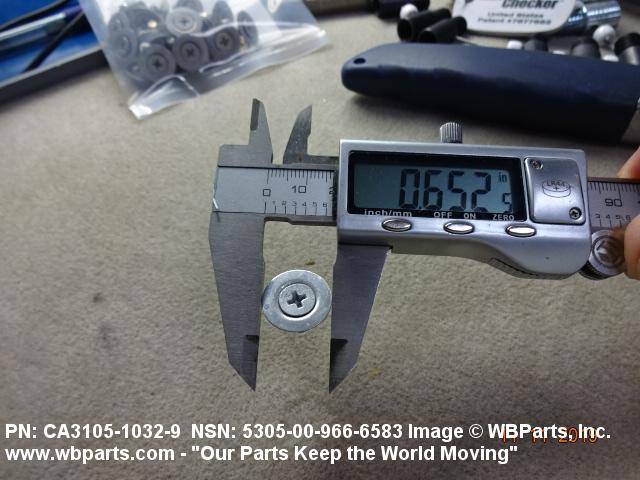

| PRIMARY WASHER OUTSIDE DIAMETER | 0.645 INCHES MINIMUM AND 0.665 INCHES MAXIMUM |

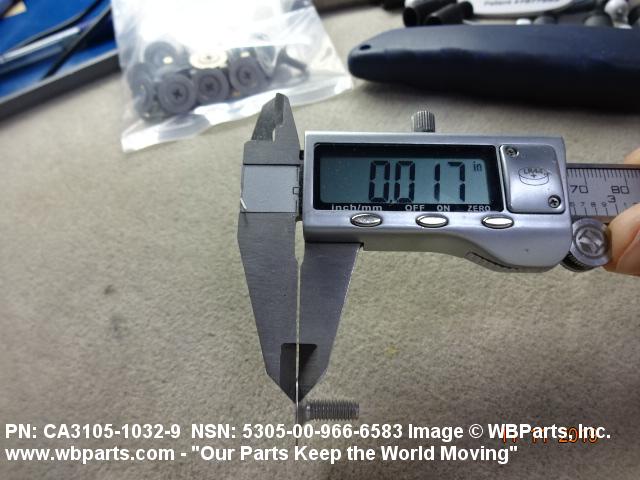

| PRIMARY WASHER MATERIAL THICKNESS | 0.017 INCHES NOMINAL |
| MANUFACTURERS CODE | 78189 |
| DESIGN CONTROL REFERENCE | CA3105-1032-9 |
Restrictions/Controls & Freight Information | NSN 5305-00-966-6583
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
