NSN 5305-00-959-6641 MS24693S32, MS24693-S32, 00-959-6641
Product Details | MACHINE SCREW
5305-00-959-6641 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: MS24693S32, MS24693-S32, 5305-00-959-6641, 00-959-6641, 5305009596641, 009596641
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-959-6641 | 06657 ( SCREW, MACHINE ) |

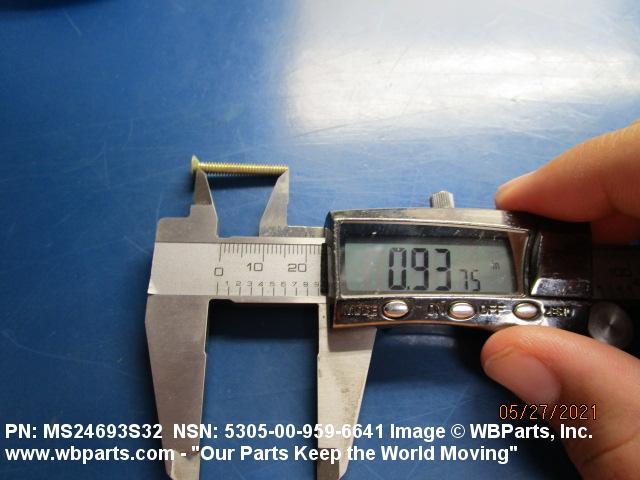

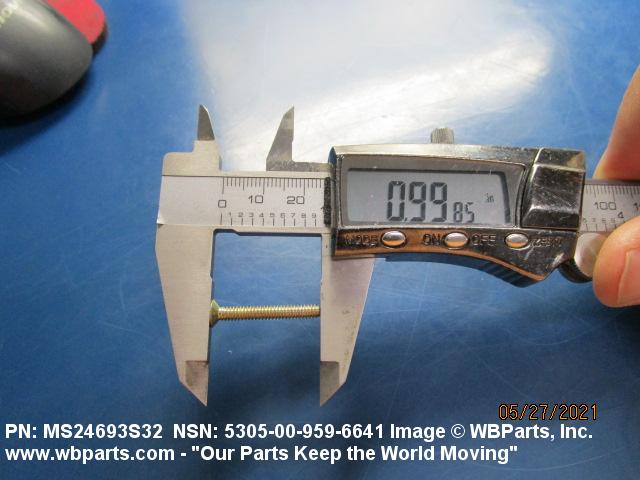

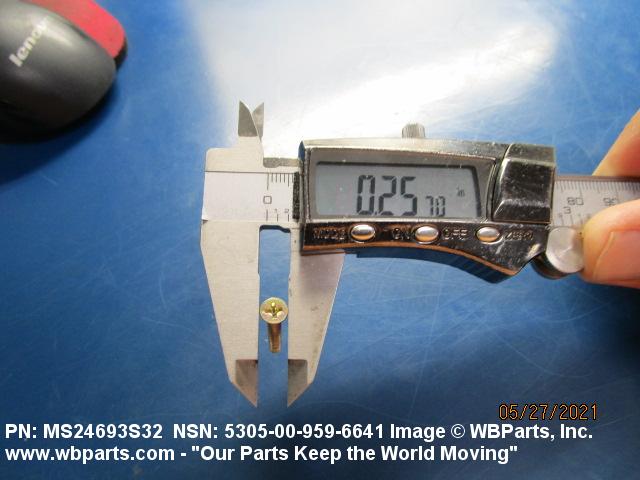

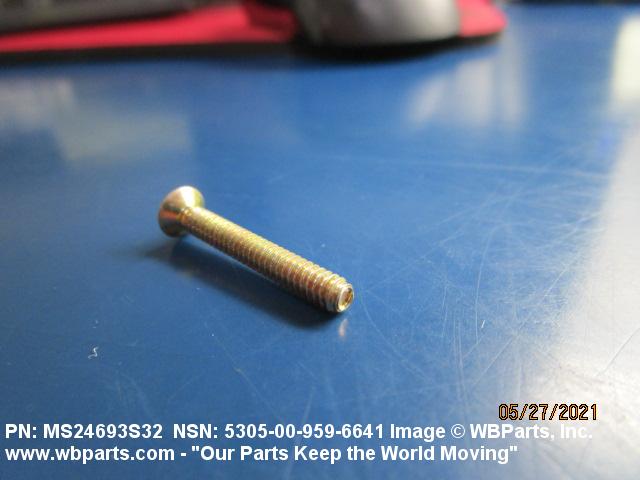

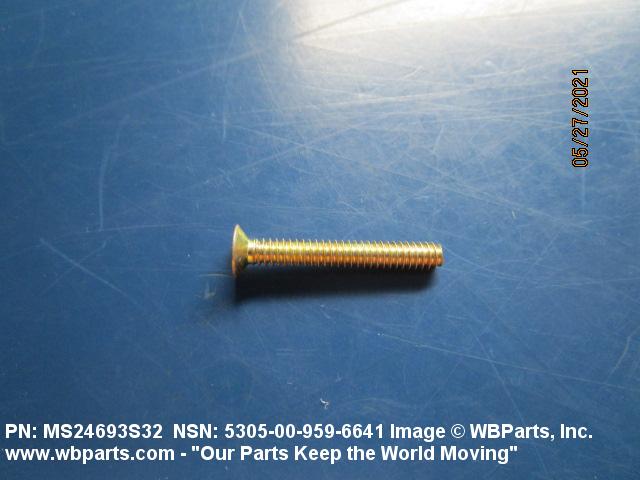

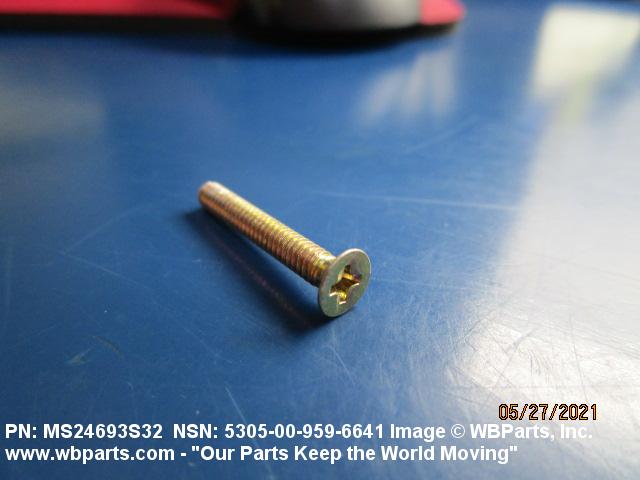

Drawings & Photos | NSN 5305-00-959-6641
Demand History | NSN 5305-00-959-6641
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS24693S32 | 2021-12-362 | 20 | Hong Kong |
| MS24693S32 | 2018-01-16 | 500 | United States |
| MS24693S32 | 2013-08-227 | 10 | United States |
Cross Reference | NSN 5305-00-959-6641
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN507-632R16 | 81352 | AIR FORCE-NAVY AERONAUTICAL SPECIFICATIONS |
| AN507-632R16 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| FFS92 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| MS24693-S32 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NASM24693-S32 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-959-6641
Technical Data | NSN 5305-00-959-6641
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.938 INCHES MINIMUM AND 1.000 INCHES MAXIMUM |
| FASTENER LENGTH | 1.000 INCHES NOMINAL |
| SCREW MATERIAL | STEEL COMP 1010 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-630 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-S-631 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-S-634 FED SPEC SINGLE MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 3 FED SPEC ALL TREATMENT RESPONSES |
| MINIMUM TENSILE STRENGTH | 60000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A39 FLAT COUNTERSUNK |
| HEAD DIAMETER | 0.238 INCHES MINIMUM AND 0.279 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS24693-S32 |
Restrictions/Controls & Freight Information | NSN 5305-00-959-6641
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
