NSN 5305-00-958-2918 MS24293C26, MS24693026, MS24693-026

Product Details | MACHINE SCREW

5305-00-958-2918 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: MS24293C26, MS24693026, MS24693-026, MS2469326, MS24693-26, MS24693C026, MS24693C26, MS24693-C26, A05780, AN5076326, AN507-632-6, AN507C6326, AN507C-632-6, SMC6199967, SMC619996-7, WC1053017, WC1053-017, FFS92, FH6C6CPL13GY, FS1029, GA3138017, GA3138-017, GA507C6326, GA507C632-6, 7903133-16, 7S24693C26, 9160010026, 916001-0026, 9465313026, 946531-3026, 722-159-003, 77828, 044.312.0034, 0443120034, 044-312-0034, 10114739, 1120788017, 112-0788-017, 1121055017, 112-1055-017, 114571, 2012564, 222405-008, 2301443026, 23-01443-026, 3029668026, 30-296-680-26, 418300-236, 43095-506-3, 5000 466316, 5000466316, 5140006-06, 532395-236, 62175-009 ITEM 73, 62175-009/73, 6217500973, 62175009ITEM73, 67320606, 6732-06-06, 5305-00-958-2918, 00-958-2918, 5305009582918, 532395236, 514000606, 722159003, 009582918, 430955063, 418300236, 222405008, 790313316

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-958-2918	06657 ( SCREW, MACHINE )

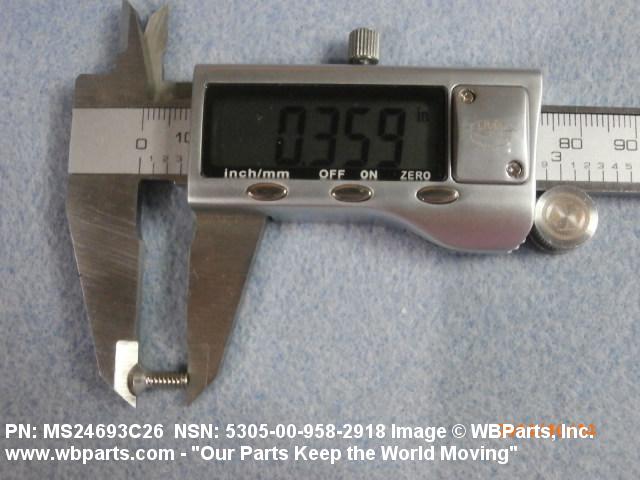

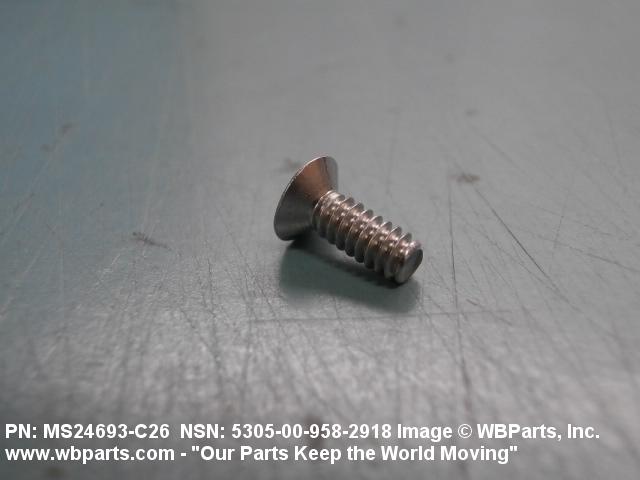

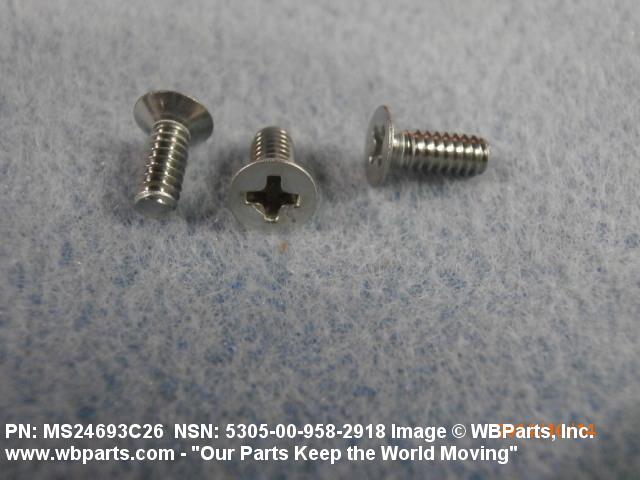

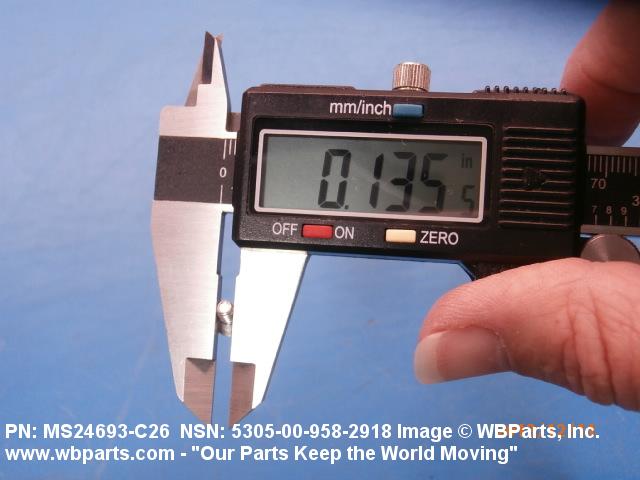

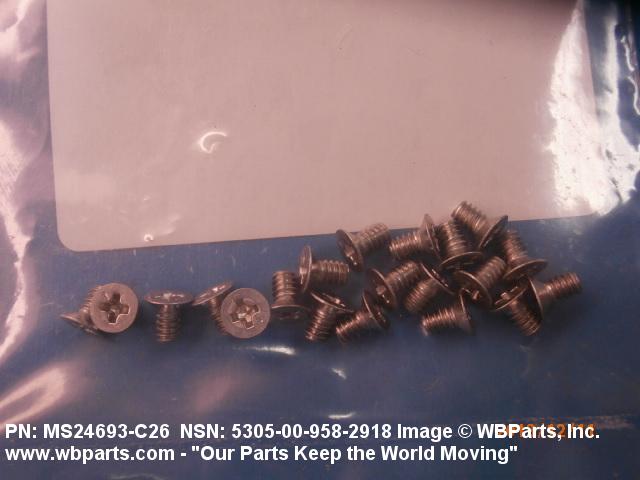

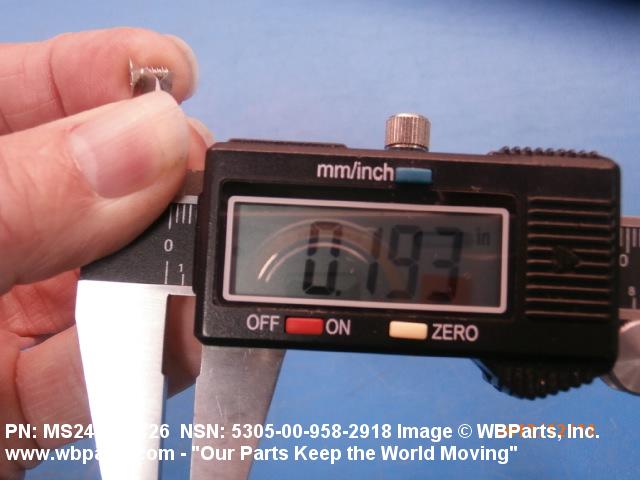

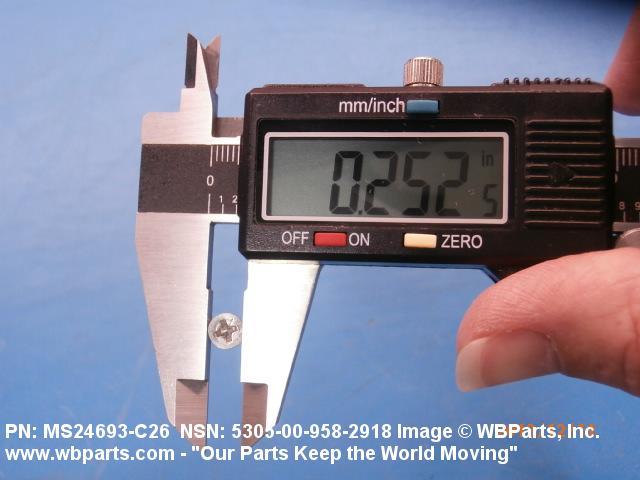

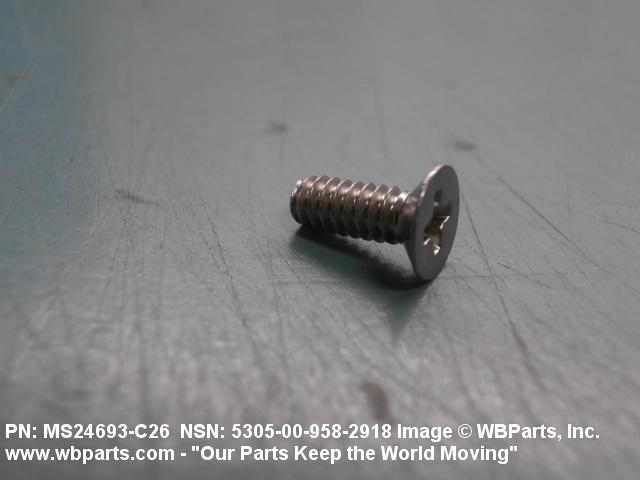

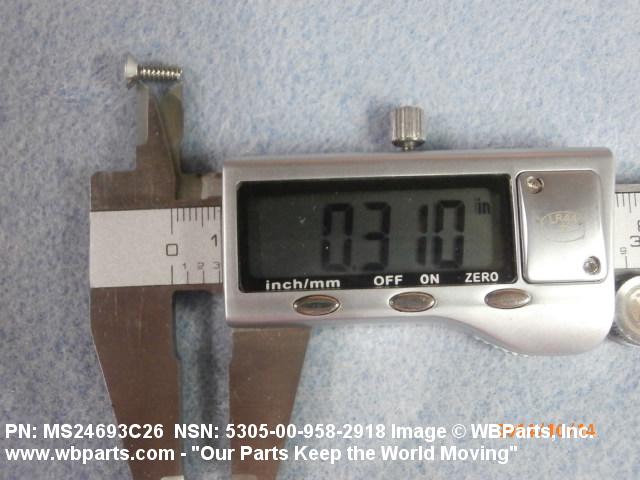

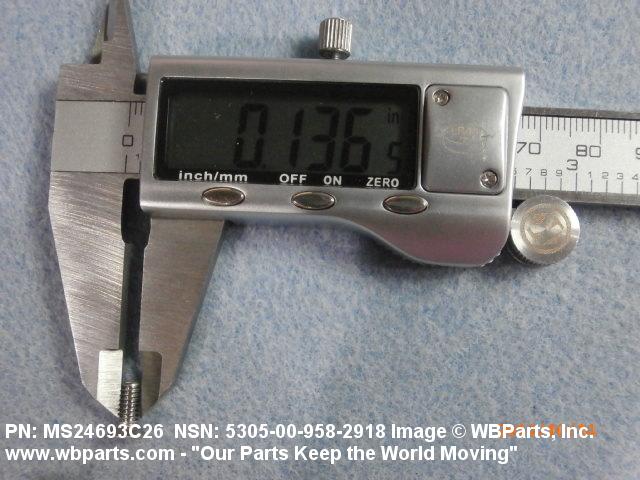

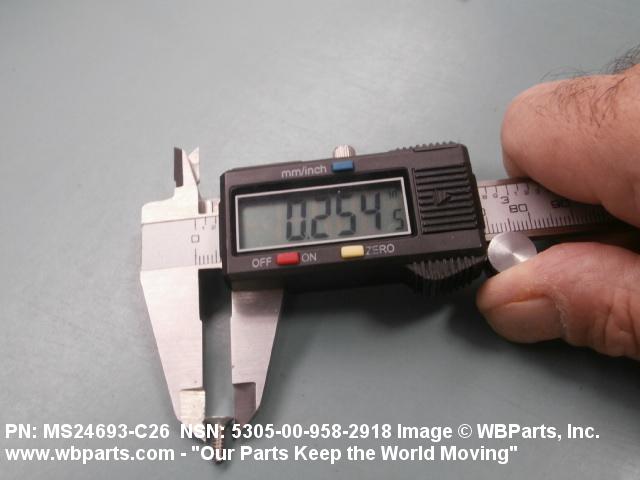

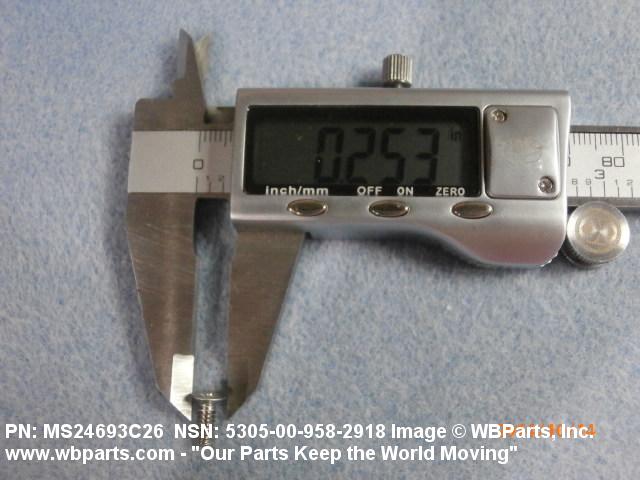

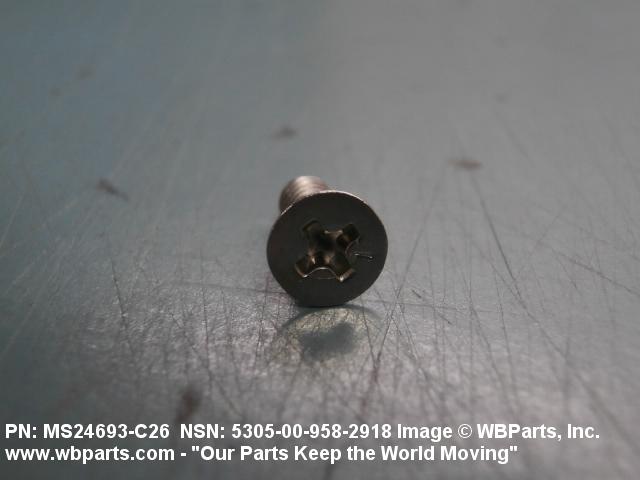

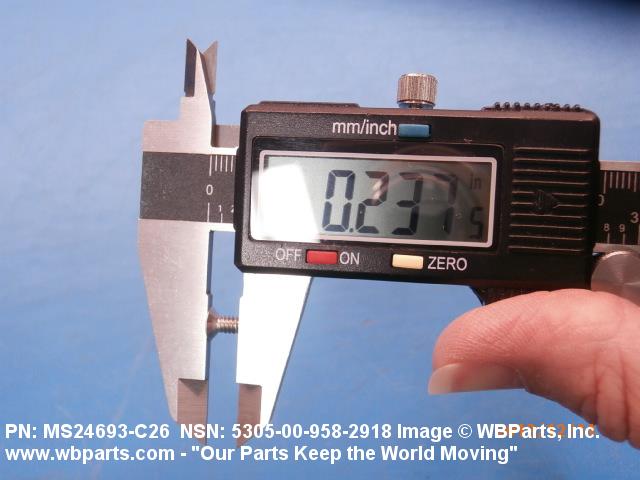

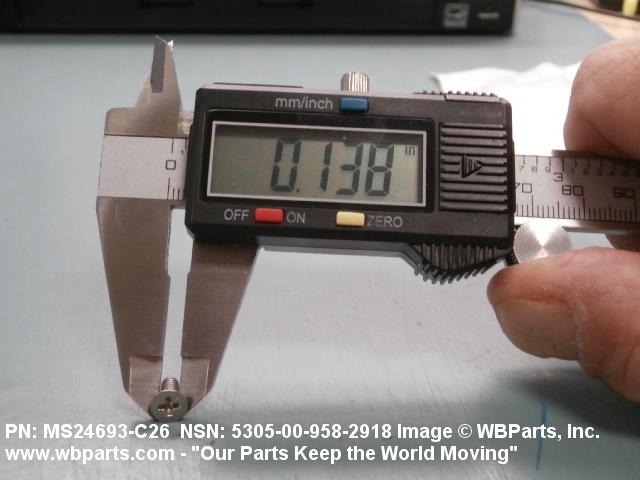

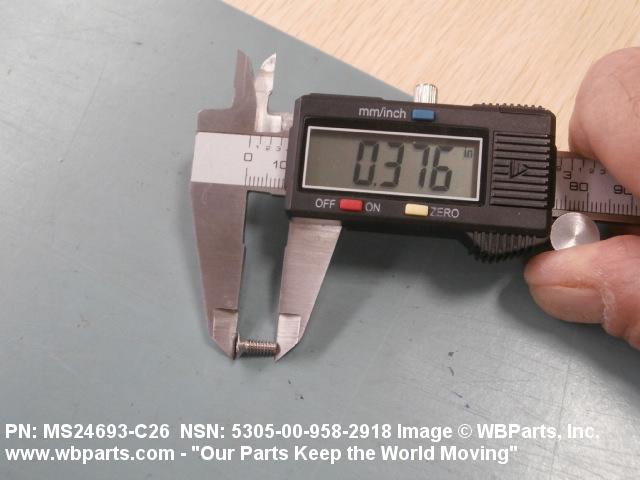

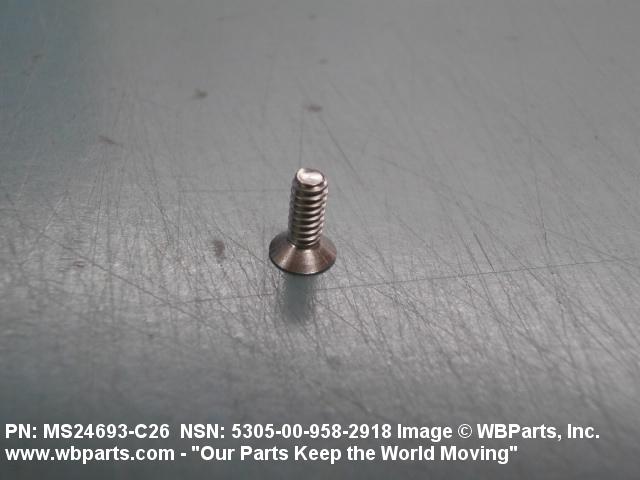

Drawings & Photos | NSN 5305-00-958-2918

Part Number	Request Date	QTY	Origin
5305-00-958-2918	2025-01-03	385	US
MS24693C26	2024-02-58	202	UK
MS24693C26	2023-12-345	1	United Arab Emirates
5305-00-958-2918	2023-12-341	4	US
FFS92	2023-08-236	14	US
5305-00-958-2918	2022-08-234	100	CO
MS24693C26	2021-09-264	36	United States
MS24693C26	2021-09-256	10	United States
MS24693C26	2021-03-82	12	United States
MS24693C26	2020-02-44	100	US
MS24693C26	2019-12-336	5000	US
MS24693C26	2019-08-233	4	United States
MS24693C26	2019-07-205	300	Russian Federation
MS24693C26	2019-03-63	75	China
MS24693-C26	2018-11-310	176	Israel
MS24693C26	2017-07-186	2500	US
MS24693C26	2016-04-96	518	US
5305-00-958-2918	2015-09-258	8	Malaysia
MS24693C26	2015-04-96	20000	US
MS24693C26	2015-04-92	20000	US
MS24693C26	2015-03-78	20000	United States
MS24693C26	2015-03-78	20000	United States
MS24693C26	2015-03-78	20000	United States
MS24693C26	2014-09-271	100	United States
AN5076326	2014-09-258	100	LK
MS24693C26	2014-07-199	100	United States
MS24693C26	2014-06-176	25	US
MS24693C26	2014-06-168	2500	Japan
MS24693C26	2014-06-160	25	United States
MS24693-C26	2014-06-160	25	United States
MS24693C26	2014-06-153	900	CN
MS24693C26	2014-02-42	20	US
MS24693C26	2014-02-35	312	United States
MS24693C26	2013-11-326	20	Canada
MS24693C26	2012-11-310	118
MS24693C26	2012-10-298	821	US
5305-00-958-2918	2012-07-210	250	AE
5305-00-958-2918	2012-07-210	560	AE
MS24693C26	2012-05-131	40	us
MS24693C26	2012-03-88	48	Israel
MS24693C26	2012-03-73	48	Israel
MS24693C26	2012-01-04	20	US
FFS92	2011-02-49	5	US
FFS92	2011-02-49	50	US
MS24693C26	2011-02-46	6000	US
MS2469326	2010-12-341	100	United States
FFS92	2010-11-323	165	US
5305-00-958-2918	2010-11-306	600	DIBBS
5305-00-958-2918	2010-07-182	15	US
FFS92	2009-12-338	100	US
MS24693C26	2009-10-293	8	US
FFS92	2009-10-292	50	United States
MS24693C26	2009-10-279	70	Italy
5305-00-958-2918	2009-03-71	800	China
5305-00-958-2918	2008-10-302	100	US
5305-00-958-2918	2008-06-165	1	us
FFS92	2008-03-80	50	United States
5305-00-958-2918	2007-05-122	7000	China

Cross Reference | NSN 5305-00-958-2918

Part Number	Cage Code	Manufacturer
044-312-0034	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
044.312.0034	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
112-0788-017	94756	BOEING COMPANY, THE DBA BOEING
112-1055-017	94756	BOEING COMPANY, THE DBA BOEING
114571	21340	ITT TELECOM PRODUCTS CORP NETWORK SYSTEMS DIV
2012564	001JK	EMBRAER S/A
2012564	FB459	EMBRAER AVIATION INTERNATIONAL
2012564	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
222405-008	12324	DUPREE INC. DBA STAKE FASTENER
23-01443-026	K0268	RAYTHEON SYSTEMS LTD
30-296-680-26	K0802	MEGGITT (UK) LTD DBA MEGGITT SENSING SYSTEMS
418300-236	96214	RAYTHEON COMPANY DBA RAYTHEON
43095-506-3	94756	BOEING COMPANY, THE DBA BOEING
5000 466316	04801	POWER PARAGON INC DBA POWER SYSTEMS GROUP
5140006-06	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
532395-236	96214	RAYTHEON COMPANY DBA RAYTHEON
62175-009 ITEM 73	U1954	ZODIAC SEATS UK LTD
62175-009/73	U1954	ZODIAC SEATS UK LTD
6732-06-06	27914	HONEYWELL INTERNATIONAL INC DBA HONEYWELL
722-159-003	26055	PARKER-HANNIFIN CORPORATION DBA ELECTRONICS SYSTEMS DIVISION
77828	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
7903133-16	03956	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS
7903133-16	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
7S24693C26	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
916001-0026	K0385	THALES AVIONICS LTD
946531-3026	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
946531-3026	13973	LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION
A05780	K0967	MBDA UK LTD
AN507-632-6	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN507C-632-6	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
FFS92	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
FH6C6CPL13GY	12324	DUPREE INC. DBA STAKE FASTENER
FS1029	16067	CALIFORNIA INSTRUMENTS CORP
GA3138-017	50276	PREECE INC DECCA VALVES DIV
GA507C632-6	43999	BOEING COMPANY, THE DBA BOEING
MS24293C26	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS24693-026	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS24693-26	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS24693-C26	63020	CRESCENT MANUFACTURING OPERATING COMPANY
MS24693-C26	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS24693-C26	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS24693C026	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS24693C26	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
SMC619996-7	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS
WC1053-017	70318	ALLMETAL SCREW PRODUCTS CORP DBA ALL METAL SCREW PRODUCTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-958-2918

Compare

Related Products | NSN 5305-00-958-2918

5305-00-958-2921, 5305-00-958-2966, 5305-00-958-3047, 5305-00-958-3048, 5305-00-958-3049

Technical Data | NSN 5305-00-958-2918

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.138 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.312 INCHES MINIMUM AND 0.375 INCHES MAXIMUM
FASTENER LENGTH	0.375 INCHES NOMINAL
SCREW MATERIAL	STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304
SCREW MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES
SCREW SURFACE TREATMENT	PASSIVATE
HEAD STYLE	A39 FLAT COUNTERSUNK
HEAD DIAMETER	0.238 INCHES MINIMUM AND 0.279 INCHES MAXIMUM
COUNTERSINK ANGLE	99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM
INTERNAL DRIVE STYLE	B1 CROSS RECESS TYPE 1
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FFS92

Restrictions/Controls & Freight Information | NSN 5305-00-958-2918

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-958-2918

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BJ	AH-64 Airframe
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
