NSN 5305-00-957-7086 MS24693S273, MS24693-S273, AN507103210
Product Details | MACHINE SCREW
5305-00-957-7086 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: MS24693S273, MS24693-S273, AN507103210, AN507-1032-10, AN5071032R10, AN507-1032R10, AN5871032R10, AN587-1032R10, S10875101010, S1087510-10-10, TAE10003SDMLP, TAE1000-3SDMLP , FFS92TYPE111STYLE3C, 1018994051, 1018994-051, 2572265, 416633, 4177005017, 4177005-017, 5952316, 7S51010, 7S5-10-10, 5305-00-957-7086, 00-957-7086, 5305009577086, 009577086
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-957-7086 | 06657 ( SCREW, MACHINE ) |

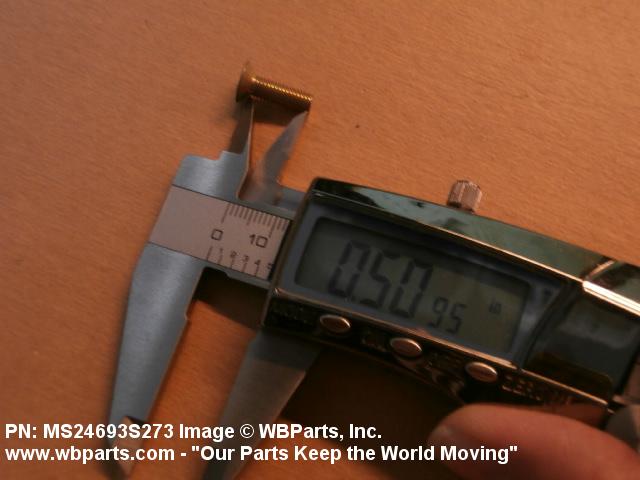

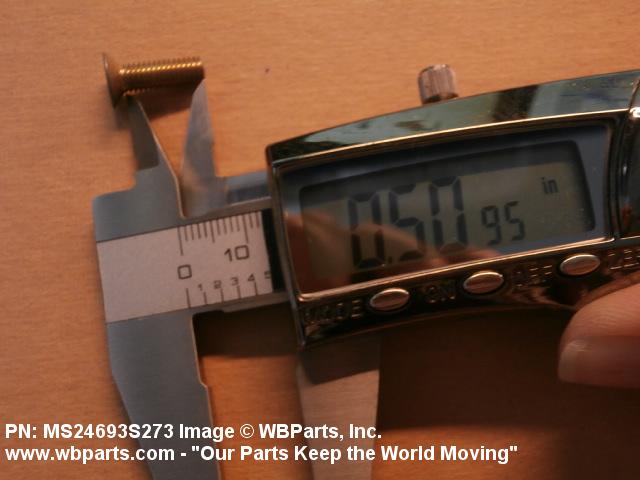

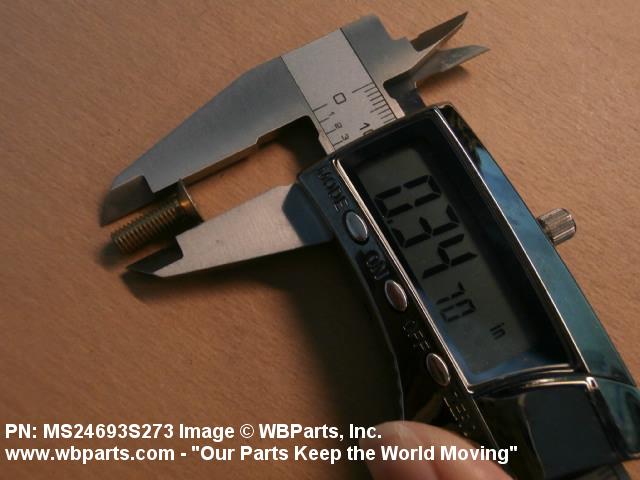

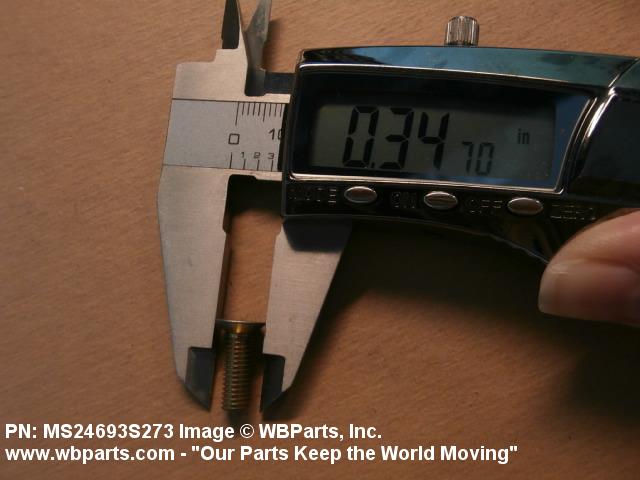

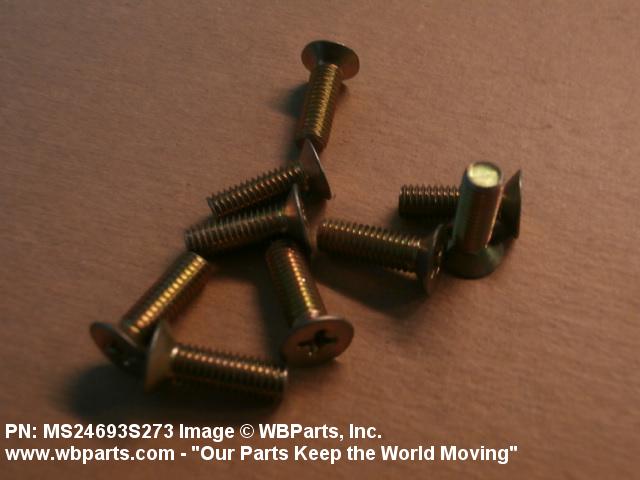

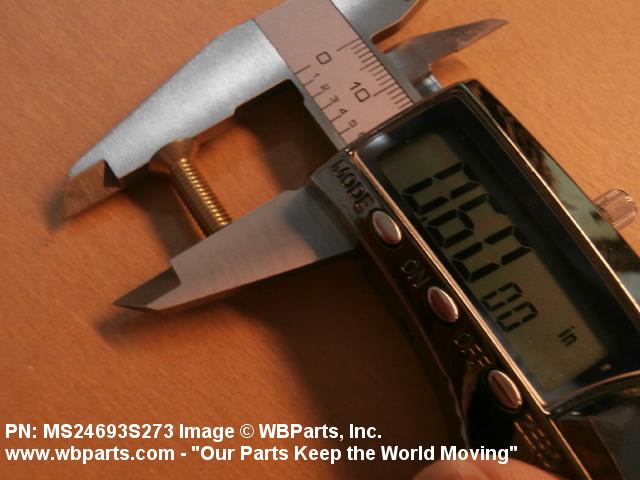

Drawings & Photos | NSN 5305-00-957-7086
Demand History | NSN 5305-00-957-7086
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS24693S273 | 2023-10-277 | 1 | US |
| MS24693S273 | 2023-04-103 | 354 | South Africa |
| 5305-00-957-7086 | 2023-03-81 | 163 | DIBBS |
| 5305-00-957-7086 | 2022-03-76 | 896 | DIBBS |
| MS24693S273 | 2020-04-118 | 6 | US |
| MS24693S273 | 2020-04-99 | 25 | United States |
| 5305-00-957-7086 | 2018-11-311 | 100 | MANUAL |
| 5305-00-957-7086 | 2016-11-327 | 1 | DIBBS-RFPs |
| 5305-00-957-7086 | 2014-11-306 | 853 | DIBBS |
| MS24693S273 | 2014-09-265 | 4 | IN |
| MS24693S273 | 2014-07-199 | 100 | United States |
| MS24693S273 | 2013-12-340 | 100 | Germany |
| AN5071032R10 | 2013-07-193 | 50 | IN |
| MS24693S273 | 2012-11-310 | 326 | |
| MS24693S273 | 2011-10-304 | 54 | United States |
| MS24693S273 | 2011-03-73 | 19 | US |
| MS24693S273 | 2009-09-245 | 8 | Netherlands |
| 5305-00-957-7086 | 2009-06-176 | 10 | US |
| 5305-00-957-7086 | 2009-03-71 | 1600 | China |
| MS24693S273 | 2008-11-323 | 400 | United States |
| AN507103210 | 2008-06-168 | 12 | us |
| 5305-00-957-7086 | 2008-05-137 | 2944 | US |
| 5305-00-957-7086 | 2008-01-13 | 30 | CH |
Cross Reference | NSN 5305-00-957-7086
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1018994-051 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 2572265 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 416633 | 77294 | PIPER AIRCRAFT INC. |
| 4177005-017 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 4177005-017 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| 5952316 | S0522 | TADIRAN LTD |
| 7S5-10-10 | 43999 | BOEING COMPANY, THE DBA BOEING |
| AN507-1032-10 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| AN507-1032R10 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN587-1032R10 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| FFS92TYPE111STYLE3C | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| MS24693-S273 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS24693S273 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| S1087510-10-10 | 18355 | BOEING COMPANY, THE DBA BOEING |
| S1087510-10-10 | 88277 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-957-7086
Technical Data | NSN 5305-00-957-7086
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.563 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
| FASTENER LENGTH | 0.625 INCHES NOMINAL |
| SCREW MATERIAL | STEEL COMP 1010 OR STEEL |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE |
| MINIMUM TENSILE STRENGTH | 60000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A39 FLAT COUNTERSUNK |
| HEAD DIAMETER | 0.333 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FFS92TYPE111STYLE3C |
Restrictions/Controls & Freight Information | NSN 5305-00-957-7086
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
