NSN 5305-00-957-5302 NAS1102312, NAS1102-3-12, 00-957-5302

Product Details | MACHINE SCREW

5305-00-957-5302 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: NAS1102312, NAS1102-3-12, 5305-00-957-5302, 00-957-5302, 5305009575302, 009575302

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-957-5302	06657 ( SCREW, MACHINE )

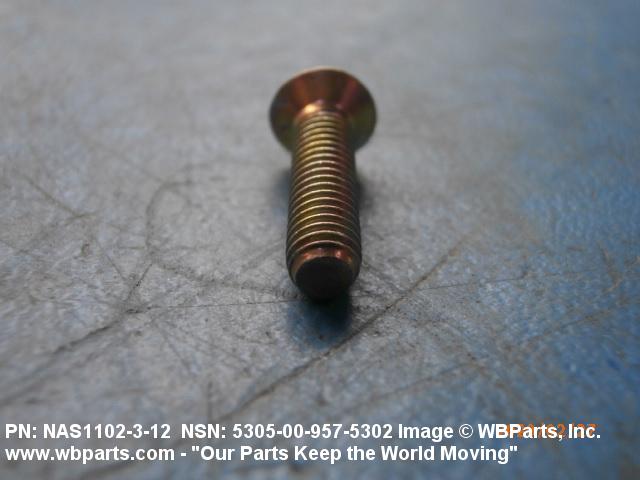

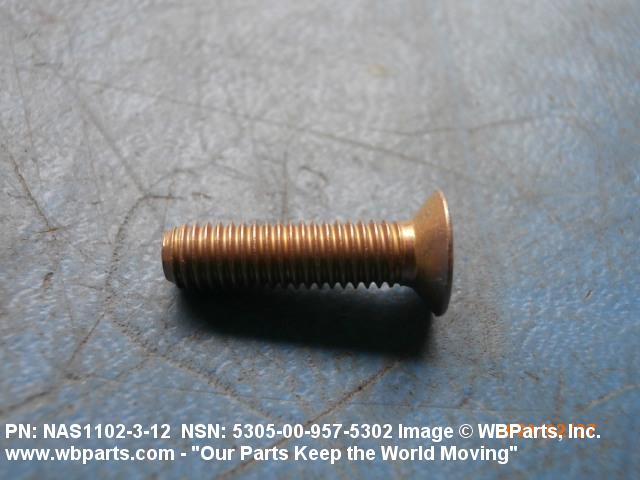

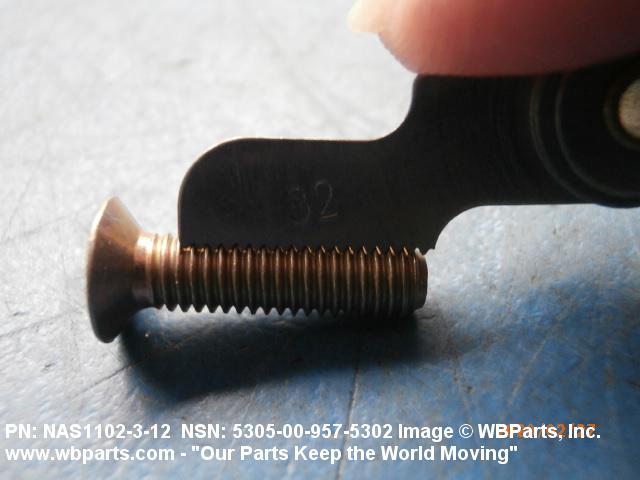

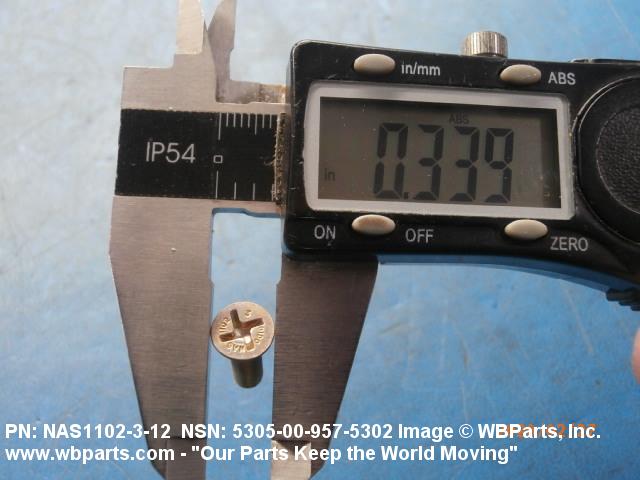

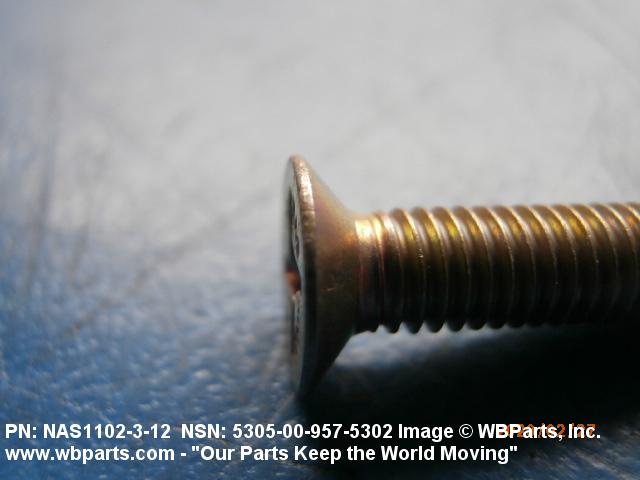

Drawings & Photos | NSN 5305-00-957-5302

Part Number	Request Date	QTY	Origin
5305-00-957-5302	2020-02-55	6	United States
5305-00-957-5302	2017-10-286	45	CN
NAS1102312	2016-01-13	200	Thailand
5305-00-957-5302	2015-10-294	601	DIBBS
5305-00-957-5302	2015-02-43	553	DIBBS
NAS1102312	2013-09-263	532	Germany
NAS1102-3-12	2011-06-157	160	Spain
5305-00-957-5302	2009-06-167	1000	DIBBS
5305-00-957-5302	2009-01-20	2000	DIBBS

Cross Reference | NSN 5305-00-957-5302

Part Number	Cage Code	Manufacturer
NAS1102-3-12	06725	SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES
NAS1102-3-12	06950	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
NAS1102-3-12	07851	NOR-CAL SUPPLY CO.INC.
NAS1102-3-12	08547	WALLACE R G CO DIV OF DUCOMMUN INC
NAS1102-3-12	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
NAS1102-3-12	27624	SPS TECHNOLOGIES, LLC DBA PB FASTENERS
NAS1102-3-12	30485	QUALIFIED AIR COMPONENTS INC.
NAS1102-3-12	30889	ERIKS SOUTHWEST INC DBA MONTCLAIR ENTERPRISES
NAS1102-3-12	53606	PLASTIC AND METAL PRODUCTS CORPORATION
NAS1102-3-12	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
NAS1102-3-12	58998	EMHART TEKNOLOGIES LLC DBA FASTENER INNOVATION TECHNOLOGY
NAS1102-3-12	73197	HI-SHEAR CORPORATION
NAS1102-3-12	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NAS1102-3-12	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
NAS1102-3-12	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
NAS1102-3-12	97928	HUCK INTL INC
NAS1102-3-12	C4293	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH
NAS1102-3-12	L4528	LISI AEROSPACE CANADA CORP
NAS1102-3-12	R1120	SATAIR A/S

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-957-5302

Compare

Related Products | NSN 5305-00-957-5302

5305-00-957-5310, 5305-00-957-5364, 5305-00-957-5386, 5305-00-957-5707, 5305-00-957-5708

Technical Data | NSN 5305-00-957-5302

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF

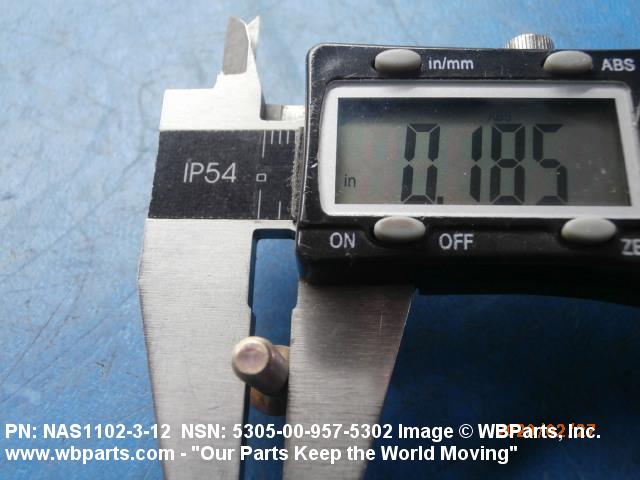

NOMINAL THREAD DIAMETER	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND

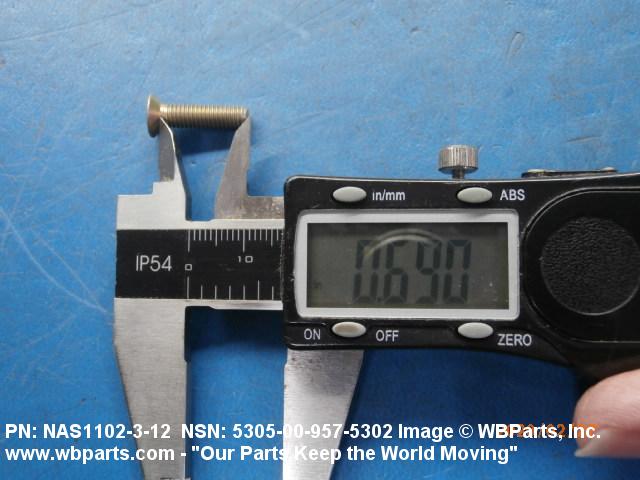

THREAD LENGTH	0.688 INCHES MINIMUM AND 0.750 INCHES MAXIMUM

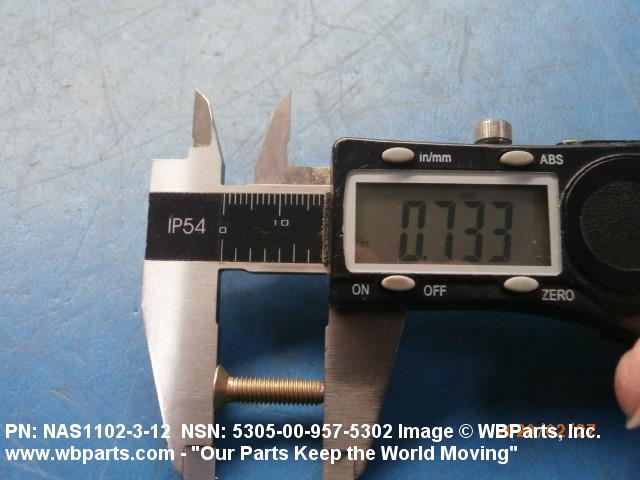

FASTENER LENGTH	0.750 INCHES NOMINAL
SCREW MATERIAL	STEEL COMP E4340 OR STEEL COMP 8740 OR STEEL COMP 8735 OR STEEL COMP 6150 OR STEEL COMP 4140 OR STEEL COMP 4037
SCREW SURFACE TREATMENT	CADMIUM AND CHROMATE
SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-B-416,TY 2,CL 3 FED SPEC ALL TREATMENT RESPONSES
HARDNESS RATING	36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM
MINIMUM TENSILE STRENGTH	160000 POUNDS PER SQUARE INCH

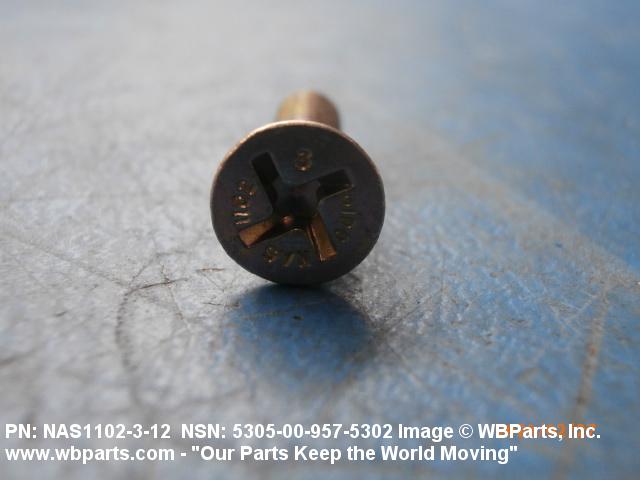

HEAD STYLE	A39 FLAT COUNTERSUNK
HEAD DIAMETER	0.322 INCHES MINIMUM AND 0.385 INCHES MAXIMUM
COUNTERSINK ANGLE	99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM

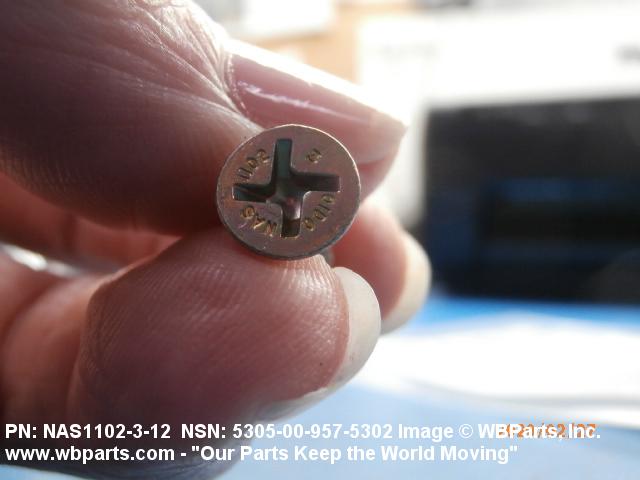

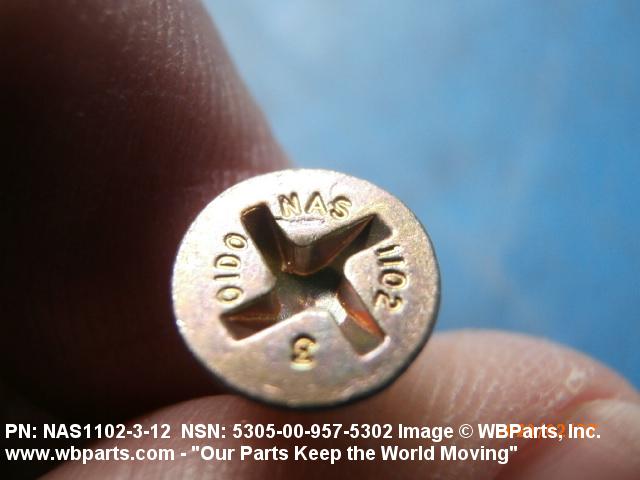

INTERNAL DRIVE STYLE	B5 TORQUE SET

Restrictions/Controls & Freight Information | NSN 5305-00-957-5302

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-957-5302

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
