NSN 5305-00-955-5587 SMB415331, SM-B-415331, 6F1243XSS
Product Details | MACHINE SCREW
5305-00-955-5587 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: SMB415331, SM-B-415331, 6F1243XSS, 6F-1243-XSS, 5305-00-955-5587, 00-955-5587, 5305009555587 , 009555587
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-955-5587 | 06657 ( SCREW, MACHINE ) |
Drawings & Photos | NSN 5305-00-955-5587
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-955-5587
Technical Data | NSN 5305-00-955-5587
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.500 INCHES NOMINAL |
| FASTENER LENGTH | 0.968 INCHES MINIMUM AND 1.000 INCHES MAXIMUM |
| SCREW MATERIAL | STEEL COMP 305 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763,COND A FED SPEC SINGLE MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | PASSIVATE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-F-14072,FINISH E300 MIL SPEC SINGLE TREATMENT RESPONSE |

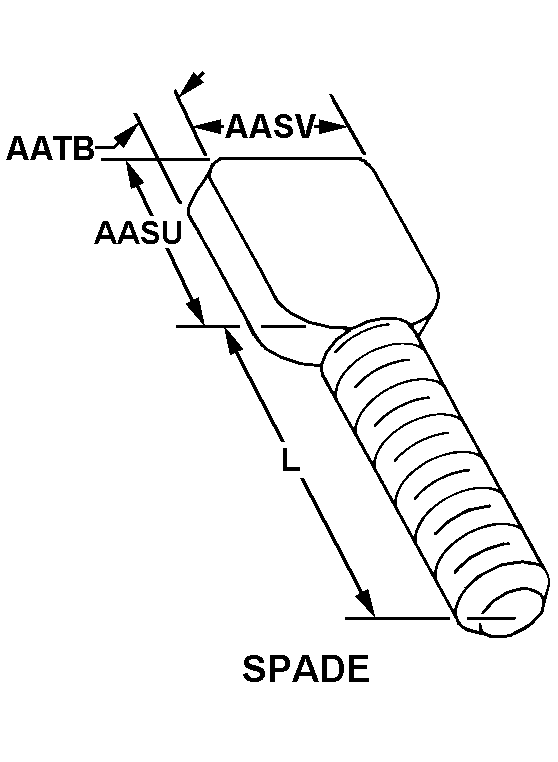

| HEAD STYLE | A53 SPADE |
| HEAD HEIGHT | 0.469 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| HEAD LENGTH | 0.234 INCHES MINIMUM AND 0.266 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.042 INCHES MINIMUM AND 0.048 INCHES MAXIMUM |
| SPECIAL FEATURES | DRILLED HOLE IN HEAD 0.132 IN. DIA |
