NSN 5305-00-944-8271 MS270390806, MS27039-0806, 2018491
Product Details | MACHINE SCREW

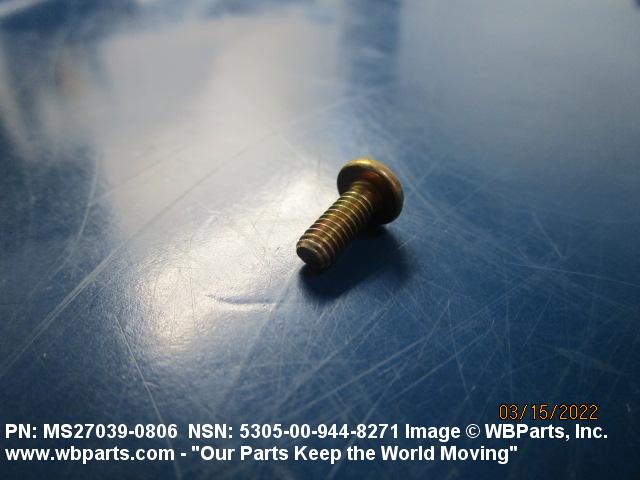

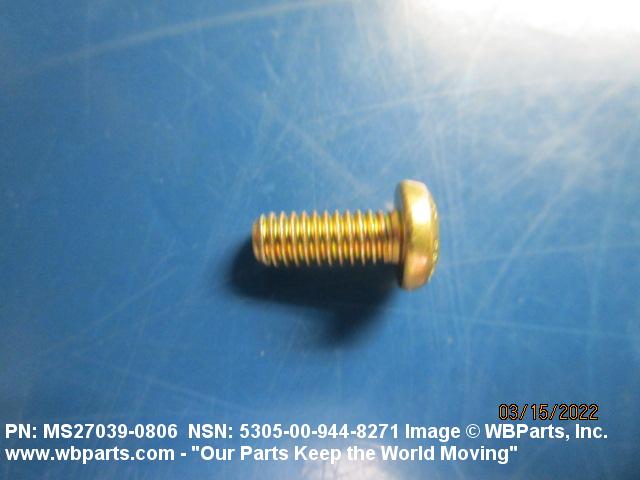

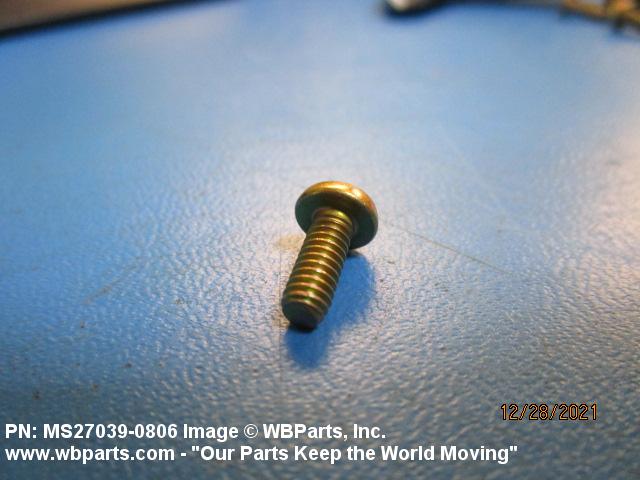

5305-00-944-8271 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: MS270390806, MS27039-0806, 2018491, 5305-00-944-8271, 00-944-8271, 5305009448271, 009448271
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 MAR 1966 | 00-944-8271 | 06657 ( SCREW, MACHINE ) |

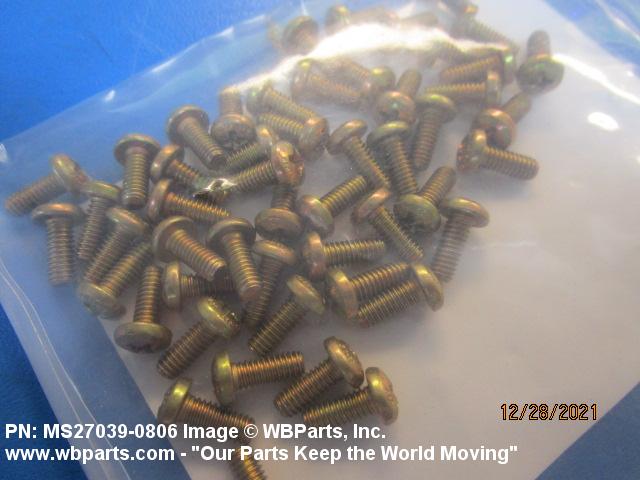

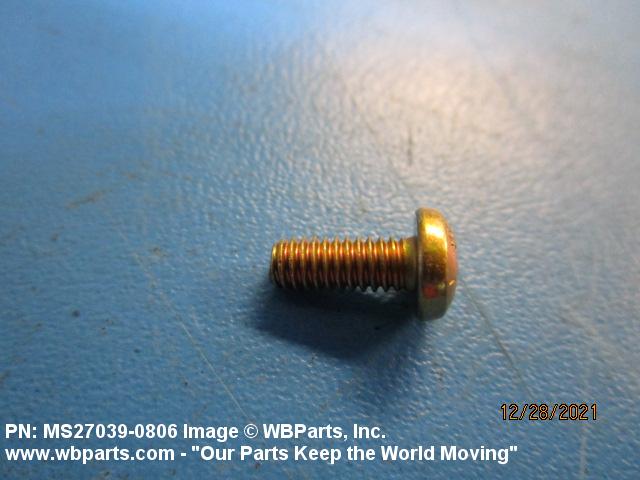

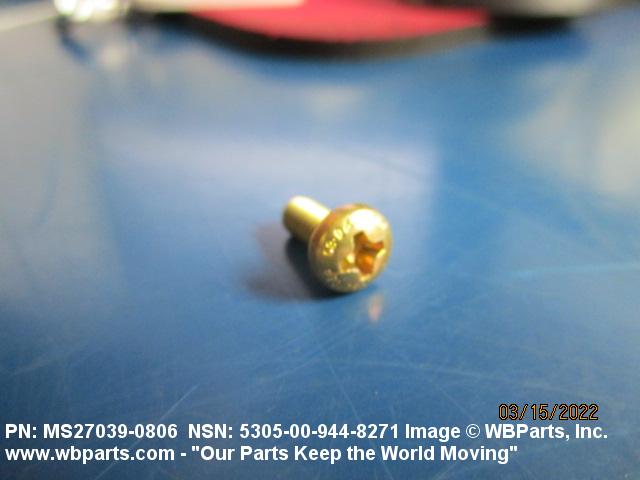

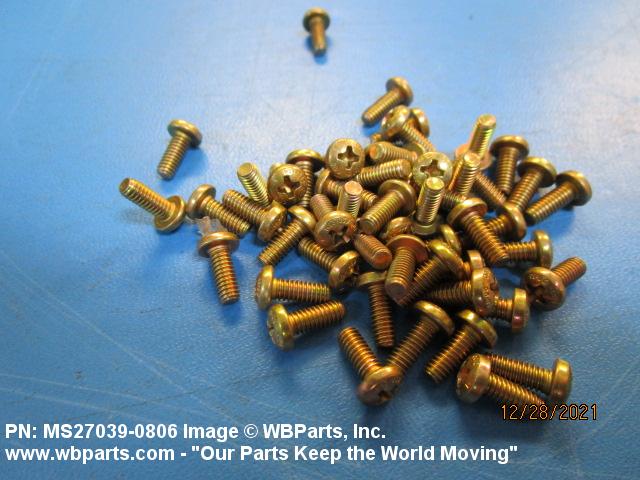

Drawings & Photos | NSN 5305-00-944-8271
Demand History | NSN 5305-00-944-8271
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-944-8271 | 2023-06-172 | 76 | DIBBS |
| MS270390806 | 2020-01-06 | 50 | United States |
| MS270390806 | 2020-01-06 | 50 | United States |
| MS270390806 | 2018-07-183 | 500 | United States |
| MS270390806 | 2017-10-277 | 25 | BD |
| MS270390806 | 2017-06-172 | 150 | United States |
| 5305-00-944-8271 | 2016-11-327 | 1 | DIBBS-RFPs |
| 5305-00-944-8271 | 2016-01-06 | 105 | DIBBS |
| 5305-00-944-8271 | 2015-07-189 | 180 | DIBBS |
| MS270390806 | 2015-06-166 | 4 | United States |
| MS270390806 | 2014-12-339 | 52 | Malaysia |
| MS27039-0806 | 2014-11-330 | 52 | MY |
| MS270390806 | 2014-08-241 | 30 | UY |
| MS270390806 | 2014-08-232 | 1 | Colombia |
| MS270390806 | 2013-12-340 | 100 | Germany |
| MS27039-0806 | 2012-11-310 | 1791 | |
| 5305-00-944-8271 | 2009-04-99 | 120 | US |
| MS270390806 | 2009-02-58 | 2500 | Thailand |
Cross Reference | NSN 5305-00-944-8271
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2018491 | 001JK | EMBRAER S/A |
| 2018491 | FB459 | EMBRAER AVIATION INTERNATIONAL |
| 2018491 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| MS27039-0806 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS27039-0806 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS27039-0806 | 9M264 | GFC INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-944-8271
Related Products | NSN 5305-00-944-8271
Technical Data | NSN 5305-00-944-8271

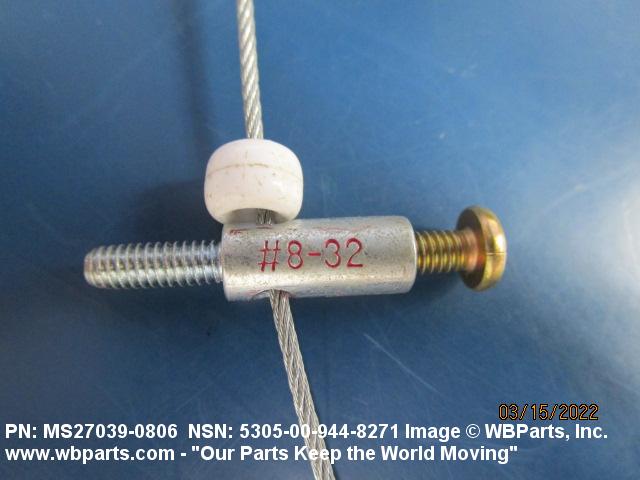

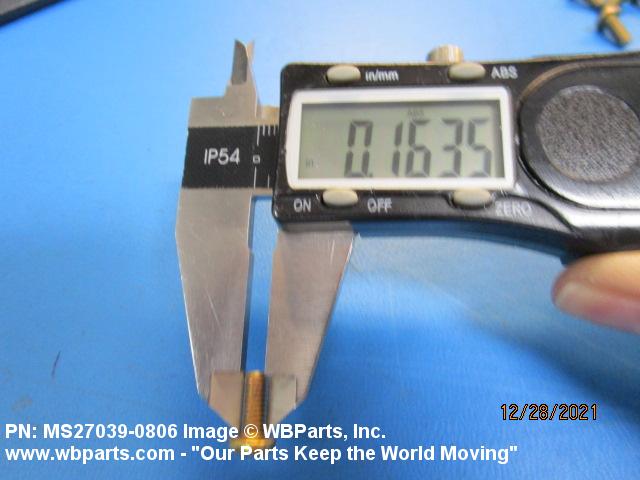

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

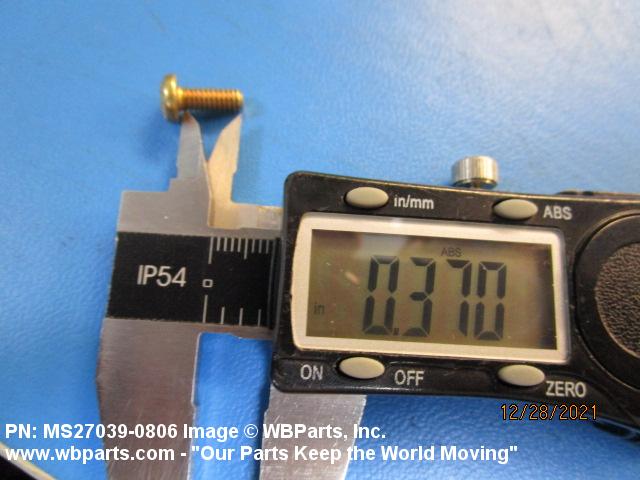

| THREAD LENGTH | 0.344 INCHES MINIMUM AND 0.374 INCHES MAXIMUM |

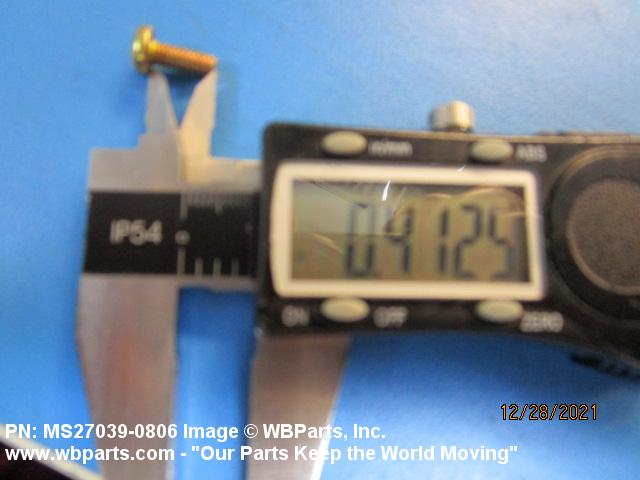

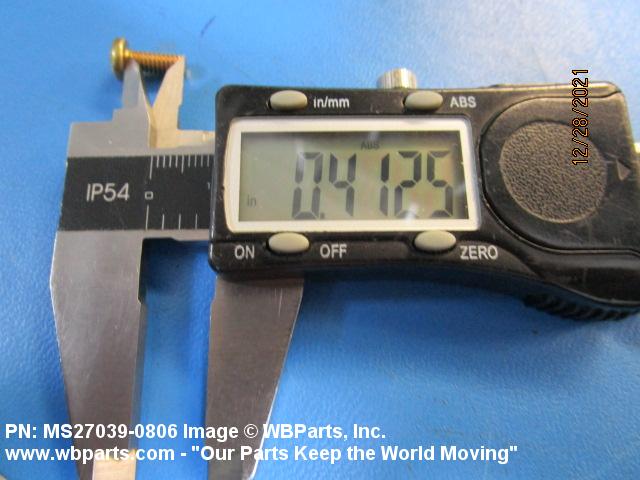

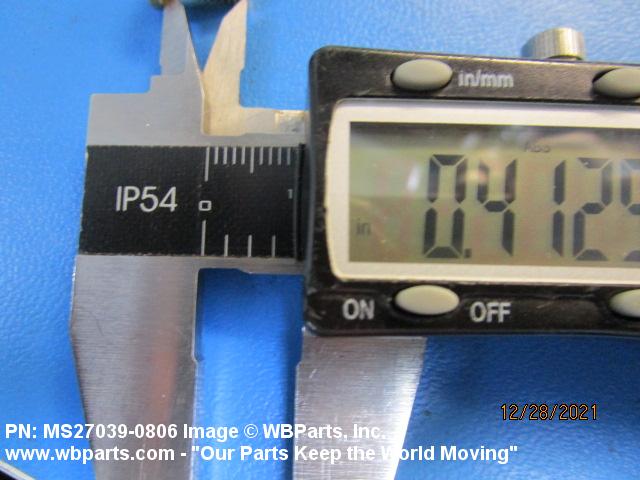

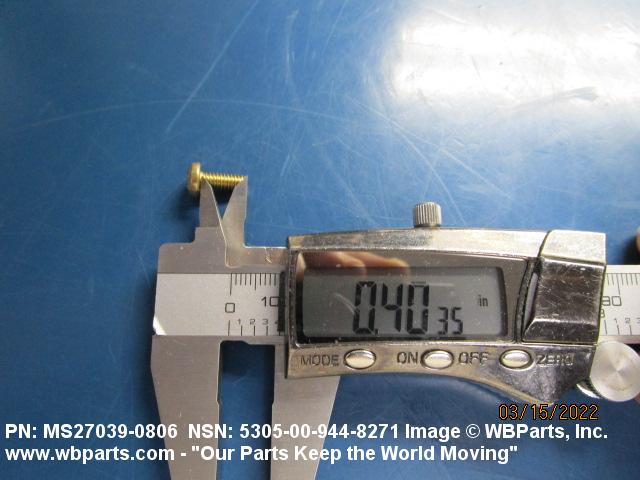

| FASTENER LENGTH | 0.406 INCHES MINIMUM AND 0.438 INCHES MAXIMUM |
| SCREW MATERIAL | STEEL COMP 4037 OR STEEL COMP 8630 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-8695 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6050 MIL SPEC 2ND MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE |
| MINIMUM TENSILE STRENGTH | 125000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A23 PAN |

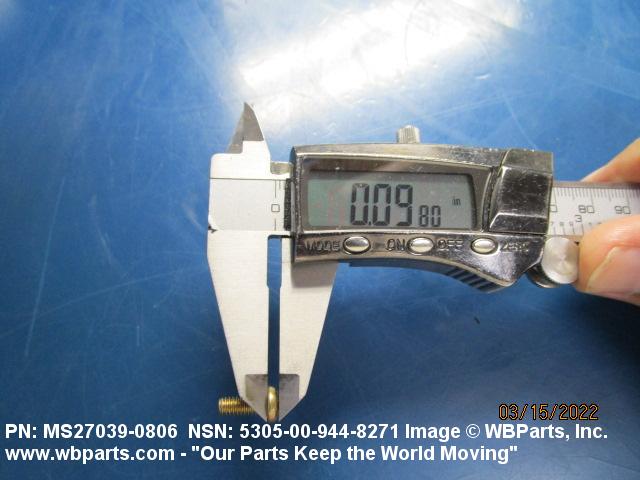

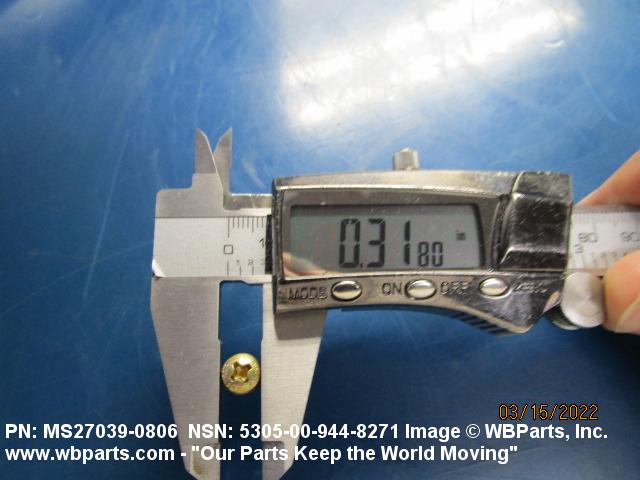

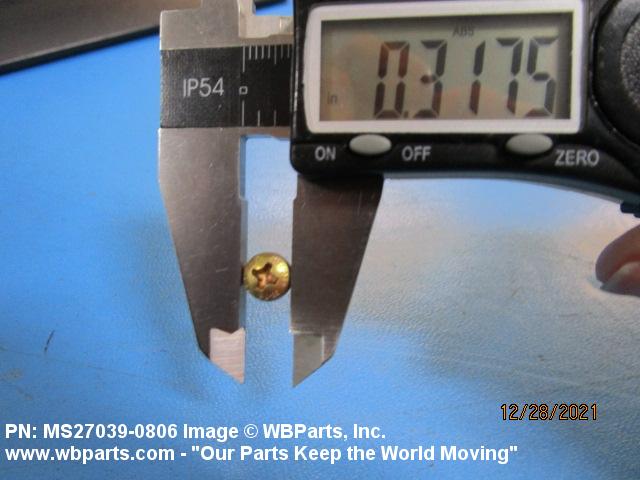

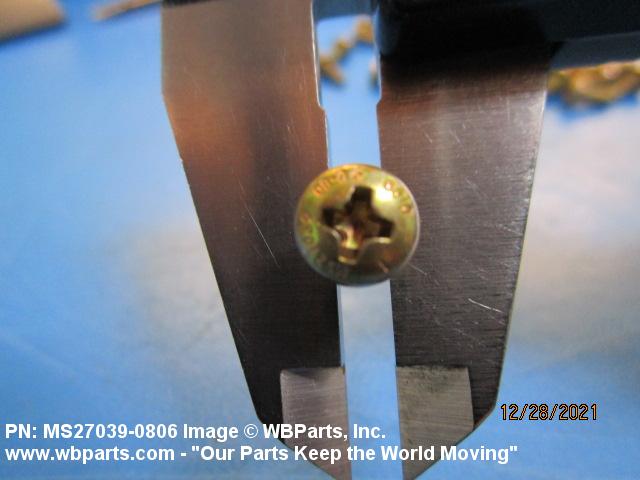

| HEAD DIAMETER | 0.306 INCHES MINIMUM AND 0.322 INCHES MAXIMUM |

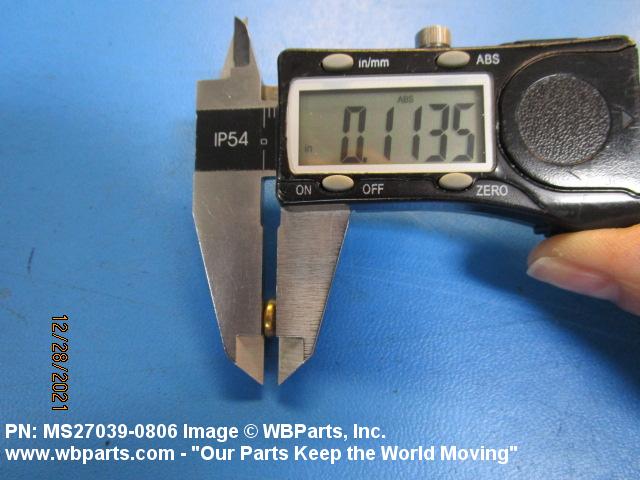

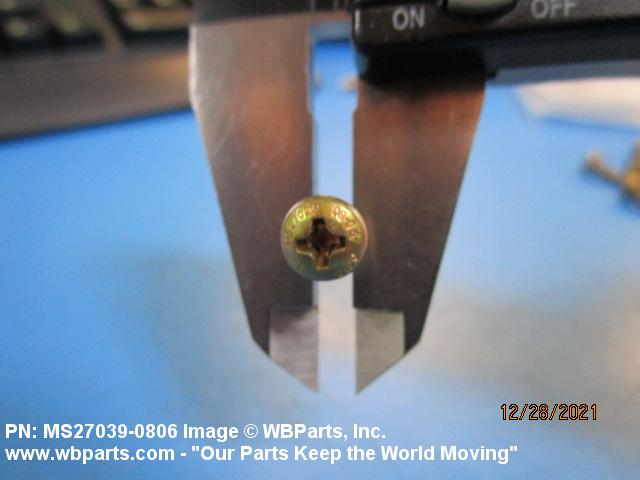

| HEAD HEIGHT | 0.105 INCHES MINIMUM AND 0.115 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
Restrictions/Controls & Freight Information | NSN 5305-00-944-8271
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
