NSN 5305-00-944-5929 MS27039107, MS27039-1-07, MS2703917

Product Details | MACHINE SCREW

5305-00-944-5929 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: MS27039107, MS27039-1-07, MS2703917, MS27039-1-7, AAS252520, AAS2525-20, BLC8TA31S , BLC8TA31S4B, 2010849, 902C831F, 5305-00-944-5929, 00-944-5929, 5305009445929, 009445929

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	25 FEB 1966	00-944-5929	06657 ( SCREW, MACHINE )

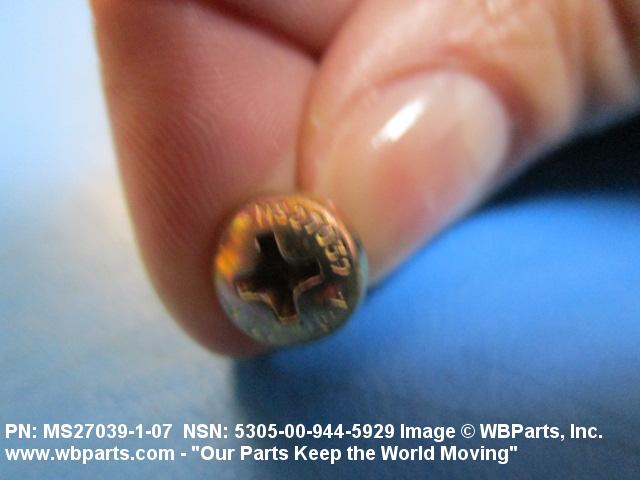

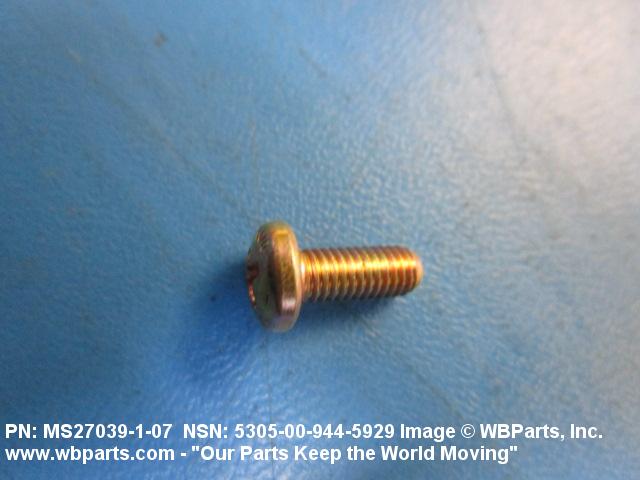

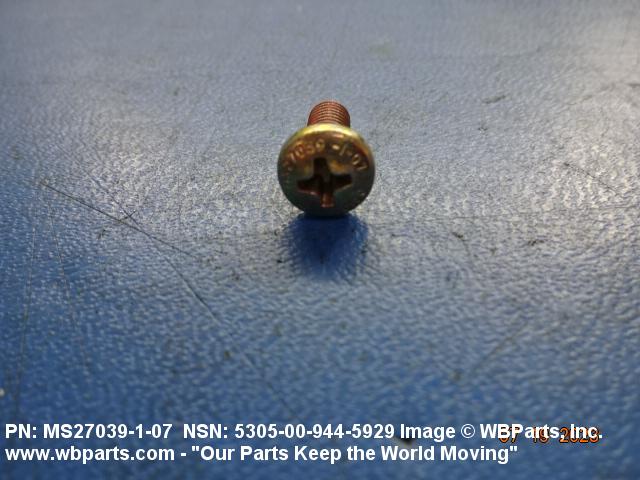

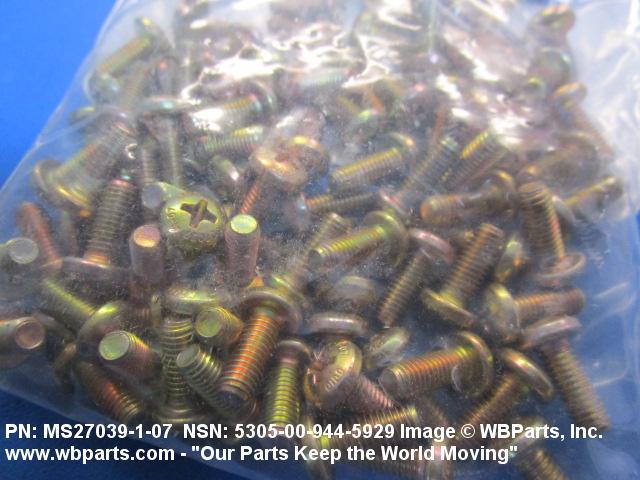

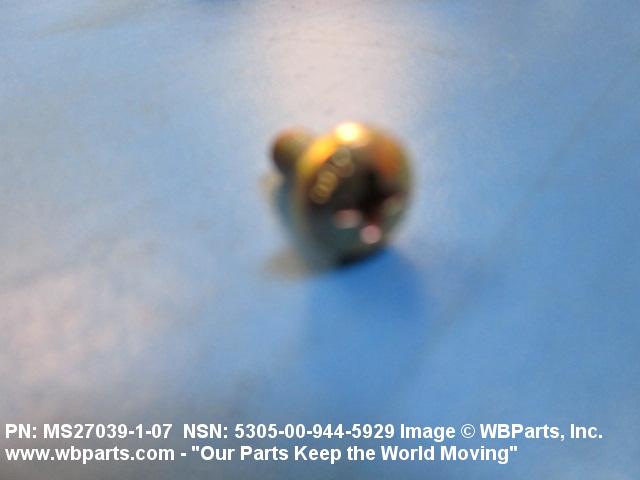

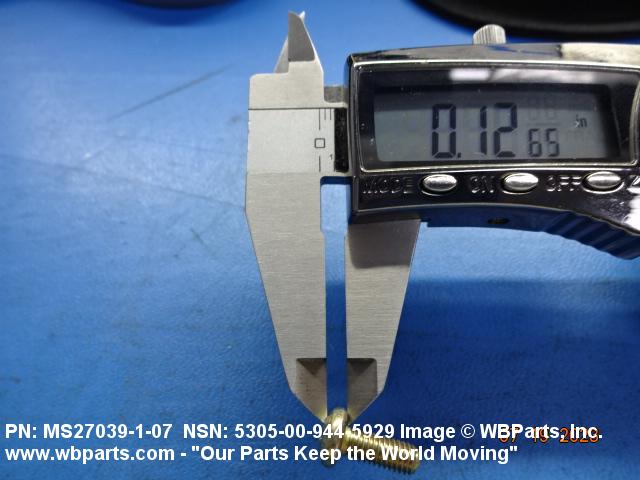

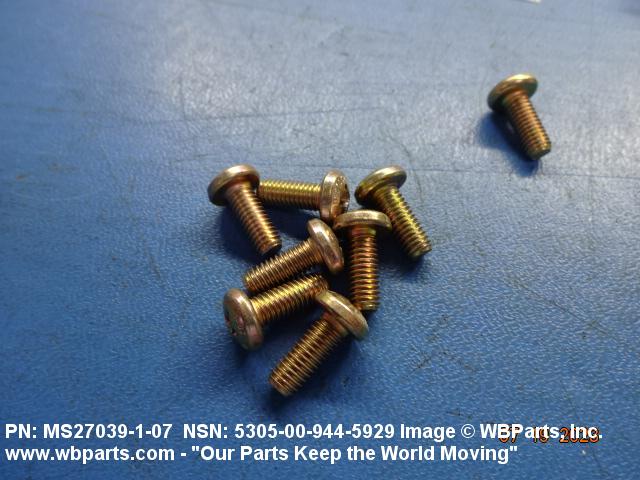

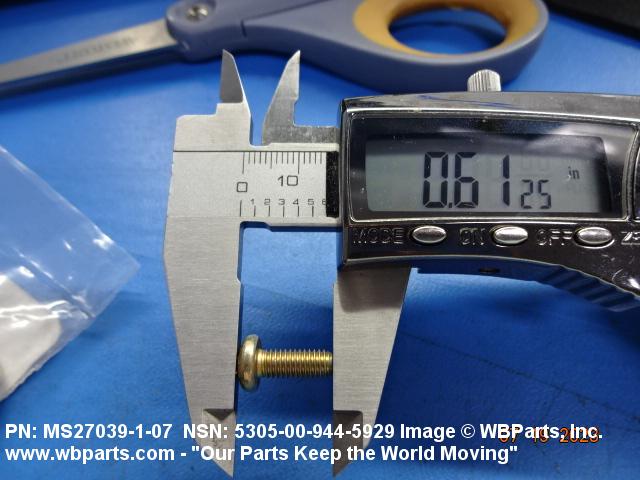

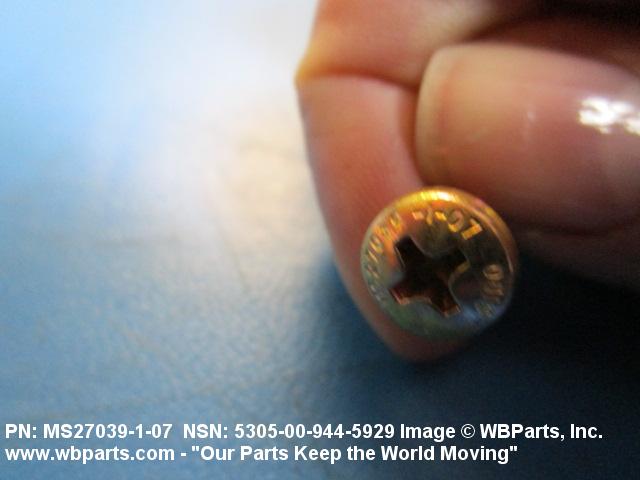

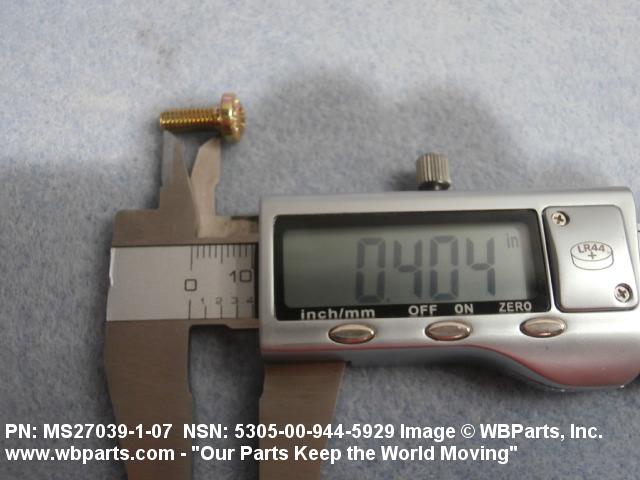

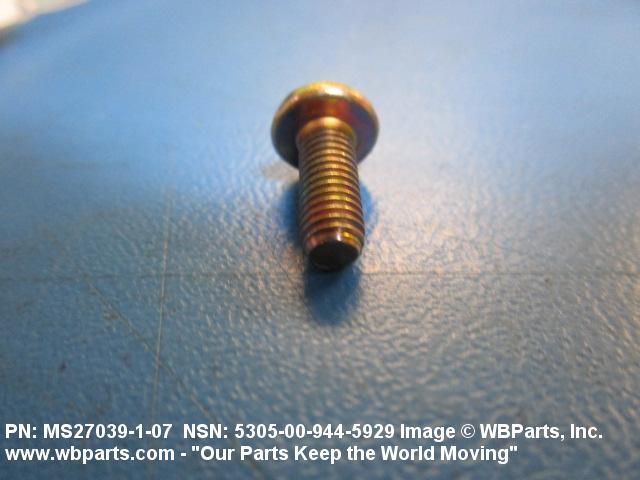

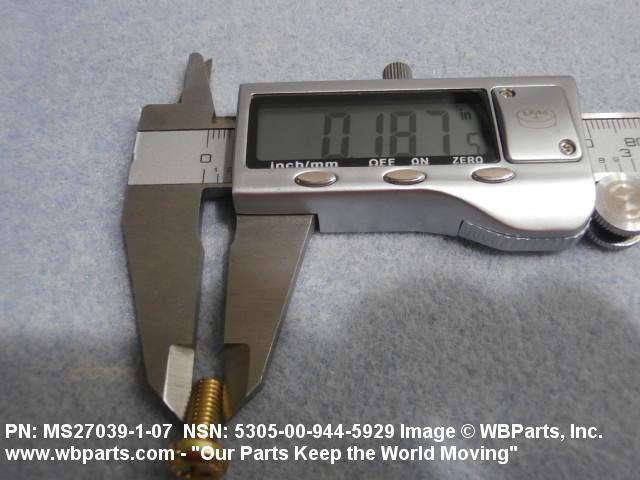

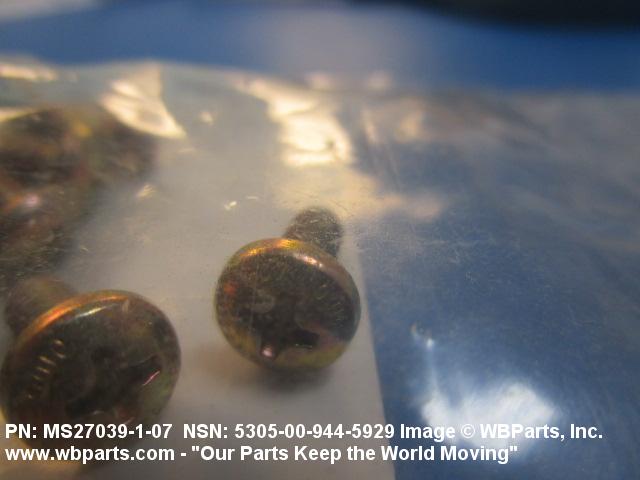

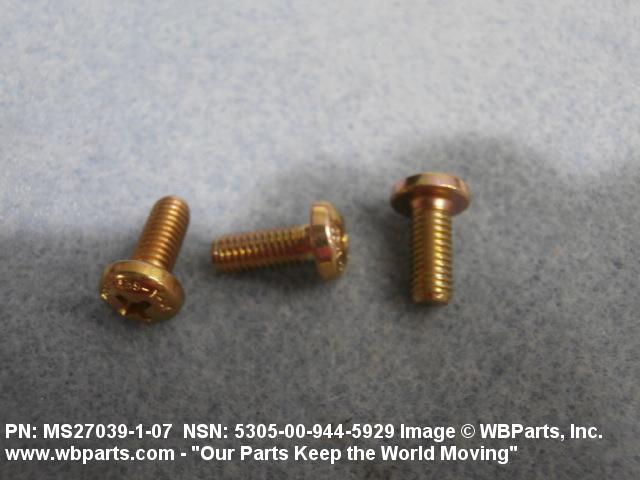

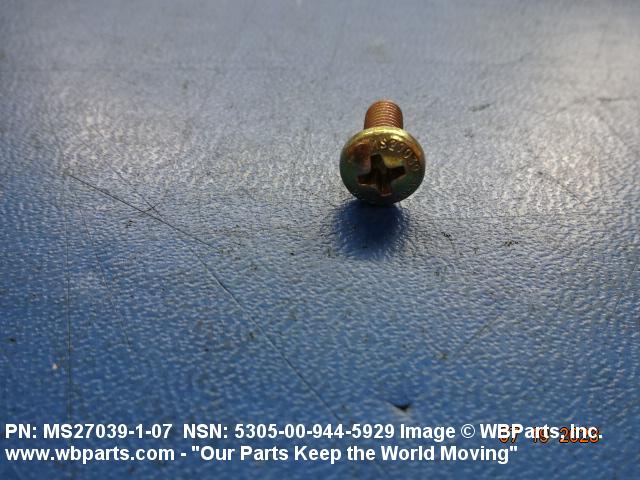

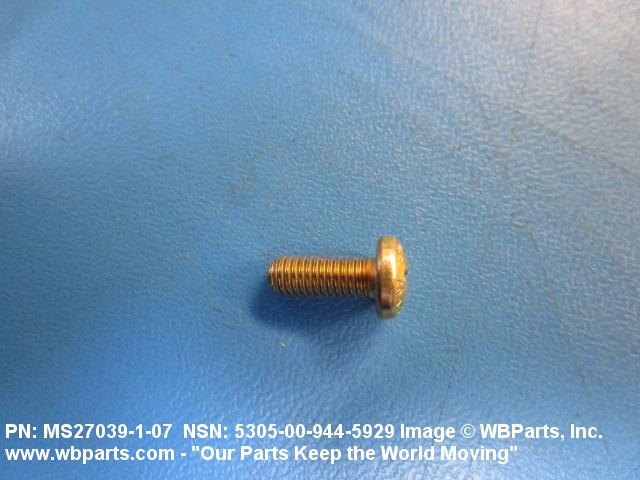

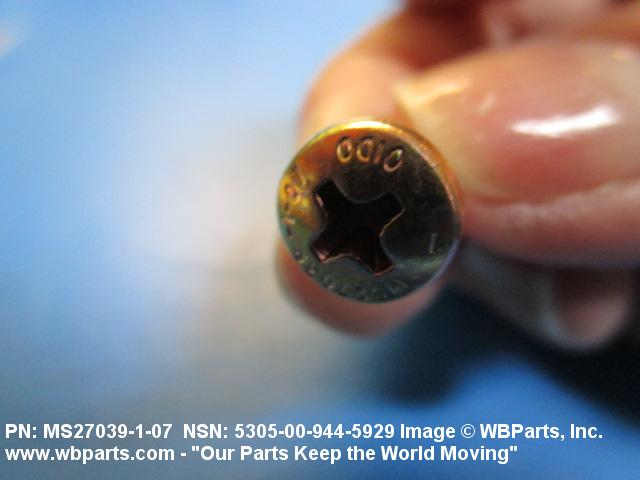

Drawings & Photos | NSN 5305-00-944-5929

Part Number	Request Date	QTY	Origin
5305-00-944-5929	2024-11-308	2097	DIBBS
MS27039107	2024-08-227	63	Japan
5305-00-944-5929	2024-05-133	2097	DIBBS
MS27039107	2024-05-123	20	United States
5305-00-944-5929	2024-04-114	2936	United States
5305-00-944-5929	2024-02-52	2936	DIBBS
MS27039107	2022-12-342	24	United States
5305-00-944-5929	2022-11-325	2014	DIBBS
5305-00-944-5929	2022-11-313	2014	DIBBS
5305-00-944-5929	2022-02-41	4500	UK
5305-00-944-5929	2019-06-154	1808	DIBBS
5305-00-944-5929	2018-10-283	1808	DIBBS
MS27039107	2018-03-82	300	Hong Kong
MS27039107	2018-03-73	50	United States
5305-00-944-5929	2018-02-56	6246	DIBBS
5305-00-944-5929	2018-02-37	300	MANUAL
MS27039-1-07	2018-02-37	300	Seychelles
5305-00-944-5929	2018-01-09	2265	DIBBS
5305-00-944-5929	2017-11-334	1659	DIBBS
MS2703917	2017-10-290	280	Colombia
5305-00-944-5929	2017-09-257	300	TR
5305-00-944-5929	2017-09-256	6500	Lebanon
5305-00-944-5929	2017-07-197	994	DIBBS
MS27039107	2017-03-79	30	United States
MS2703917	2017-02-48	9000	China
MS27039107	2016-06-179	100	United States
MS27039107	2016-05-152	1	BD
MS27039107	2016-05-147	1	US
MS27039107	2015-05-139	62	US
MS27039-1-07	2015-03-71	25	US
MS27039-1-7	2014-04-105	1	United States
5305-00-944-5929	2014-03-70	5294	DIBBS
MS27039107	2014-02-49	6	United States
MS27039107	2013-10-283	1	United States
MS27039107	2013-09-244	1	DE
MS27039107	2013-07-205	12	Singapore
5305-00-944-5929	2013-02-51	1	ES
MS27039-1-07	2012-11-310	50
MS27039107	2012-05-131	10	us
MS27039-1-07	2012-04-115	51	IN
5305-00-944-5929	2012-04-114	600	MANUAL
MS27039-1-07	2012-04-114	600	Taiwan
MS27039107	2011-09-257	4000	PK
MS27039107	2011-09-255	250	PK
MS27039107	2011-09-255	3500	PK
5305-00-944-5929	2011-09-255	7534	DIBBS
5305-00-944-5929	2011-09-251	2000	PK
MS27039107	2011-09-251	4000	PK
5305-00-944-5929	2011-08-240	4000	PK
MS27039107	2011-08-240	6000	PK
MS2703917	2011-08-238	50	Australia
5305-00-944-5929	2011-07-187	5550	DIBBS
MS27039107	2011-06-157	36	US
MS27039107	2011-05-151	500	Canada
MS27039107	2011-02-34	200	Sri Lanka
MS27039107	2011-01-19	500	Canada
MS27039-1-07	2010-11-323	364
MS27039107	2010-09-260	80	United States
5305-00-944-5929	2010-07-206	50	UK
MS27039107	2010-04-104	300	United States
MS27039107	2009-02-41	1600	IE
5305-00-944-5929	2008-04-93	7106	DIBBS
5305-00-944-5929	2008-01-22	100	US
MS27039107	2006-06-178	1	US

Cross Reference | NSN 5305-00-944-5929

Part Number	Cage Code	Manufacturer
2010849	001JK	EMBRAER S/A
2010849	FB459	EMBRAER AVIATION INTERNATIONAL
2010849	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
AAS2525-20	28977	ACCURATE PRESCISION FASTENER CORP.
MS27039-1-07	0P012	H. V. MODY, INC. DBA MODY AEROSPACE
MS27039-1-07	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS27039-1-07	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS27039-1-7	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS27039-1-7	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-944-5929

Compare

Related Products | NSN 5305-00-944-5929

5305-00-944-5986, 5305-00-944-6006, 5305-00-944-6018, 5305-00-944-6022, 5305-00-944-6029

Technical Data | NSN 5305-00-944-5929

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF
NOMINAL THREAD DIAMETER	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.394 INCHES MINIMUM AND 0.438 INCHES MAXIMUM

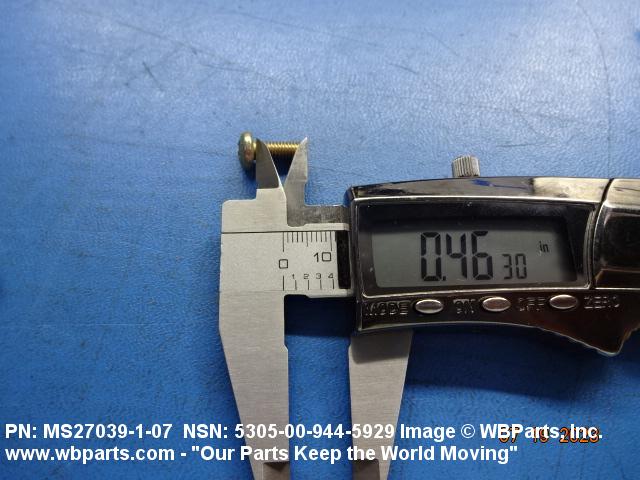

FASTENER LENGTH	0.456 INCHES MINIMUM AND 0.500 INCHES MAXIMUM
SCREW MATERIAL	STEEL COMP 4037 OR STEEL COMP 8630
SCREW MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-8695 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6050 MIL SPEC 2ND MATERIAL RESPONSE
SCREW SURFACE TREATMENT	CADMIUM AND CHROMATE
SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE
HARDNESS RATING	26.0 ROCKWELL C NOMINAL
MINIMUM TENSILE STRENGTH	125000 POUNDS PER SQUARE INCH
HEAD STYLE	A23 PAN

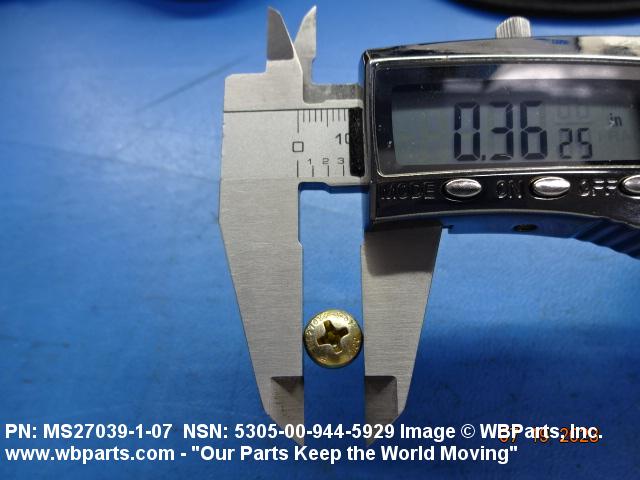

HEAD DIAMETER	0.357 INCHES MINIMUM AND 0.373 INCHES MAXIMUM
HEAD HEIGHT	0.122 INCHES MINIMUM AND 0.133 INCHES MAXIMUM

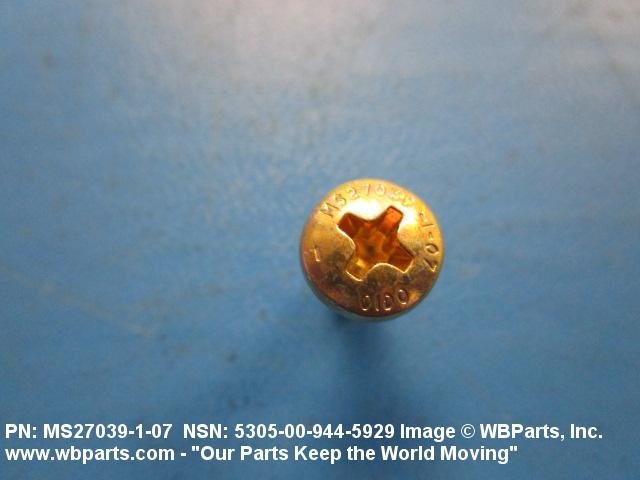

INTERNAL DRIVE STYLE	B1 CROSS RECESS TYPE 1

Restrictions/Controls & Freight Information | NSN 5305-00-944-5929

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-944-5929

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
