NSN 5305-00-940-9308 AR2529ER, AR-2529ER, CA3105103210

Product Details | ASSEMBLED WASHER SCREW

5305-00-940-9308 A SCREW, (as modified) to which has been assembled one or more nonremovable washer(s).

Part Alternates: AR2529ER, AR-2529ER, CA3105103210, CA3105-1032-10, LS937810, LS9378-10, 5305-00-940-9308, 00-940-9308, 5305009409308, 009409308

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	27 NOV 1965	00-940-9308	06660 ( SCREW, ASSEMBLED WASHER )

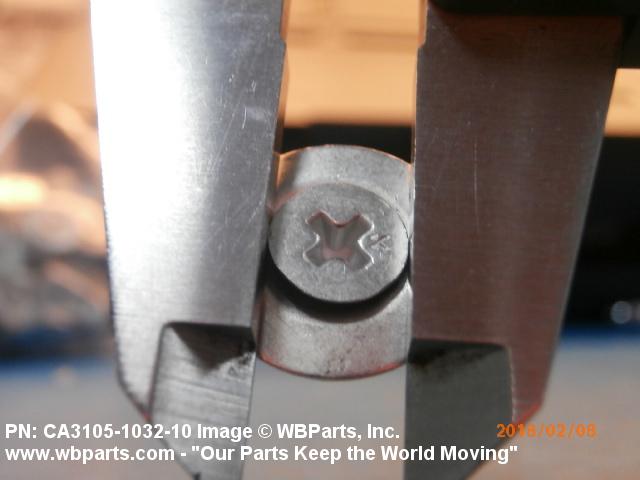

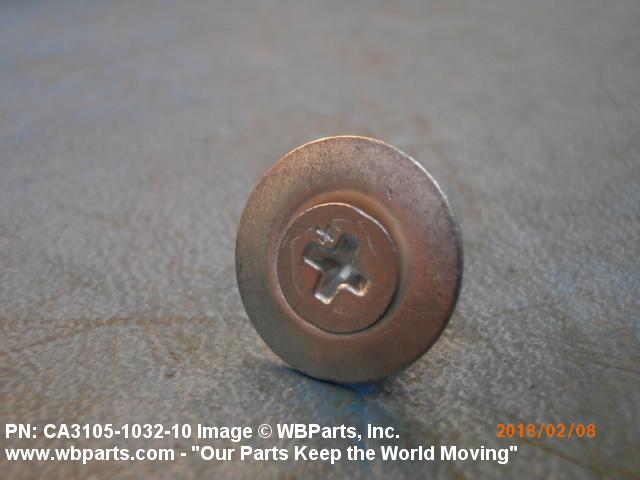

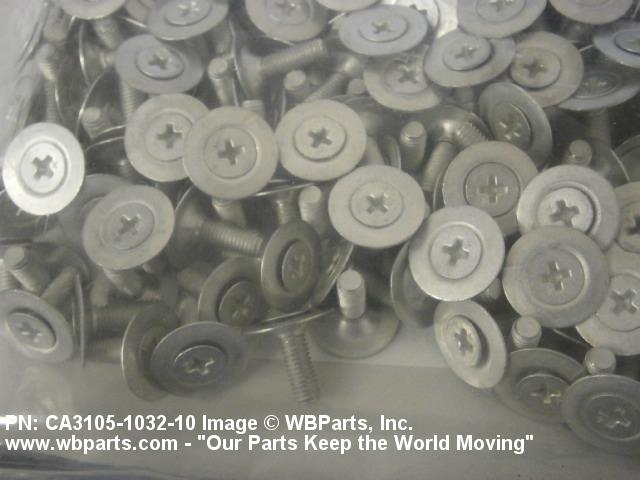

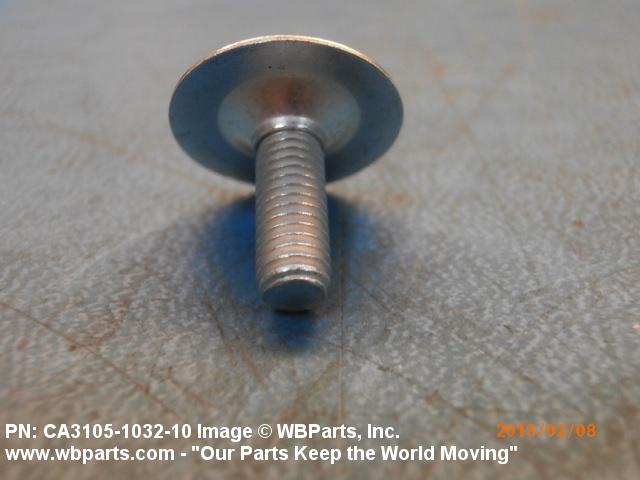

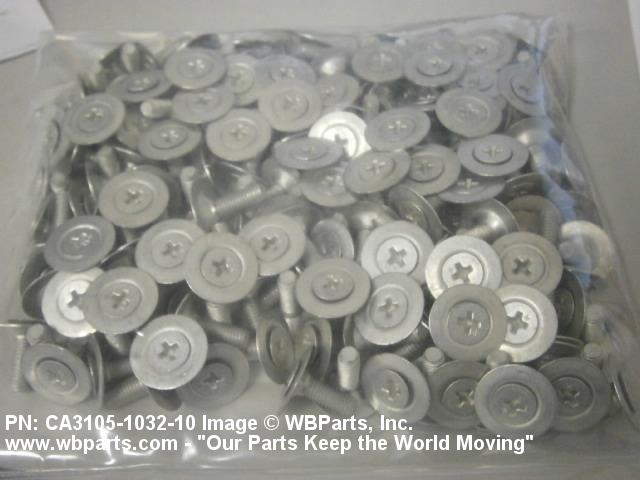

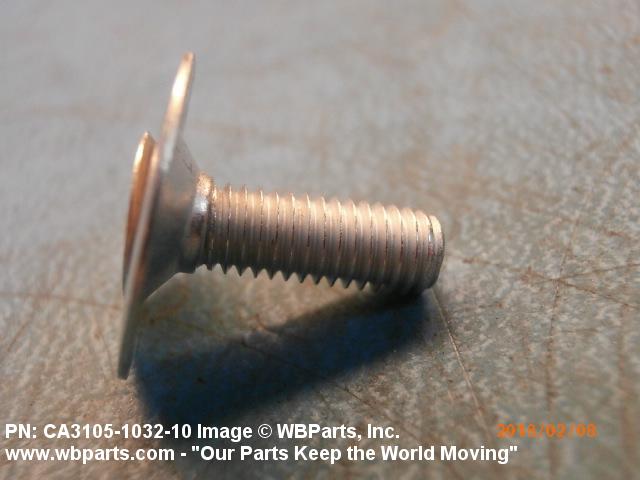

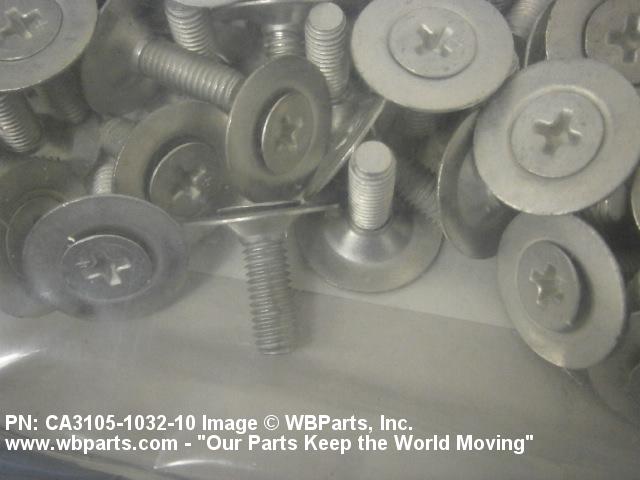

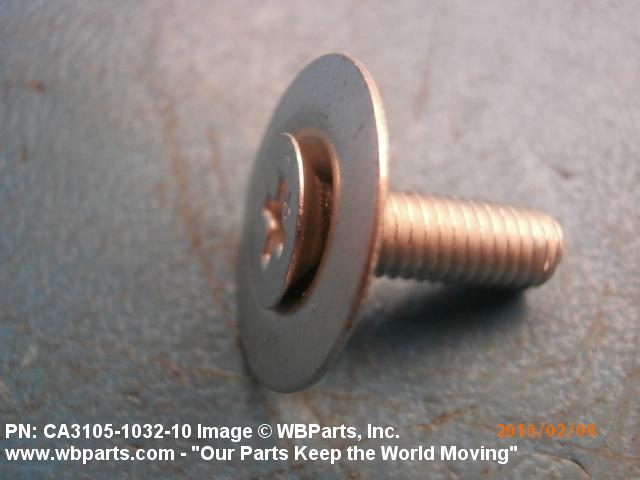

Drawings & Photos | NSN 5305-00-940-9308

Part Number	Request Date	QTY	Origin
CA3105103210	2019-11-315	50	IN
CA3105103210	2018-02-37	100	United States
5305-00-940-9308	2017-09-251	17121	DIBBS
5305-00-940-9308	2017-08-243	17121	DIBBS
5305-00-940-9308	2016-10-286	17121	DIBBS
5305-00-940-9308	2016-03-75	13236	DIBBS
5305-00-940-9308	2015-04-118	40246	DIBBS
5305-00-940-9308	2014-10-282	40246	DIBBS
5305-00-940-9308	2014-08-230	34054	DIBBS
5305-00-940-9308	2014-08-217	34054	DIBBS
5305-00-940-9308	2014-07-190	22396	DIBBS
5305-00-940-9308	2012-05-137	42475	DIBBS
5305-00-940-9308	2012-04-118	38631	DIBBS
5305-00-940-9308	2012-03-75	38999	DIBBS
CA3105103210	2012-03-69	200	us
5305-00-940-9308	2010-03-84	13293	DIBBS
LS937810	2009-04-99	500	US

Cross Reference | NSN 5305-00-940-9308

Part Number	Cage Code	Manufacturer
AR-2529ER	77445	UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS
CA3105-1032-10	1AW87	LEWIS SCREW CO DIV OF MEDALIST FASTENERS INC
LS9378-10	1AW87	LEWIS SCREW CO DIV OF MEDALIST FASTENERS INC
LS9378-10	98897	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-940-9308

Compare

Related Products | NSN 5305-00-940-9308

5305-00-940-9418, 5305-00-940-9421, 5305-00-940-9423, 5305-00-940-9426, 5305-00-940-9427

Technical Data | NSN 5305-00-940-9308

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF

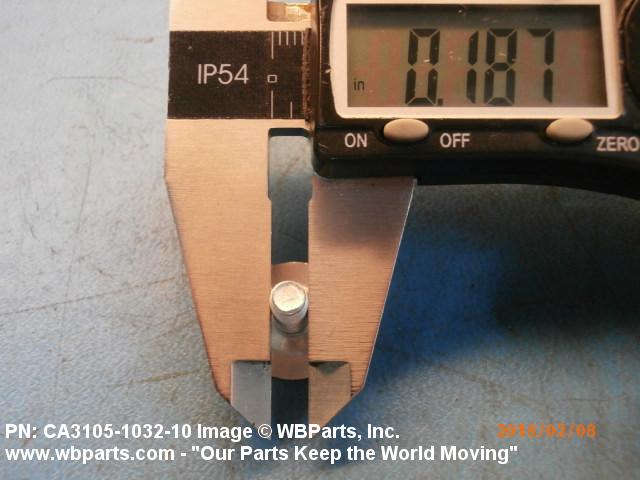

NOMINAL THREAD DIAMETER	0.190 INCHES

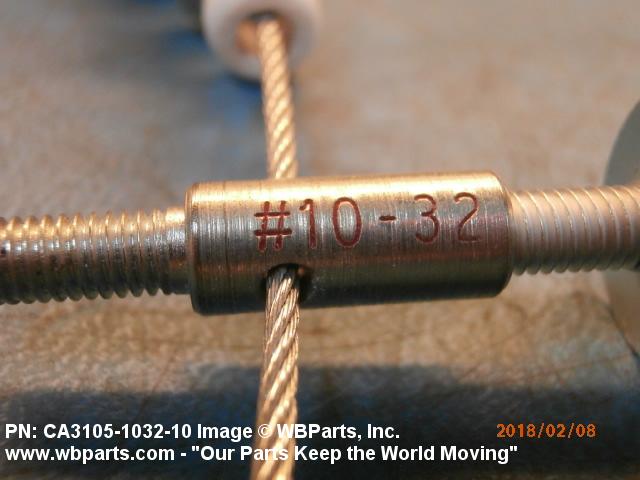

THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND

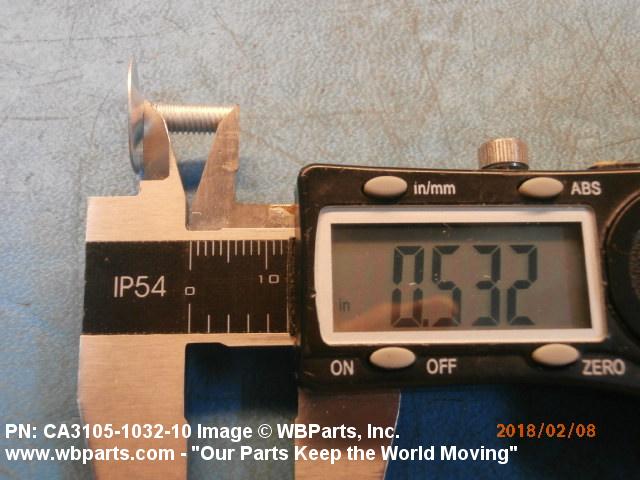

THREAD LENGTH	0.542 INCHES NOMINAL

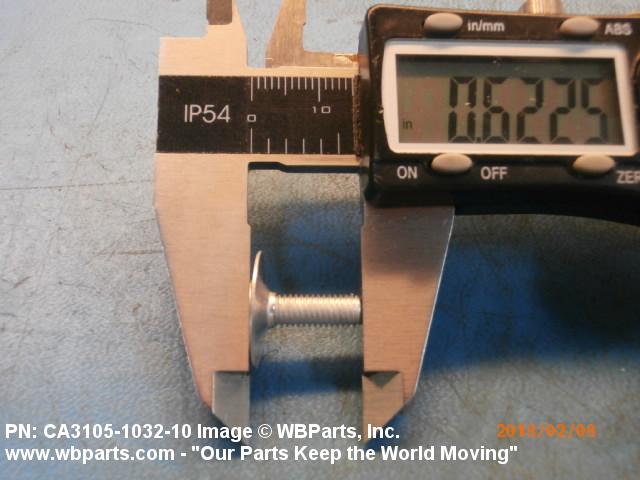

FASTENER LENGTH	0.625 INCHES NOMINAL
HEAD STYLE	C50 FLAT COUNTERSUNK

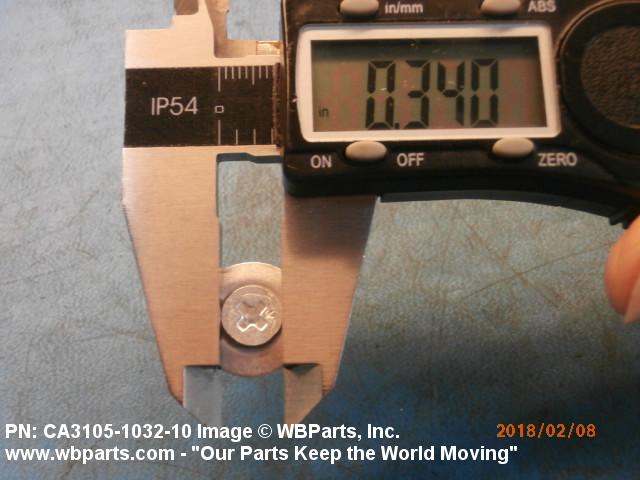

HEAD DIAMETER	0.333 INCHES MINIMUM AND 0.385 INCHES MAXIMUM
COUNTERSINK ANGLE	100.0 DEGREES NOMINAL
INTERNAL DRIVE STYLE	D1 CROSS RECESS TYPE 1
WASHER QUANTITY	1
PRIMARY WASHER OUTSIDE DIAMETER	0.740 INCHES MINIMUM AND 0.760 INCHES MAXIMUM
PRIMARY WASHER MATERIAL THICKNESS	0.022 INCHES MINIMUM AND 0.028 INCHES MAXIMUM

Restrictions/Controls & Freight Information | NSN 5305-00-940-9308

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	KE	Naval ICP Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-940-9308

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
