NSN 5305-00-925-7858 MS27039115, MS27039-1-15 , MS27039119
Product Details | MACHINE SCREW
5305-00-925-7858 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: MS27039115, MS27039-1-15 , MS27039119, MS27039-1-19, AAS252528, AAS2525-28, 125C252528, 125C2525-28, 5305-00-925-7858, 00-925-7858, 5305009257858, 009257858
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 FEB 1966 | 00-925-7858 | 06657 ( SCREW, MACHINE ) |

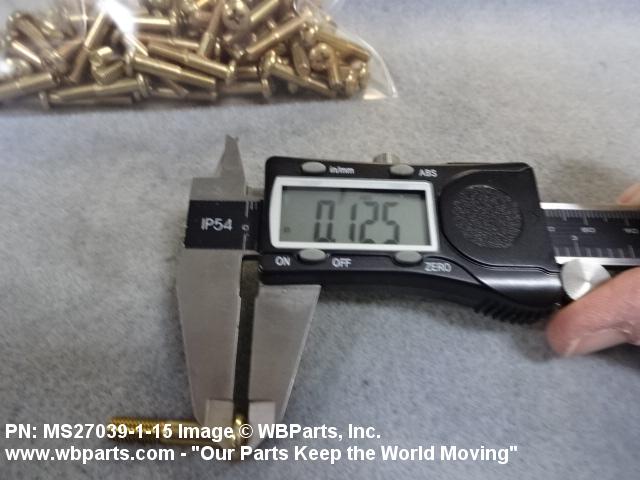

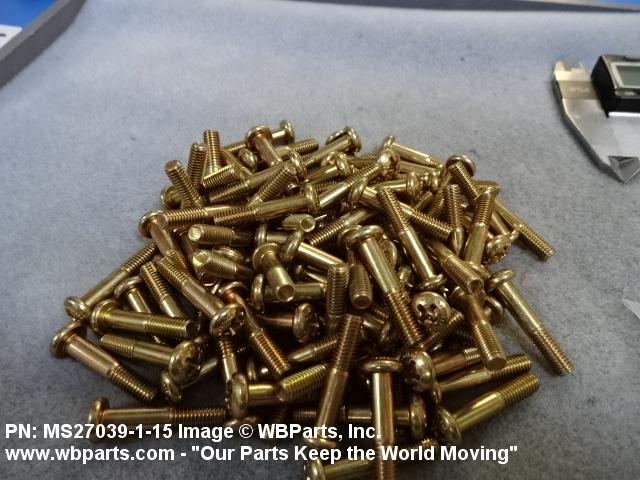

Drawings & Photos | NSN 5305-00-925-7858
Demand History | NSN 5305-00-925-7858
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-925-7858 | 2018-01-23 | 22183 | DIBBS |
| 5305-00-925-7858 | 2017-07-199 | 45000 | DIBBS |
| MS27039115 | 2017-05-146 | 5 | United States |
| 5305-00-925-7858 | 2017-05-127 | 25674 | DIBBS |
| 5305-00-925-7858 | 2017-02-36 | 18353 | DIBBS |
| MS27039115 | 2017-01-31 | 5 | United States |
| 5305-00-925-7858 | 2016-08-227 | 42683 | DIBBS |
| 5305-00-925-7858 | 2015-06-165 | 21140 | DIBBS |
| 5305-00-925-7858 | 2014-03-89 | 17699 | DIBBS |
| 5305-00-925-7858 | 2013-05-141 | 241 | Malaysia |
| MS27039-1-15 | 2012-07-187 | 100 | KR |
| 5305-00-925-7858 | 2011-09-255 | 100 | PK |
| 5305-00-925-7858 | 2011-09-245 | 43491 | DIBBS |
| 5305-00-925-7858 | 2010-11-327 | 40000 | DIBBS |
| 5305-00-925-7858 | 2010-09-259 | 168 | US |
| 5305-00-925-7858 | 2010-07-188 | 13876 | DIBBS |
| MS27039115 | 2009-07-196 | 800 | US |
| 5305-00-925-7858 | 2009-03-65 | 200 | Singapore |
Cross Reference | NSN 5305-00-925-7858
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 125C2525-28 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| AAS2525-28 | 28977 | ACCURATE PRESCISION FASTENER CORP. |
| MS27039-1-19 | 0B9F4 | RKR TECHNOLOGIES, LTD. DBA ROCKET AIR SUPPLY DIVISION |
| MS27039-1-19 | 0NFB8 | DIALOGIC CORP. DBA DIALOGIC FASTENERS |
| MS27039-1-19 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS27039-1-19 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-925-7858
Related Products | NSN 5305-00-925-7858
Technical Data | NSN 5305-00-925-7858
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |

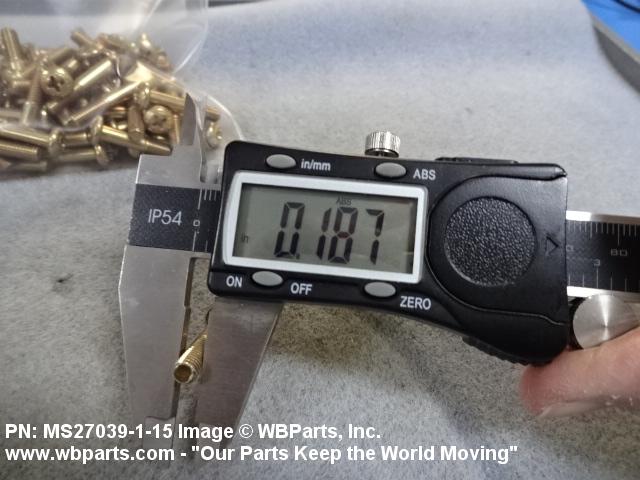

| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.377 INCHES MINIMUM AND 0.516 INCHES MAXIMUM |

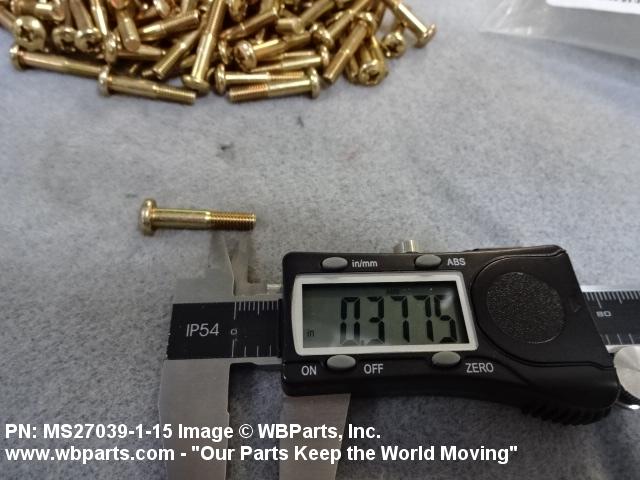

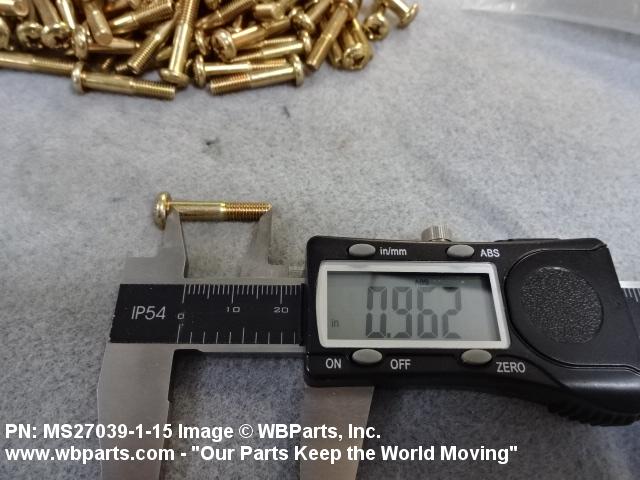

| FASTENER LENGTH | 1.204 INCHES MINIMUM AND 1.251 INCHES MAXIMUM |
| SCREW MATERIAL | STEEL COMP 8630 OR STEEL COMP 4037 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6050 MIL SPEC 1ST MATERIAL RESPONSE OR AMS 6300 ASSN STD 2ND MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 3 FED SPEC ALL TREATMENT RESPONSES |
| HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM |
| MINIMUM TENSILE STRENGTH | 125000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A23 PAN |

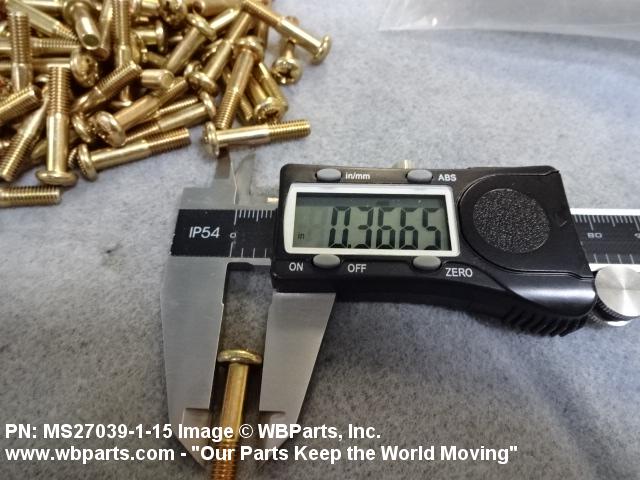

| HEAD DIAMETER | 0.357 INCHES MINIMUM AND 0.373 INCHES MAXIMUM |

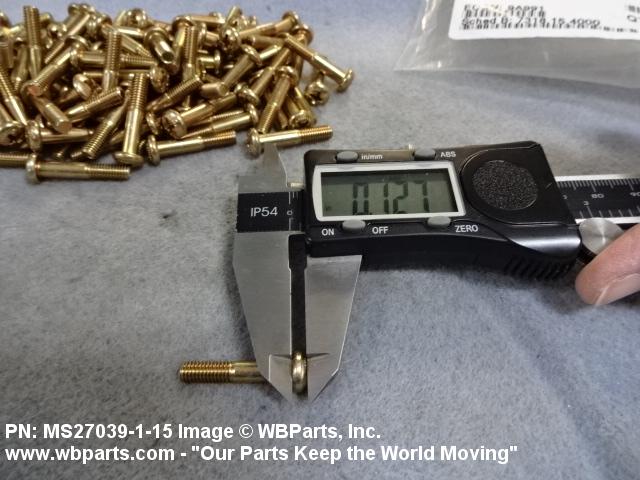

| HEAD HEIGHT | 0.122 INCHES MINIMUM AND 0.133 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
Restrictions/Controls & Freight Information | NSN 5305-00-925-7858
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
