Product Details | MACHINE SCREW

5305-00-903-7712 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: MS27039C113, MS27039C1-13, 322454129000, 322-454129-000 , 454129, 454-129 , 5305-00-903-7712, 00-903-7712, 5305009037712, 009037712

Hardware and Abrasives | Screws

Supply Group (FSG) NSN Assign. NIIN
53 15 JUN 1966 00-903-7712

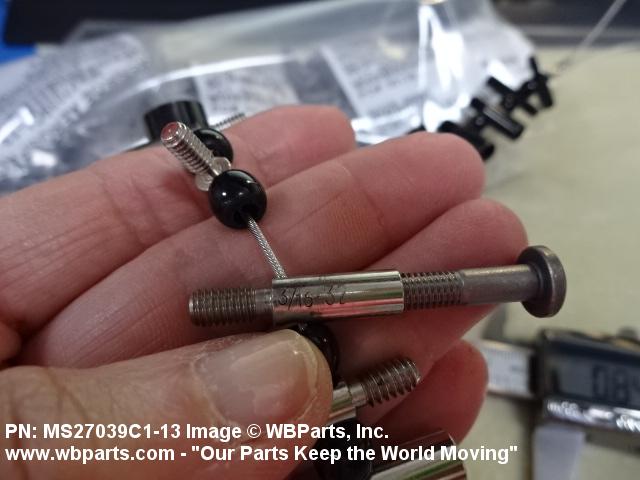

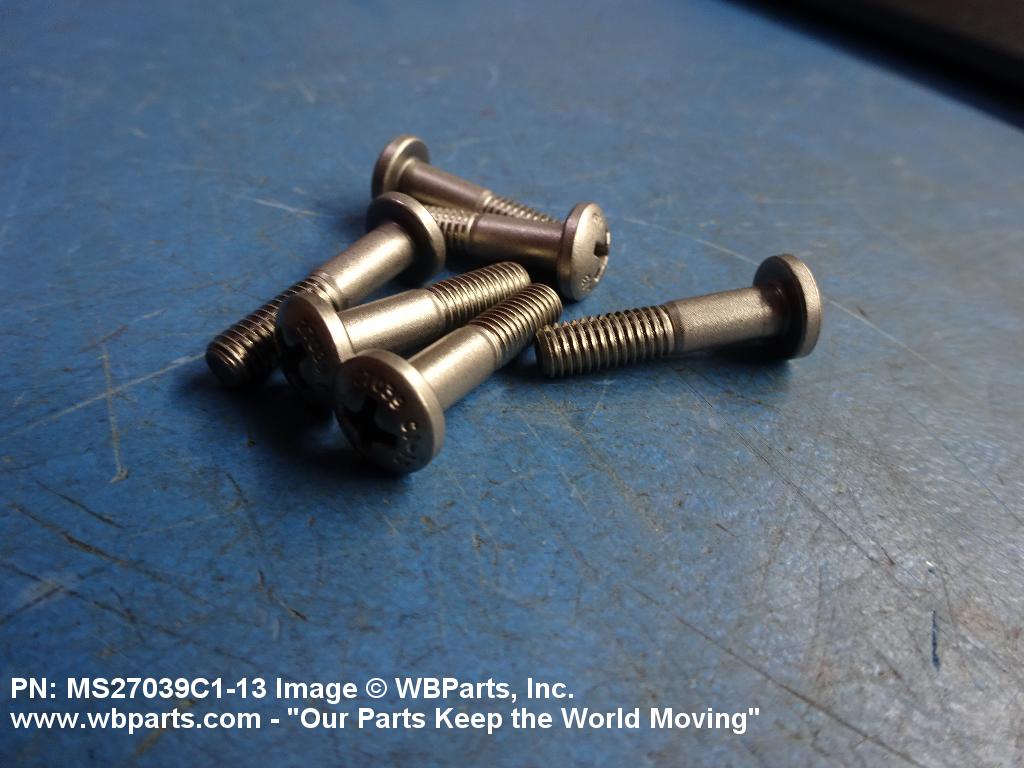

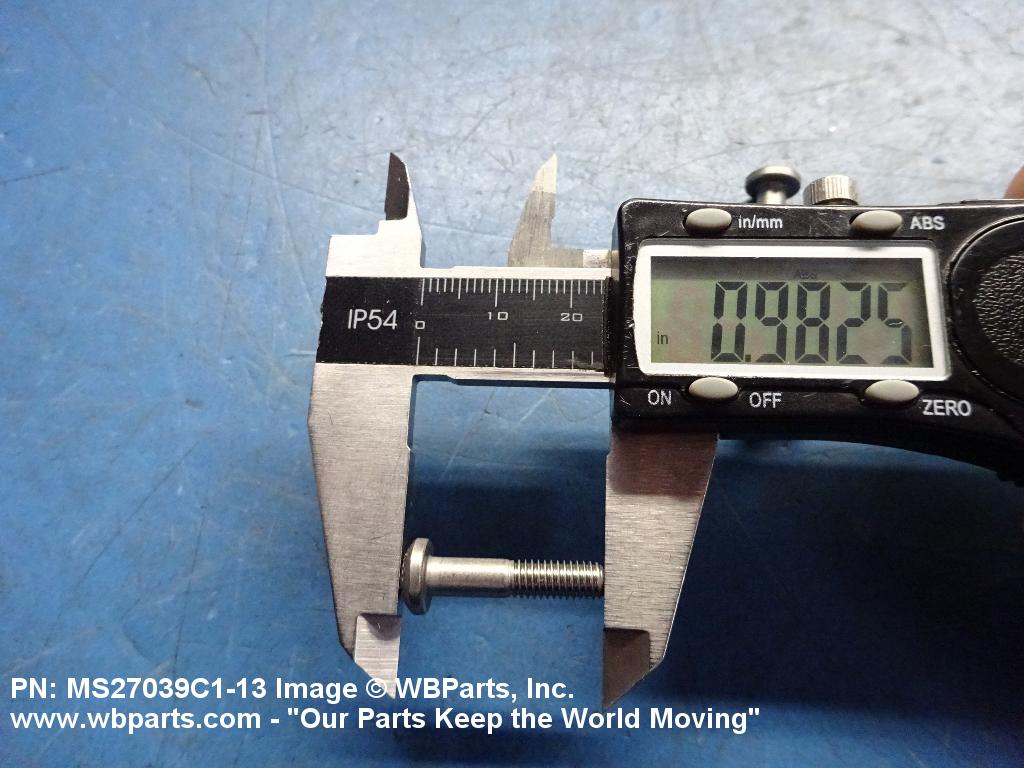

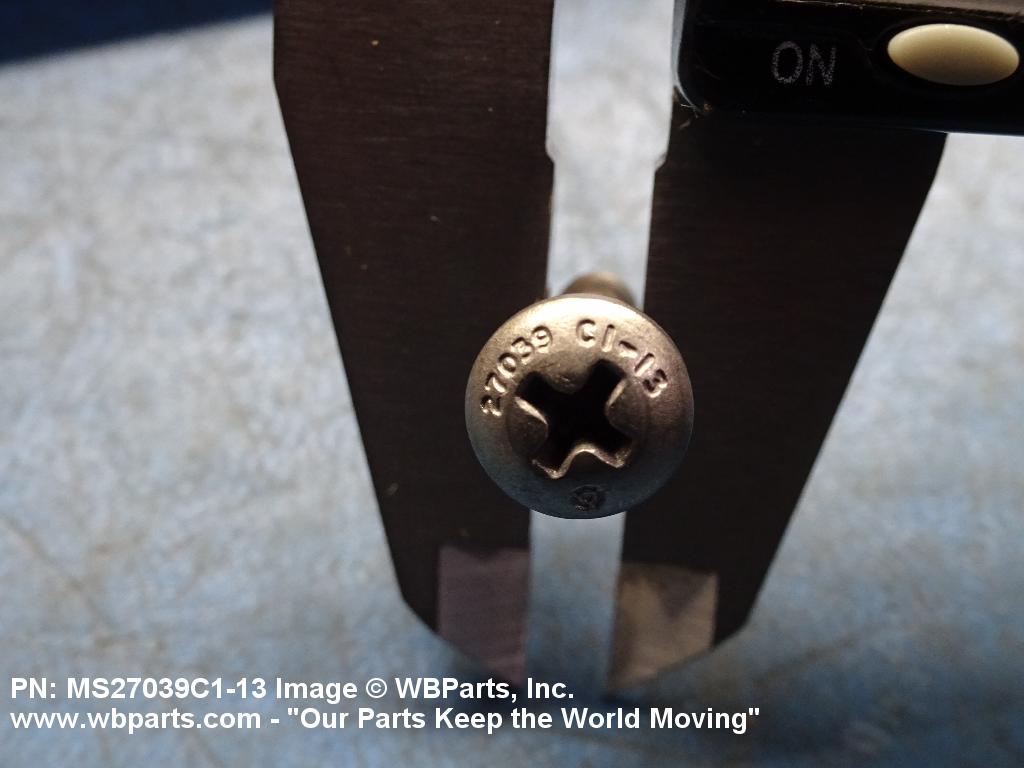

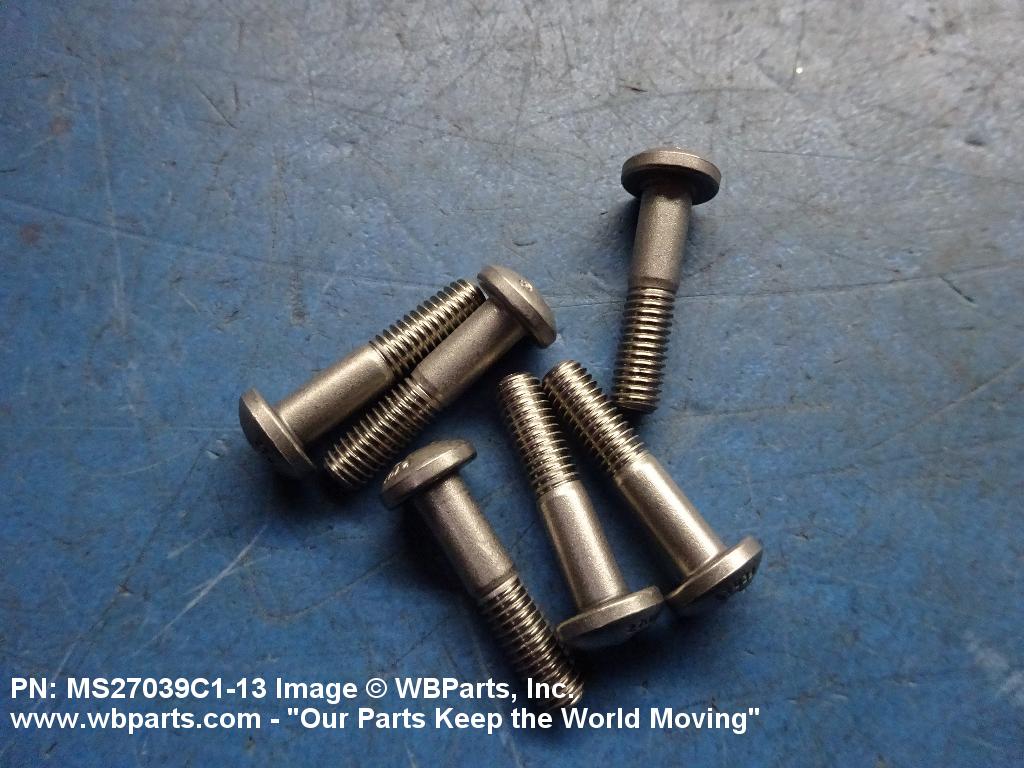

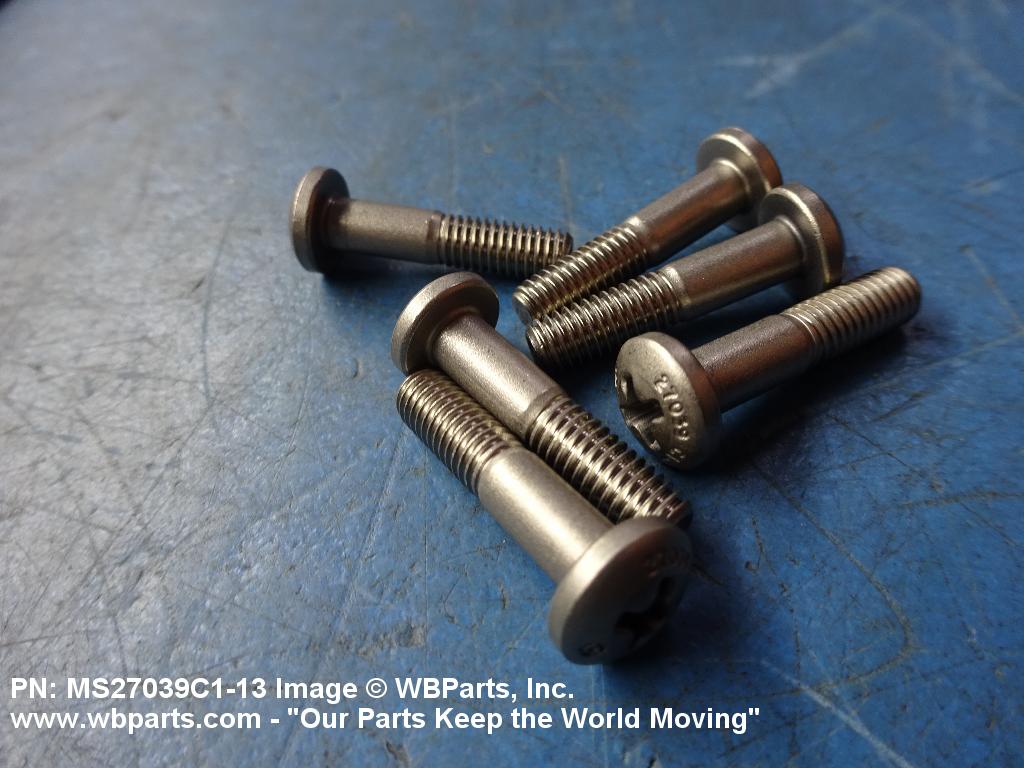

Drawings & Photos | NSN 5305-00-903-7712


Demand History | NSN 5305-00-903-7712

Part Number Request Date QTY Origin
MS27039C113 2024-03-87 4549 United States
5305-00-903-7712 2021-09-272 1 Canada
MS27039C113 2020-01-06 50 United States
MS27039C113 2020-01-06 50 United States
MS27039C113 2017-02-48 110 China
MS27039C113 2016-09-265 30 United States
MS27039C113 2016-09-265 60 United States
MS27039C113 2016-07-196 100 US
5305-00-903-7712 2016-07-193 6766 DIBBS
5305-00-903-7712 2016-06-165 12286 DIBBS
5305-00-903-7712 2015-11-327 8998 DIBBS
5305-00-903-7712 2015-07-211 7340 DIBBS
MS27039C1-13 2014-02-56 50 United States
5305-00-903-7712 2013-11-325 1 DIBBS-RFPs
5305-00-903-7712 2013-10-291 1 DIBBS-RFPs
5305-00-903-7712 2013-09-246 1 DIBBS-RFPs
5305-00-903-7712 2008-04-114 41916 DIBBS

Cross Reference | NSN 5305-00-903-7712

Part Number Cage Code Manufacturer
MS27039C1-13 80205 NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS27039C1-13 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-903-7712

Technical Data | NSN 5305-00-903-7712

Characteristic Specifications
THREAD SERIES DESIGNATOR UNF

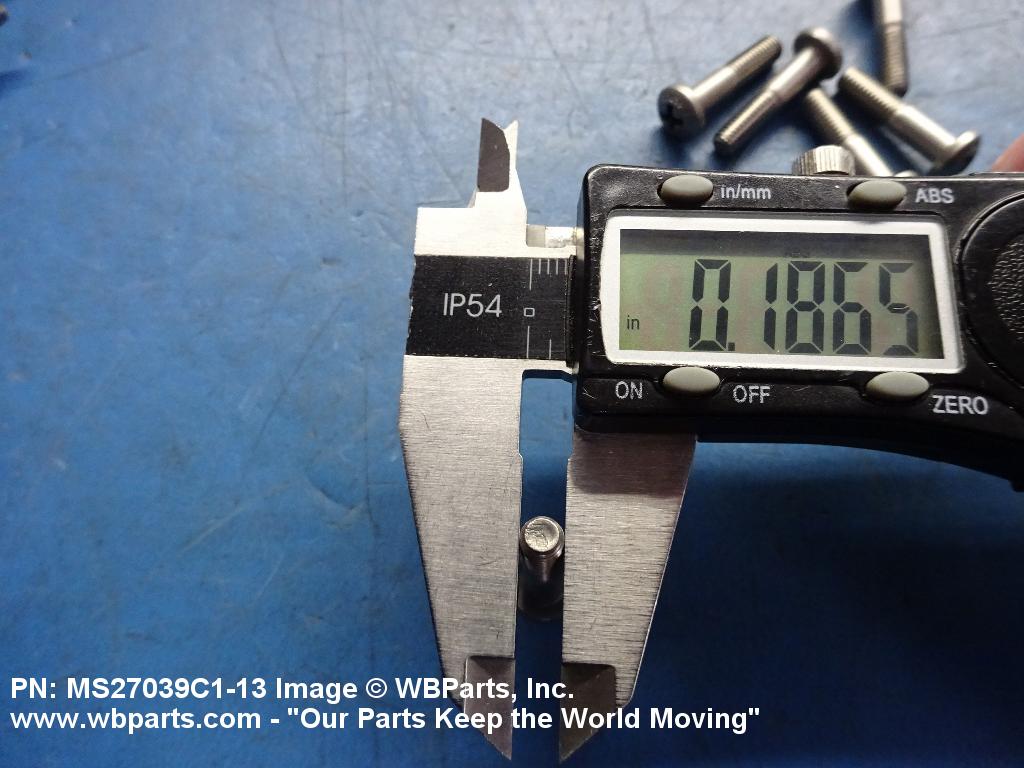

NOMINAL THREAD DIAMETER 0.190 INCHES
THREAD QUANTITY PER INCH 32
THREAD CLASS 3A
THREAD DIRECTION RIGHT-HAND

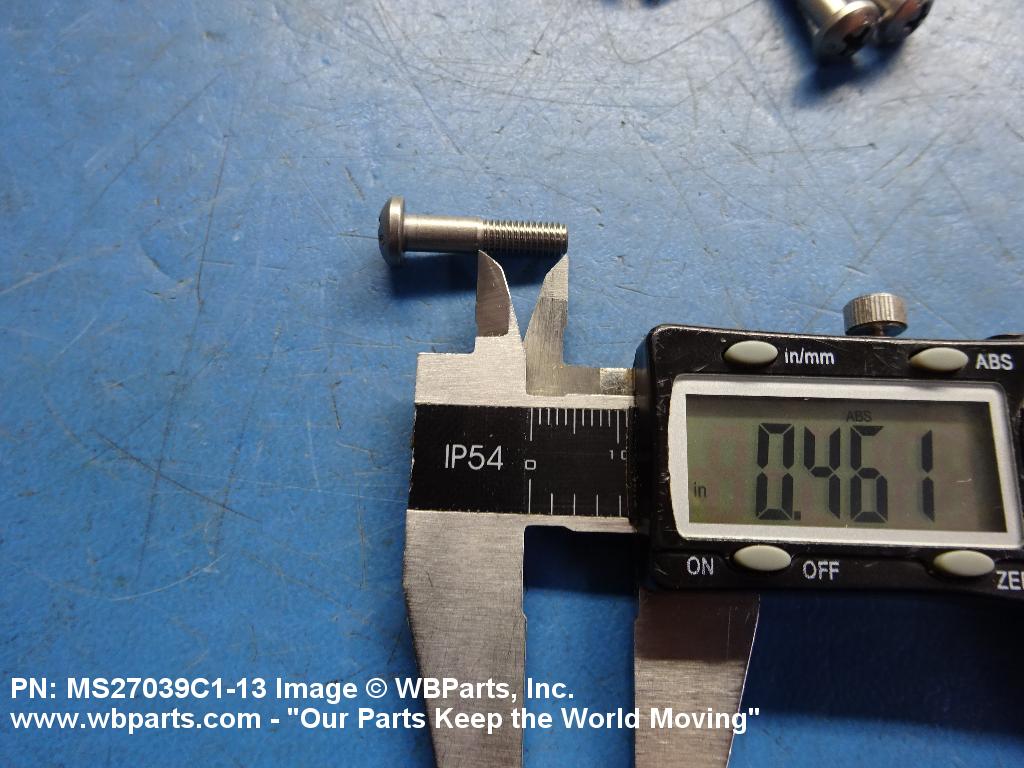

THREAD LENGTH 0.377 INCHES MINIMUM AND 0.516 INCHES MAXIMUM

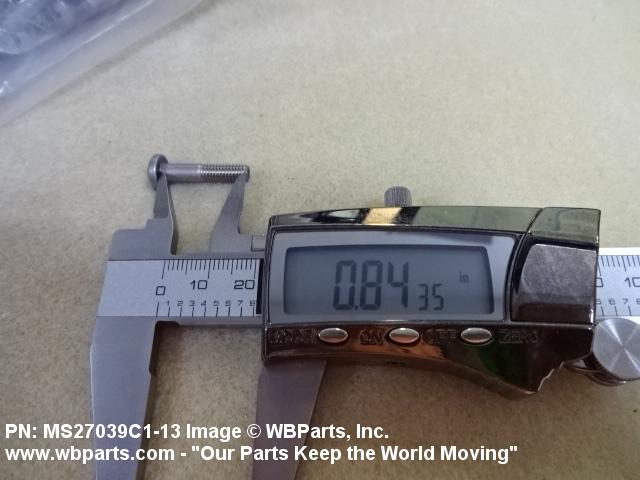

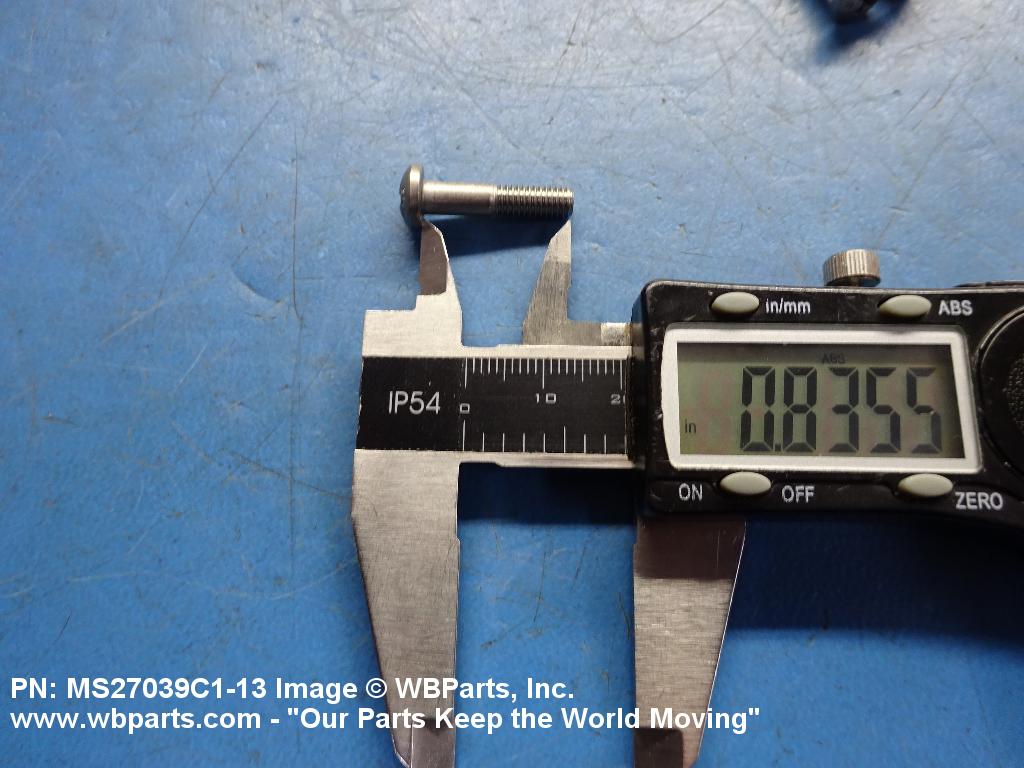

FASTENER LENGTH 0.829 INCHES MINIMUM AND 0.876 INCHES MAXIMUM
SCREW MATERIAL IRON ALLOY 660
SCREW MATERIAL DOCUMENT AND CLASSIFICATION AMS 5735 ASSN STD SINGLE MATERIAL RESPONSE
SCREW SURFACE TREATMENT PASSIVATE
MINIMUM TENSILE STRENGTH 125000 POUNDS PER SQUARE INCH
HEAD STYLE A23 PAN

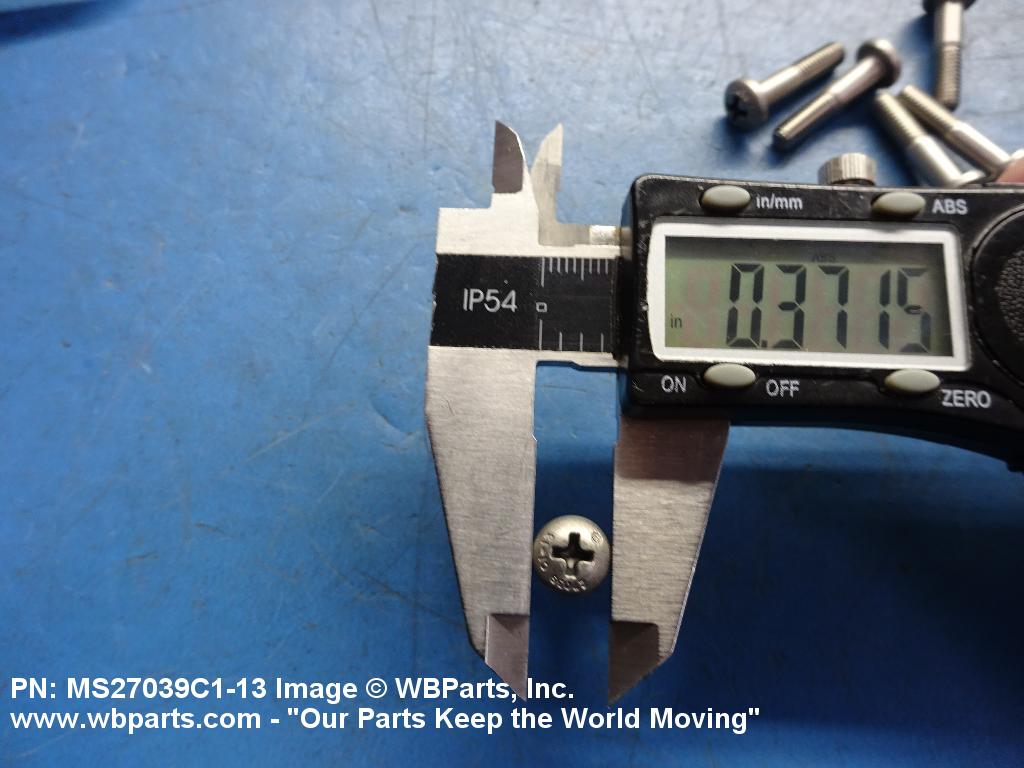

HEAD DIAMETER 0.357 INCHES MINIMUM AND 0.373 INCHES MAXIMUM

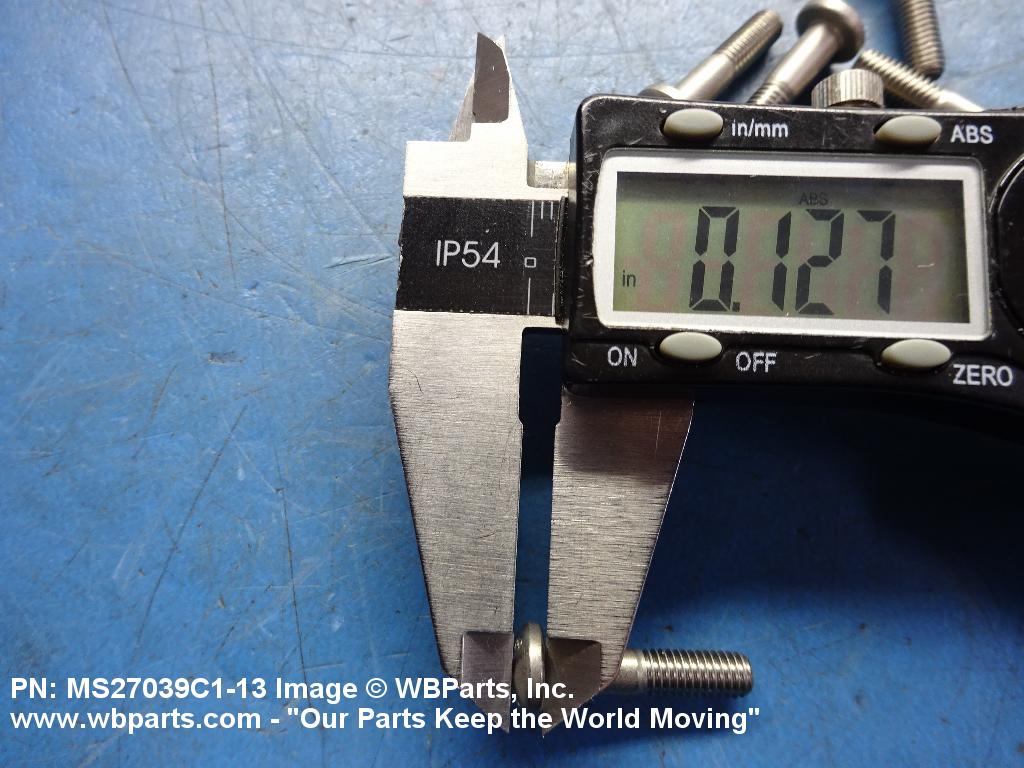

HEAD HEIGHT 0.122 INCHES MINIMUM AND 0.133 INCHES MAXIMUM
INTERNAL DRIVE STYLE B1 CROSS RECESS TYPE 1

Restrictions/Controls & Freight Information | NSN 5305-00-903-7712

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 063420 TRANSFORMERS,NOI,OR TRANSFORMER PAR
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 595 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5305-00-903-7712

Category Code Description
Materiel Category and Inventory ManagerQ Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
