NSN 5305-00-902-6651 322754, 00-902-6651, 009026651
Product Details | SETSCREW
5305-00-902-6651 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: 322754, 5305-00-902-6651, 00-902-6651, 5305009026651, 009026651
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-902-6651 | 06672 ( SETSCREW ) |
Drawings & Photos | NSN 5305-00-902-6651
Cross Reference | NSN 5305-00-902-6651
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 322754 | 73030 | HAMILTON SUNDSTRAND CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-902-6651
Technical Data | NSN 5305-00-902-6651
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.320 INCHES MINIMUM |
| FASTENER LENGTH | 0.550 INCHES NOMINAL |
| MATERIAL | STEEL COMP 4130 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.070 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.377 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | D21 WITHOUT INTERNAL DRIVE |

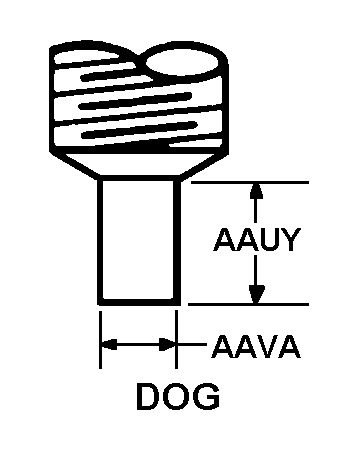

| POINT STYLE | F10 DOG |
| POINT LENGTH | 0.230 INCHES NOMINAL |
| POINT DIAMETER | 0.170 INCHES NOMINAL |
| SPECIAL FEATURES | 0.073 IN. DIA HOLE DRILLED THROUGH THD PORTION OF SHANK,CENTERED 0.257 IN. FROM BEARING SURFACE OF HEAD |
| MANUFACTURERS CODE | 73030 |
| DESIGN CONTROL REFERENCE | 322754 |
