NSN 5305-00-889-3116 MS2458412, MS24584-12, MS35206213

Product Details | MACHINE SCREW

5305-00-889-3116 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: MS2458412, MS24584-12, MS35206213, MS35206-213, MS3522513, MS35225-13, MBH04C8SC, N0117P09004C, A6374, C103950204, C10395-0204, ES693379, 990314-105, 9Z53052902368, 9Z5305-290-2368, 59004404, 59004-404, 6200165, 6-2001-65, 852677, 857546, 926C171P213, 9461192404, 946119-2404, 10114643 , 103424CPSCH, 10-92642-13, 11596202, 115962-02, 132627, 211-0008-00, 211008, 211-008, 25704281280310, 25704-281280-31-0, 38710016, 3871-0016, 460470K1BY, 521352, 5305-00-889-3116, 00-889-3116, 5305008893116 , 5305008993116, 990314105, 008893116, 109264213, 211000800

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-889-3116	06657 ( SCREW, MACHINE )

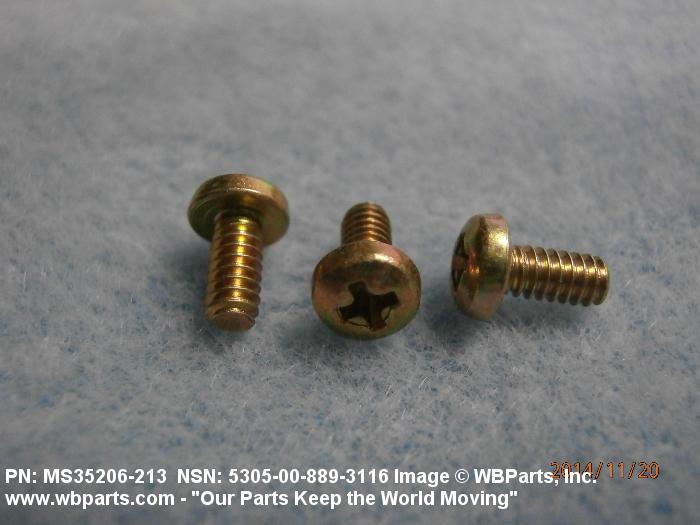

Drawings & Photos | NSN 5305-00-889-3116

Part Number	Request Date	QTY	Origin
MS35206213	2024-03-85	2600	United States
5305-00-889-3116	2023-08-236	1	US
5305-00-889-3116	2023-07-193	16	Germany
5305-00-889-3116	2022-10-301	4	Germany
5305-00-889-3116	2022-09-265	4	Germany
MS35206213	2022-08-231	110	Malta
5305-00-889-3116	2022-03-88	50	US
5305-00-889-3116	2021-08-225	8	Germany
MS35206213	2021-07-203	50	United States
MS35206213	2021-07-203	10	United States
5305-00-889-3116	2020-01-16	230	us
5305-00-889-3116	2015-02-41	6	MANUAL
5305008893116	2015-02-33	100	Korea
MS35206-213	2014-09-271	100	United States
MS35206-213	2014-07-199	100	United States
MS35206213	2013-07-189	700	US
5305-00-889-3116	2013-01-16	8	MANUAL
MS35206-213	2012-11-310	50
MS35206213	2011-09-259	40	US
5305-00-889-3116	2011-07-189	100	Korea
Ms35206-213	2011-06-178	100	United States
MS35206213	2011-03-83	50	United States
MS35206213	2009-03-89	100	US
5305-00-889-3116	2009-03-89	4333	DIBBS
5305-00-889-3116	2008-10-277	1200	DIBBS
5305-00-889-3116	2008-07-203	100	US
MS35206213	2008-06-170	80	US
5305-00-889-3116	2008-04-116	100	us
MS35206213	2008-02-43	200	MX
5305-00-889-3116	2007-05-145	48	US

Cross Reference | NSN 5305-00-889-3116

Part Number	Cage Code	Manufacturer
10-92642-13	06840	BENDIX CORP THE
10-92642-13	59501	UNISON INDUSTRIES, LLC
10-92642-13	77820	AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL
10-92642-13	R1120	SATAIR A/S
103424CPSCH	65597	THALES DEFENSE & SECURITY, INC.
115962-02	35351	GE AVIATION SYSTEMS LLC
132627	24617	GENERAL MOTORS CORP
132627	72915	GENERAL MOTORS CORP ELECTRO-MOTIVE DIV
211-0008-00	80009	TEKTRONIX, INC. DBA TEKTRONIX
211-008	80009	TEKTRONIX, INC. DBA TEKTRONIX
25704-281280-31-0	D1839	BUNDESAMT FUER AUSRUESTUNG,
25704-281280-31-0	D2692	KRAUSS-MAFFEI WEGMANN GMBH & CO. KG-WERK KASSEL-
3871-0016	19397	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC.
460470K1BY	06840	BENDIX CORP THE
460470K1BY	59364	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
460470K1BY	77068	ALLIED-SIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO
521352	82722	WESTINGHOUSE AIR BRAKE TECHNOLOGIES CORPORATION
5305008893116	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5305008993116	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
59004-404	83326	SAFE FLIGHT INSTRUMENT CORPORATION
6-2001-65	49956	RAYTHEON COMPANY DBA RAYTHEON
852677	19203	PICATINNY ARSENAL
857546	19203	PICATINNY ARSENAL
926C171P213	89954	BAE SYSTEMS CONTROLS INC.
946119-2404	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
990314-105	49671	LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS
9Z5305-290-2368	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
A637&4	95270	SKURKA AEROSPACE INC.
C10395-0204	U8539	ROSEMOUNT AEROSPACE LTD
ES693379	64959	AMERICAN TELEPHONE AND TELEGRAPH CO
ES693379	70408	AT AND T CORP
MBH04C8SC	09017	EDO
MS24584-12	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35206-213	0158B	PSA PEUGEOT-CITROEN ESPA?A, SA
MS35206-213	15090	RAYTHEON COMPANY DBA RAYTHEON
MS35206-213	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS35206-213	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35206-213	K1987	BAE SYSTEMS PLC
MS35225-13	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35225-13	D5589	FEINMECHANISCHE WERKE MAINZ GMBH
MS35225-13	D9893	LIEBHERR-AEROSPACE LINDENBERG GMBH
N0117P09004C	09172	GENERAL ELECTRIC CO MATERIALS INFORMATION SERVICES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-889-3116

Compare

Related Products | NSN 5305-00-889-3116

5305-00-889-3118, 5305-00-889-3123, 5305-00-889-3129, 5305-00-889-3137, 5305-00-889-3141

Technical Data | NSN 5305-00-889-3116

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC

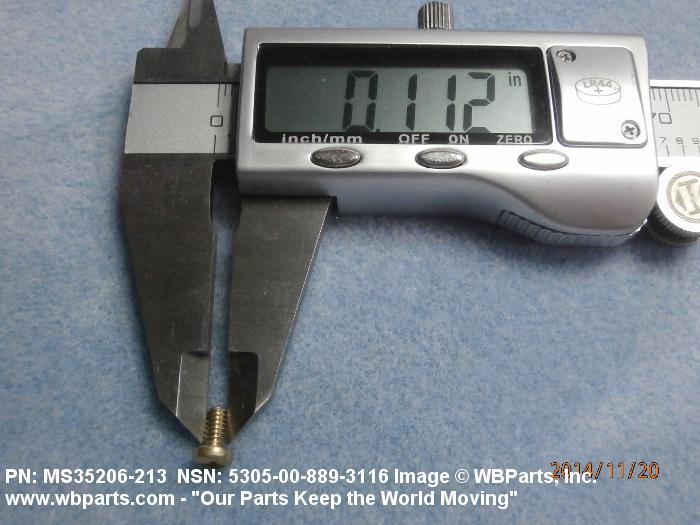

NOMINAL THREAD DIAMETER	0.112 INCHES
THREAD QUANTITY PER INCH	40
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND

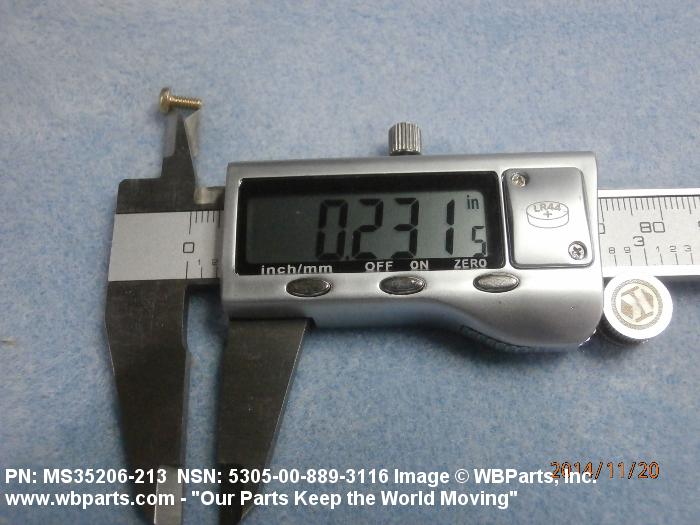

THREAD LENGTH	0.250 INCHES MINIMUM
FASTENER LENGTH	0.250 INCHES NOMINAL
SCREW MATERIAL	STEEL
SCREW MATERIAL DOCUMENT AND CLASSIFICATION	QQ-S-633 FED SPEC SINGLE MATERIAL RESPONSE
SCREW SURFACE TREATMENT	CADMIUM AND CHROMATE
SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TYPE 2,CLASS 3 FED SPEC ALL TREATMENT RESPONSES
MINIMUM TENSILE STRENGTH	60000 POUNDS PER SQUARE INCH
HEAD STYLE	A23 PAN

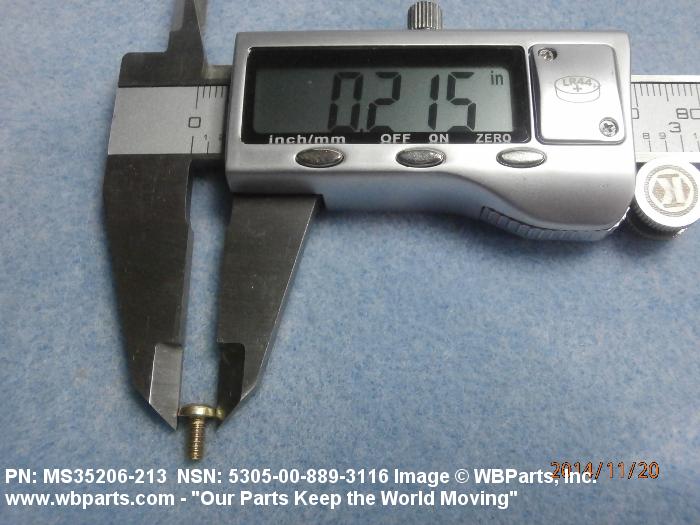

HEAD DIAMETER	0.205 INCHES MINIMUM AND 0.219 INCHES MAXIMUM
