NSN 5305-00-889-2997 MS3520614, MS35206-14, MS35206215

Product Details | MACHINE SCREW

5305-00-889-2997 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: MS3520614, MS35206-14, MS35206215, MS35206-215, MS3522515, MS35225-15, MS3522715, MS35227-15, N80P9006C11, N80P9006Q23, N80P9006Q3, NASM35206, AN515412, AN515-4-12, AN51546, AN515-4-6, AN5154R6, AN515-4R6, S460310406, S46031-04-06, JBC20061, JBC20-061, P181087, 418158-215, 5210907, 10114639 , 103426CPSCH, 132636, 19024, 19024ADX, 220 0102, 2200102, 30389029PC5, 3038-9029PC5, 328C155D0440C06, 38710024, 3871-0024, 3G406, 415 505, 415505, 55836317, 558363-17, 5836317, 58363-17, 6200167, 6-2001-67, 65564492215, 655-644-92215, 721009664700 , 759553PC5, 803464, 80346400, 803464-00, 80790600, 807906-00, 852718, 858374, 85837400, 858374-00, 8821016, 882-1016, 887026PC2, 935.63.11.023, 9356311023, 9461192406, 946119-2406, 5305-00-889-2997, 00-889-2997, 5305008892997, 008892997, 418158215

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-889-2997	06657 ( SCREW, MACHINE )

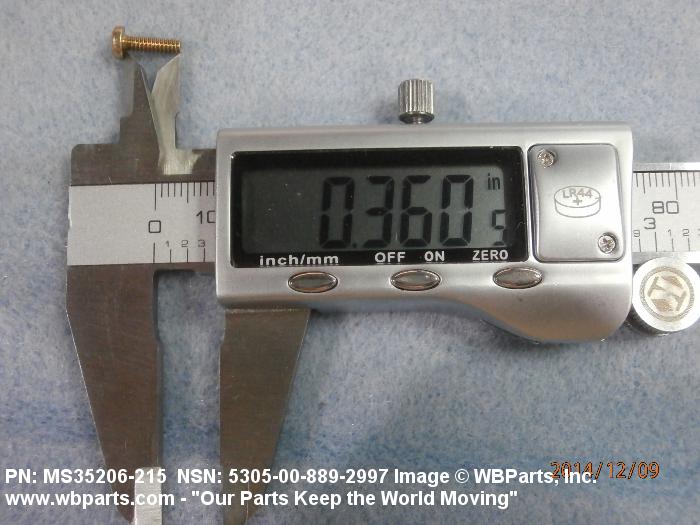

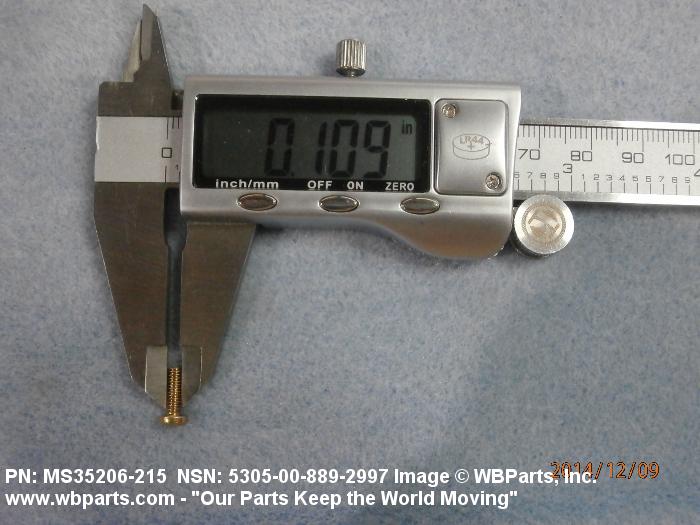

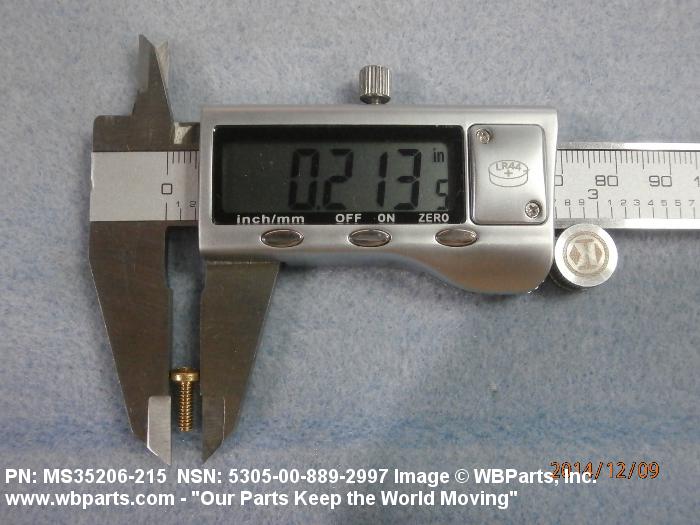

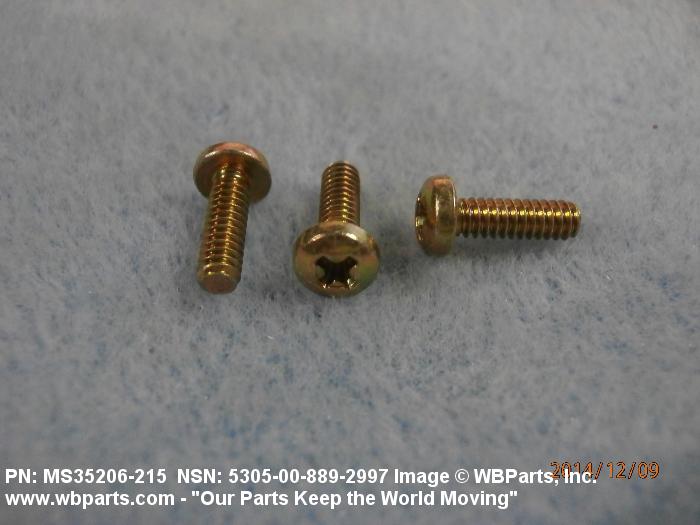

Drawings & Photos | NSN 5305-00-889-2997

Part Number	Request Date	QTY	Origin
MS35206215	2024-11-306	100	Japan
MS35206215	2024-09-268	504	Spain
MS35206215	2024-09-267	349	Spain
MS35206215	2024-08-239	800	United States
MS35206215	2024-08-227	231	Japan
MS35206215	2024-08-222	30	Japan
MS35206215	2024-04-107	25100	us
MS35206215	2024-04-99	1	United Arab Emirates
MS35206215	2023-12-352	45865	United States
MS35206215	2023-12-348	45865	United States
MS35206215	2023-10-277	1	US
AN5154R6	2023-06-153	10	US
MS35206215	2021-09-264	18	United States
MS35206215	2021-08-238	200	US
MS35206215	2020-08-232	240	United States
5305-00-889-2997	2019-05-137	80	Germany
MS35206215	2019-02-56	300	US
AN515-4-6	2019-01-02	12
MS35206-215	2019-01-02	12
MS35206215	2018-05-134	150	United States
5305-00-889-2997	2018-03-71	5	US
5305-00-889-2997	2018-01-11	500	US
5305-00-889-2997	2018-01-08	1131	DIBBS
5305-00-889-2997	2017-11-334	2786	DIBBS
MS35206215	2017-06-173	200	US
MS3522515	2017-06-173	200	US
5305-00-889-2997	2017-05-127	623	DIBBS
5305-00-889-2997	2017-04-102	550	us
5305-00-889-2997	2017-04-102	550	us
AN5154R6	2016-01-22	1000	us
MS35206215	2016-01-20	2510	China
MS35206215	2015-05-128	480	US
MS35206215	2015-05-128	4800	US
MS35206-215	2015-04-91	50	Greece
MS35206215	2015-02-56	500	China
MS35206215	2015-01-09	100	us
MS35206-215	2014-09-271	100	United States
MS35206-215	2014-07-199	100	United States
5305-00-889-2997	2014-04-113	2800	DIBBS
5305-00-889-2997	2013-11-318	2500	DIBBS
MS35206215	2013-11-315	400	United States
MS35206-215	2013-07-190	50	HK
5305-00-889-2997	2013-06-179	2022	DIBBS
5305-00-889-2997	2013-01-16	32	MANUAL
5305-00-889-2997	2013-01-04	1281	DIBBS
MS35206-215	2012-11-310	51
5305-00-889-2997	2012-10-279	1333	DIBBS
5305-00-889-2997	2012-08-214	1201	DIBBS
5305-00-889-2997	2012-06-181	1179	DIBBS
AN5154R6	2012-05-122	100	CA
5305-00-889-2997	2012-01-26	1344	DIBBS
MS35206215	2011-06-175	40	United States
MS35206215	2011-06-159	400	United States
MS35206215	2011-05-137	16	United States
MS35206215	2011-01-14	25	United States
MS35206215	2011-01-13	25	US
MS35206215	2010-09-273	50	US
5305-00-889-2997	2010-06-159	60	United States
5305-00-889-2997	2010-05-138	400	Canada
5305-00-889-2997	2009-10-293	1760	DIBBS
MS3522515	2009-08-243	405	US
NASM35206	2009-06-174	1624	US
MS3522515	2009-01-14	904	US
5305-00-889-2997	2008-10-295	9420	DIBBS
5305-00-889-2997	2008-06-154	2235	DIBBS
MS35206215	2008-02-43	260	MX
MS35206215	2006-08-223	4	US

Cross Reference | NSN 5305-00-889-2997

Part Number	Cage Code	Manufacturer
103426CPSCH	65597	THALES DEFENSE & SECURITY, INC.
132636	24617	GENERAL MOTORS CORP
19024	73734	FEDERAL SCREW PRODUCTS INC.
19024ADX	1VN02	AIRDALE EXPRESS LLC
220 0102	54193	DATA I/O CORPORATION
3038-9029PC5	95542	NORTHROP GRUMMAN SYSTEMS CORPORATION
3038-9029PC5	C1834	KONTRON AG
328C155D0440C06	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
3871-0024	19397	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC.
3G406	12603	CLARK EQUIPMENT CO
3G406	77237	DANA OFF HIGHWAY PRODUCTS, LLC
415 505	77294	PIPER AIRCRAFT INC.
418158-215	96214	RAYTHEON COMPANY DBA RAYTHEON
5210907	001JK	EMBRAER S/A
5210907	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
5305008892997	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
558363-17	96214	RAYTHEON COMPANY DBA RAYTHEON
58363-17	96214	RAYTHEON COMPANY DBA RAYTHEON
6-2001-67	49956	RAYTHEON COMPANY DBA RAYTHEON
655-644-92215	99193	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
759553PC5	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
803464	19203	PICATINNY ARSENAL
803464-00	32345	DEFENSE REDUCTION AGENCY
807906-00	32345	DEFENSE REDUCTION AGENCY
852718	19203	PICATINNY ARSENAL
858374	19203	PICATINNY ARSENAL
858374-00	32345	DEFENSE REDUCTION AGENCY
882-1016	44940	CUMMINS POWER GENERATION INC.
887026PC2	10001	NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
935.63.11.023	S4080	PILATUS AIRCRAFT LTD
946119-2406	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
AN515-4-12	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN515-4-6	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN515-4R6	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
JBC20-061	80103	VEECO INSTRUMENTS INC LAMBDA DIV
MS35206-14	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35206-215	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
MS35206-215	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS35206-215	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35225-15	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35227-15	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
N80P9006C11	24446	GENERAL ELECTRIC CO
N80P9006Q23	03538	LOCKHEED MARTIN CORPORATION DIV MST
N80P9006Q23	24446	GENERAL ELECTRIC CO
N80P9006Q3	03538	LOCKHEED MARTIN CORPORATION DIV MST
N80P9006Q3	24446	GENERAL ELECTRIC CO
NASM35206	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
P181087	70408	AT AND T CORP
S46031-04-06	27914	HONEYWELL INTERNATIONAL INC DBA HONEYWELL

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-889-2997

Compare

Related Products | NSN 5305-00-889-2997

5305-00-889-2998, 5305-00-889-2999, 5305-00-889-3000, 5305-00-889-3001, 5305-00-889-3002

Technical Data | NSN 5305-00-889-2997

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.112 INCHES
THREAD QUANTITY PER INCH	40
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.325 INCHES MINIMUM AND 0.375 INCHES MAXIMUM
FASTENER LENGTH	0.375 INCHES NOMINAL
SCREW MATERIAL	STEEL
SCREW MATERIAL DOCUMENT AND CLASSIFICATION	QQ-S-637 FED SPEC SINGLE MATERIAL RESPONSE
SCREW SURFACE TREATMENT	CADMIUM AND CHROMATE
SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TYPE 2,CLASS 3 FED SPEC ALL TREATMENT RESPONSES
MINIMUM TENSILE STRENGTH	55000 POUNDS PER SQUARE INCH
HEAD STYLE	A23 PAN
HEAD DIAMETER	0.205 INCHES MINIMUM AND 0.219 INCHES MAXIMUM
HEAD HEIGHT	0.070 INCHES MINIMUM AND 0.080 INCHES MAXIMUM
INTERNAL DRIVE STYLE	B1 CROSS RECESS TYPE 1

Restrictions/Controls & Freight Information | NSN 5305-00-889-2997

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-889-2997

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BX	OH-58D Army Helicopter Improvement Program (AHIP)
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	T
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
