NSN 5305-00-879-7941 MS2461731, MS24617-31, MS51861-45-3/16X3/8IN.-16

Product Details | TAPPING SCREW

5305-00-879-7941 A hardened externally threaded fastener whose thread extends to the bearing surface of the head. The thread may be fluted or otherwise designed to cut or form its own mating thread. Excludes SCREW, ASSEMBLED WASHER.

Part Alternates: MS2461731, MS24617-31, MS51861-45-3/16X3/8IN.-16, MS5186145316X38IN16, NASM51861, ASME-B18.2.1, ASMEB1821, B18.6.4, B1864, FFS107, FF-S-107, FF-S-107 TYAB, FFS107TYAB, PARKERKAL0N1012PK64A108, PARKERKAL0N10-1-2PK64A10-8, 27KP668 , 42132, 5305-00-879-7941, 00-879-7941, 5305008797941 , 008797941

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1960	00-879-7941	41756 ( SCREW, TAPPING )

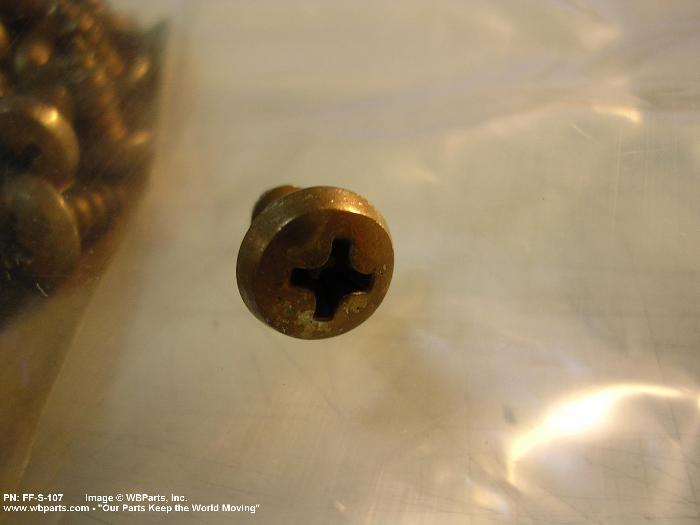

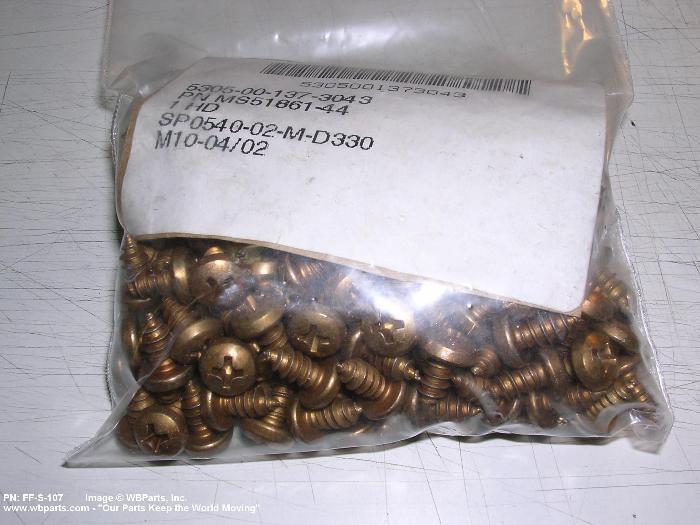

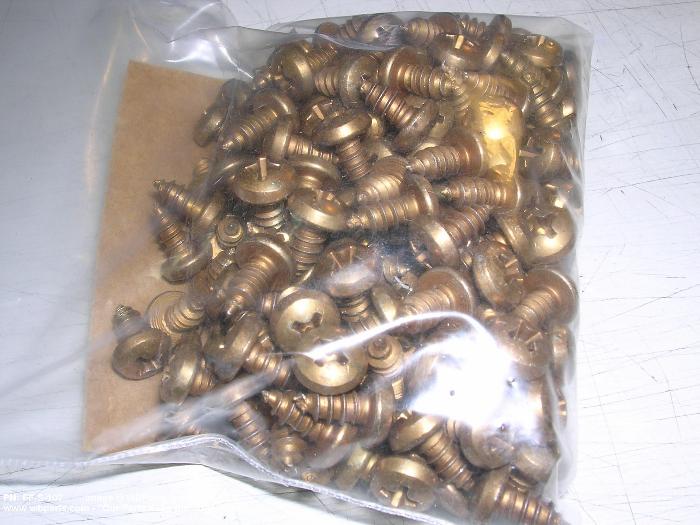

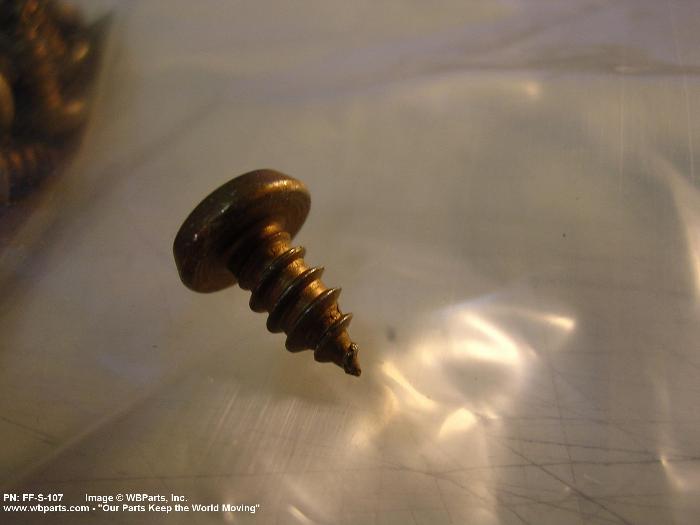

Drawings & Photos | NSN 5305-00-879-7941

Part Number	Request Date	QTY	Origin
ASMEB1821	2020-07-189	48	United States
ASMEB1821	2020-07-189	8	United States
NASM51861	2014-09-266	150	United States
ASMEB1821	2014-03-65	5	South Africa
FF-S-107	2014-02-59	150	United States
MS2461731	2012-11-325	5	US
ASMEB1821	2011-04-111	160	United States
FFS107	2011-02-49	10	US
FFS107	2011-02-49	17	US
ASMEB1821	2009-04-97	24	United States
FFS107	2009-03-62	1800	US
ASMEB1821	2008-01-23	80	United States
FFS107	2007-12-347	600	United States

Cross Reference | NSN 5305-00-879-7941

Part Number	Cage Code	Manufacturer
27KP668	45152	OSHKOSH CORPORATION
27KP668	75Q65	OSHKOSH DEFENSE, LLC
42132	73734	FEDERAL SCREW PRODUCTS INC.
5305008797941	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
ASME-B18.2.1	05047	AMERICAN SOCIETY OF MECHANICAL ENGINEERS
B18.6.4	80204	AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED
FF-S-107	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
FF-S-107 TYAB	80244	GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE
MS24617-31	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS51861-45-3/16X3/8IN.-16	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NASM51861	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
PARKERKAL0N10-1-2PK64A10-8	45722	USM CORP SUB OF EMHART INDUSTRIES INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-879-7941

Compare

Related Products | NSN 5305-00-879-7941

5305-00-879-7942, 5305-00-879-8350, 5305-00-879-8351, 5305-00-879-8573, 5305-00-879-8836

Technical Data | NSN 5305-00-879-7941

Characteristic	Specifications
NONMACHINE THREAD STYLE	A13 GIMLET POINT
NONMACHINE NOMINAL THREAD DIAMETER	0.190 INCHES
FASTENER LENGTH	0.500 INCHES NOMINAL
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
HEAD STYLE	C32 PAN
HEAD DIAMETER	0.357 INCHES MINIMUM AND 0.373 INCHES MAXIMUM
HEAD HEIGHT	0.122 INCHES MINIMUM AND 0.133 INCHES MAXIMUM
INTERNAL DRIVE STYLE	D1 CROSS RECESS TYPE 1
FEATURES PROVIDED	CASEHARDENED
NONDEFINITIVE SPEC/STD DATA	AB TYPE
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FF-S-107
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	NASM51861

Restrictions/Controls & Freight Information | NSN 5305-00-879-7941

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-879-7941

Category	Code	Description
Materiel Category and Inventory Manager	E	General Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	GSA	General Services Administration Washington, D.C. 20406
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	GSA	General Services Administration Washington, D.C. 20406
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	0	GSA MaterielItems cataloged by the Marine Corps and managed by the General Services Administration.
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	GSA	General Services Administration Washington, D.C. 20406
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative

Category	Code	Description
Cognizance Codes	9Q	Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg
Source of Supply	GSA	General Services Administration Washington, D.C. 20406
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	H	DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
