NSN 5305-00-723-9383 MS5196366, MS51963-66 , MS5196367

Product Details | SETSCREW

5305-00-723-9383 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.

Part Alternates: MS5196366, MS51963-66 , MS5196367, MS51963-67, MS5196555, MS51965-55, MX-261193-3 PIECE 66, MX2611933PIECE66, A38515, A-38515, H75-1/4-20 X 8, H751420X8, E3373 PIECE 33, E3373PIECE33, F-8278 PC1J, F-8278 PC1Y, F8278PC1J, F8278PC1Y, FFS210, 55693 ITEM 11, 55693ITEM11, 701-4711389 PIECE 46, 7014711389PIECE46, 705044, 706088, 83316300, 833163-00, 8350-15 ITEM 31, 835015ITEM31, 922071, 109A2A5, 12Z4PC151, 481038515C05, 4810-38515-C05, 5305-00-723-9383, 00-723-9383, 5305007239383 , 007239383

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1961	00-723-9383	06672 ( SETSCREW )

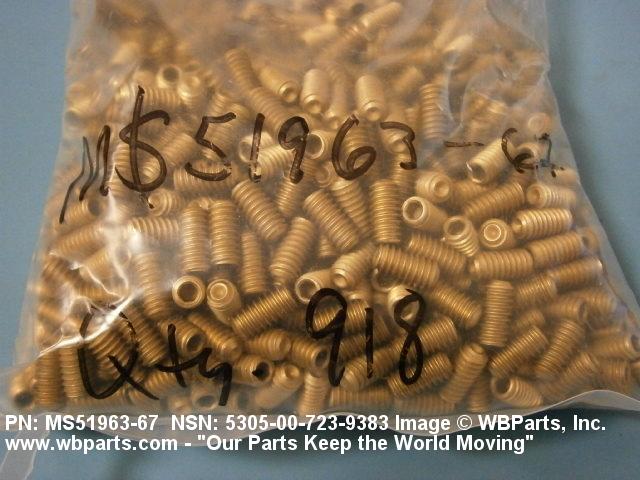

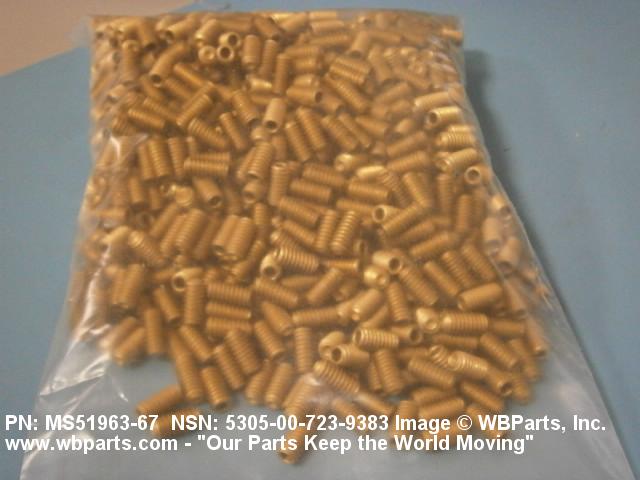

Drawings & Photos | NSN 5305-00-723-9383

Part Number	Request Date	QTY	Origin
5305-00-723-9383	2021-02-05	45	US
5305-00-723-9383	2015-11-10	300	US
MS5196555	2015-05-26	1	United States
MS51963-67	2011-12-15	2754	Israel
MS5196367	2011-12-07	918	Israel
109A2A5	2009-05-18	1	MX
MS5196555	2009-01-30	6	US
FFS210	2008-01-21	1000	US

Cross Reference | NSN 5305-00-723-9383

Part Number	Cage Code	Manufacturer
109A2A5	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
12Z4PC151	53711	NAVAL SEA SYSTEMS COMMAND
4810-38515-C05	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
55693 ITEM 11	99827	TEIKOKU USA INC. DBA FOREIGN PARENT IS TEIKOKU
701-4711389 PIECE 46	80064	NAVAL SHIP SYSTEMS COMMAND
705044	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
706088	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
833163-00	32345	DEFENSE REDUCTION AGENCY
8350-15 ITEM 31	57574	VELAN VALVE CORPORATION DIV VELAN VALVE CORPORATION
922071	07524	DOVER FLUID MANAGEMENT, INC. DBA BLACKMER
A-38515	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
E3373 PIECE 33	07524	DOVER FLUID MANAGEMENT, INC. DBA BLACKMER
F-8278 PC1J	82328	DRESSER RAND CO TERRY CORP STEAM TURBINE MOTOR AND
F-8278 PC1Y	82328	DRESSER RAND CO TERRY CORP STEAM TURBINE MOTOR AND
FFS210	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
H75-1/4-20 X 8	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS51963-67	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS51965-55	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MX-261193-3 PIECE 66	58529	THE BABCOCK & WILCOX COMPANY DIV B&W SERVICE COMPANY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-723-9383

Compare

Related Products | NSN 5305-00-723-9383

5305-00-723-9384, 5305-00-723-9385, 5305-00-723-9386, 5305-00-723-9387, 5305-00-723-9388

Technical Data | NSN 5305-00-723-9383

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.250 INCHES
THREAD QUANTITY PER INCH	20
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.500 INCHES MAXIMUM
FASTENER LENGTH	0.500 INCHES NOMINAL
MATERIAL	STEEL COMP 4037 OR STEEL COMP 4137 OR STEEL COMP 4140 OR STEEL COMP 8630 OR STEEL COMP 8740 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	66 FED STD ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	45.0 ROCKWELL C MINIMUM AND 53.0 ROCKWELL C MAXIMUM OVERALL
HEAD STYLE	C101 HEADLESS
INTERNAL DRIVE STYLE	D5 HEXAGON
WIDTH ACROSS FLATS	0.125 INCHES NOMINAL
POINT STYLE	F20 CUP
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS51963-67
