NSN 5305-00-722-4766 AN42B3A , AN565D1032H8, 00-722-4766
Product Details | SETSCREW
5305-00-722-4766 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: AN42B3A , AN565D1032H8, 5305-00-722-4766, 00-722-4766, 5305007224766, 007224766
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-722-4766 | 06672 ( SETSCREW ) |

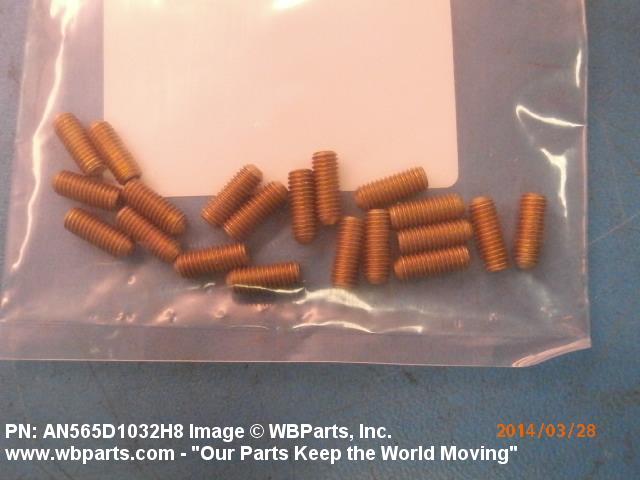

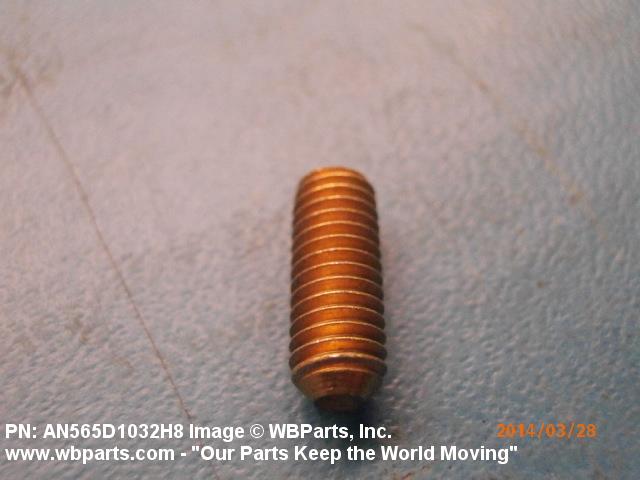

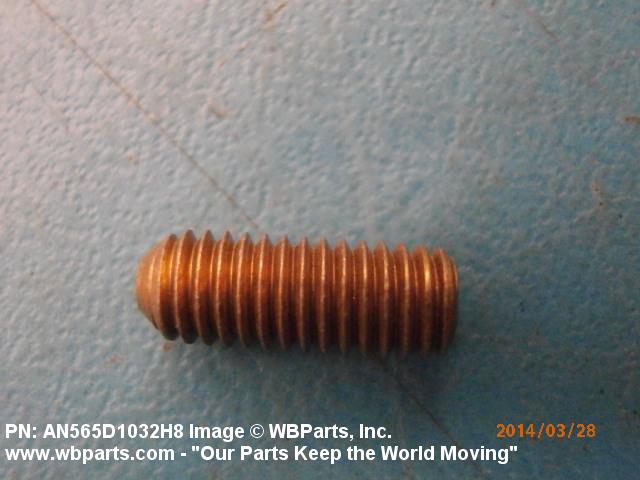

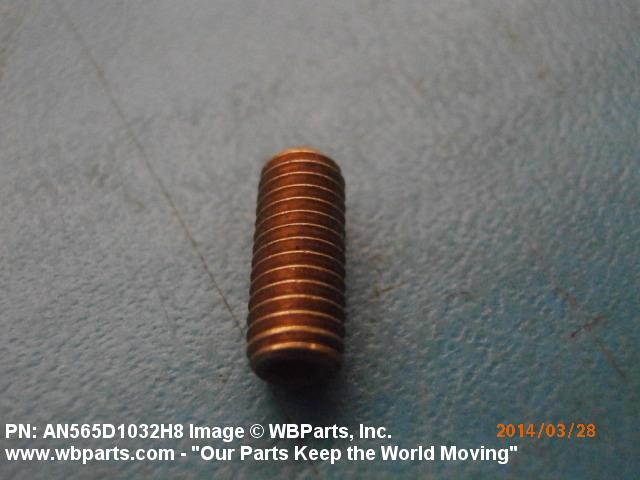

Drawings & Photos | NSN 5305-00-722-4766
Demand History | NSN 5305-00-722-4766
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN42B3A | 2022-02-38 | 500 | United States |
| AN42B3A | 2014-09-267 | 60 | US |
| AN565D1032H8 | 2014-02-51 | 20 | Sweden |
| AN565D1032H8 | 2014-02-50 | 20 | Sweden |
| 5305-00-722-4766 | 2009-05-133 | 150 | US |
Cross Reference | NSN 5305-00-722-4766
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN565D1032H8 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-722-4766
Technical Data | NSN 5305-00-722-4766
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |

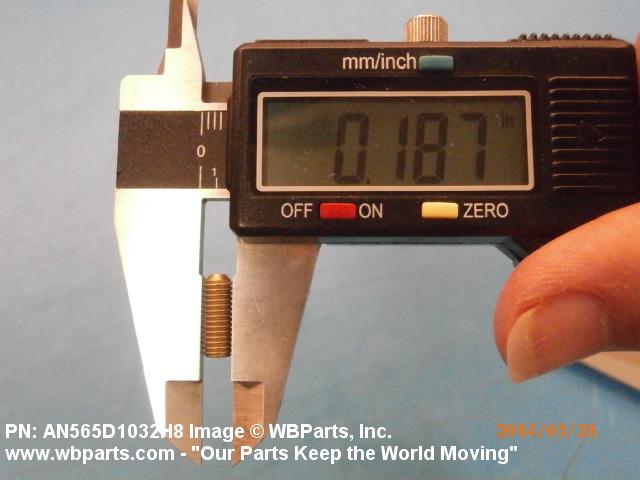

| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD LENGTH | 0.500 INCHES MAXIMUM |

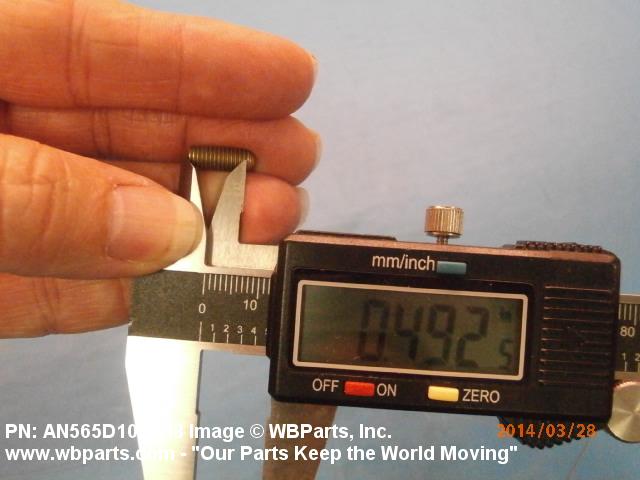

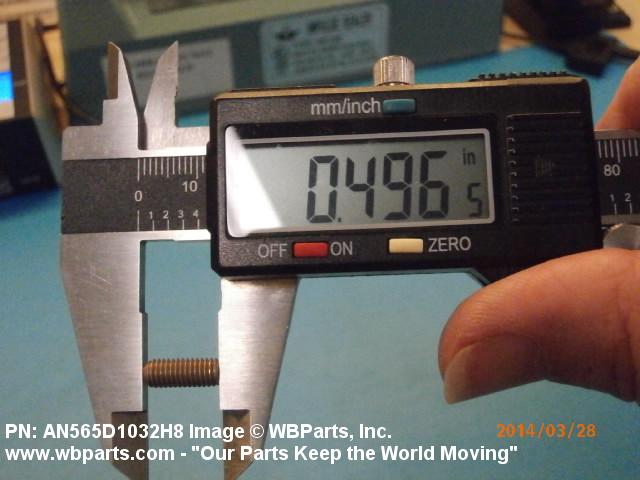

| FASTENER LENGTH | 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 45.0 ROCKWELL C MINIMUM AND 53.0 ROCKWELL C MAXIMUM OVERALL |
| INTERNAL DRIVE STYLE | D5 HEXAGON |

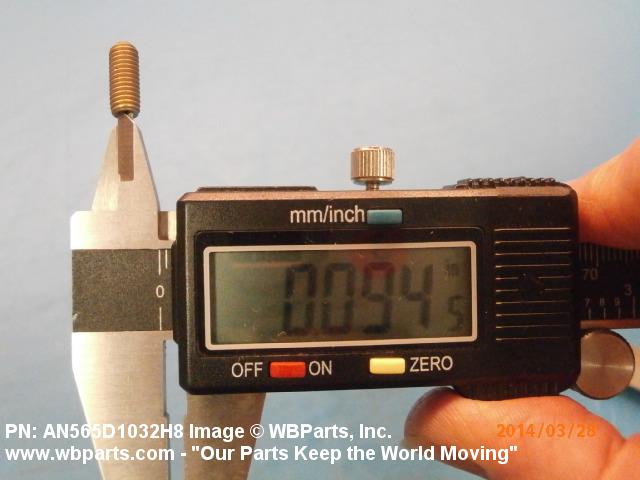

| WIDTH ACROSS FLATS | 0.093 INCHES MINIMUM AND 0.094 INCHES MAXIMUM |
| POINT STYLE | F20 CUP |
| SPECIAL FEATURES | FLEET BALLISTIC MISSILE QUALITY AS IDENTIFIED BY QUALITY CONTROL NO. POSO912951 |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY SPECIAL FEATURES |
| MANUFACTURERS CODE | 88044 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN565D1032H8 |
Restrictions/Controls & Freight Information | NSN 5305-00-722-4766
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
