NSN 5305-00-721-4427 AN565DC2L2, FFS103TYPE4STYLE4, 639202-143

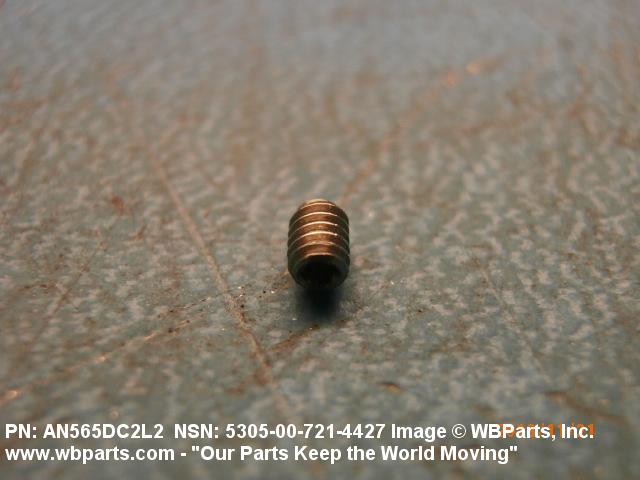

Product Details | SETSCREW

5305-00-721-4427 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.

Part Alternates: AN565DC2L2, FFS103TYPE4STYLE4, 639202-143, 6550279006, 655-027-9006, 5305-00-721-4427, 00-721-4427, 5305007214427, 639202143, 007214427

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-721-4427	06672 ( SETSCREW )

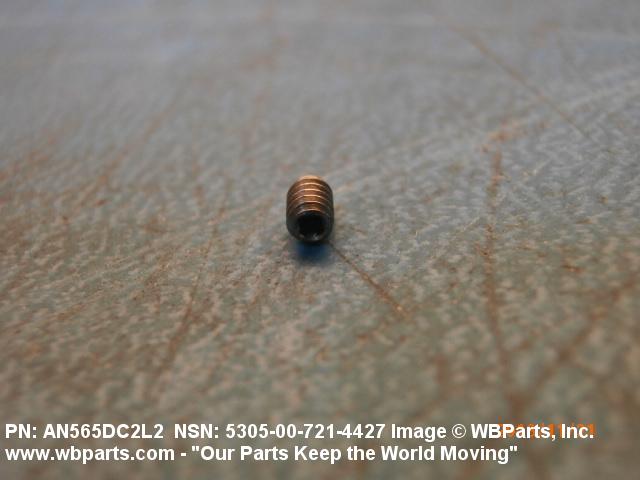

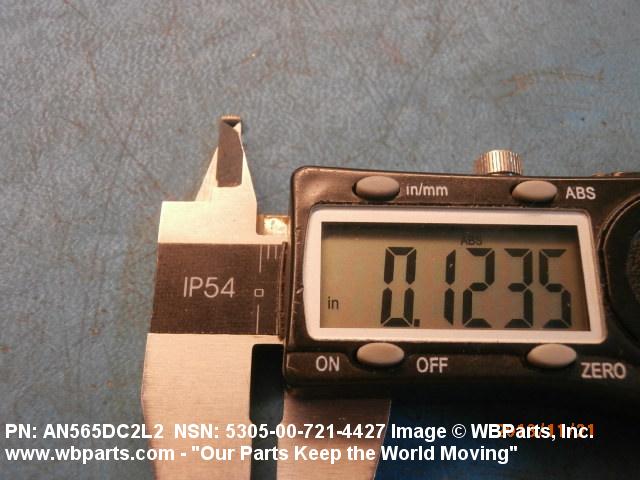

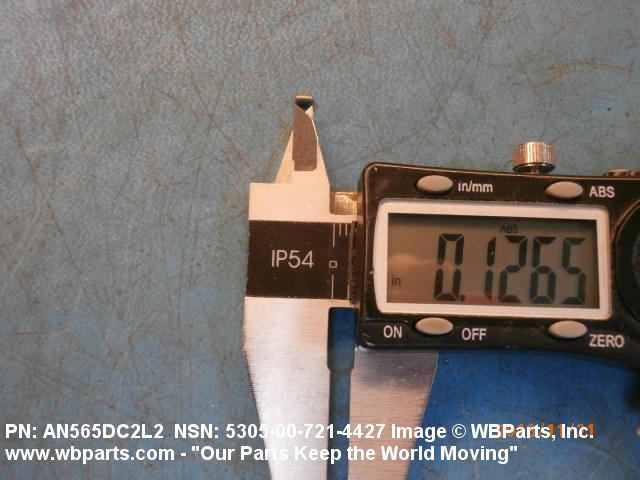

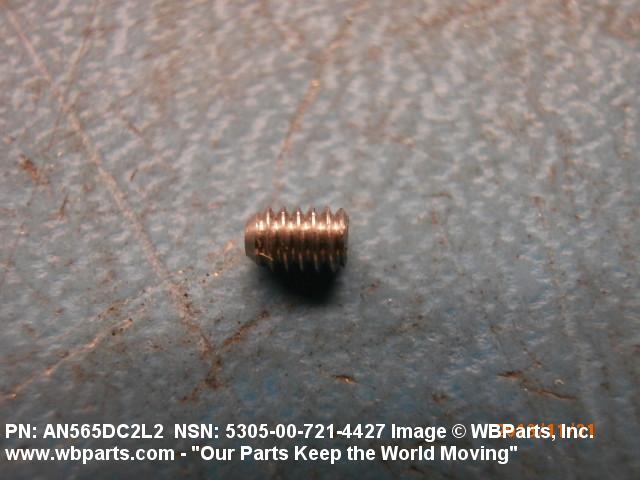

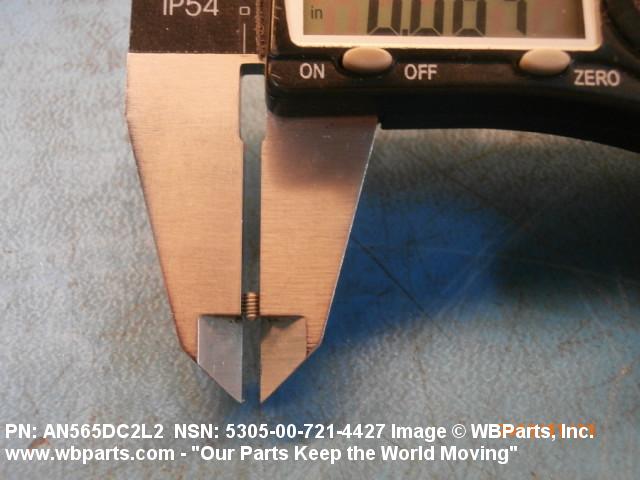

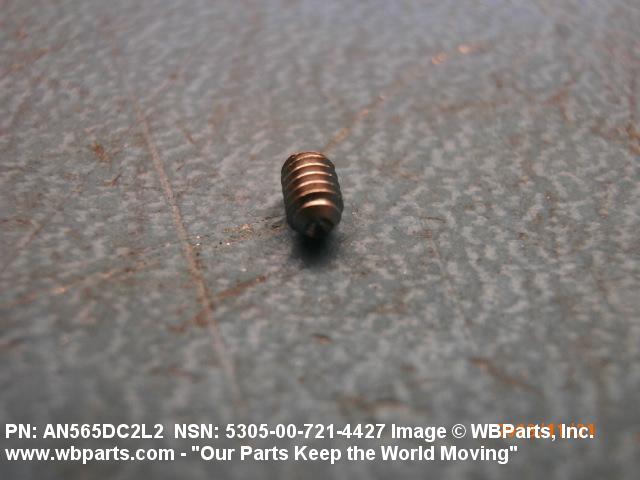

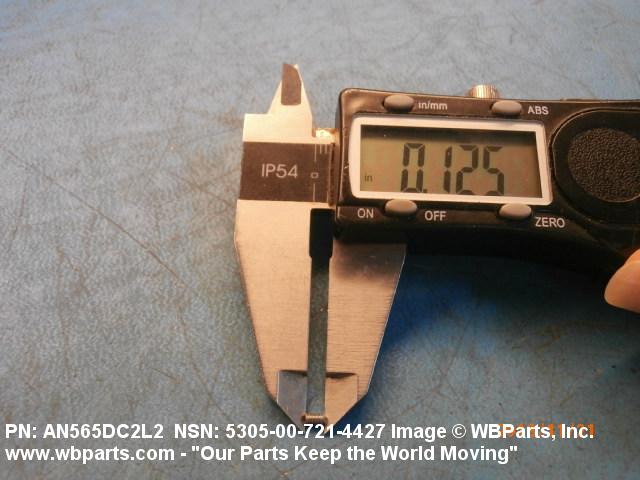

Drawings & Photos | NSN 5305-00-721-4427

Part Number	Request Date	QTY	Origin
5305-00-721-4427	2022-02-54	2	US
5305-00-721-4427	2018-11-316	20	United States
AN565DC2L2	2011-05-137	5	United States
5305-00-721-4427	2011-02-45	12	TW

Cross Reference | NSN 5305-00-721-4427

Part Number	Cage Code	Manufacturer
639202-143	12436	BAE SYSTEMS NATIONAL SECURITY SOLUTIONS INC.
655-027-9006	70210	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
AN565DC2L2	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
FFS103TYPE4STYLE4	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-721-4427

Compare

Related Products | NSN 5305-00-721-4427

5305-00-721-4439, 5305-00-721-4440, 5305-00-721-4454, 5305-00-721-4455, 5305-00-721-4471

Technical Data | NSN 5305-00-721-4427

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.086 INCHES
THREAD QUANTITY PER INCH	56
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.125 INCHES MAXIMUM
FASTENER LENGTH	0.125 INCHES NOMINAL
MATERIAL	STEEL COMP 302 OR STEEL COMP 431 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-7720 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-18732 MIL SPEC 2ND MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HEAD STYLE	C101 HEADLESS
INTERNAL DRIVE STYLE	D16 FOUR SPLINE
SPLINE MINOR DIAMETER	0.037 INCHES MINIMUM AND 0.038 INCHES MAXIMUM
SPLINE MAJOR DIAMETER	0.049 INCHES MINIMUM AND 0.050 INCHES MAXIMUM
SPLINE WIDTH	0.016 INCHES MINIMUM AND 0.017 INCHES MAXIMUM
POINT STYLE	F20 CUP
MANUFACTURERS CODE	88044
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AN565DC2L2
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FFS103TYPE4STYLE4

Restrictions/Controls & Freight Information | NSN 5305-00-721-4427

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable
