Product Details | MACHINE SCREW

5305-00-721-3116 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: AN526C832R10, FFS92TYPE3STYLE7C, 5305-00-721-3116, 00-721-3116, 5305007213116, 007213116

Hardware and Abrasives | Screws

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-721-3116

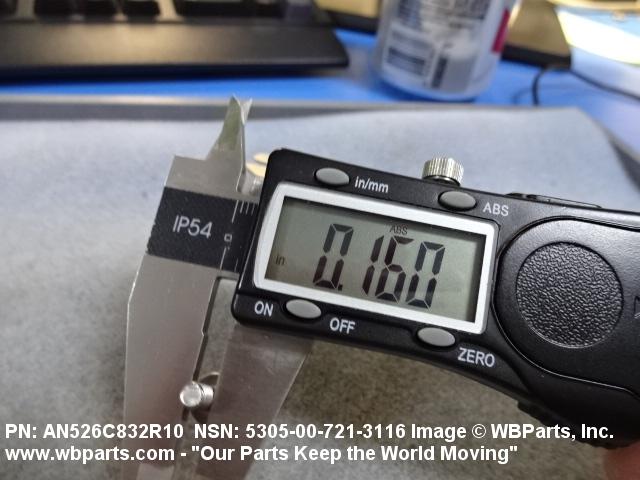

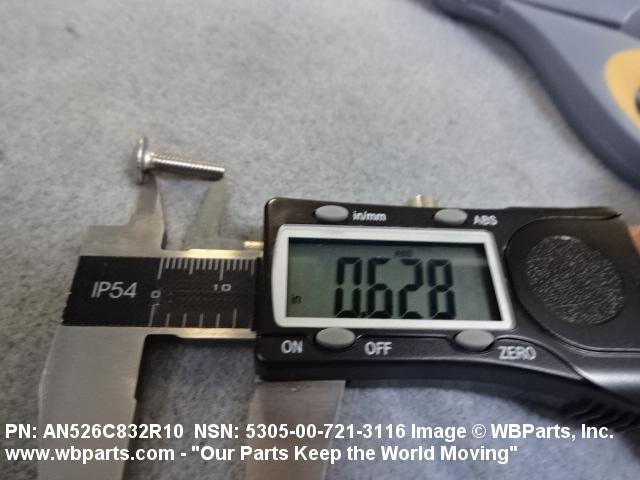

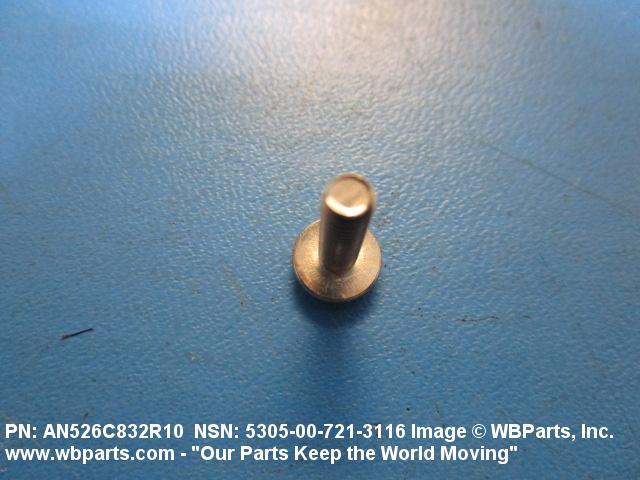

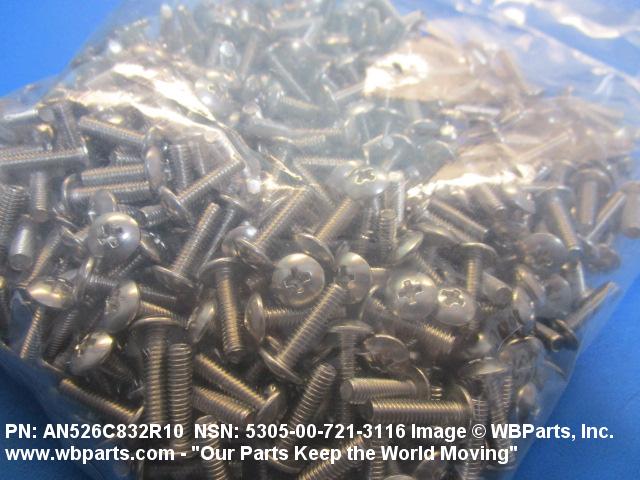

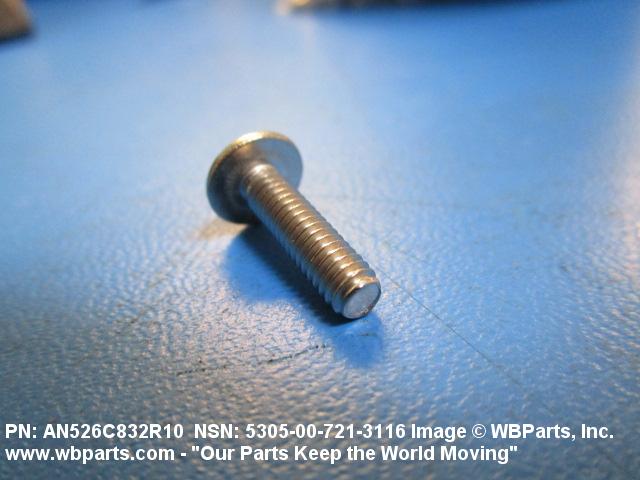

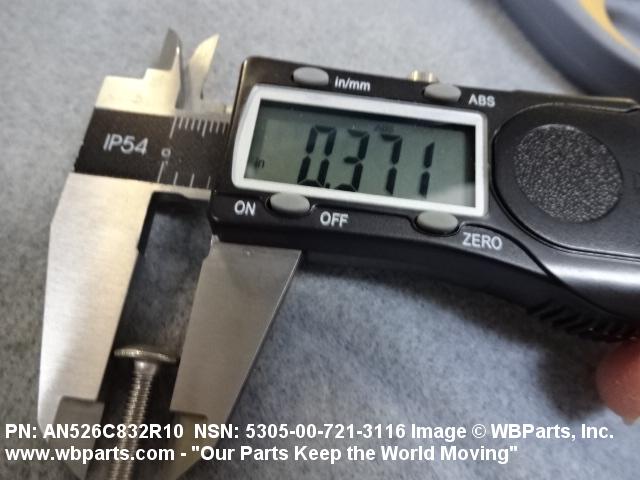

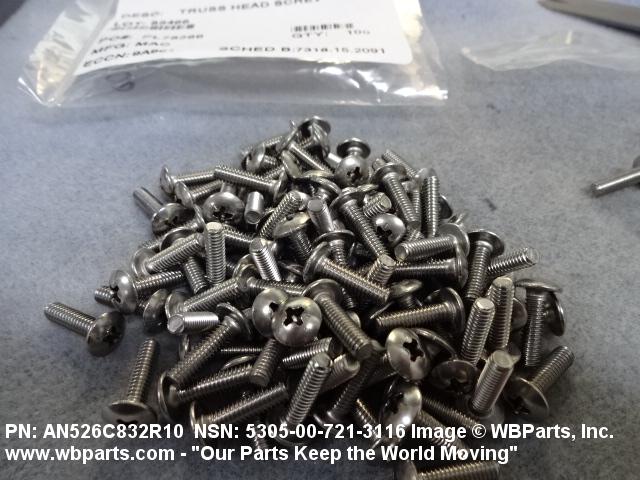

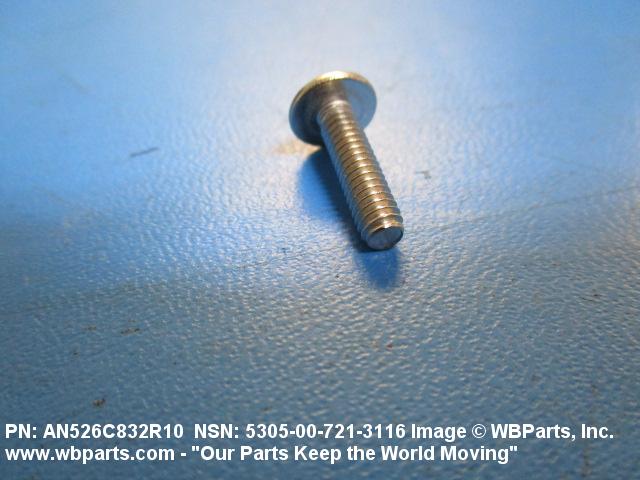

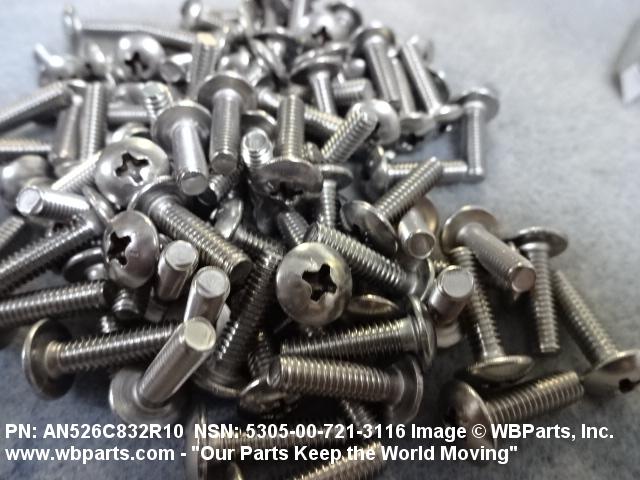

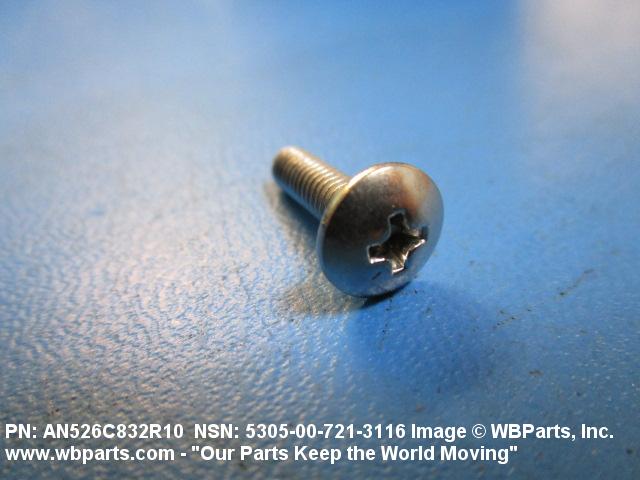

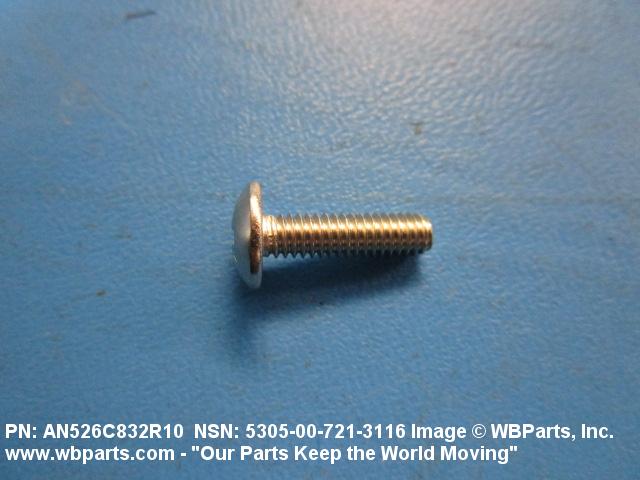

Drawings & Photos | NSN 5305-00-721-3116


Demand History | NSN 5305-00-721-3116

Part Number Request Date QTY Origin
AN526C832R10 2023-04-117 200 Croatia
AN526C832R10 2016-07-204 30 CA
AN526C832R10 2016-04-105 48 Canada
AN526C832R10 2015-01-21 200 Canada
AN526C832R10 2011-11-319 100 US

Cross Reference | NSN 5305-00-721-3116

Part Number Cage Code Manufacturer
AN526C832R10 88044 AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
FFS92TYPE3STYLE7C 81348 FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-721-3116

Technical Data | NSN 5305-00-721-3116

Characteristic Specifications
THREAD SERIES DESIGNATOR UNC
NOMINAL THREAD DIAMETER 0.164 INCHES
THREAD QUANTITY PER INCH 32
THREAD CLASS 2A
THREAD DIRECTION RIGHT-HAND
THREAD LENGTH 0.625 INCHES MAXIMUM
FASTENER LENGTH 0.625 INCHES NOMINAL
SCREW MATERIAL STEEL CORROSION RESISTING
SCREW MATERIAL DOCUMENT AND CLASSIFICATION QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE
SCREW SURFACE TREATMENT PASSIVATE
HEAD STYLE A21 BUTTON
HEAD DIAMETER 0.364 INCHES MINIMUM AND 0.384 INCHES MAXIMUM
HEAD HEIGHT 0.102 INCHES NOMINAL
INTERNAL DRIVE STYLE B1 CROSS RECESS TYPE 1
MANUFACTURERS CODE 88044
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE AN526C832R10
MANUFACTURERS CODE 81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE FFS92TYPE3STYLE7C

Restrictions/Controls & Freight Information | NSN 5305-00-721-3116

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 093486 BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating U 50
Less than truck load rating W Rating Variable
Water commodity Code 713 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
