NSN 5305-00-619-8567 24030, 6198567, 00-619-8567
Product Details | MACHINE SCREW
5305-00-619-8567 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: 24030, 6198567, 5305-00-619-8567, 00-619-8567, 5305006198567, 006198567
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-619-8567 | 06657 ( SCREW, MACHINE ) |
Drawings & Photos | NSN 5305-00-619-8567
Demand History | NSN 5305-00-619-8567
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 24030 | 2022-10-299 | 2 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-619-8567
Technical Data | NSN 5305-00-619-8567
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.031 INCHES MAXIMUM |
| FASTENER LENGTH | 1.031 INCHES NOMINAL |
| SCREW MATERIAL | STEEL COMP 1035 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | ZINC |

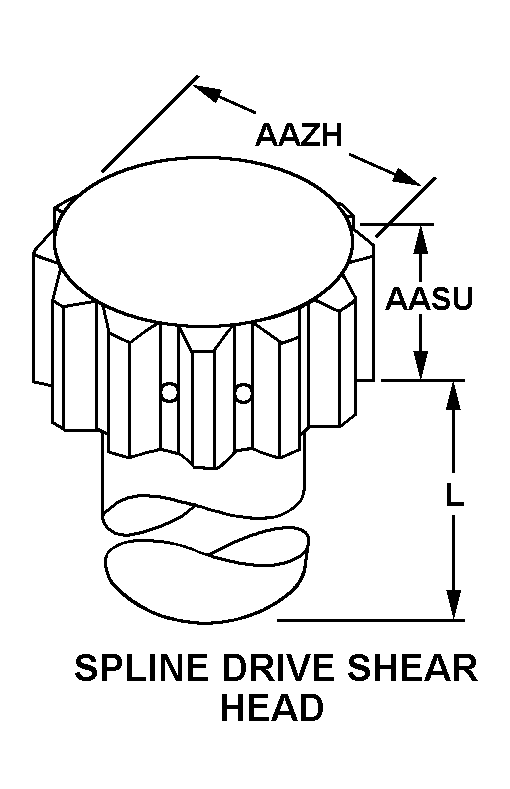

| HEAD STYLE | A10 SPLINE DRIVE SHEAR HEAD |
| HEAD DIAMETER | 1.000 INCHES NOMINAL |
| HEAD HEIGHT | 0.219 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.750 INCHES NOMINAL |
| MANUFACTURERS CODE | 19204 |
| DESIGN CONTROL REFERENCE | 6198567 |
Restrictions/Controls & Freight Information | NSN 5305-00-619-8567
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
