NSN 5305-00-619-4344 NAS62333, NAS623-3-3, Z00.N5120323303TBM

Product Details | MACHINE SCREW

5305-00-619-4344 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: NAS62333, NAS623-3-3, Z00.N5120323303TBM, Z00N5120323303TBM, 10125413 , 5305-00-619-4344, 00-619-4344, 5305006194344, 006194344

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-619-4344	06657 ( SCREW, MACHINE )

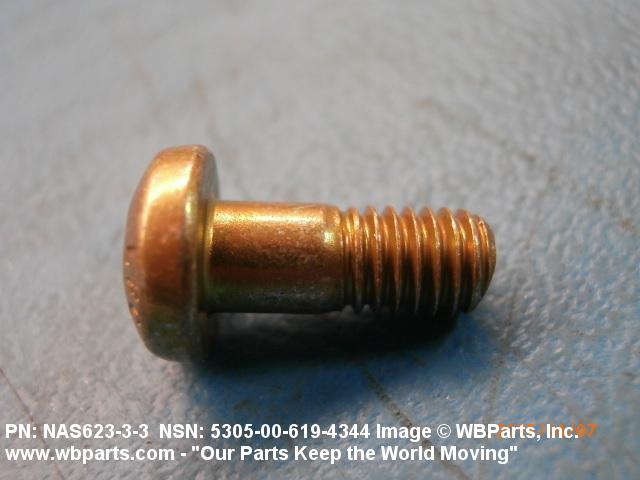

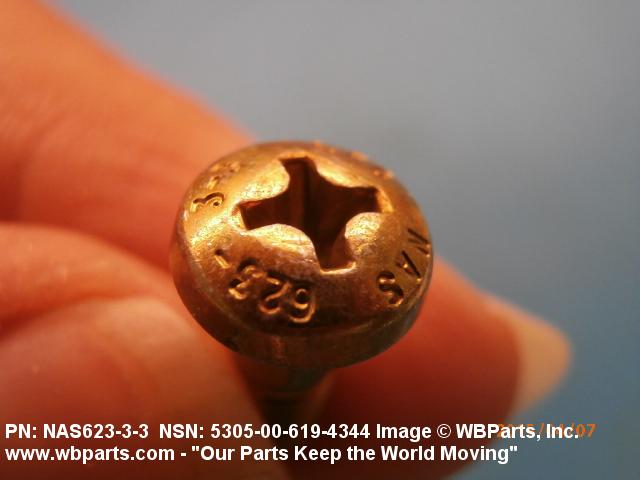

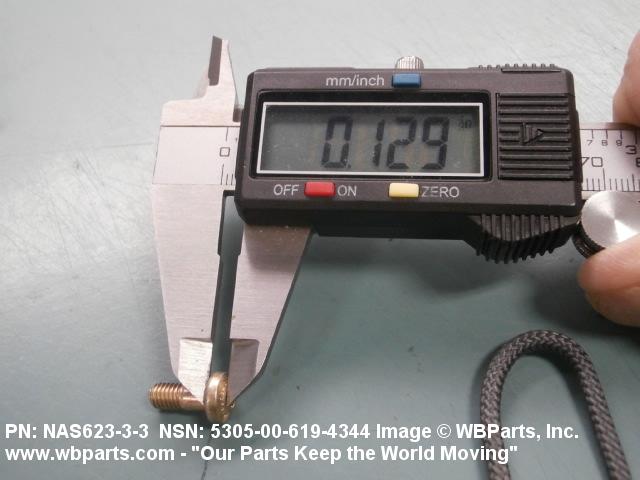

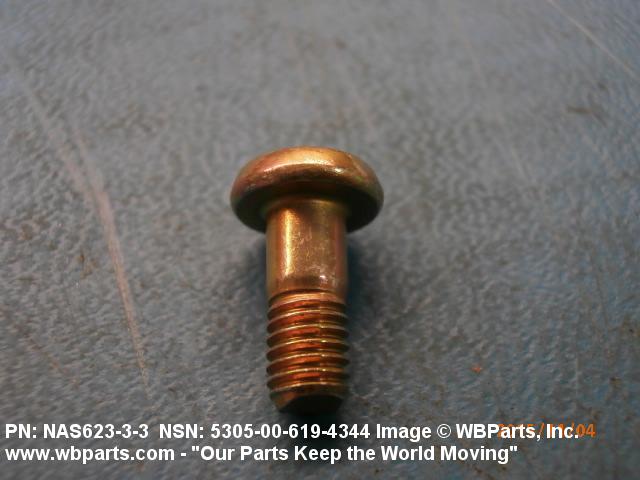

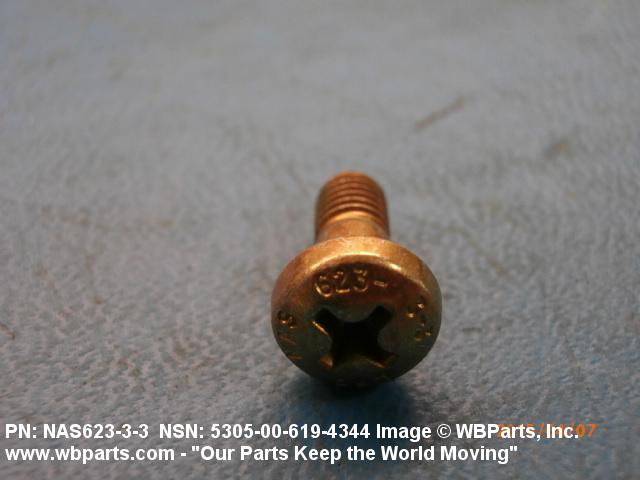

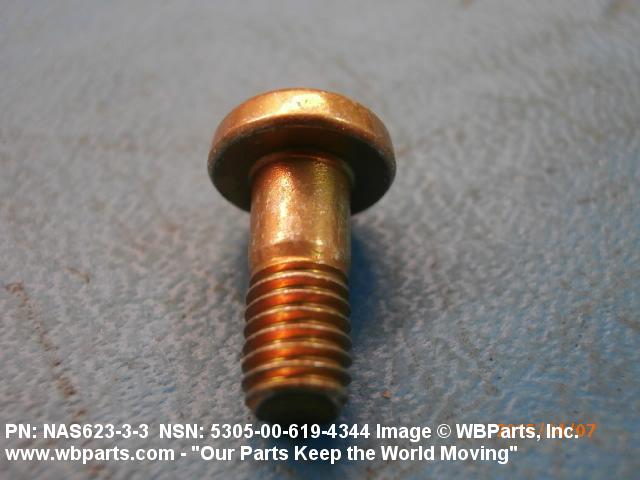

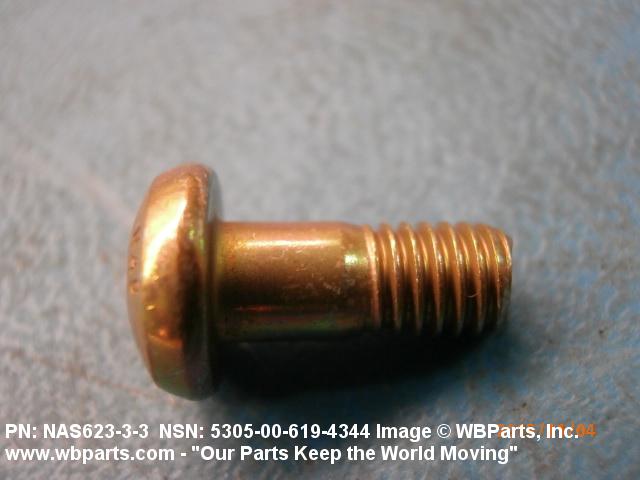

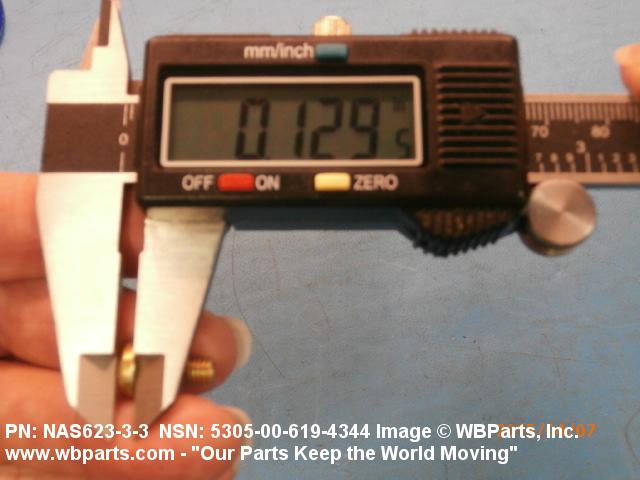

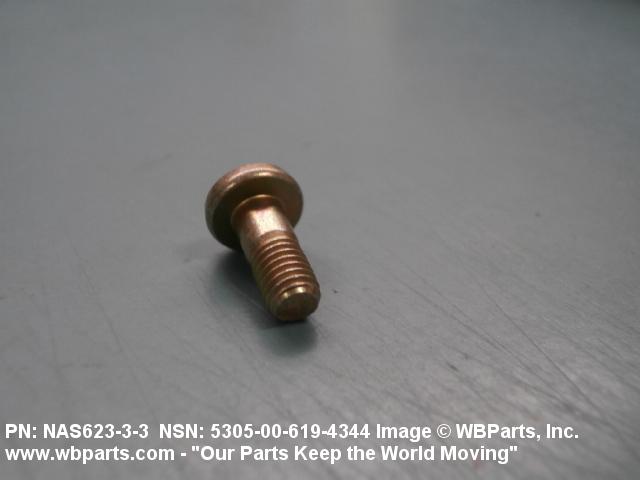

Drawings & Photos | NSN 5305-00-619-4344

Part Number	Request Date	QTY	Origin
NAS62333	2024-01-19	200	United States
NAS62333	2023-04-13	147	South Africa
NAS62333	2022-12-13	48	United States
5305-00-619-4344	2022-03-21	100	US
NAS62333	2021-05-18	101	Malaysia
NAS62333	2019-12-02	100	US
5305-00-619-4344	2018-11-26	3971	DIBBS
5305-00-619-4344	2018-08-12	14267	DIBBS
5305-00-619-4344	2018-08-02	14267	DIBBS
5305-00-619-4344	2018-04-23	2278	DIBBS
5305-00-619-4344	2018-04-15	2278	DIBBS
NAS62333	2017-05-04	24	us
5305-00-619-4344	2016-08-10	808	DIBBS
5305-00-619-4344	2016-06-29	100	MANUAL
NAS623-3-3	2016-06-29	100	Thailand
NAS62333	2016-04-27	100	Thailand
NAS62333	2015-10-28	25	United States
NAS62333	2015-04-02	50	United States
NAS623-3-3	2014-11-13	168	United States
NAS62333	2014-07-15	150	Italy
NAS62333	2014-05-07	20	EC
5305-00-619-4344	2014-04-20	1279	DIBBS
NAS62333	2014-03-10	65	United States
NAS62333	2013-11-27	50	United States
NAS62333	2013-11-27	100	United States
NAS62333	2013-11-27	250	United States
NAS62333	2013-11-27	500	United States
NAS623-3-3	2012-11-05	1104
NAS62333	2012-01-12	4	US
NAS62333	2011-07-08	10	us
5305-00-619-4344	2011-02-11	325	United States
NAS62333	2010-05-27	5000	Italy
NAS62333	2009-11-02	100	us
5305-00-619-4344	2009-06-02	7736	DIBBS
5305-00-619-4344	2008-09-22	655	DIBBS
5305-00-619-4344	2008-07-28	2400	Taiwan

Cross Reference | NSN 5305-00-619-4344

Part Number	Cage Code	Manufacturer
NAS623-3-3	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
Z00.N5120323303TBM	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-619-4344

Compare

Related Products | NSN 5305-00-619-4344

5305-00-619-4348, 5305-00-619-4349, 5305-00-619-4352, 5305-00-619-4353, 5305-00-619-4361

Technical Data | NSN 5305-00-619-4344

Characteristic	Specifications

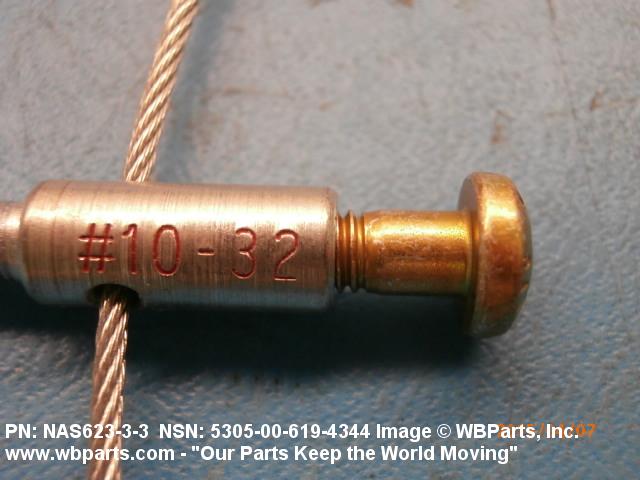

THREAD SERIES DESIGNATOR	UNJF

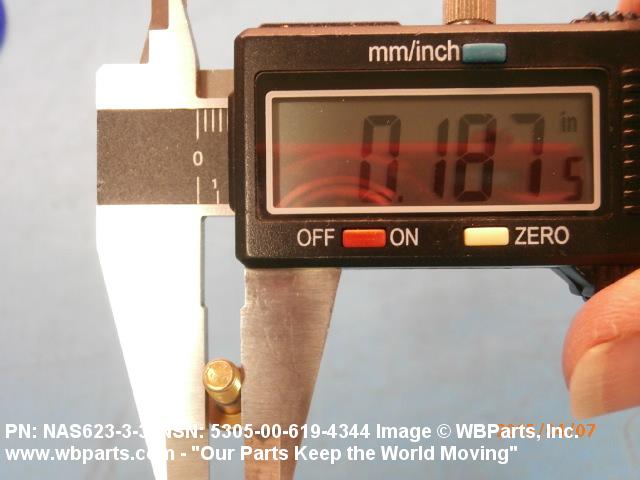

NOMINAL THREAD DIAMETER	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND

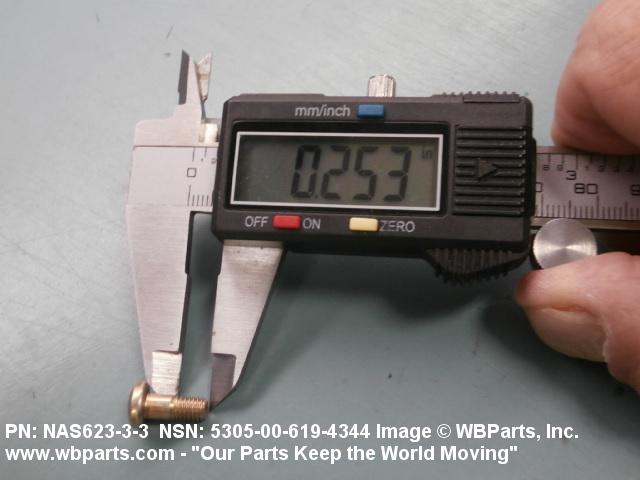

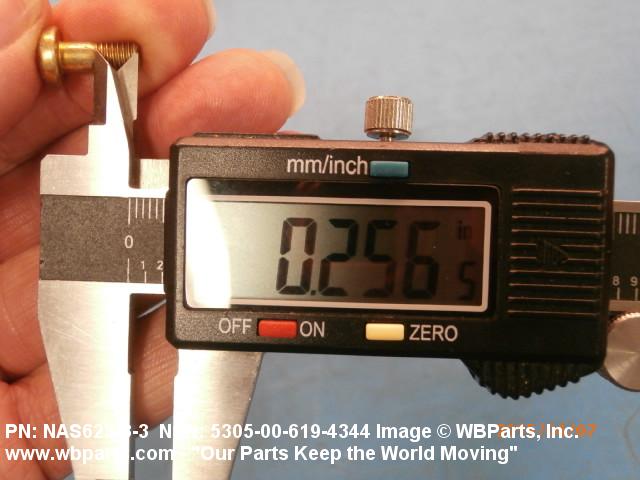

THREAD LENGTH	0.251 INCHES MINIMUM AND 0.301 INCHES MAXIMUM

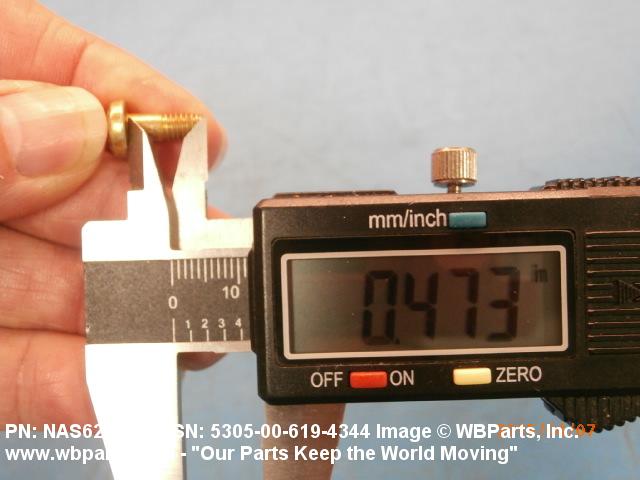

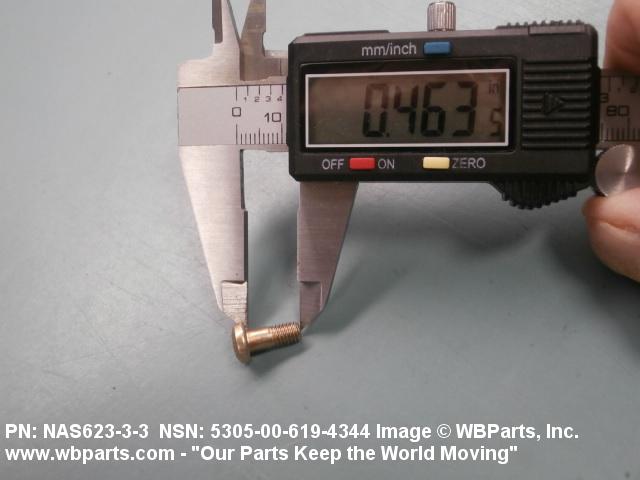

FASTENER LENGTH	0.449 INCHES MINIMUM AND 0.479 INCHES MAXIMUM
SCREW MATERIAL	STEEL COMP 4140 OR STEEL COMP E4340 OR STEEL COMP 8740
SCREW MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-5000 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 3RD MATERIAL RESPONSE
SCREW SURFACE TREATMENT	CADMIUM AND CHROMATE
SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-426 TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE
HARDNESS RATING	36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM
MINIMUM TENSILE STRENGTH	160000 POUNDS PER SQUARE INCH

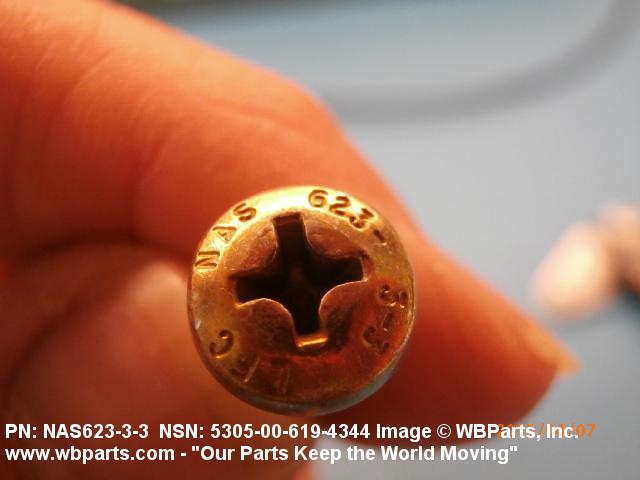

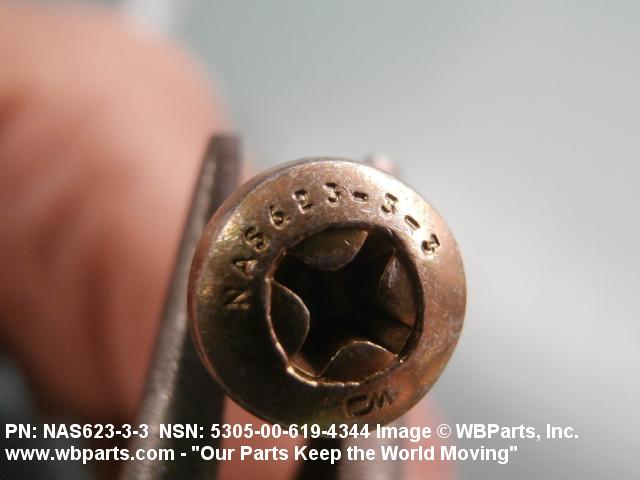

HEAD STYLE	A23 PAN

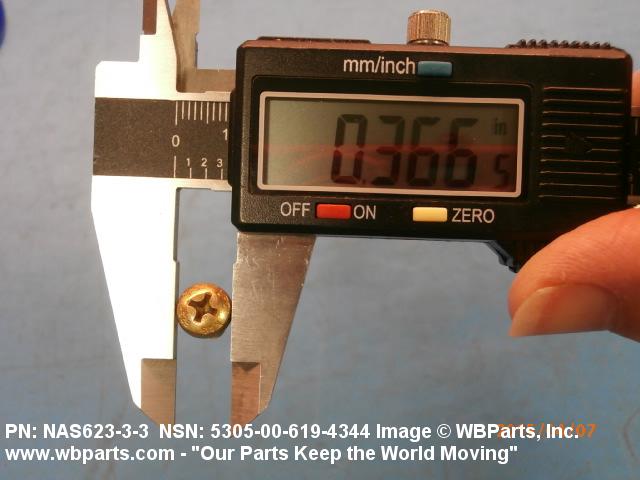

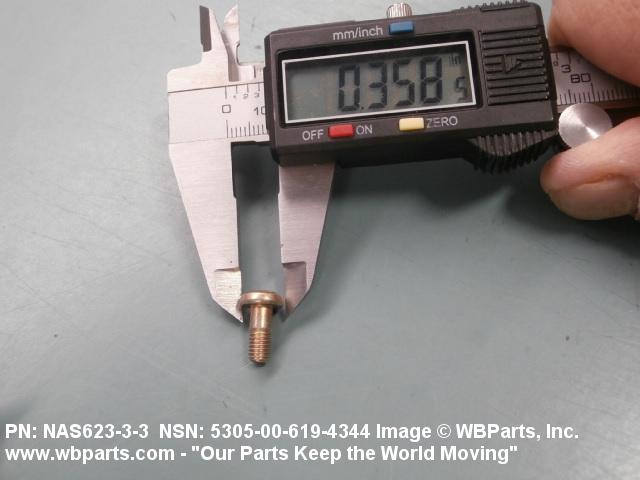

HEAD DIAMETER	0.357 INCHES MINIMUM AND 0.373 INCHES MAXIMUM
