NSN 5305-00-589-2314 NAS11010812, NAS1101-08-12, 10125397
Product Details | MACHINE SCREW
5305-00-589-2314 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: NAS11010812, NAS1101-08-12, 10125397 , 5305-00-589-2314, 00-589-2314, 5305005892314, 005892314
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-589-2314 | 06657 ( SCREW, MACHINE ) |

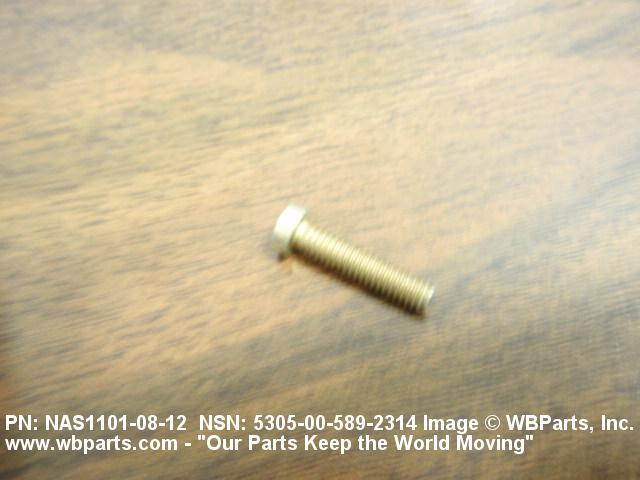

Drawings & Photos | NSN 5305-00-589-2314
Demand History | NSN 5305-00-589-2314
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-589-2314 | 2023-11-327 | 20 | TW |
| NAS11010812 | 2010-09-256 | 54 | South Korea |
| NAS11010812 | 2009-10-294 | 541 | US |
Cross Reference | NSN 5305-00-589-2314
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1101-08-12 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| NAS1101-08-12 | 07851 | NOR-CAL SUPPLY CO.INC. |
| NAS1101-08-12 | 08547 | WALLACE R G CO DIV OF DUCOMMUN INC |
| NAS1101-08-12 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| NAS1101-08-12 | 30485 | QUALIFIED AIR COMPONENTS INC. |
| NAS1101-08-12 | 30889 | ERIKS SOUTHWEST INC DBA MONTCLAIR ENTERPRISES |
| NAS1101-08-12 | 53606 | PLASTIC AND METAL PRODUCTS CORPORATION |
| NAS1101-08-12 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| NAS1101-08-12 | 58998 | EMHART TEKNOLOGIES LLC DBA FASTENER INNOVATION TECHNOLOGY |
| NAS1101-08-12 | 60283 | AFCON PRODUCTS, INC. |
| NAS1101-08-12 | 73197 | HI-SHEAR CORPORATION |
| NAS1101-08-12 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS1101-08-12 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| NAS1101-08-12 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| NAS1101-08-12 | 97928 | HUCK INTL INC |
| NAS1101-08-12 | L4528 | LISI AEROSPACE CANADA CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-589-2314
Technical Data | NSN 5305-00-589-2314
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.688 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| FASTENER LENGTH | 0.750 INCHES NOMINAL |
| SCREW MATERIAL | STEEL COMP E4340 OR STEEL COMP 8740 OR STEEL COMP 8735 OR STEEL COMP 6150 OR STEEL COMP 4140 OR STEEL COMP 4037 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5000 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6098 MIL SPEC 3RD MATERIAL RESPONSE OR MIL-S-8503 MIL SPEC 4TH MATERIAL RESPONSE OR MIL-S-5626 MIL SPEC 5TH MATERIAL RESPONSE OR AMS 6300 ASSN STD 6TH MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 42.0 ROCKWELL C MAXIMUM |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A38 FLAT CHAMFER |
| HEAD DIAMETER | 0.265 INCHES MINIMUM AND 0.270 INCHES MAXIMUM |
| HEAD HEIGHT | 0.088 INCHES MINIMUM AND 0.102 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | B5 TORQUE SET |
Restrictions/Controls & Freight Information | NSN 5305-00-589-2314
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-00-589-2314
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
