NSN 5305-00-558-2585 NAS5838, NAS583-8, 00-558-2585
Product Details | MACHINE SCREW
5305-00-558-2585 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: NAS5838, NAS583-8, 5305-00-558-2585, 00-558-2585, 5305005582585, 005582585
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-558-2585 | 06657 ( SCREW, MACHINE ) |

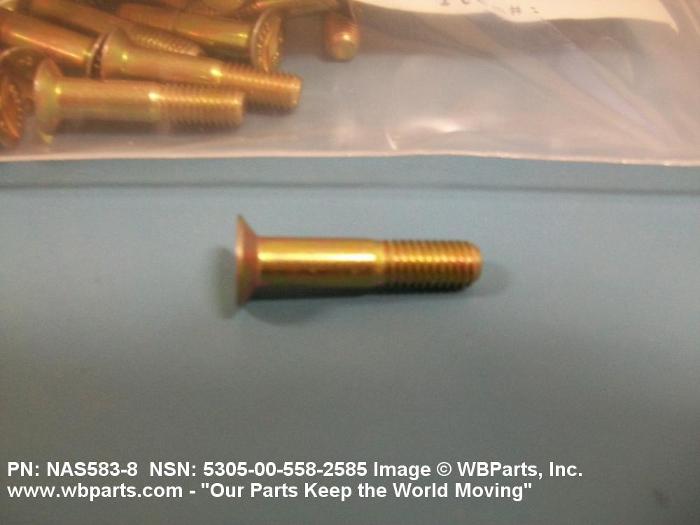

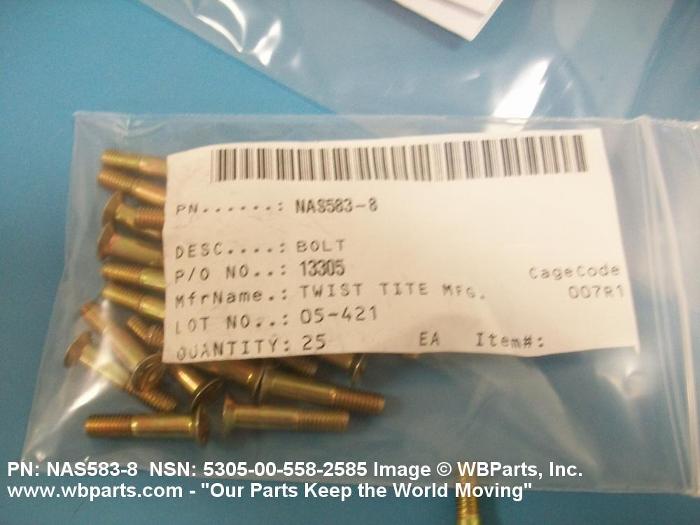

Drawings & Photos | NSN 5305-00-558-2585
Demand History | NSN 5305-00-558-2585
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-558-2585 | 2014-03-85 | 1200 | United States |
| NAS583-8 | 2012-06-178 | 25 | PK |
| NAS5838 | 2011-06-175 | 25 | Sri Lanka |
| 5305-00-558-2585 | 2008-02-59 | 8 | Canada |
