NSN 5305-00-524-0709 NT345S1024VC4, S1024X14, S10-24X1-4
Product Details | MACHINE SCREW
5305-00-524-0709 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: NT345S1024VC4, S1024X14, S10-24X1-4, SS1024AA04, HT10S24S04, 1055515714, 10555157-14, 5305-00-524-0709, 00-524-0709, 5305005240709 , 005240709
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 JUN 1969 | 00-524-0709 | 06657 ( SCREW, MACHINE ) |

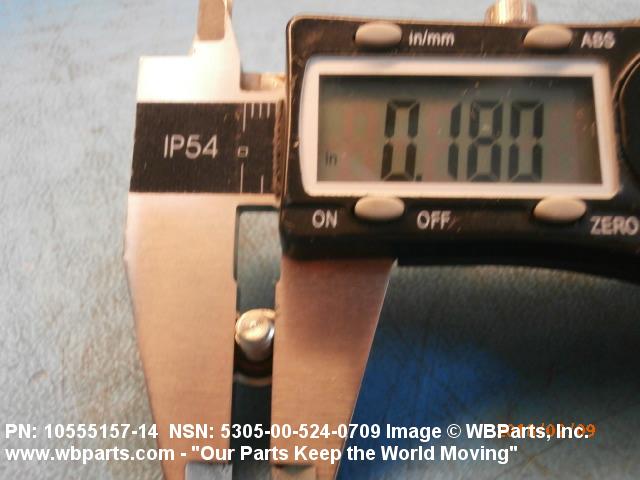

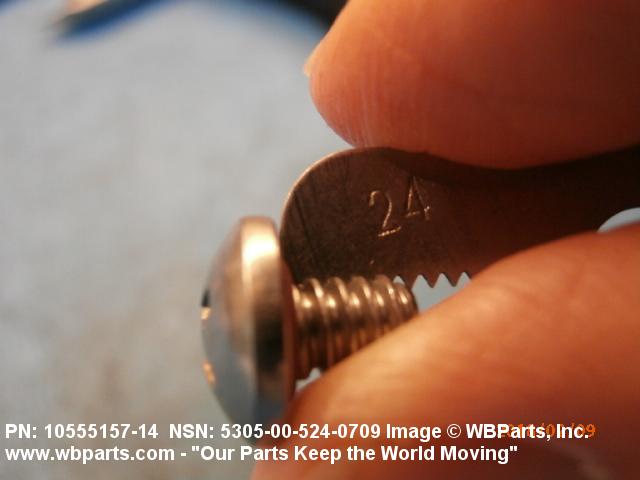

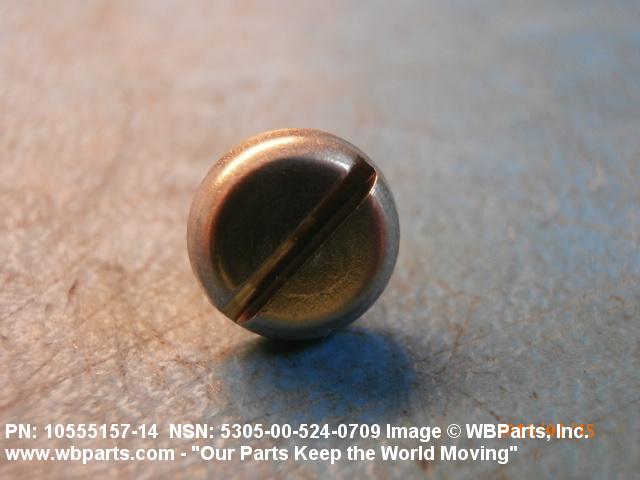

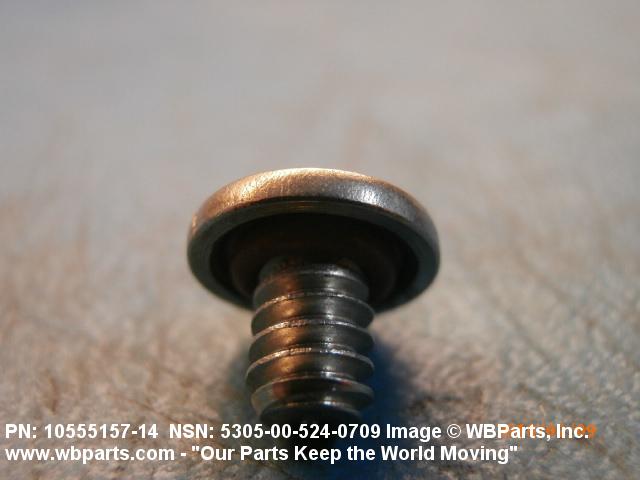

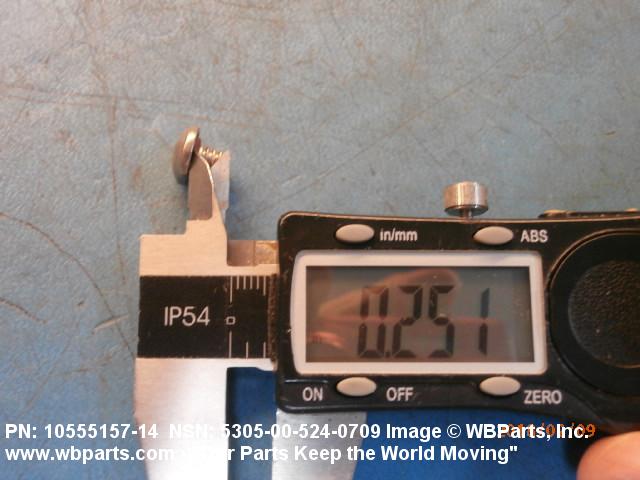

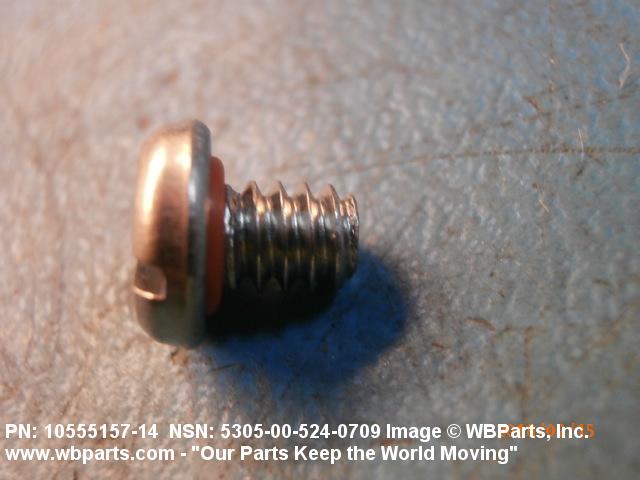

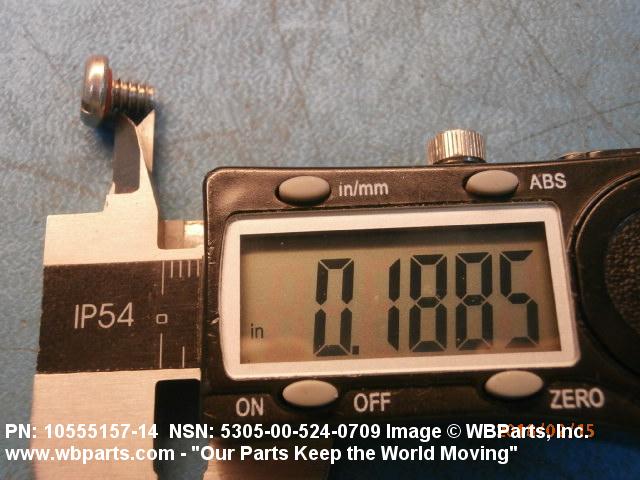

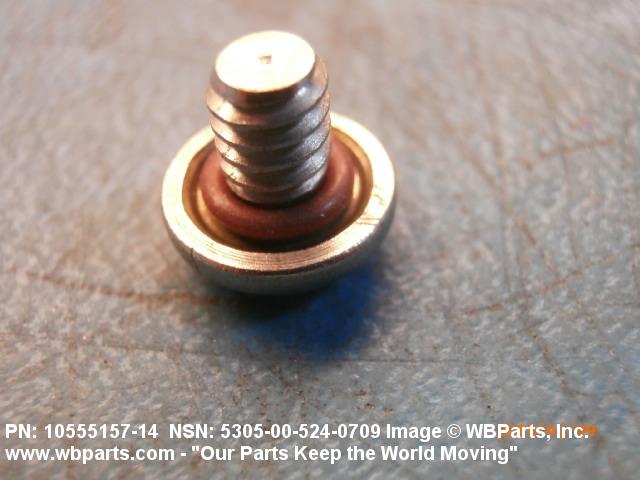

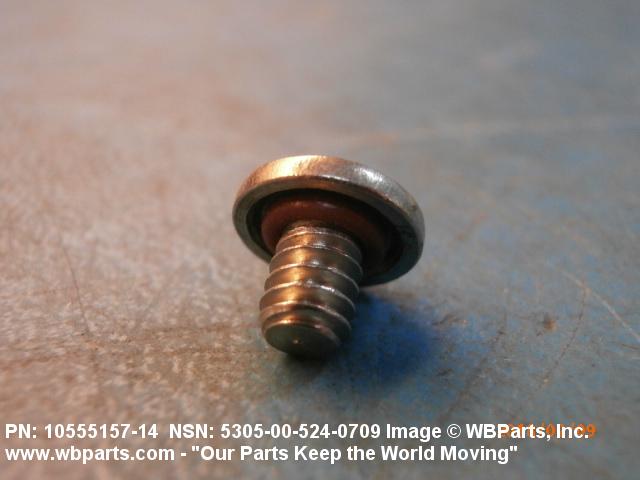

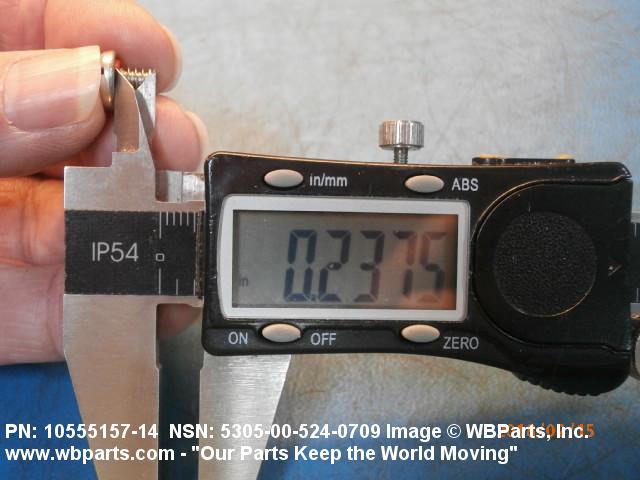

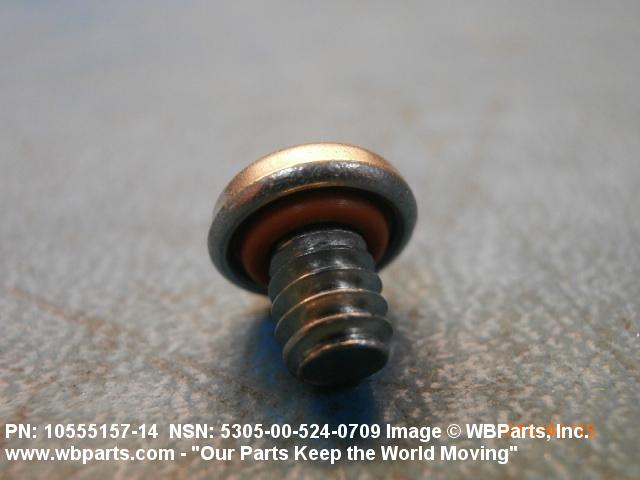

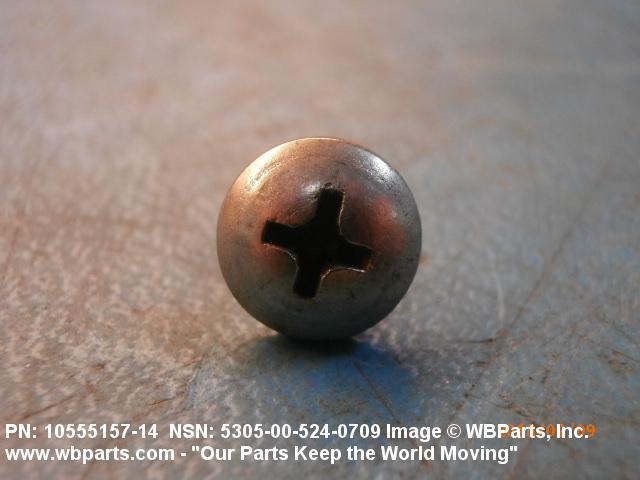

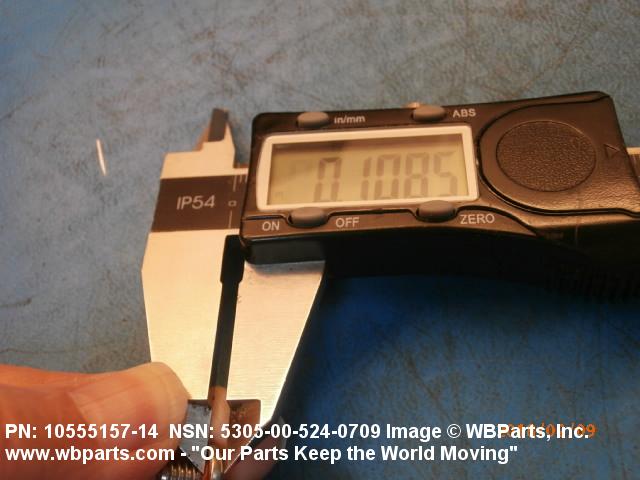

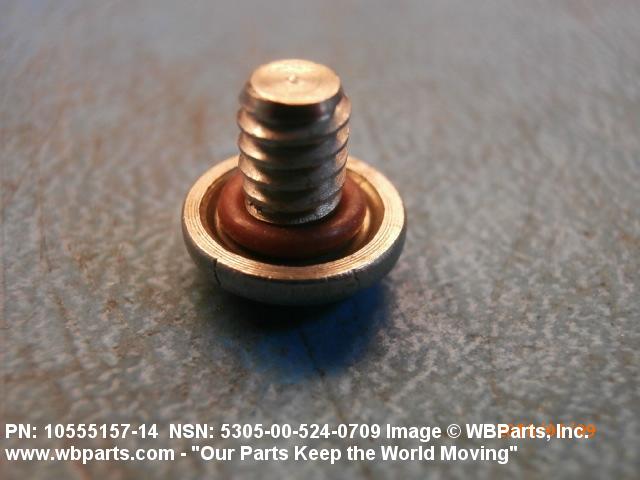

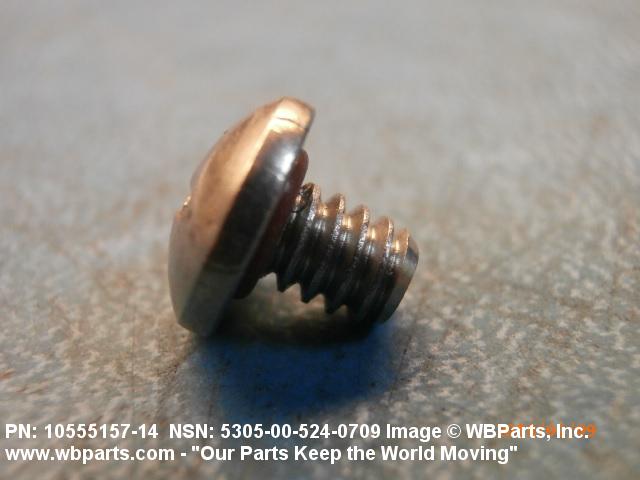

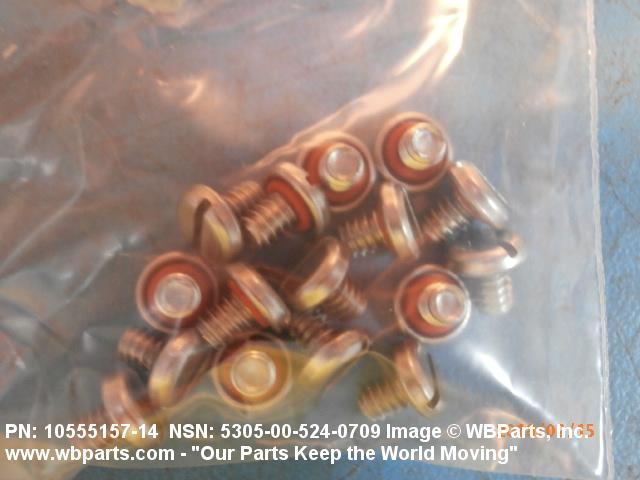

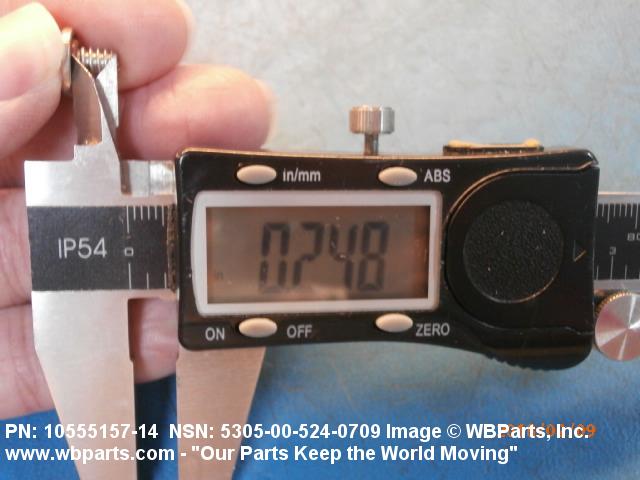

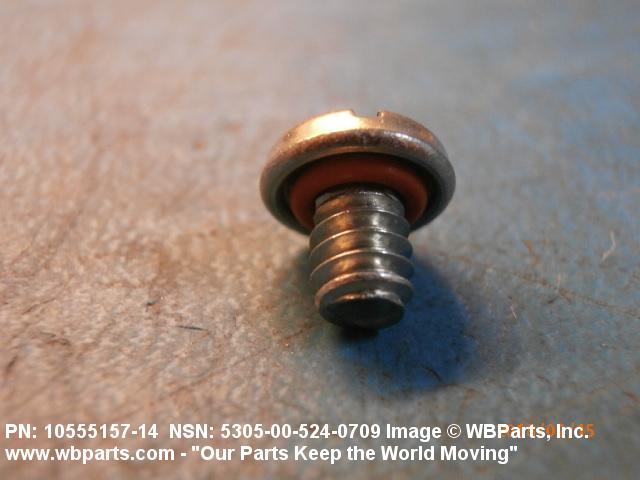

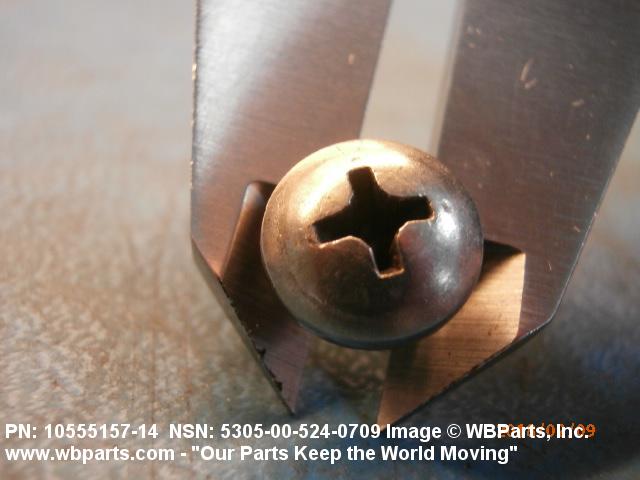

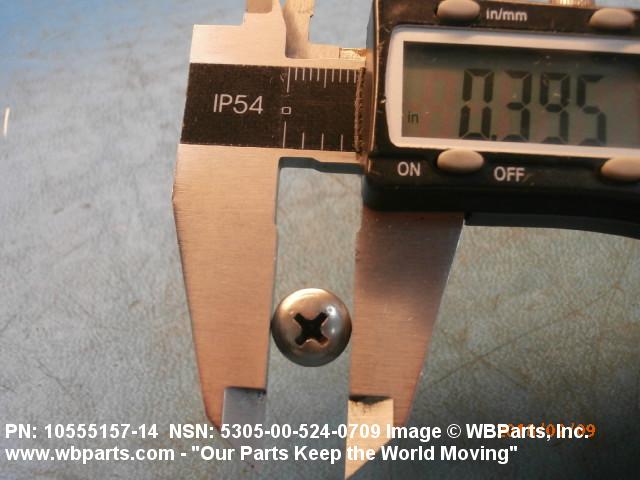

Drawings & Photos | NSN 5305-00-524-0709
Demand History | NSN 5305-00-524-0709
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1055515714 | 2019-07-193 | 70 | South Korea |
| 10555157-14 | 2019-02-45 | 70 | South Korea |
| 10555157-14 | 2019-01-17 | 70 | South Korea |
| 10555157-14 | 2018-05-135 | 18 | South Korea |
| 1055515714 | 2018-01-18 | 120 | South Korea |
| 10555157-14 | 2017-01-19 | 125 | South Korea |
| 5305-00-524-0709 | 2016-05-132 | 45 | DIBBS |
| 5305-00-524-0709 | 2016-04-119 | 15 | DIBBS |
| 5305-00-524-0709 | 2016-04-104 | 2 | DIBBS |
| 5305-00-524-0709 | 2015-11-327 | 4 | DIBBS |
| 5305-00-524-0709 | 2015-11-315 | 4 | DIBBS |
| 5305-00-524-0709 | 2012-11-306 | 12 | DIBBS |
| 5305-00-524-0709 | 2012-04-105 | 8 | DIBBS |
| 5305-00-524-0709 | 2010-11-306 | 17 | DIBBS |
Cross Reference | NSN 5305-00-524-0709
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10555157-14 | 19200 | US ARMY ARDEC RDECOM |
| 5305005240709 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| HT10S24S04 | 0EER9 | ANIXTER INC. DBA ANIXTER |
| HT10S24S04 | 56563 | ALIGN AEROSPACE LLC |
| NT345S1024VC4 | 70127 | ABSCOA INDUSTRIES INC |
| S10-24X1-4 | 13074 | MULTI-FLEX SEALS INC |
| S10-24X1-4 | 97539 | A P M HEXSEAL CORPORATION |
| SS1024AA04 | 97539 | A P M HEXSEAL CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-524-0709
Related Products | NSN 5305-00-524-0709
Technical Data | NSN 5305-00-524-0709
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.250 INCHES MINIMUM |
| FASTENER LENGTH | 0.250 INCHES NOMINAL |
| SCREW MATERIAL | STEEL CORROSION RESISTING |
| SCREW SURFACE TREATMENT | PASSIVATE |
| HEAD STYLE | A44 WATERTIGHT |
| HEAD DIAMETER | 0.374 INCHES MAXIMUM |
| HEAD HEIGHT | 0.113 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | B10 SLOT |
| FEATURES PROVIDED | O RING |
Restrictions/Controls & Freight Information | NSN 5305-00-524-0709
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-00-524-0709
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
