NSN 5305-00-522-2664 5222664, 00-522-2664, 005222664
Product Details | SETSCREW
5305-00-522-2664 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: 5222664, 5305-00-522-2664, 00-522-2664, 5305005222664, 005222664
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-522-2664 | 06672 ( SETSCREW ) |
Drawings & Photos | NSN 5305-00-522-2664
Demand History | NSN 5305-00-522-2664
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-522-2664 | 2009-01-21 | 100 | DIBBS |
| 5305-00-522-2664 | 2008-12-361 | 1 | DIBBS |
| 5305-00-522-2664 | 2008-12-361 | 16 | DIBBS |
Cross Reference | NSN 5305-00-522-2664
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5222664 | 19206 | ARMY, UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-522-2664
Related Products | NSN 5305-00-522-2664
Technical Data | NSN 5305-00-522-2664
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.250 INCHES MINIMUM |
| FASTENER LENGTH | 0.281 INCHES MINIMUM AND 0.343 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 1010 OR STEEL COMP 1527 OVERALL |
| SURFACE TREATMENT | PHOSPHATE OVERALL |
| HEAD STYLE | C101 HEADLESS |
| INTERNAL DRIVE STYLE | D1 CROSS RECESS TYPE 1 |

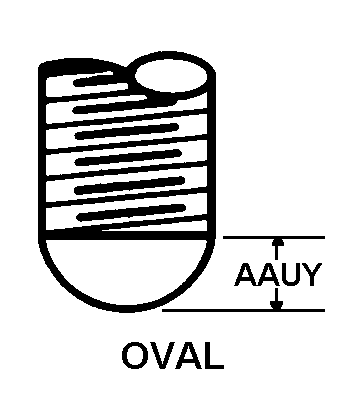

| POINT STYLE | F2 OVAL |
| POINT LENGTH | 0.031 INCHES NOMINAL |
| SPECIAL FEATURES | 0.188 IN. SPHERICAL RADIUS |
Restrictions/Controls & Freight Information | NSN 5305-00-522-2664
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
