NSN 5305-00-489-1405 FFS92, P3303599000, P330-3599-000
Product Details | MACHINE SCREW
5305-00-489-1405 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: FFS92, P3303599000, P330-3599-000, 3303599000, 330-3599-000, 5305-00-489-1405, 00-489-1405, 5305004891405, 004891405
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 JUN 1970 | 00-489-1405 | 06657 ( SCREW, MACHINE ) |
Drawings & Photos | NSN 5305-00-489-1405
Demand History | NSN 5305-00-489-1405
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 330-3599-000 | 2024-12-345 | 4 | DIBBS |
| FFS92 | 2023-08-236 | 14 | US |
| FFS92 | 2011-02-49 | 5 | US |
| FFS92 | 2011-02-49 | 50 | US |
| FFS92 | 2010-11-323 | 165 | US |
| FFS92 | 2009-12-338 | 100 | US |
| FFS92 | 2009-10-292 | 50 | United States |
| FFS92 | 2008-03-80 | 50 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-489-1405
Technical Data | NSN 5305-00-489-1405
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.112 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.184 INCHES MINIMUM AND 0.274 INCHES MAXIMUM |
| FASTENER LENGTH | 0.281 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| SCREW MATERIAL | STEEL CORROSION RESISTING OR STEEL |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763,300 SERIES FED SPEC 1ST MATERIAL RESPONSE OR 66,300 SERIES FED STD 1ST MATERIAL RESPONSE OR COMP 16-18 OR 18-8 ASSN STD 2ND MATERIAL RESPONSE |
| MINIMUM TENSILE STRENGTH | 80000 POUNDS PER SQUARE INCH |

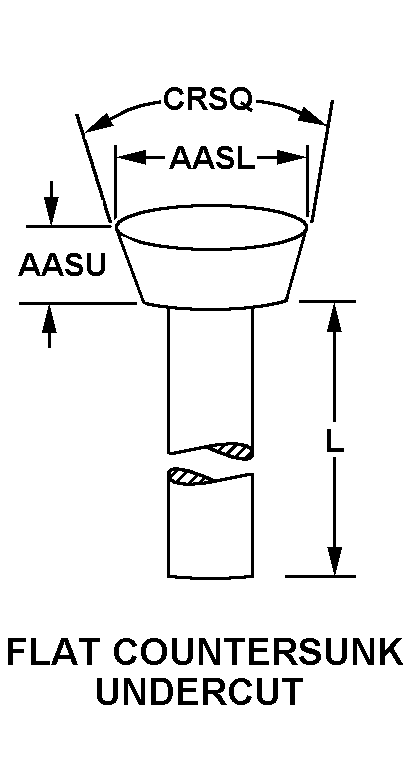

| HEAD STYLE | A40 FLAT COUNTERSUNK UNDERCUT |
| HEAD DIAMETER | 0.200 INCHES MINIMUM AND 0.225 INCHES MAXIMUM |
| HEAD HEIGHT | 0.038 INCHES MINIMUM AND 0.047 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 80.0 DEGREES MINIMUM AND 82.0 DEGREES MAXIMUM |
| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
| NONDEFINITIVE SPEC/STD DATA | 3 TYPE AND 2C STYLE |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY HEAD STYLE AND FINISH |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FFS92 |
