NSN 5305-00-328-8523 MB3001320, MB300-1320, 00-328-8523
Product Details | MACHINE SCREW
5305-00-328-8523 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: MB3001320, MB300-1320, 5305-00-328-8523, 00-328-8523, 5305003288523, 003288523
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 DEC 1973 | 00-328-8523 | 06657 ( SCREW, MACHINE ) |
Drawings & Photos | NSN 5305-00-328-8523
Cross Reference | NSN 5305-00-328-8523
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MB300-1320 | U1604 | MARTIN-BAKER AIRCRAFT CO LTD DBA MARTIN-BAKER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-328-8523
Technical Data | NSN 5305-00-328-8523
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD LENGTH | 0.244 INCHES MINIMUM AND 0.274 INCHES MAXIMUM |
| FASTENER LENGTH | 0.437 INCHES MINIMUM AND 0.477 INCHES MAXIMUM |
| HEAD STYLE | A39 FLAT COUNTERSUNK |
| HEAD DIAMETER | 0.337 INCHES MINIMUM AND 0.387 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |

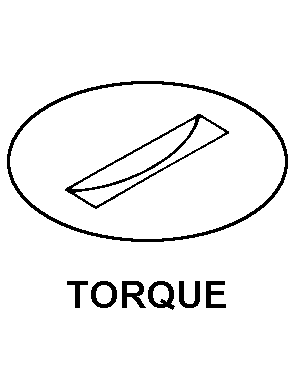

| INTERNAL DRIVE STYLE | B7 TORQUE |
| MANUFACTURERS CODE | U1604 |
| DESIGN CONTROL REFERENCE | MB300-1320 |
