Product Details | MACHINE SCREW

5305-00-282-6253 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: AN526C1032R8, Z00.N5123692369, Z00N5123692369, 00118 , 61138, 6113-8, 935.65.16.349, 9356516349, 5305-00-282-6253, 00-282-6253, 5305002826253, 002826253

Hardware and Abrasives | Screws

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-282-6253

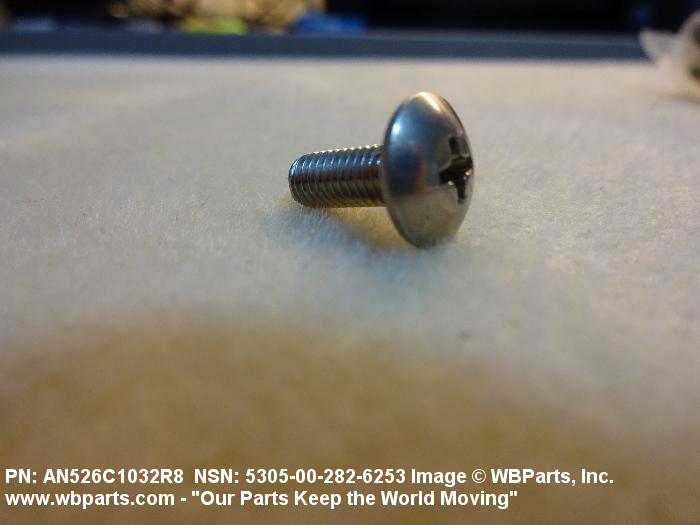

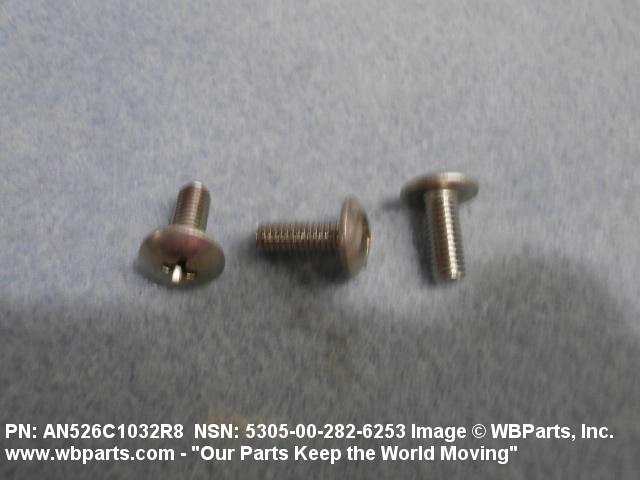

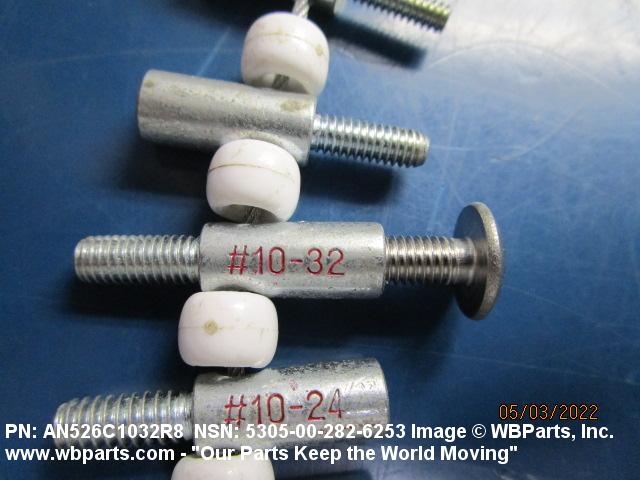

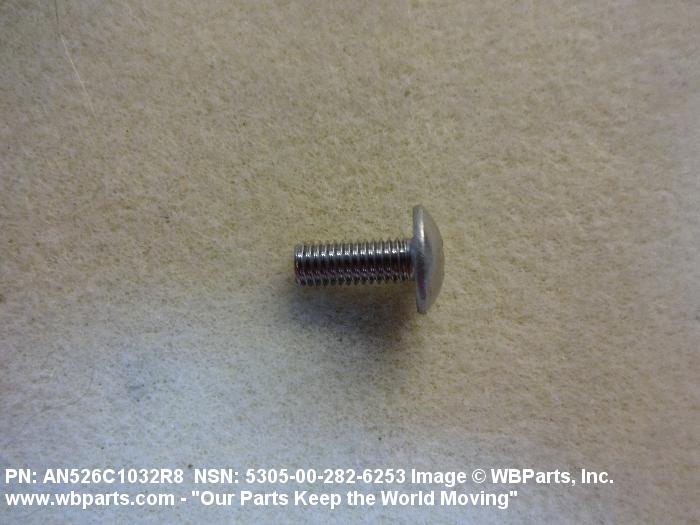

Drawings & Photos | NSN 5305-00-282-6253


Demand History | NSN 5305-00-282-6253

Part Number Request Date QTY Origin
AN526C1032R8 2024-10-289 3500 US
AN526C1032R8 2024-10-289 5000 US
AN526C1032R8 2024-10-289 10000 US
AN526C1032R8 2024-04-116 20 Singapore
AN526C1032R8 2024-04-116 20 Singapore
5305-00-282-6253 2023-07-198 100 GT
AN526C1032R8 2023-06-180 100 United States
AN526C1032R8 2023-06-160 100 United States
AN526C1032R8 2023-05-130 40 Singapore
AN526C1032R8 2023-04-117 500 Croatia
AN526C1032R8 2022-12-338 10 Singapore
AN526C1032R8 2022-06-166 44834 US
5305-00-282-6253 2019-09-259 1000 US
5305-00-282-6253 2019-09-259 2500 US
5305-00-282-6253 2019-09-259 5000 US
AN526C1032R8 2018-11-318 48
AN526C1032R8 2016-07-211 100 TH
5305-00-282-6253 2015-11-307 30 Malaysia
5305-00-282-6253 2015-10-295 30 Malaysia
AN526C1032R8 2014-07-199 100 United States
5305-00-282-6253 2013-09-256 100 United States
AN526C1032R8 2012-11-310 15 Indonesia
AN526C1032R8 2012-05-145 40 MM
AN526C1032R8 2012-05-137 1 US
5305-00-282-6253 2011-11-319 100 US
Z00N5123692369 2011-01-06 97 FR
AN526C1032R8 2010-10-288 500 IS
5305-00-282-6253 2010-05-129 20 Indonesia
5305-00-282-6253 2010-01-18 600 United States
AN526C1032R8 2009-05-148 100 Seychelles
5305-00-282-6253 2008-07-186 10 Indonesia
5305-00-282-6253 2008-06-178 600 Colombia
AN526C1032R8 2006-04-108 500 US

Cross Reference | NSN 5305-00-282-6253

Part Number Cage Code Manufacturer
6113-8 26512 NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
935.65.16.349 S4080 PILATUS AIRCRAFT LTD
AN526C1032R8 24692 HARTZELL PROPELLER INC.
AN526C1032R8 88044 AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN526C1032R8 FA1D6 TECHNIC AVIATION
Z00.N5123692369 F0086 SOCATA

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-282-6253

Technical Data | NSN 5305-00-282-6253

Characteristic Specifications
THREAD SERIES DESIGNATOR UNF
NOMINAL THREAD DIAMETER 0.190 INCHES
THREAD QUANTITY PER INCH 32
THREAD CLASS 2A
THREAD DIRECTION RIGHT-HAND

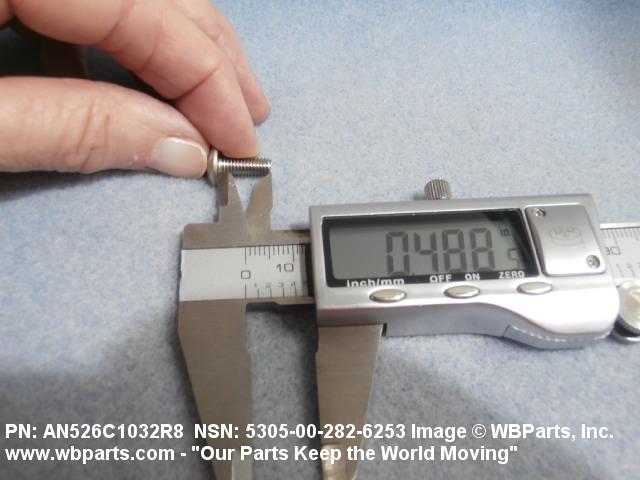

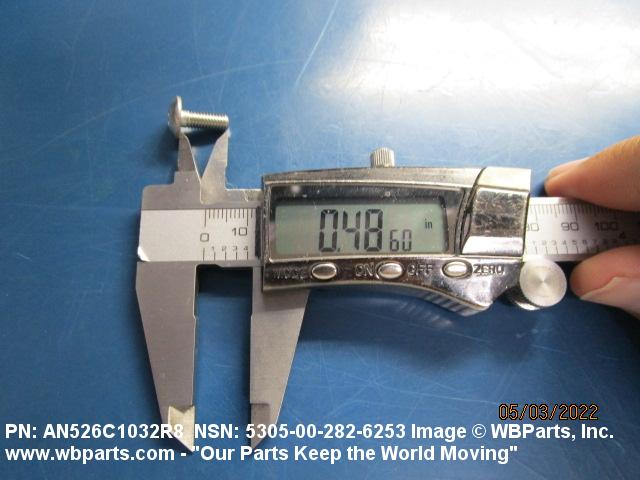

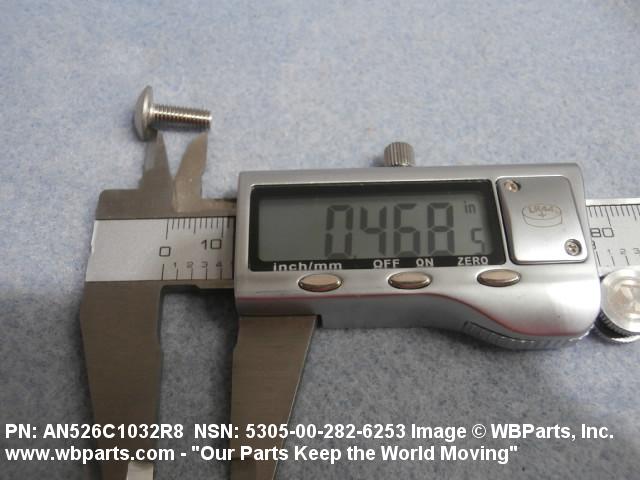

THREAD LENGTH 0.469 INCHES MINIMUM AND 0.500 INCHES MAXIMUM

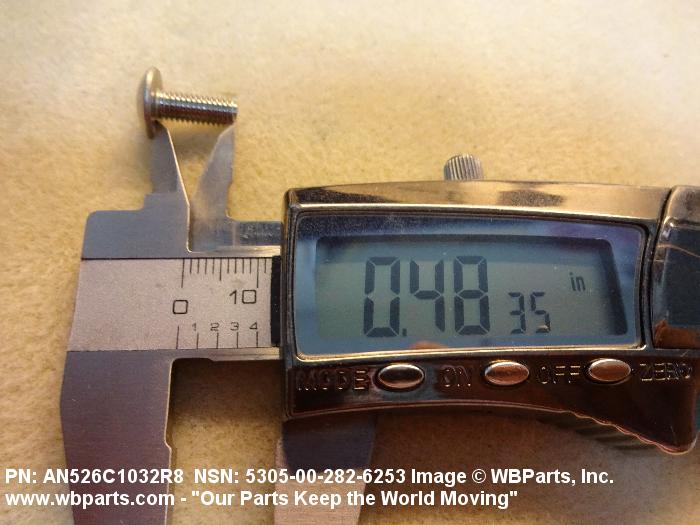

FASTENER LENGTH 0.469 INCHES MINIMUM AND 0.500 INCHES MAXIMUM
SCREW MATERIAL STEEL CORROSION RESISTING
SCREW SURFACE TREATMENT PASSIVATE
HEAD STYLE A21 BUTTON

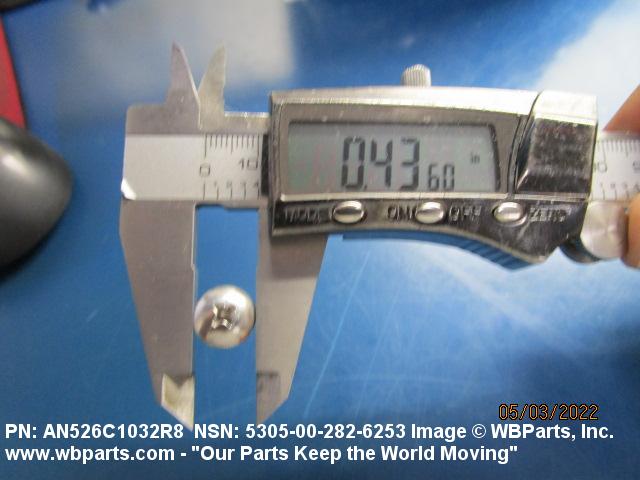

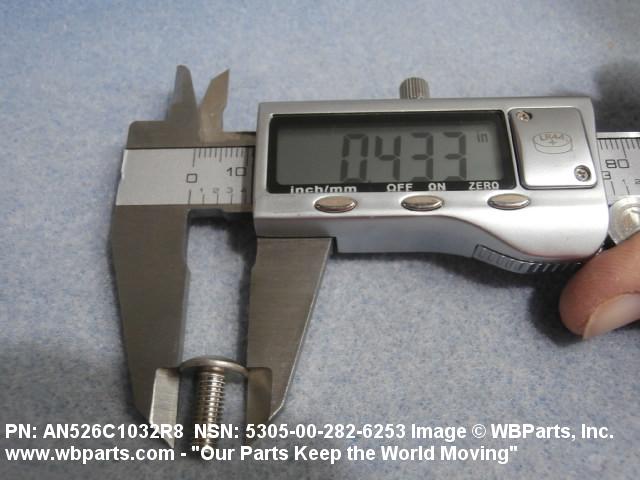

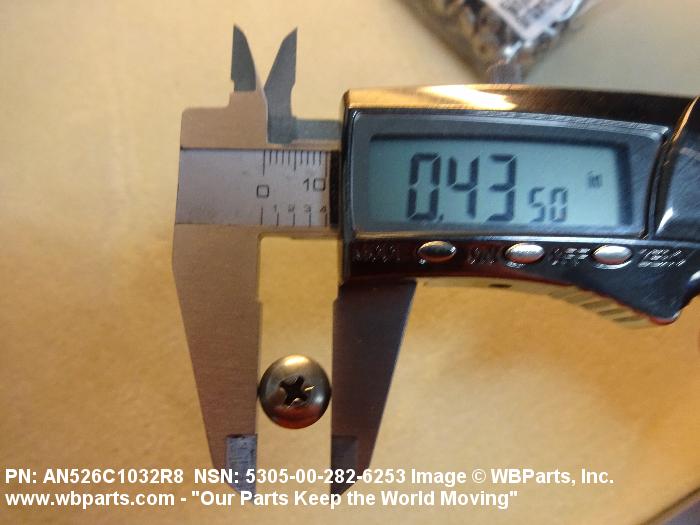

HEAD DIAMETER 0.425 INCHES MINIMUM AND 0.448 INCHES MAXIMUM

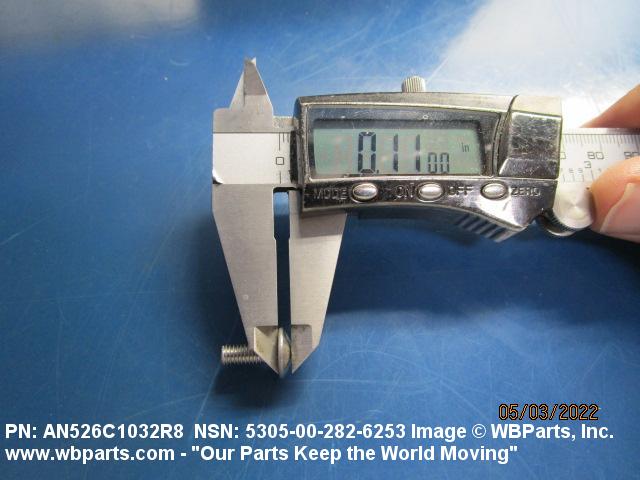

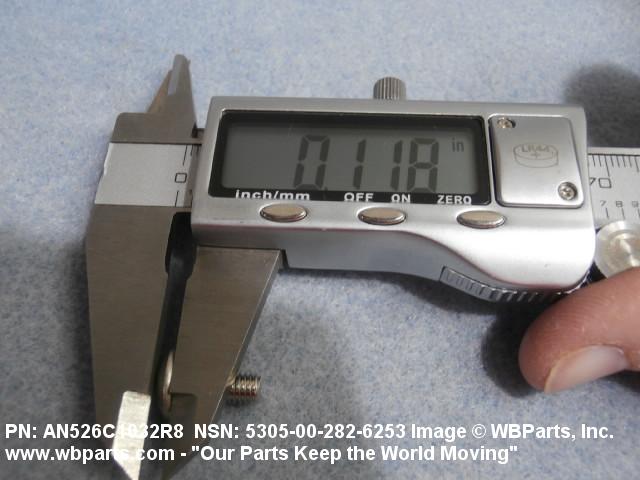

HEAD HEIGHT 0.118 INCHES MAXIMUM
INTERNAL DRIVE STYLE B1 CROSS RECESS TYPE 1
MANUFACTURERS CODE 88044
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE AN526C1032R8

Restrictions/Controls & Freight Information | NSN 5305-00-282-6253

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 093486 BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating U 50
Less than truck load rating W Rating Variable
Water commodity Code 713 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5305-00-282-6253

Category Code Description
Materiel Management Aggregation CodeDNTM:RQ-4A
Price ValidationE The current standard price is an estimated price.
  • Estimated Price challenges are allowed, but follow procedures in para 60.b. (3) of section L of this manual.
  • This code will be changed to a P code upon notification of a contract price or this code will be changed to an updated code upon determination of a valid price.
Budget CodeS 1557X3010:Aircraft Replenishment Spares
Source of SupplyF78Northrop Grumman Ryan Aero
San Diego, CA 92127-ND
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesDDoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
