NSN 5305-00-242-7275 MS5195715B, MS51957-15B, AH7262

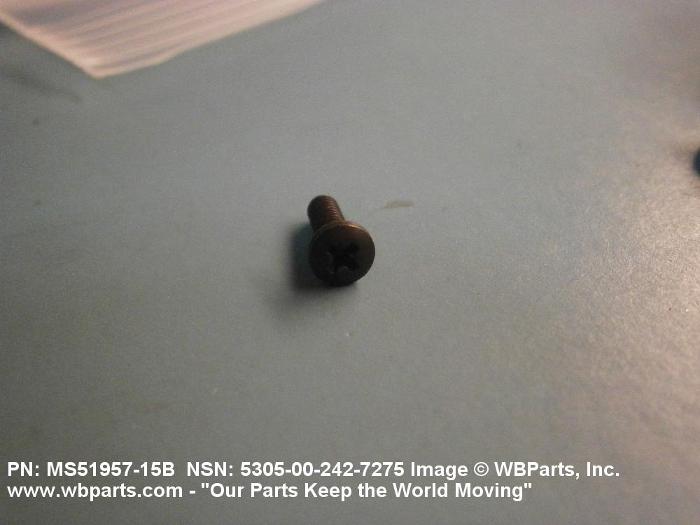

Product Details | MACHINE SCREW

5305-00-242-7275 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: MS5195715B, MS51957-15B, AH7262, AH726-2, BH2471886, BH247188-6, BH24718B6, BH24718B-6, HA1759A00 , F1346LG, F13-4-6LG, 90438515, 904385-15, 9507262, 950726-2, 222388-015, 2504410355, 2504410-355, 2845160406, 284-516-0406, 31138600012 , 4576178, 457-6178 , 089-6344-06, 10027010113, 10027010-113, 12305906, 5305-00-242-7275, 00-242-7275, 5305002427275, 089634406, 002427275, 222388015

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	08 JUN 1970	00-242-7275	06657 ( SCREW, MACHINE )

Drawings & Photos | NSN 5305-00-242-7275

Part Number	Request Date	QTY	Origin
MS5195715B	2023-12-352	27460	United States
MS5195715B	2023-12-348	27460	United States
MS5195715B	2023-11-305	25000	US
5305-00-242-7275	2023-10-293	331	DIBBS
5305-00-242-7275	2023-10-278	331	DIBBS
5305-00-242-7275	2023-09-263	331	DIBBS
5305-00-242-7275	2023-06-163	98	DIBBS
5305-00-242-7275	2023-02-57	604	DIBBS
MS5195715B	2022-07-196	44834	US
MS5195715B	2016-04-104	493	US
5305-00-242-7275	2015-10-281	21784	DIBBS
5305-00-242-7275	2015-10-277	21315	DIBBS
MS5195715B	2015-07-208	80	US
MS5195715B	2015-07-208	120	US
MS5195715B	2015-07-208	248	US
MS51957-15B	2014-09-271	100	United States
MS51957-15B	2014-07-199	100	United States
MS5195715B	2013-07-206	210	US
MS5195715B	2013-01-18	50	United States
MS5195715B	2013-01-16	50	United States
MS5195715B	2012-09-262	4	United States
MS5195715B	2012-06-173	20	India
10027010113	2012-05-145	15	United States
MS5195715B	2008-05-137	100	US
MS5195715B	2008-05-137	100	US
5305-00-242-7275	2008-05-131	300	United States
MS5195715B	2006-08-223	4	US

Cross Reference | NSN 5305-00-242-7275

Part Number	Cage Code	Manufacturer
089-6344-06	22373	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
10027010-113	94580	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
12305906	52542	SYSTRON-DONNER CORP MICROWAVE/INSTRUMENT DIV
222388-015	81413	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
2504410-355	07187	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
284-516-0406	95542	NORTHROP GRUMMAN SYSTEMS CORPORATION
284-516-0406	C1834	KONTRON AG
31138600012	SD454	ELBIT SYSTEMS SAR AND DATA LINKS -ELISRA LTD.
904385-15	05257	GENERAL DYNAMICS CANADA LTD
950726-2	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
AH726-2	28971	AIRHARDWARE INC
BH247188-6	98869	HOWELL INSTRUMENTS, INC.
BH24718B-6	98869	HOWELL INSTRUMENTS, INC.
F13-4-6LG	72314	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
HA1759A00	F6371	INEO DEFENSE SOPHIA ANTIPOLISVALBONNE
MS51957-15B	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-242-7275

Compare

Related Products | NSN 5305-00-242-7275

5305-00-242-7276, 5305-00-242-7929, 5305-00-242-8051, 5305-00-242-8827, 5305-00-242-9124

Technical Data | NSN 5305-00-242-7275

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC

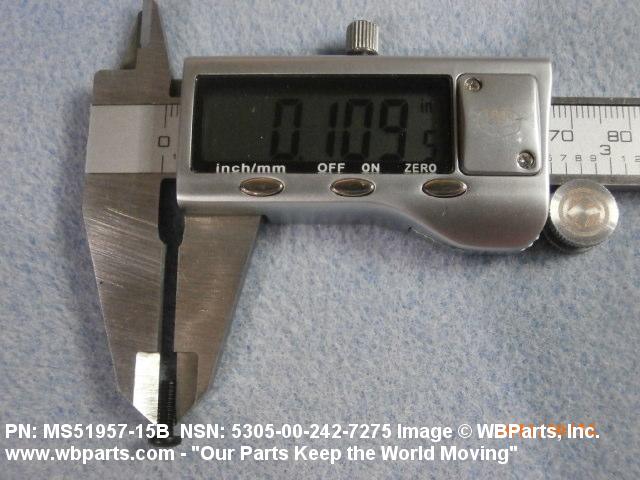

NOMINAL THREAD DIAMETER	0.112 INCHES
THREAD QUANTITY PER INCH	40
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.294 INCHES MINIMUM AND 0.375 INCHES MAXIMUM

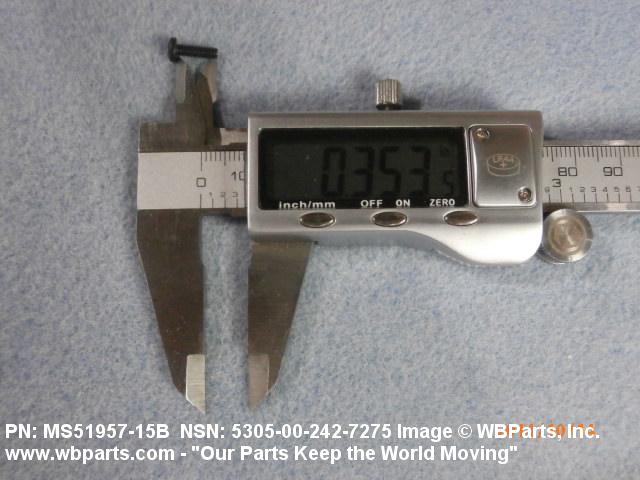

FASTENER LENGTH	0.344 INCHES MINIMUM AND 0.375 INCHES MAXIMUM
SCREW MATERIAL	STEEL CORROSION RESISTING OR STEEL
SCREW MATERIAL DOCUMENT AND CLASSIFICATION	QQ-S-763,300 SERIES FED SPEC 1ST MATERIAL RESPONSE OR 66,300 SERIES FED STD 1ST MATERIAL RESPONSE OR COMP 16-18 OR 18-8 ASSN STD 2ND MATERIAL RESPONSE
SCREW SURFACE TREATMENT	OXIDE
SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-C-13924,CL 4 MIL SPEC SINGLE TREATMENT RESPONSE
MINIMUM TENSILE STRENGTH	80000 POUNDS PER SQUARE INCH
HEAD STYLE	A23 PAN
HEAD DIAMETER	0.205 INCHES MINIMUM AND 0.219 INCHES MAXIMUM
HEAD HEIGHT	0.070 INCHES MINIMUM AND 0.080 INCHES MAXIMUM
INTERNAL DRIVE STYLE	B1 CROSS RECESS TYPE 1
NONDEFINITIVE SPEC/STD DATA	3 TYPE AND 9C STYLE
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS51957-15B
