NSN 5305-00-208-1200 2167A, 00-208-1200, 002081200
Product Details | SETSCREW
5305-00-208-1200 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: 2167A, 5305-00-208-1200, 00-208-1200, 5305002081200, 002081200
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-208-1200 | 06672 ( SETSCREW ) |
Drawings & Photos | NSN 5305-00-208-1200
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-208-1200
Technical Data | NSN 5305-00-208-1200
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.625 INCHES |
| THREAD QUANTITY PER INCH | 11 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.875 INCHES MINIMUM |
| FASTENER LENGTH | 2.500 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.500 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.750 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | D21 WITHOUT INTERNAL DRIVE |
| HOLE CONFIGURATION STYLE | E6 HEXAGON FLATS |
| HOLE TYPE | DRILLED |
| HOLE QUANTITY | 1 |
| HOLE DIAMETER | 0.064 INCHES NOMINAL |

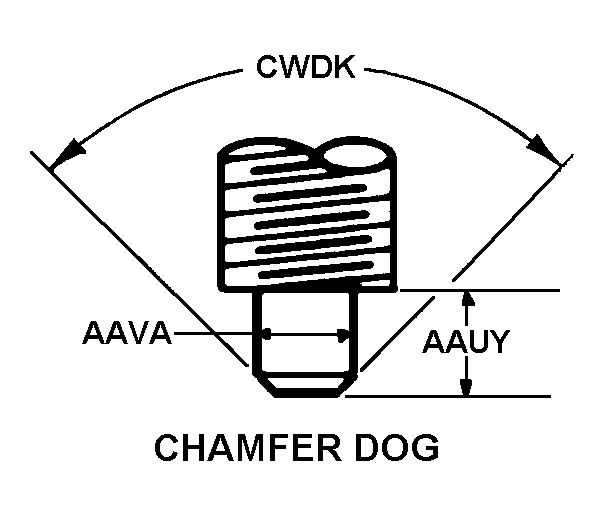

| POINT STYLE | F5 CHAMFER DOG |
| POINT LENGTH | 0.500 INCHES NOMINAL |
| POINT DIAMETER | 0.500 INCHES NOMINAL |
| POINT CHAMFER ANGLE | 30.0 DEGREES NOMINAL |
| MANUFACTURERS CODE | 1ML14 |
| DESIGN CONTROL REFERENCE | 2167A |
