Product Details | MACHINE SCREW

5305-00-207-5315 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: 364967, 5305-00-207-5315, 00-207-5315, 5305002075315, 002075315

Hardware and Abrasives | Screws

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-207-5315

Drawings & Photos | NSN 5305-00-207-5315


Cross Reference | NSN 5305-00-207-5315

Part Number Cage Code Manufacturer
364967 06848 HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
364967 65702 PRECISION AIRMOTIVE LLC DBA PRECISION AIRMOTIVE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-207-5315

Technical Data | NSN 5305-00-207-5315

Characteristic Specifications
THREAD SERIES DESIGNATOR UNF
NOMINAL THREAD DIAMETER 0.190 INCHES
THREAD QUANTITY PER INCH 32
THREAD CLASS 3A
THREAD DIRECTION RIGHT-HAND
THREAD LENGTH 0.688 INCHES MINIMUM
FASTENER LENGTH 0.765 INCHES MINIMUM AND 0.812 INCHES MAXIMUM
SCREW MATERIAL STEEL
SCREW SURFACE TREATMENT CADMIUM
HARDNESS RATING 26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM

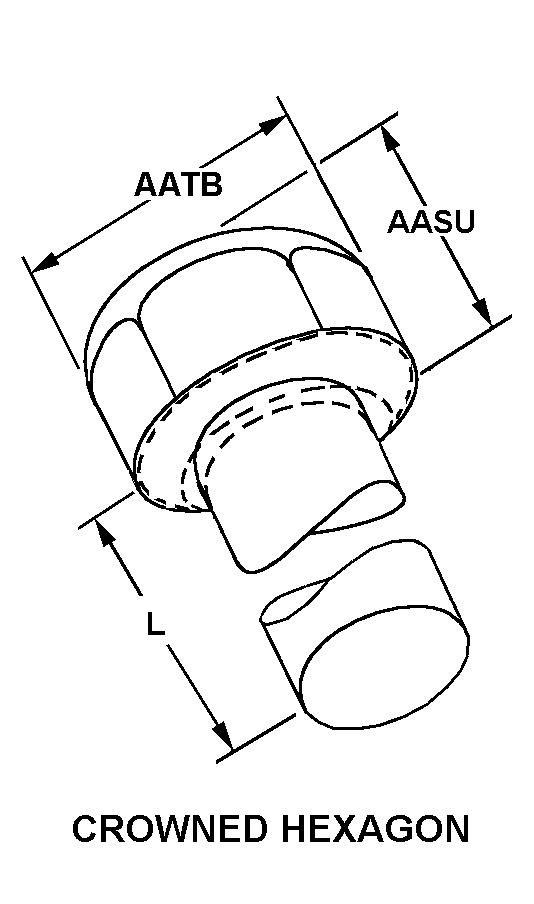

HEAD STYLE A4 CROWNED HEXAGON
HEAD HEIGHT 0.109 INCHES MINIMUM AND 0.141 INCHES MAXIMUM
WIDTH BETWEEN FLATS 0.365 INCHES MINIMUM AND 0.377 INCHES MAXIMUM
MANUFACTURERS CODE 65702
DESIGN CONTROL REFERENCE 364967
