Product Details | MACHINE SCREW
5305-00-207-3741 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: NAS51749, NAS517-4-9, 8538405, 5305-00-207-3741, 00-207-3741, 5305002073741, 002073741
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-207-3741 | 06657 ( SCREW, MACHINE ) |

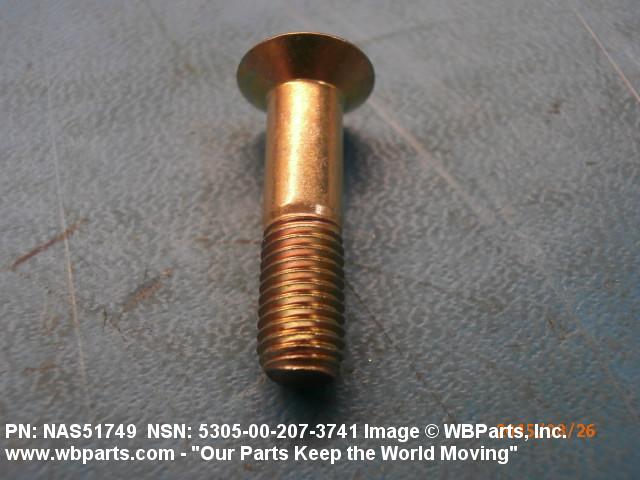

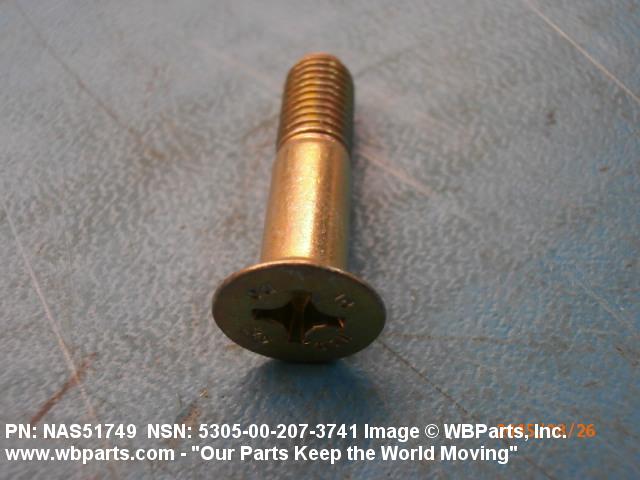

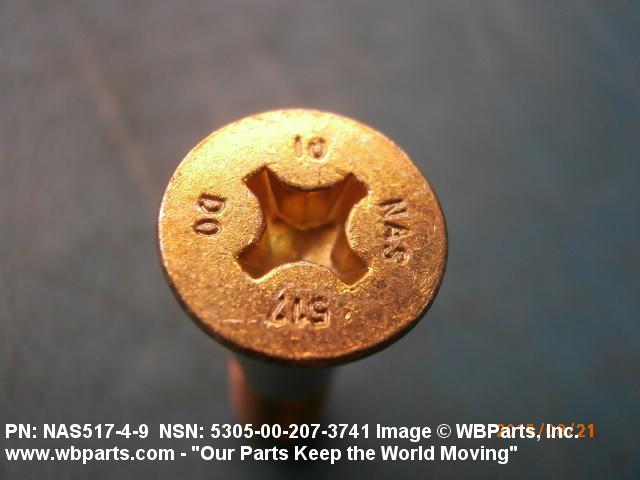

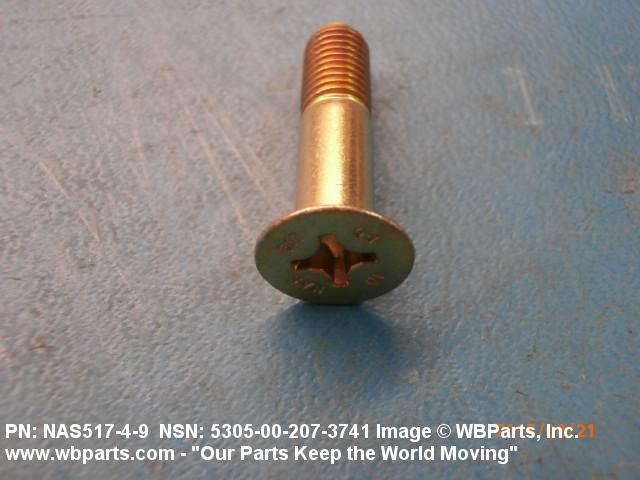

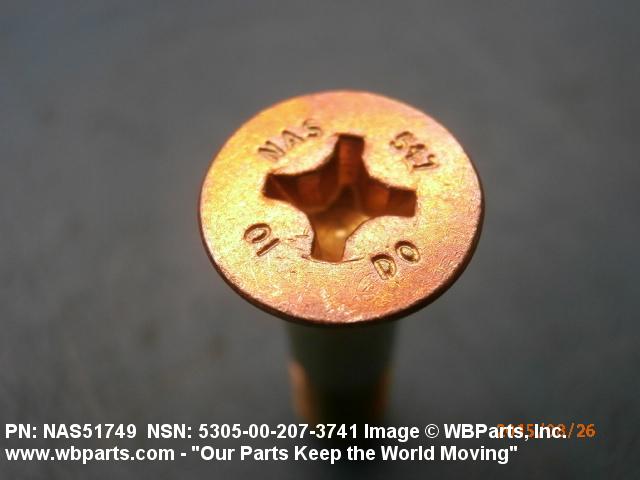

Drawings & Photos | NSN 5305-00-207-3741
Demand History | NSN 5305-00-207-3741
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-207-3741 | 2021-11-307 | 429 | MY |
| NAS51749 | 2018-01-24 | 2 | United States |
| 5305-00-207-3741 | 2017-11-332 | 20 | US |
| 5305-00-207-3741 | 2017-05-137 | 2 | US |
| NAS51749 | 2015-08-232 | 100 | United States |
| NAS51749 | 2015-08-223 | 100 | United States |
| 5305-00-207-3741 | 2013-11-325 | 1 | DIBBS-RFPs |
| 5305-00-207-3741 | 2013-10-291 | 1 | DIBBS-RFPs |
| 5305-00-207-3741 | 2013-09-246 | 1 | DIBBS-RFPs |
| 5305-00-207-3741 | 2009-02-33 | 900 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-207-3741
Technical Data | NSN 5305-00-207-3741

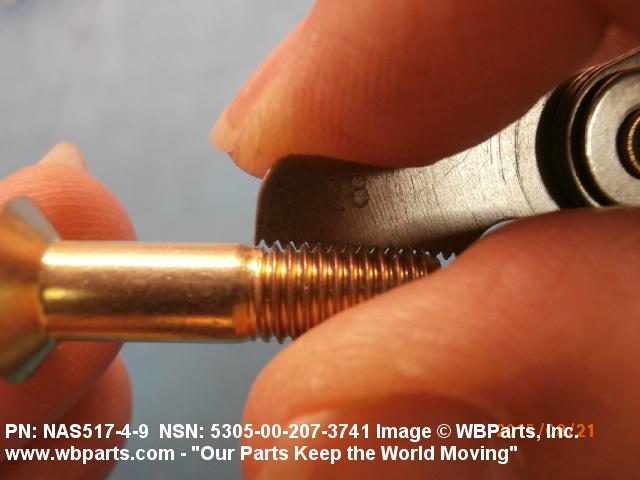

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

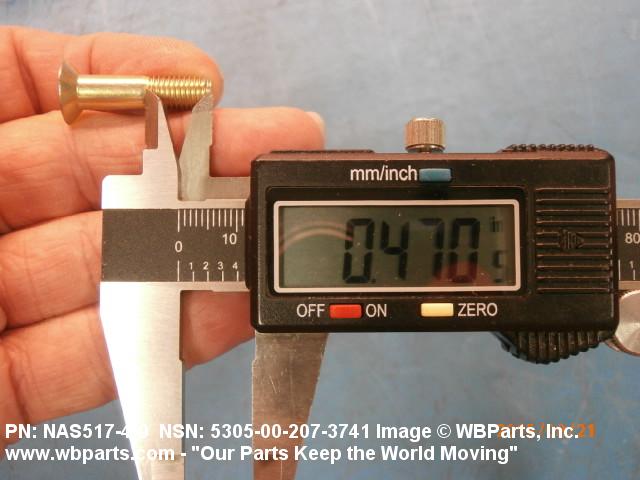

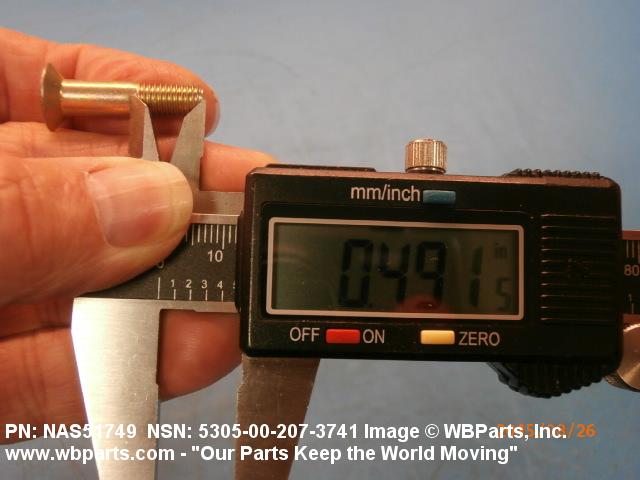

| THREAD LENGTH | 0.368 INCHES MINIMUM AND 0.514 INCHES MAXIMUM |

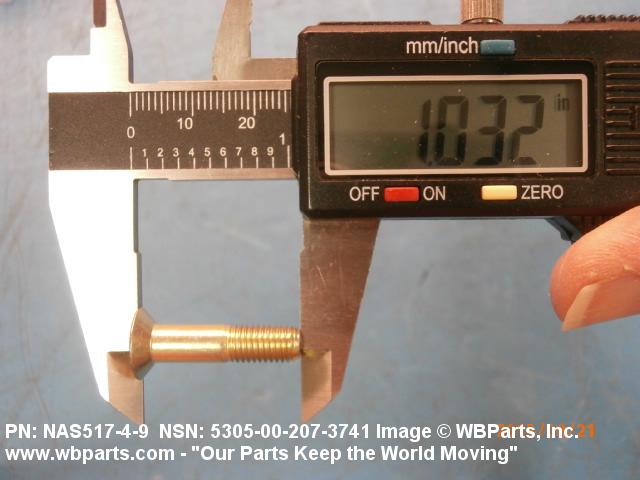

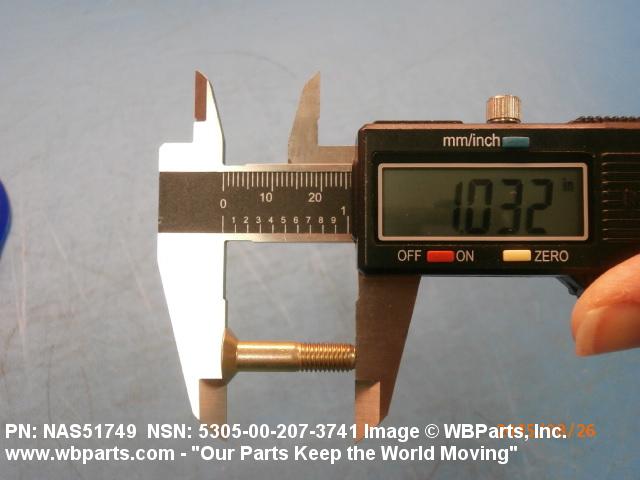

| FASTENER LENGTH | 1.016 INCHES MINIMUM AND 1.061 INCHES MAXIMUM |
| SCREW MATERIAL | STEEL COMP 8630 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6050 MIL SPEC SINGLE MATERIAL RESPONSE OR AN-S-9 MIL STD SINGLE MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |

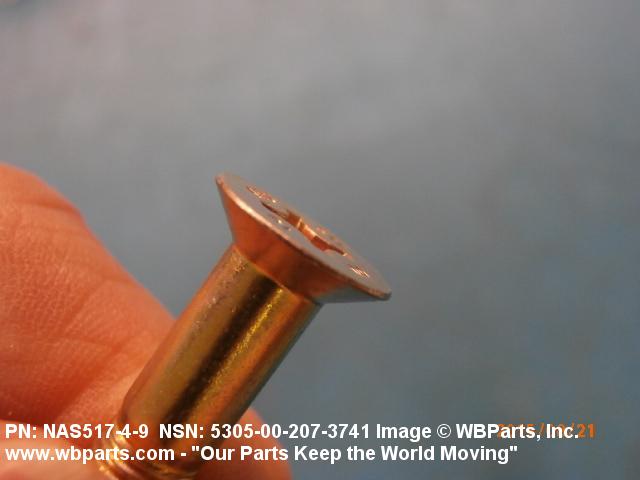

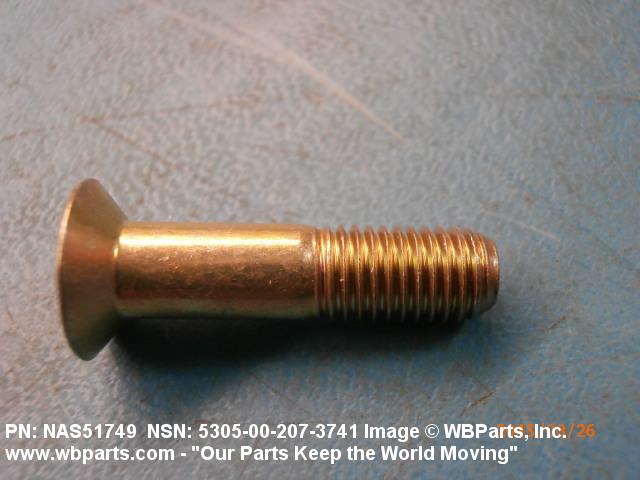

| HEAD STYLE | A39 FLAT COUNTERSUNK |

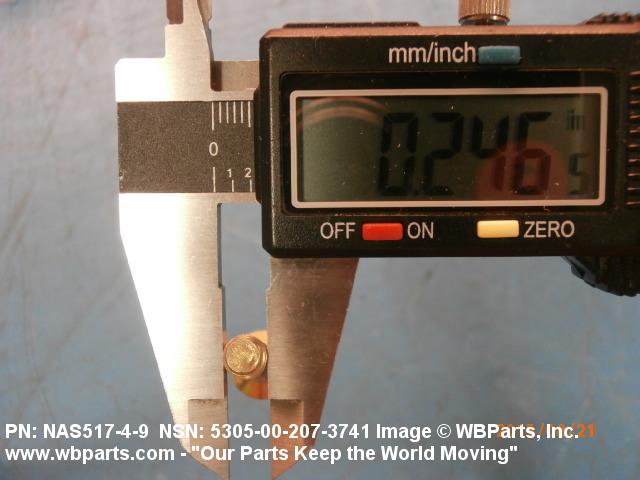

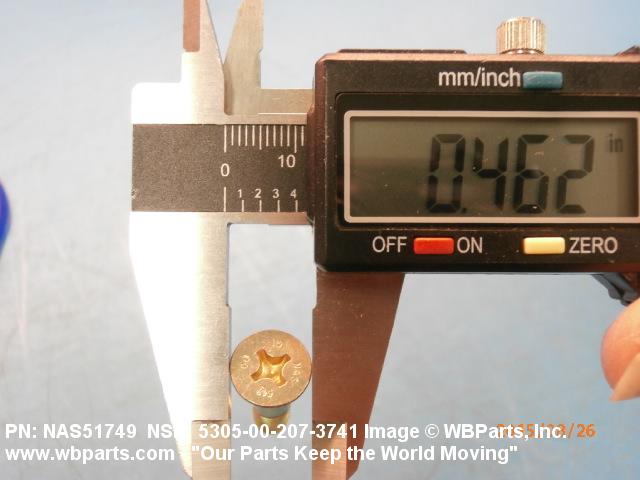

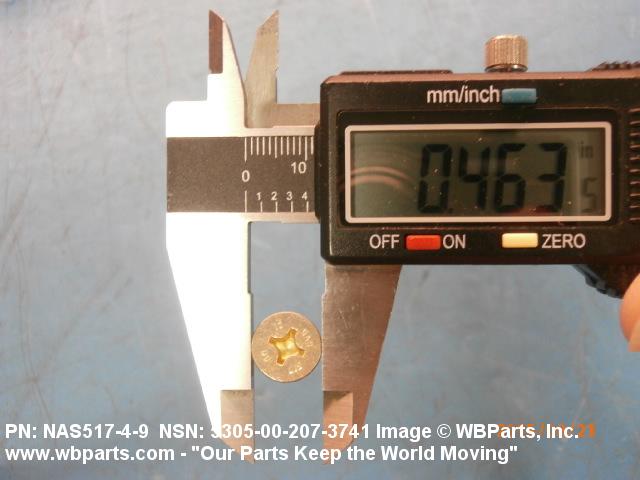

| HEAD DIAMETER | 0.452 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |

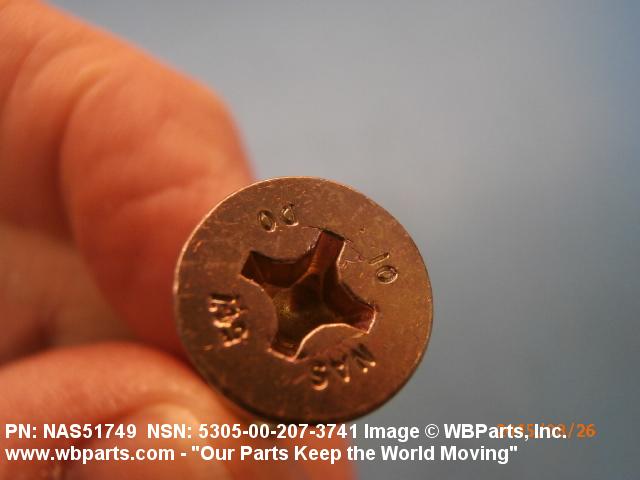

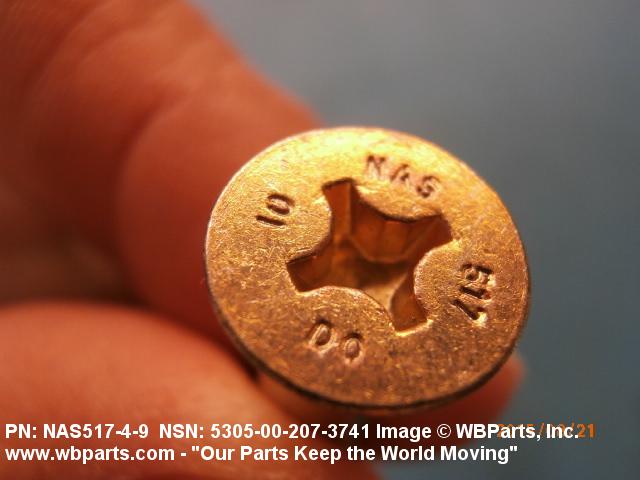

| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
