NSN 5305-00-206-5401 NAS51736, NAS517-3-6, 10125052

Product Details | MACHINE SCREW

5305-00-206-5401 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: NAS51736, NAS517-3-6, 10125052 , 2012025, 5305-00-206-5401, 00-206-5401, 5305002065401, 002065401

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-206-5401	06657 ( SCREW, MACHINE )

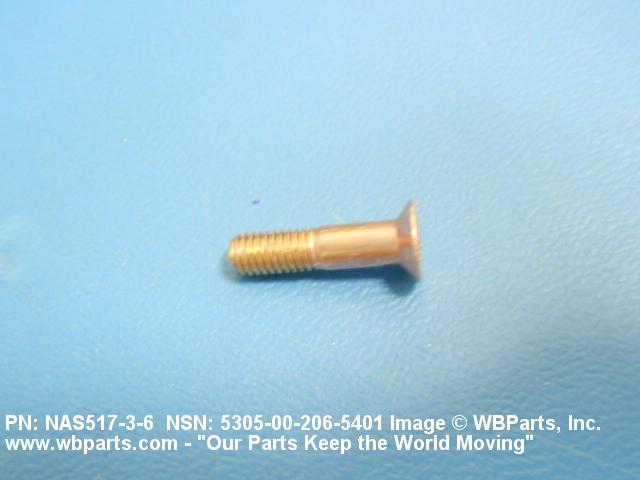

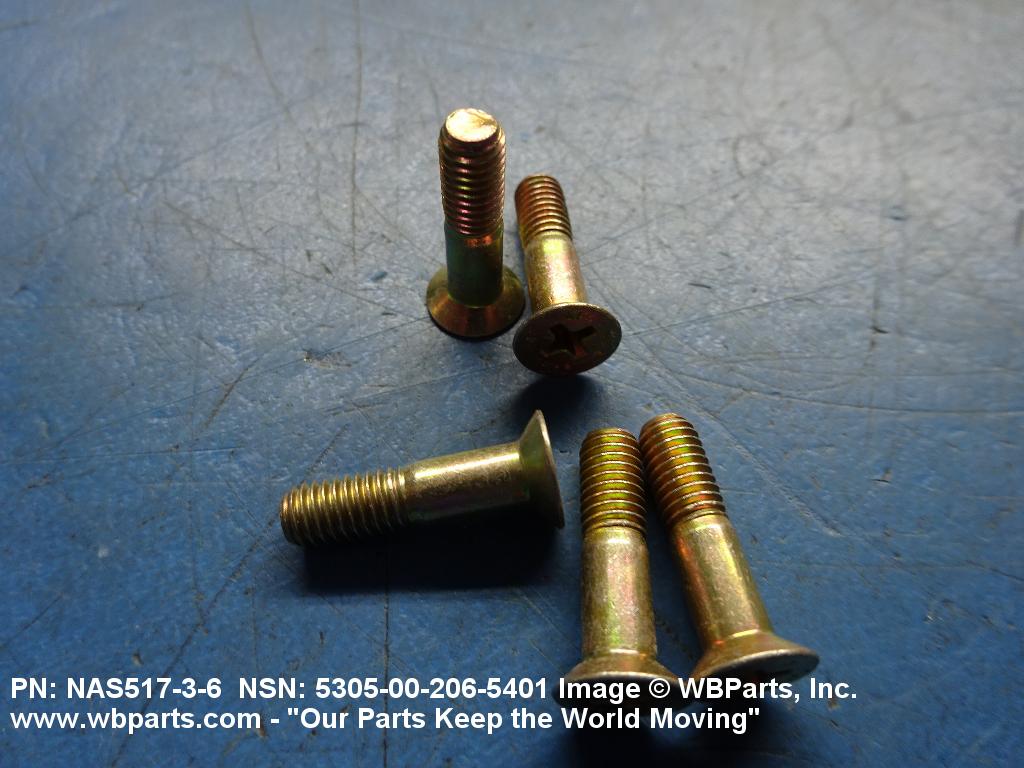

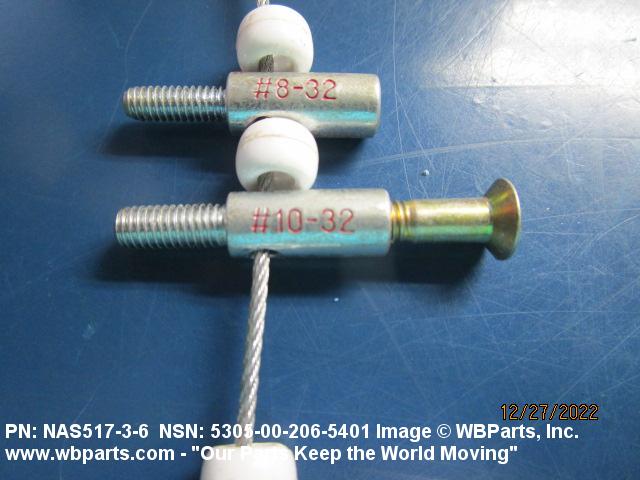

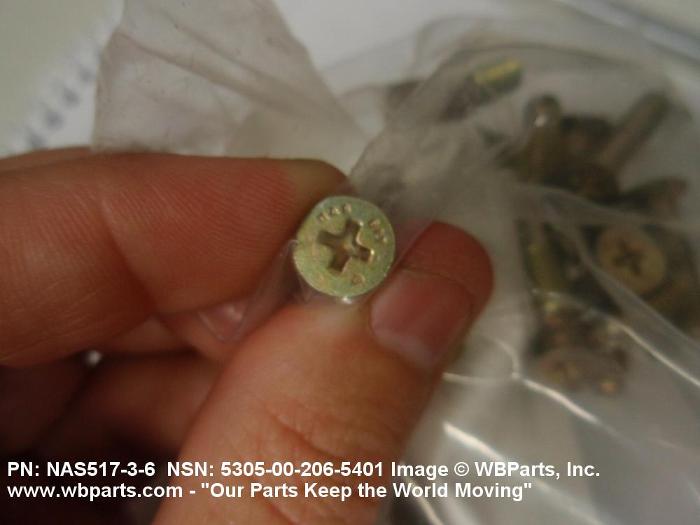

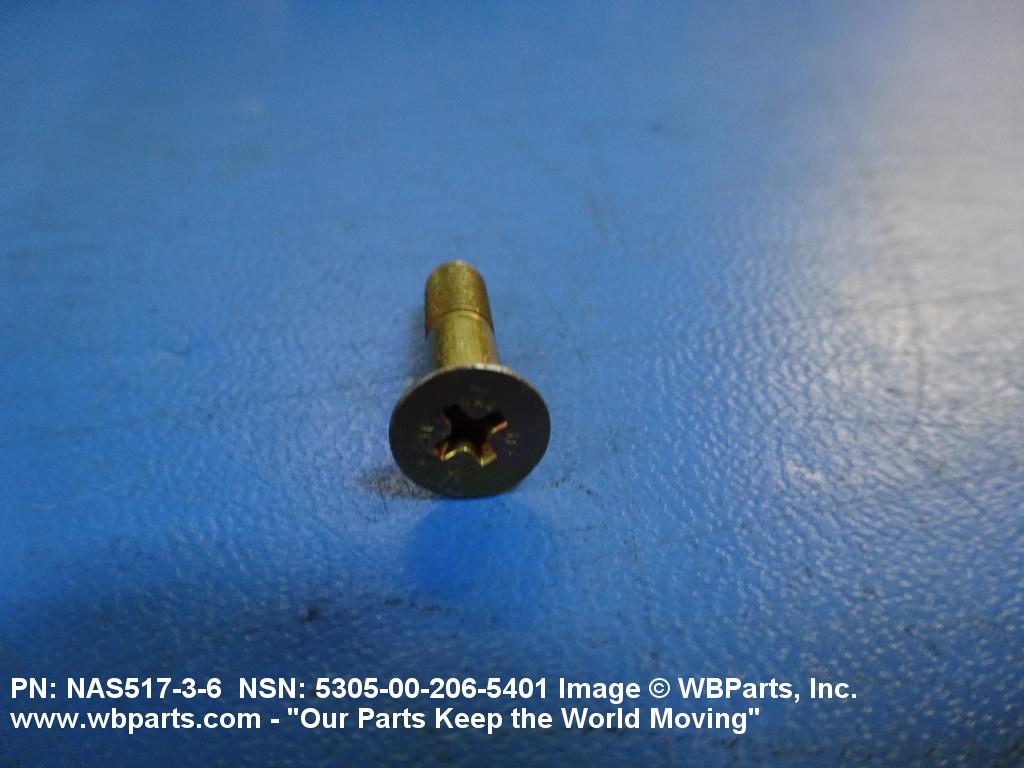

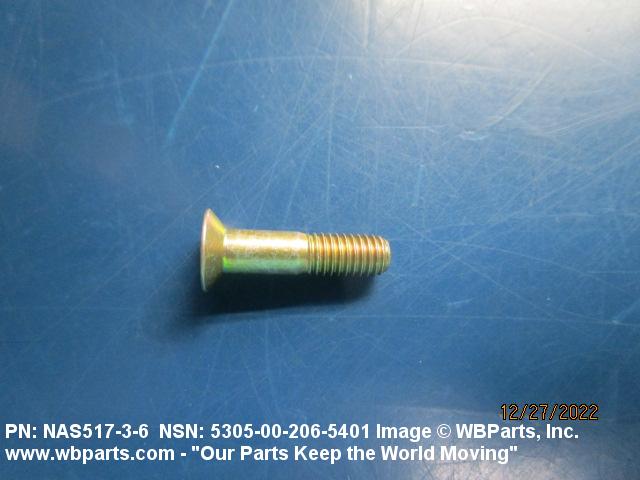

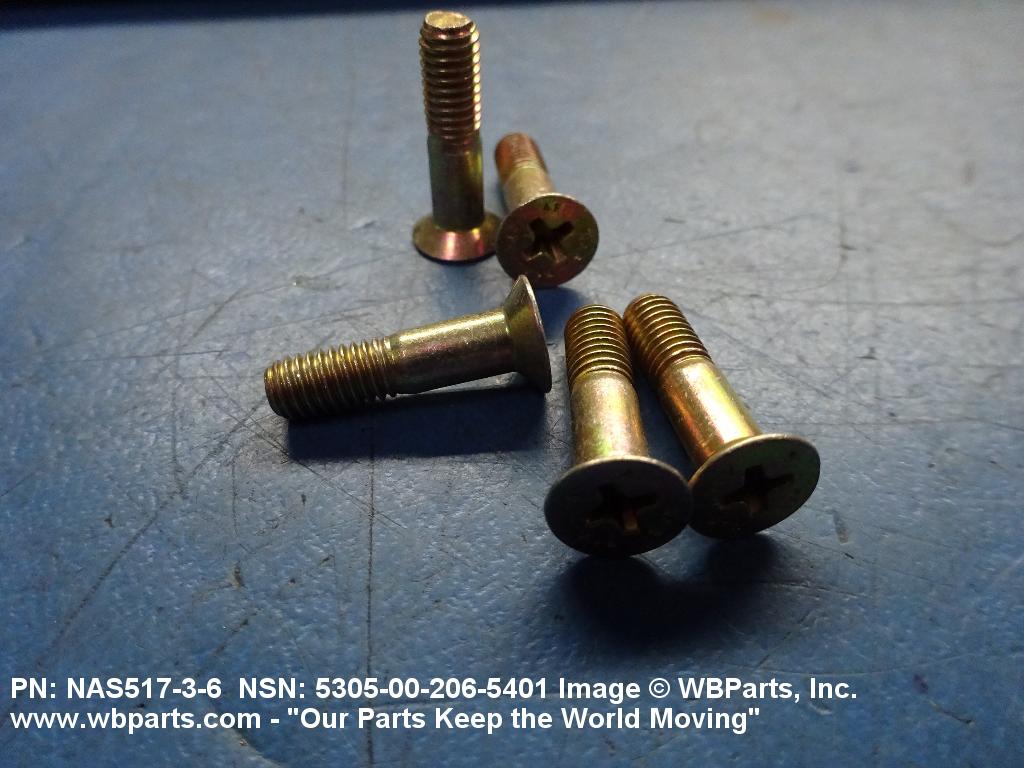

Drawings & Photos | NSN 5305-00-206-5401

Part Number	Request Date	QTY	Origin
NAS51736	2024-08-226	14	Japan
NAS51736	2023-05-137	1300	United States
NAS517-3-6	2023-01-05	50	United States
NAS51736	2022-12-349	1200	United States
NAS51736	2021-05-138	581	Malaysia
NAS51736	2021-04-102	58	Malaysia
NAS51736	2020-11-321	140	US
NAS51736	2020-04-97	500	Malaysia
5305-00-206-5401	2017-08-235	200	Malaysia
5305-00-206-5401	2017-08-235	200	Malaysia
5305-00-206-5401	2017-08-235	200	Malaysia
5305-00-206-5401	2017-02-53	18	MANUAL
5305-00-206-5401	2016-11-327	1	DIBBS-RFPs
NAS51736	2016-10-293	200	Taiwan
NAS51736	2016-09-250	8	Malaysia
5305-00-206-5401	2016-08-235	8	Malaysia
NAS51736	2015-01-07	60	US
NAS51736	2014-12-336	408	US
NAS51736	2012-10-282	300	France
NAS51736	2012-07-191	644	US
NAS51736	2012-02-40	25	Pakistan
NAS51736	2011-08-241	25	France
5305-00-206-5401	2011-06-168	10	US
NAS51736	2011-04-105	80	Singapore
NAS51736	2010-10-295	500	US
5305-00-206-5401	2010-05-123	4000	DIBBS
NAS51736	2010-02-39	400	Italy
NAS51736	2009-03-82	400	Italy

Cross Reference | NSN 5305-00-206-5401

Part Number	Cage Code	Manufacturer
2012025	001JK	EMBRAER S/A
2012025	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
NAS517-3-6	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-206-5401

Compare

Related Products | NSN 5305-00-206-5401

5305-00-206-5406, 5305-00-206-5408, 5305-00-206-5415, 5305-00-206-5420, 5305-00-206-5428

Technical Data | NSN 5305-00-206-5401

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNJF

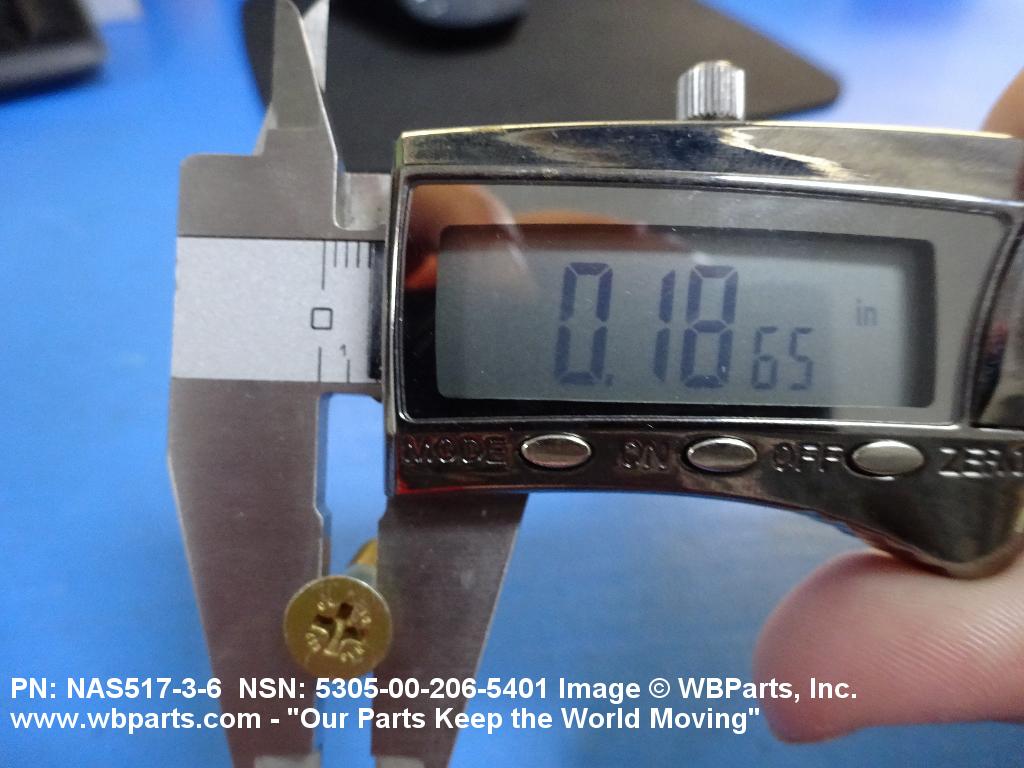

NOMINAL THREAD DIAMETER	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND

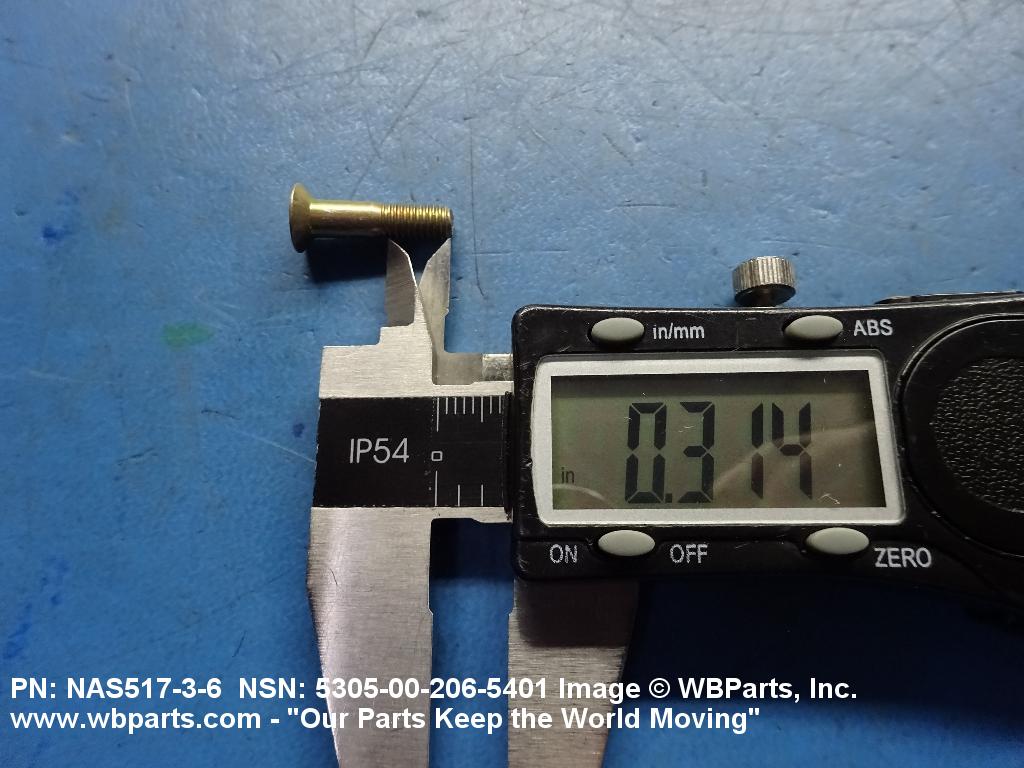

THREAD LENGTH	0.315 INCHES MINIMUM AND 0.451 INCHES MAXIMUM

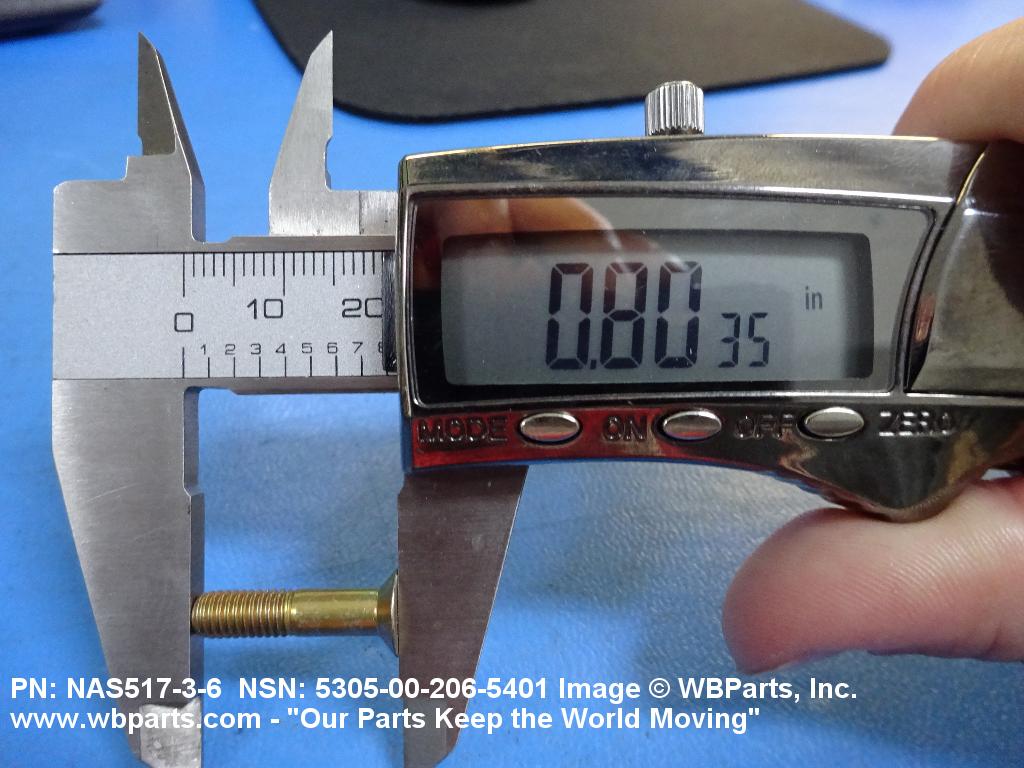

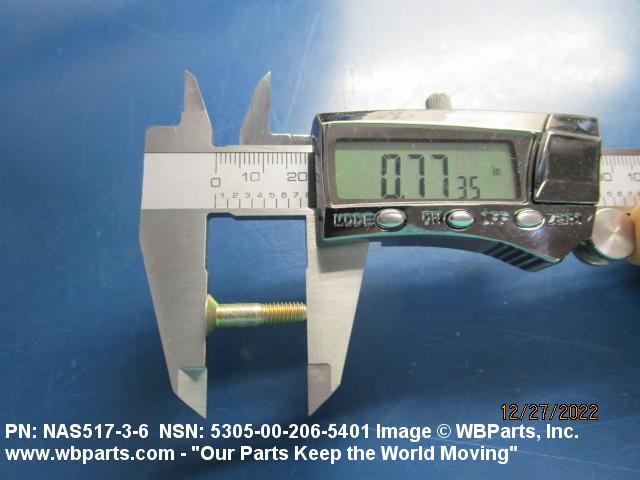

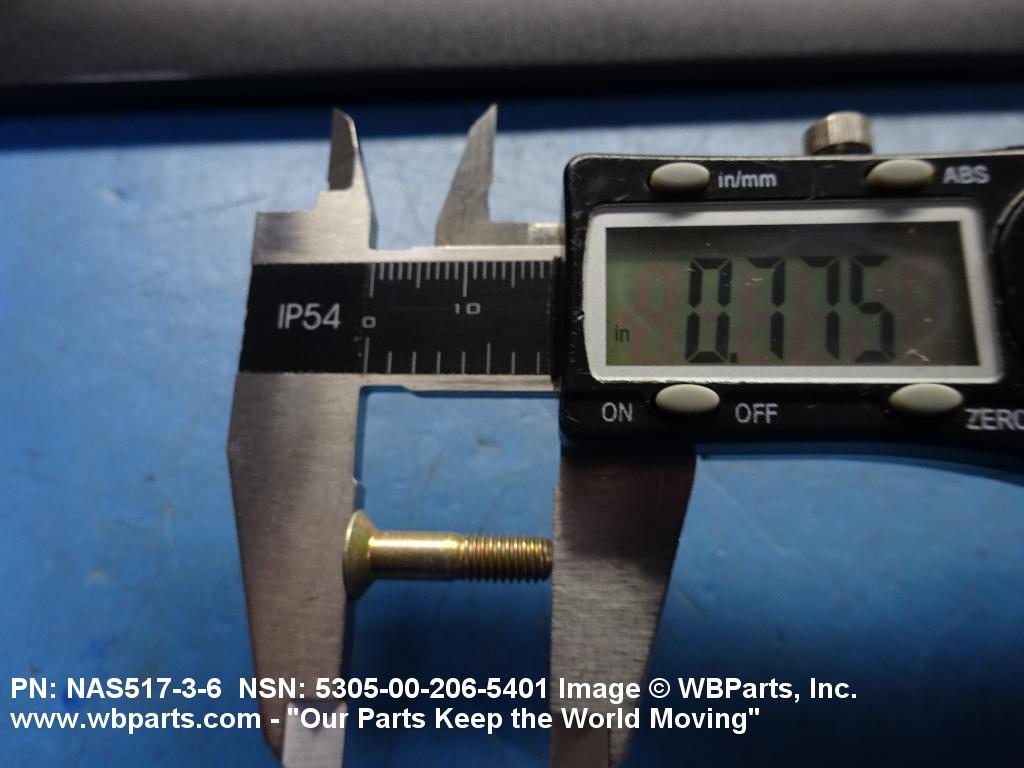

FASTENER LENGTH	0.766 INCHES MINIMUM AND 0.811 INCHES MAXIMUM
SCREW MATERIAL	STEEL COMP 8630
SCREW MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-6050 MIL SPEC SINGLE MATERIAL RESPONSE OR AN-S-9 MIL STD SINGLE MATERIAL RESPONSE
SCREW SURFACE TREATMENT	CADMIUM AND CHROMATE
SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE
HARDNESS RATING	36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM
MINIMUM TENSILE STRENGTH	160000 POUNDS PER SQUARE INCH

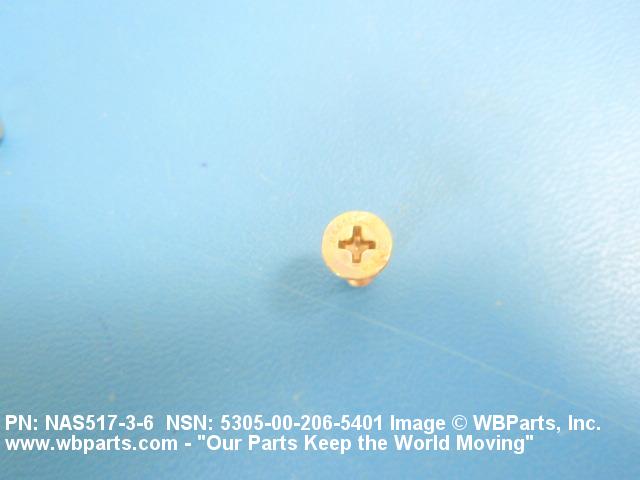

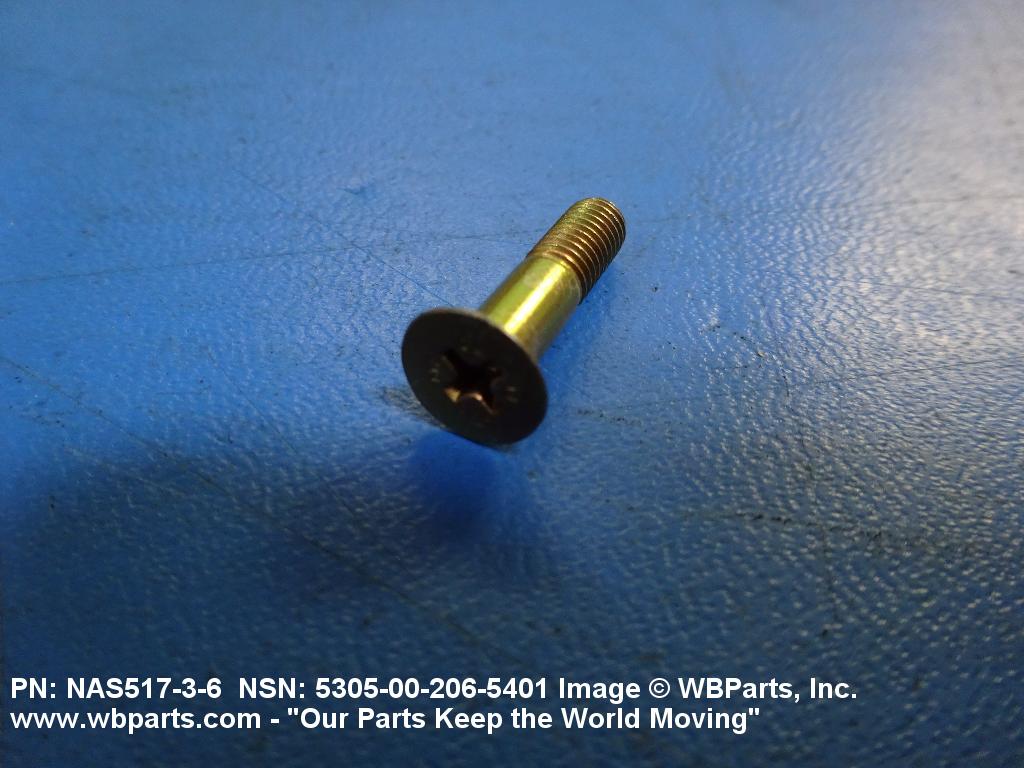

HEAD STYLE	A39 FLAT COUNTERSUNK

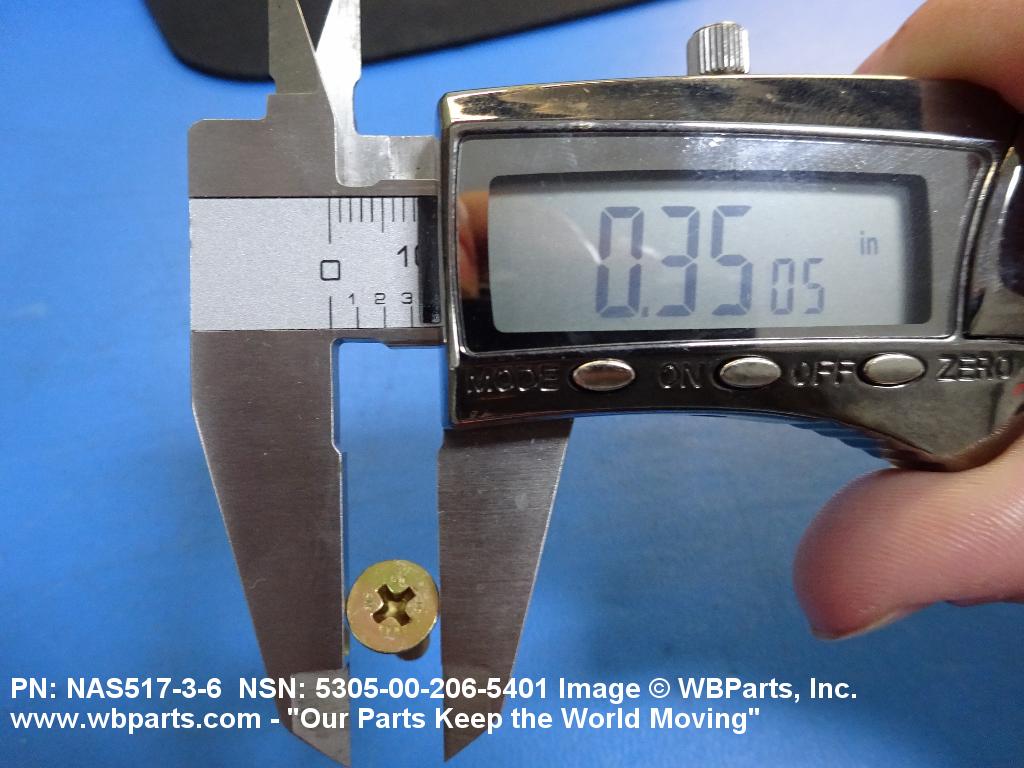

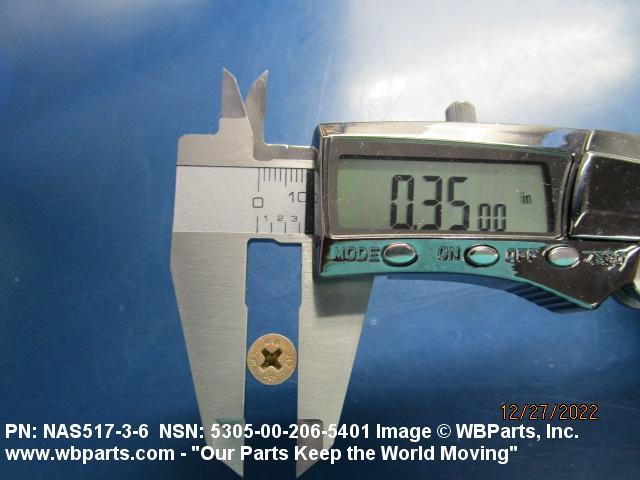

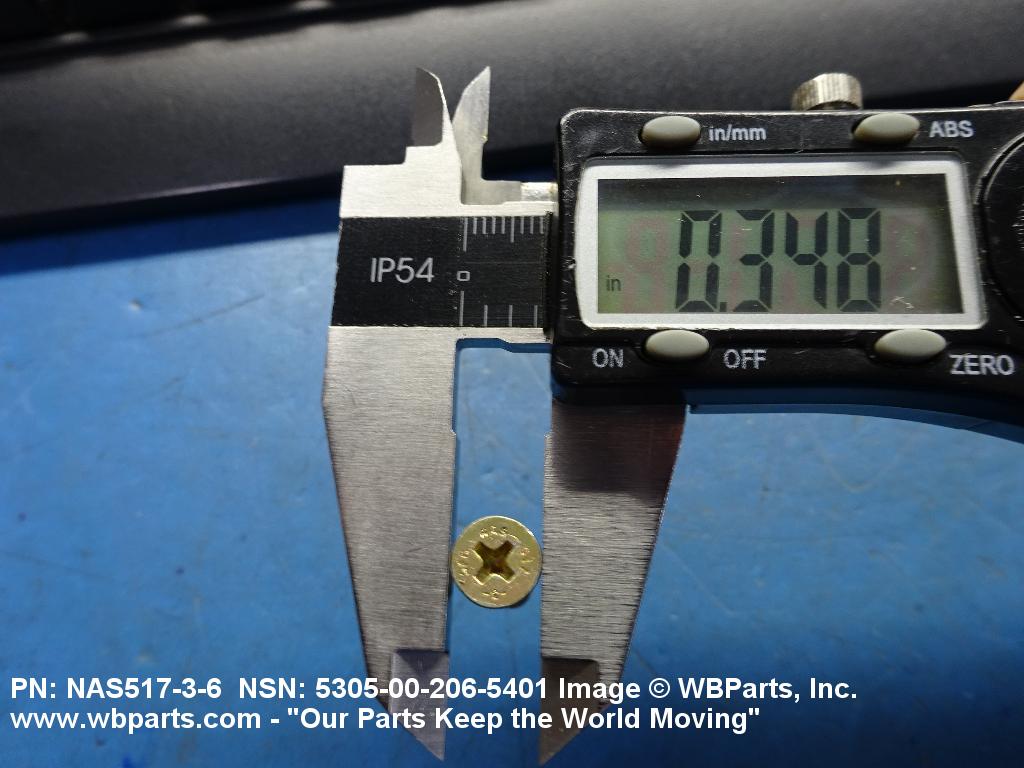

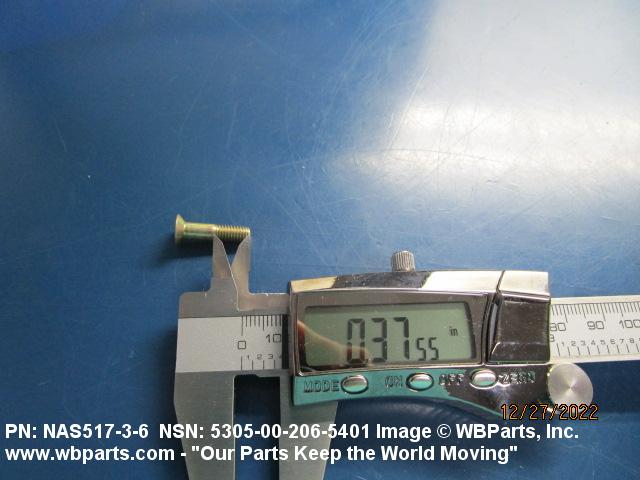

HEAD DIAMETER	0.337 INCHES MINIMUM AND 0.387 INCHES MAXIMUM
